Week - 4

1)

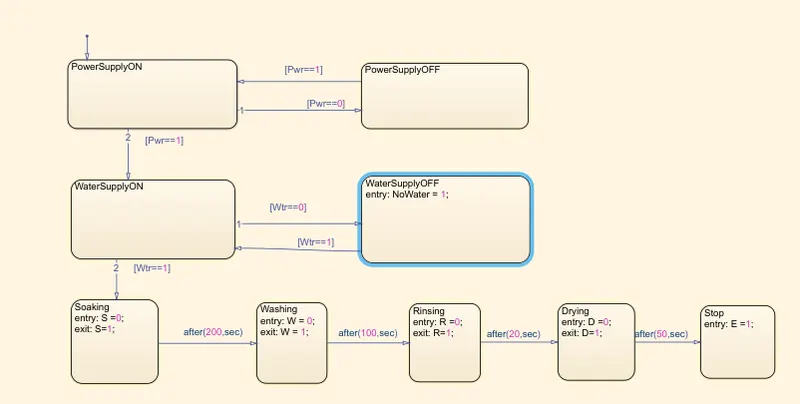

Initially After Power is ON, flow is towards WaterSupplyON State, Here we check if water supply is there through variable Wtr(input)

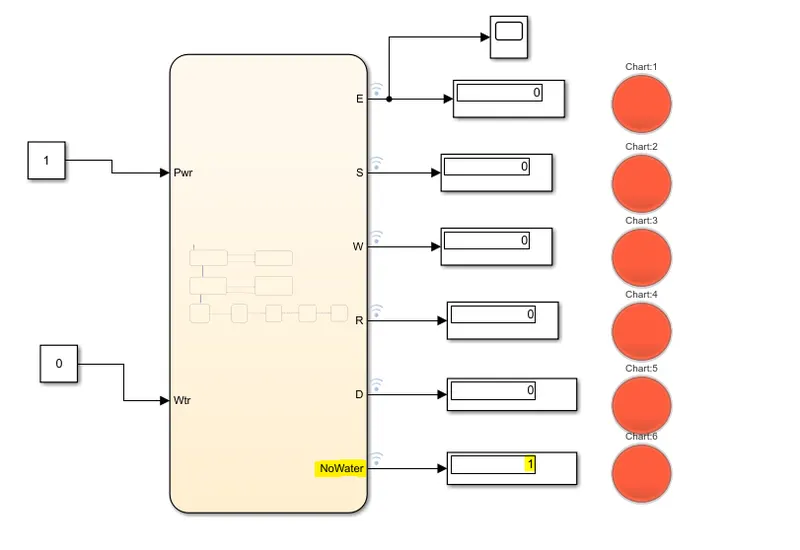

If Wtr = 0; Then it foes to WaterSupplyOFF state and assign NoWater(output) to 1, Which will enable RED light in Lamp

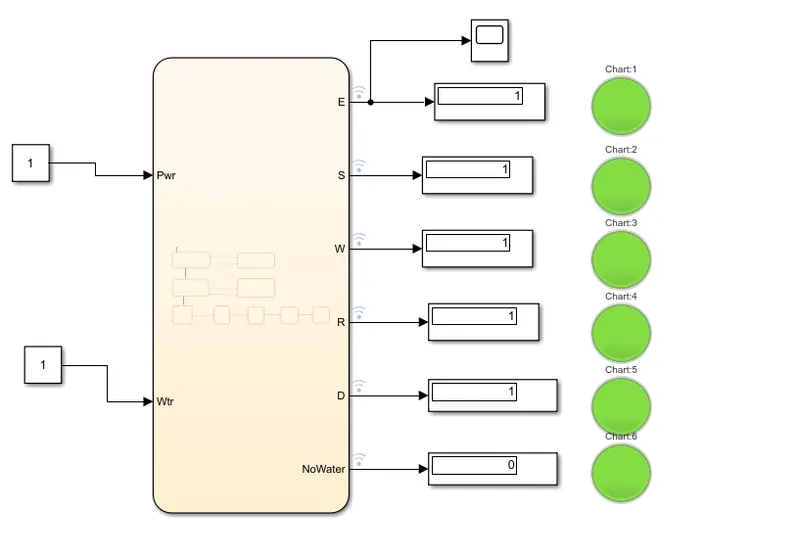

If Wtr =1; Then It moves to Soaking State and Assign S = 0. After 200 sec, S becomes 1 and moves to Washing State . Here all the output Variables are connected to Lamp, After every successful completion of task state Lamp turns Green.

Similarly all state variables becomes 1 when it exits its state. After All the task is done E becomes 1 to state that process is Over.

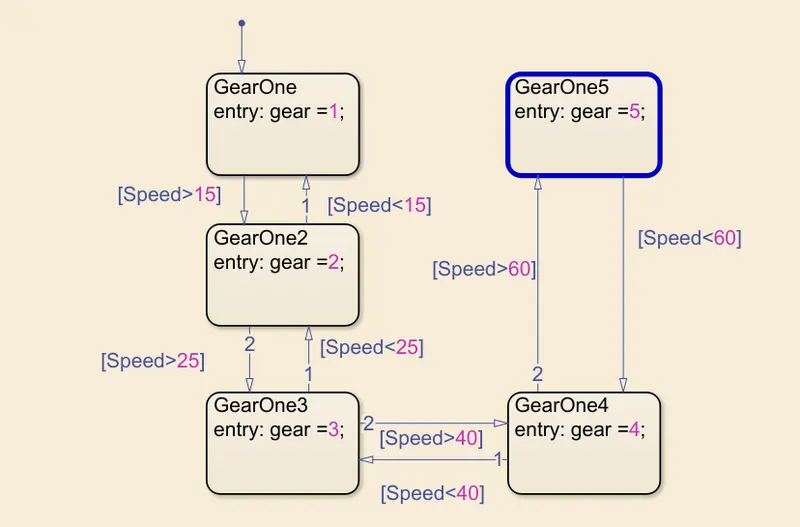

2) As per the given Criteria, Gear Shifts as Speed Increases and Viceversa.

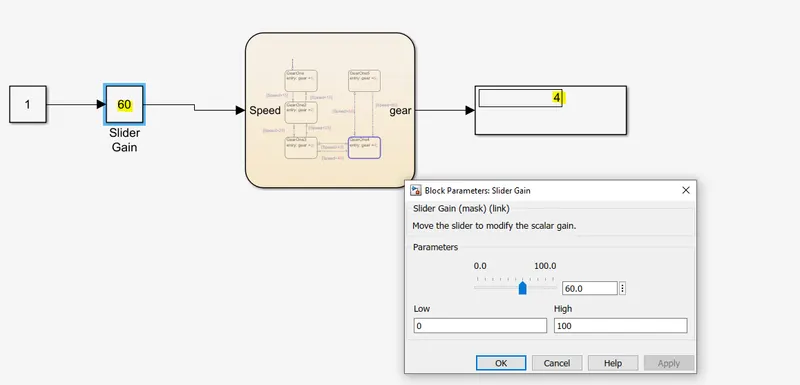

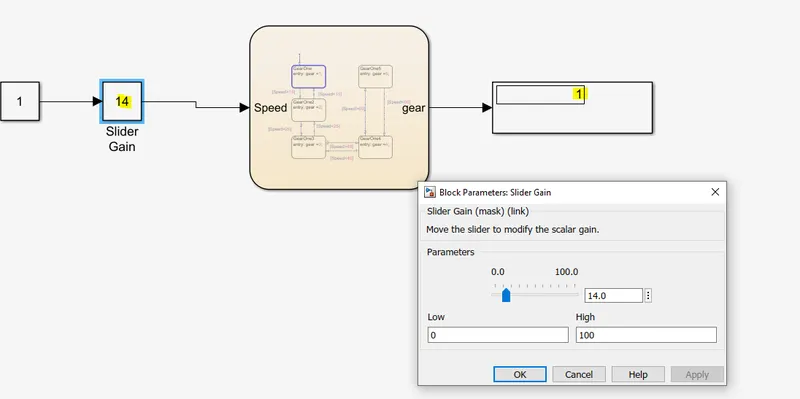

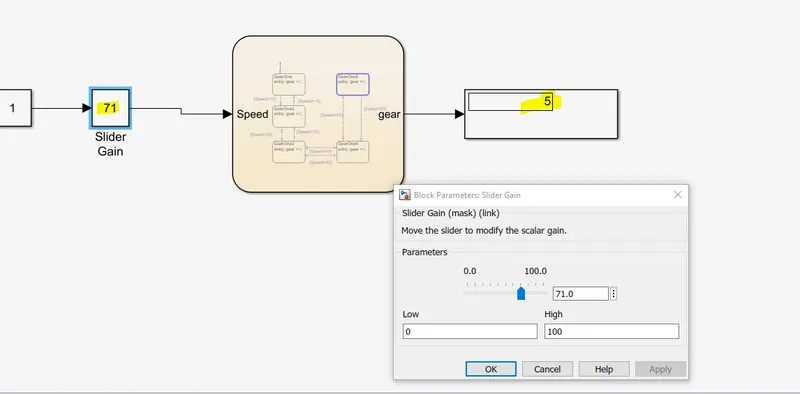

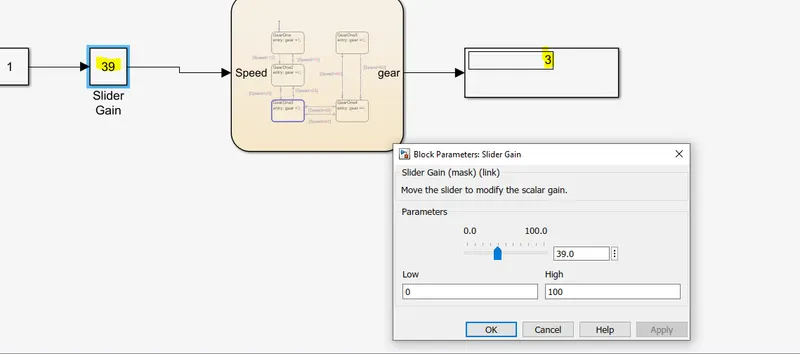

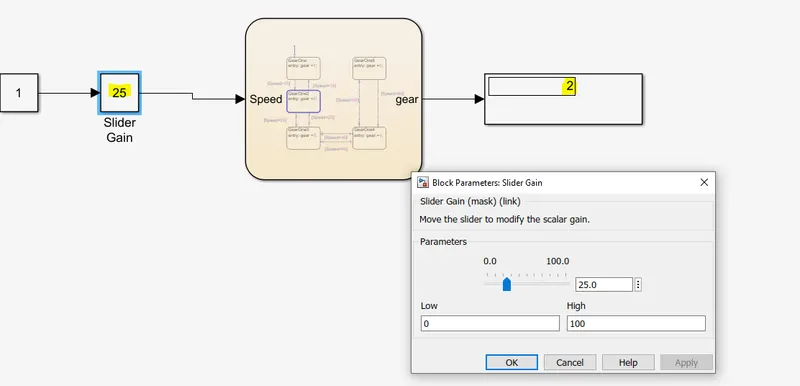

Below are Snippets of Model taken at every Gear Shift which is Displayed
