problem 1

Implement control logic of a “washing machine” using Stateflow

• If the power supply is available, the system gets activated
• If the Water supply is not available, stop the process & indicate through LED
• Soaking time should be 200s followed by Washing time of 100s.
• Then rinsing happens for next 20s & dryer runs for 50s

After all the processes have completed turn on the finished LED

MODEL :-

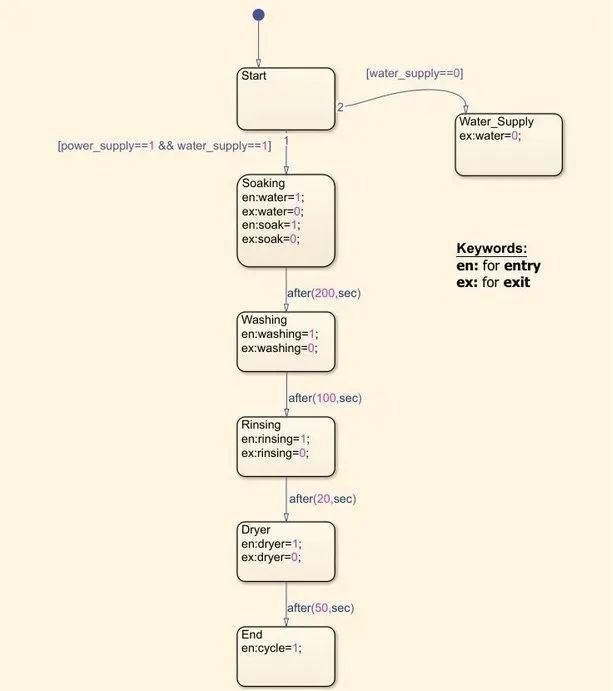

flow chart:

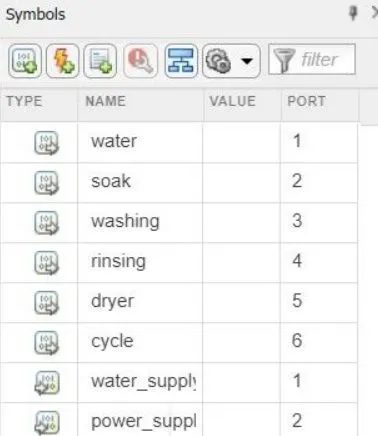

Parameter

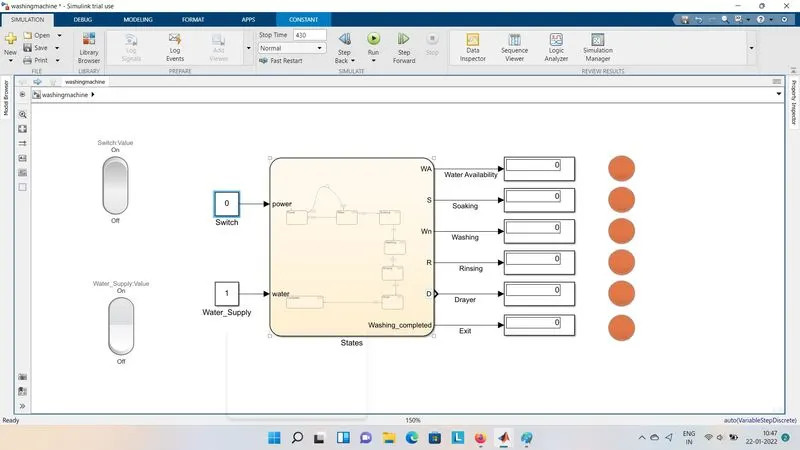

OUTPUT at CONDITION1

At this condtion switch is off and water is on but machine is not performing

vise versa is same

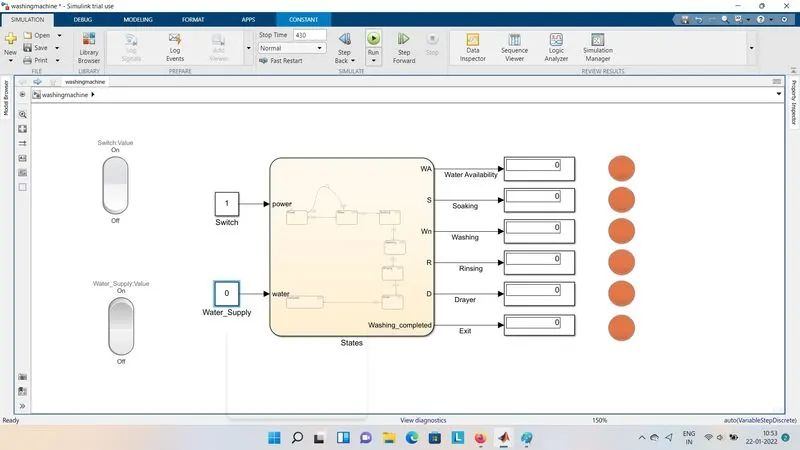

noe at condtion 2

at this condtion suplly is on but water is off still machine is not in woriking

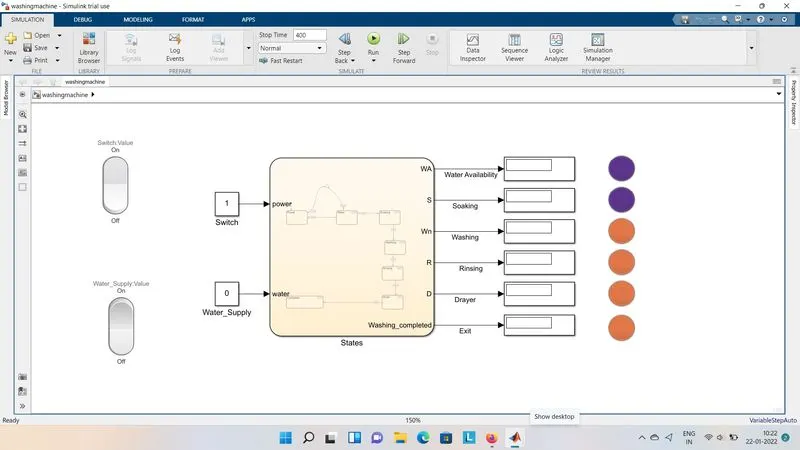

out put 3 at desired condtion

resullt

the washing machine result is satisfactory woith flow chart
