Week - 4

AIM-

1. Implement control logic of a “washing machine” using Stateflow as per given sequence:
2. If the power supply is available, the system gets activated
3. If the Water supply is not available, stop the process & indicate through LED
4. Soaking time should be 200s followed by Washing time of 100s.
5. Then rinsing happens for next 20s & dryer runs for 50s

MODEL:

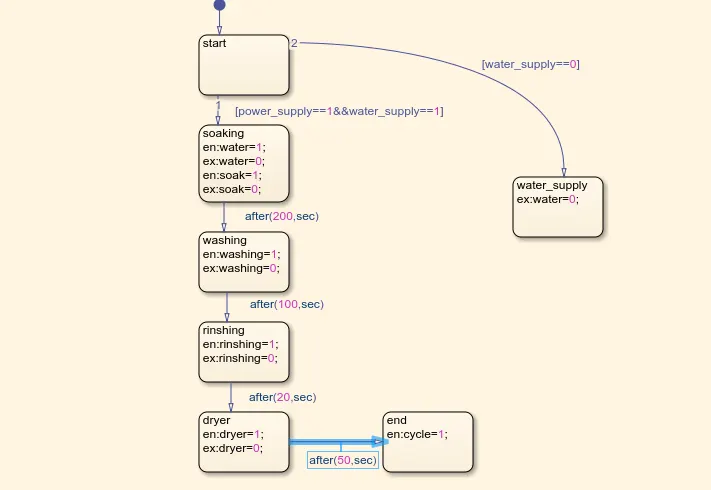

CHART DIAGRM

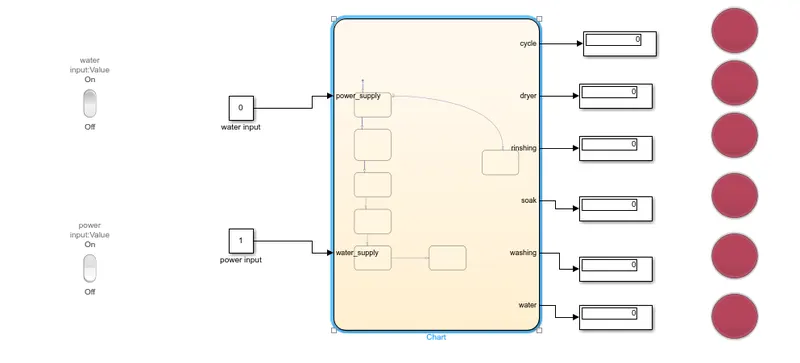

CONDITION 1

when water supply is OFF.

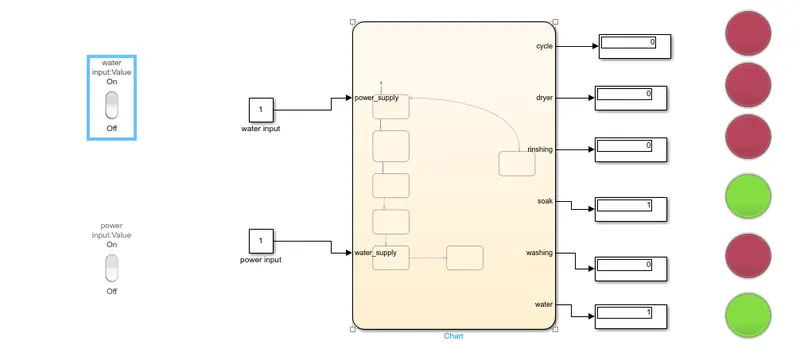

CONDITION 2

when water supply is ON

PARAMETERS

TASK 2

AIM-

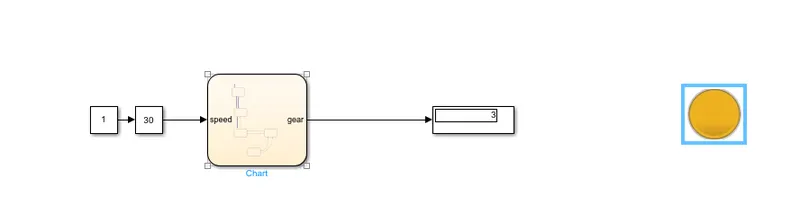

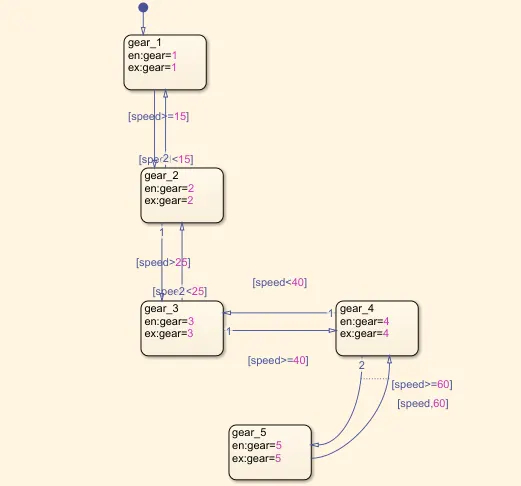

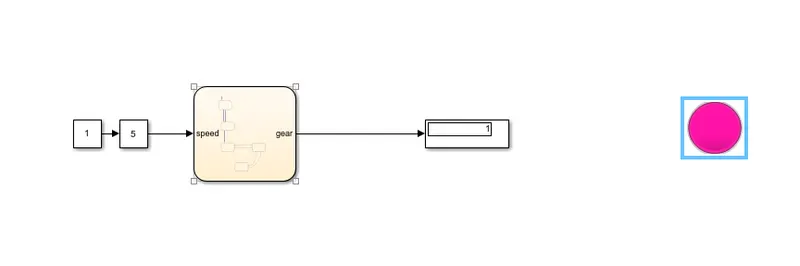

Make a Simulink chart for the “Gear shift” logic as per below conditions:

Speed Range(kmph) Gear

0 to 15 1

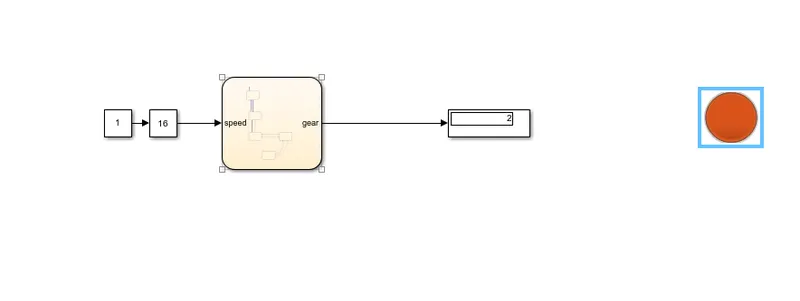

16 to 25 2

26 to 40 3

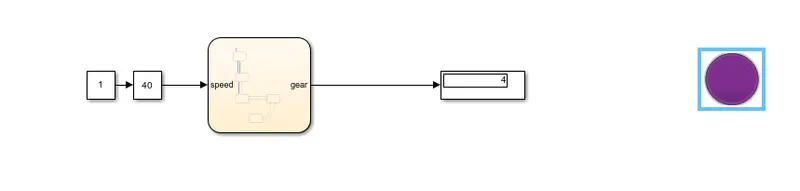

41 to 60 4

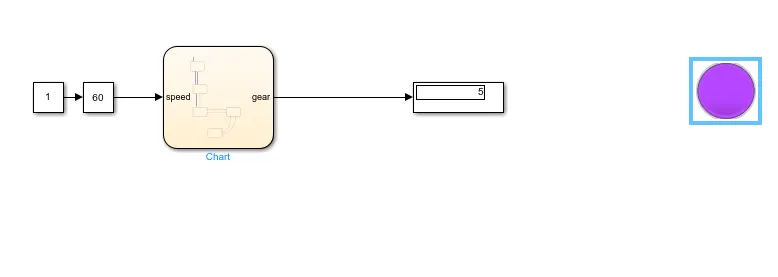

Above 61 5 \
