Week - 4 - 2D meshing for Plastic components

OBJECTIVE

Take the mid surface for all the components after checking the geometrical errors.

Mesh the mid surface with the given element Quality criteria.

Assign the thickness to the elements

PROCEDURE

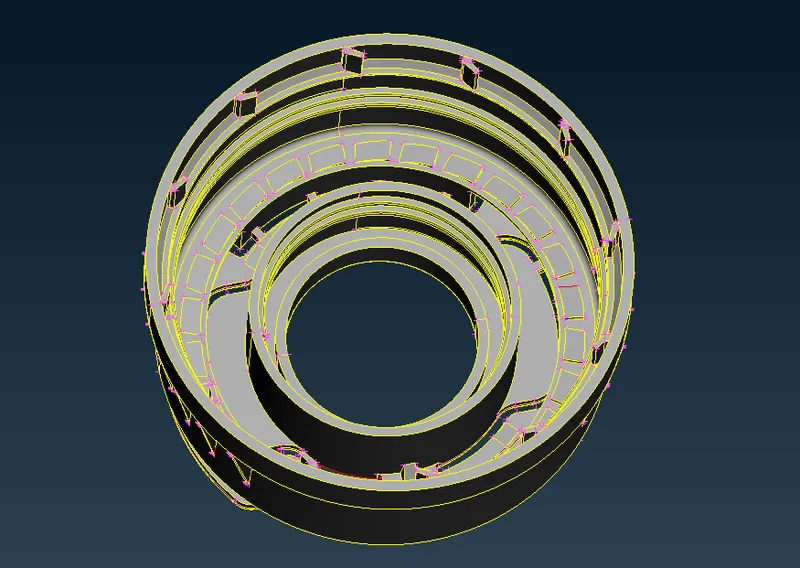

Import the geometry into ANSA by using the open option in the file menu.

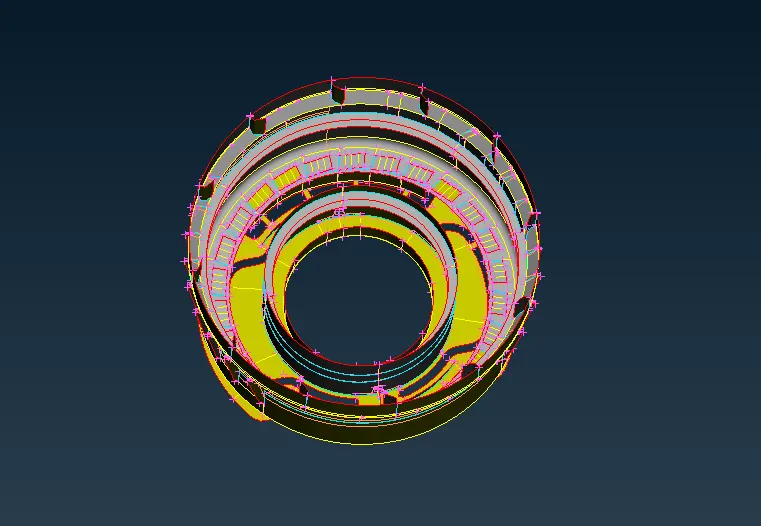

Check the geometry by using Checks > Geometry in the tool menu.
a.) Execute the check on each component to find the geometry errors

b.) Try eliminating the errors by using the autocorrect options initially, if that does not eliminate all errors use manual operations like deletion, creation or fusing of surfaces to eliminate the error
To Take the midsurface
a.) Measure the thickness of different components.

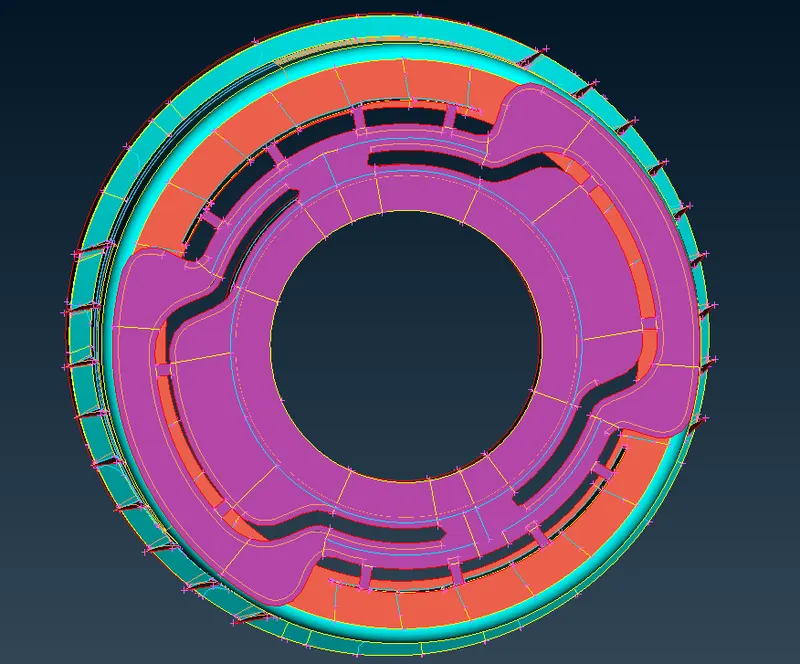

b.) Offset one side of the surfaces by distance equal to half the thickness to obtain the midsurface of the component and repeat the process for each component.

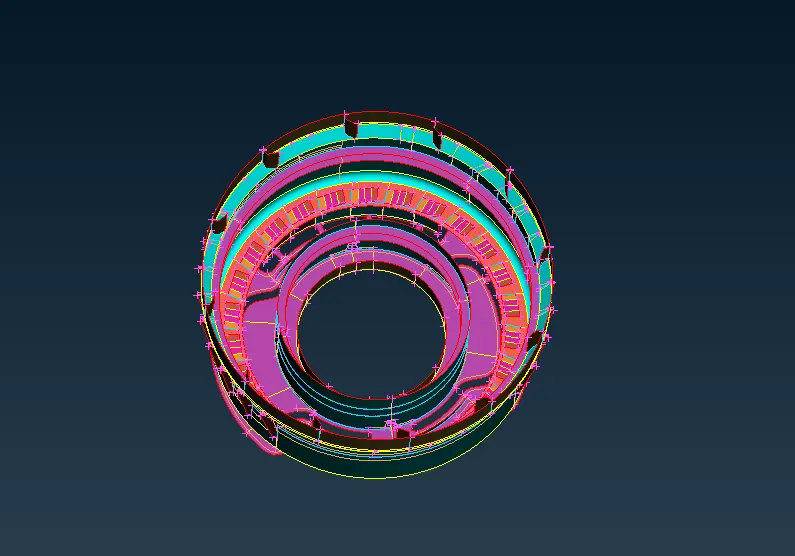

Set the PID for the component with different thickness as MIDS1, MIDS1.5 and so on
Cut the surfaces into convinient Macros by using Cut and Proj. cut options in the macros menu

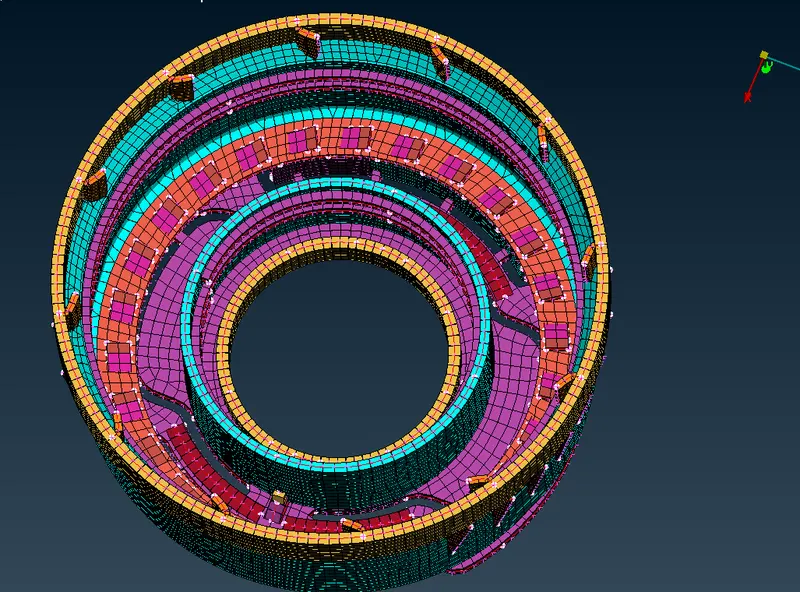

To mesh the surfaces assign appropriate number of hot points to each con such that the element length is within limits then use the best option in the Mesh generation menu to mesh the macros.

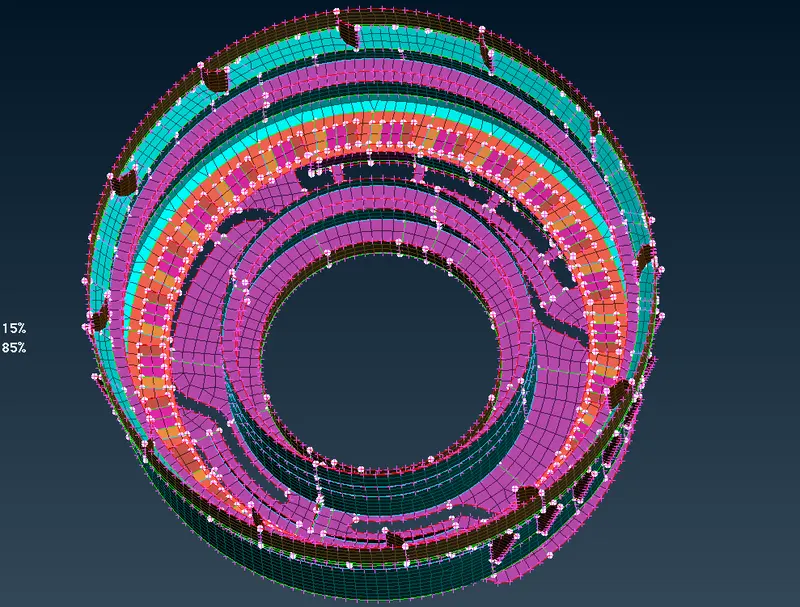

Input the given quality parameters in the quality criteria window and switch on the hidden mode to view the off elements.
Use appropriate tools in the element menu, grid menu and Shell menu to correct the failing elements(Note: only 4 elements in location where they cannot be corrected are failing in this model)
Activate Draw shell as Solid in presentation parameter in the Quality criteria window to visualise the elements with thickness.
