Week - 4
- Implement control logic of a “washing machine” using Stateflow as per given sequence:
- If the power supply is available, the system gets activated
- If the Water supply is not available, stop the process & indicate through LED
- Soaking time should be 200s followed by Washing time of 100s.
- Then rinsing happens for next 20s & dryer runs for 50s

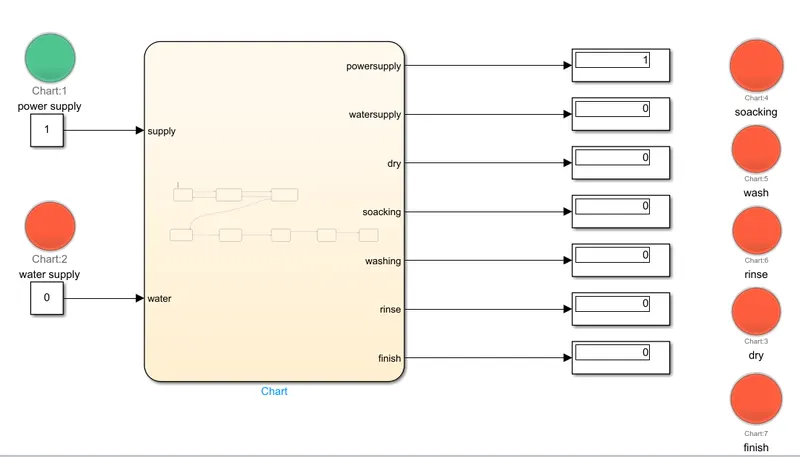

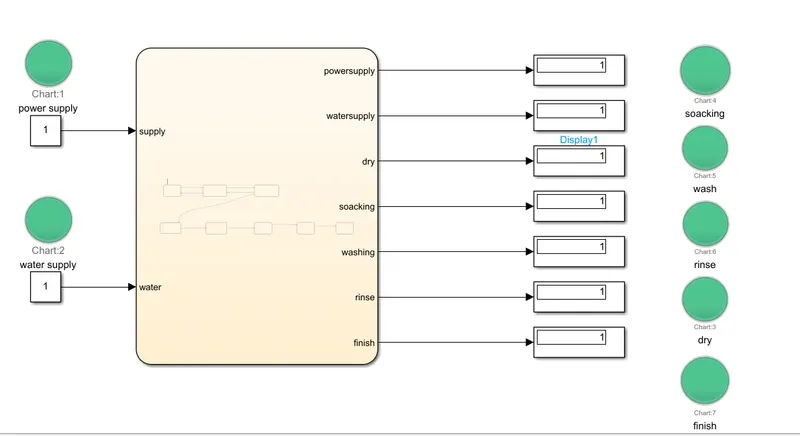

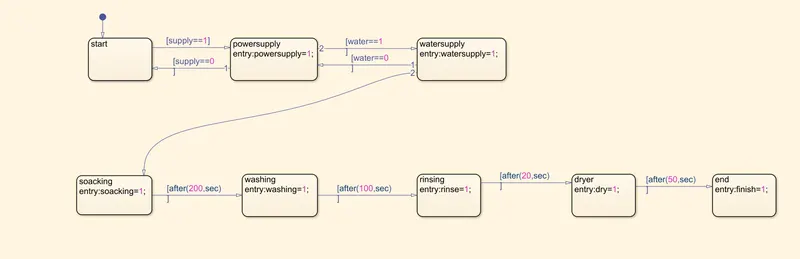

state flow Diagram of the washing machine
here are going to define input as power supply ,and water supply
and outputs are soacking,washing,rinsing,dryer
timing conditions exicuted as the stated quetion
condition:when power supply & water supply =1
condition:when power supply =0

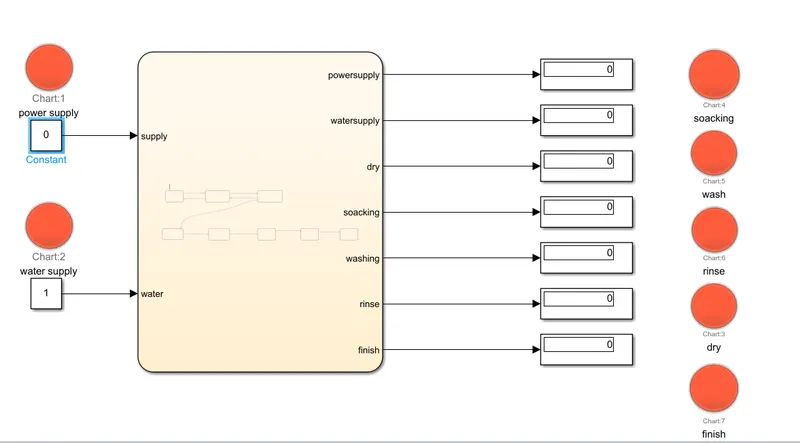

condition: when power supply =1 but water supply=0
2. Make a Simulink chart for the “Gear shift” logic as per below conditions:
Speed Range(kmph) Gear
0 to 15 1
16 to 25 2
26 to 40 3
41 to 60 4
Above 61 5
Give speed input while the simulation is running & display the gear number

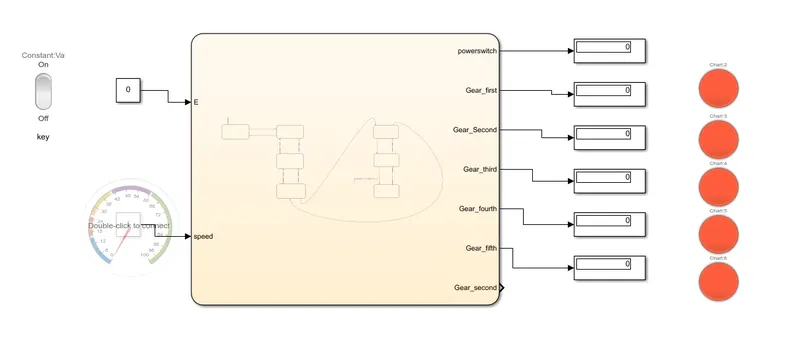

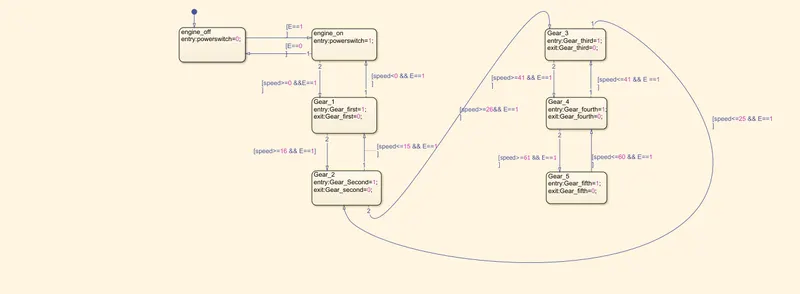

stateflow logic of the Gear shift

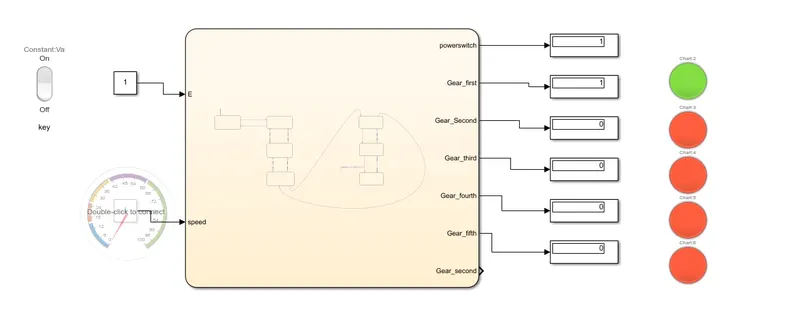

when power switch turned on vechicle geting started and logic getting exicuted
condition are above stated and those will exicuted squencectially
condition: when power switch =0
condition:when power switch =1
