Week - 4
Washing machine Model
Steps
- Select chart then

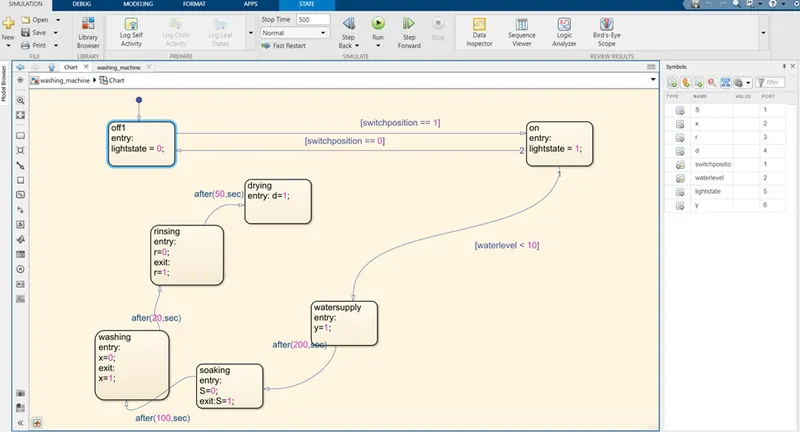

- Select states as per condition 7 states
- 1st two states are our input entry by condition is 0 or 1 respectively
- Then connect another states serially with transition states
- Put each states condition on transition state
- Mention input and output in the model
- Here is 2 inputs are available

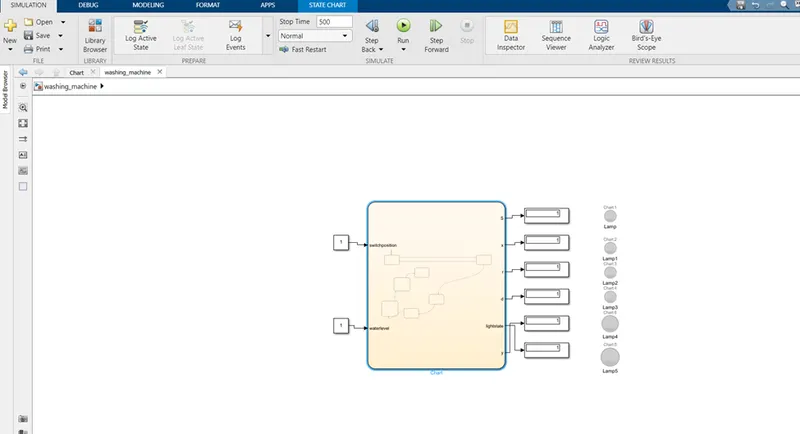

- Connect constant as input either 0 or 1 and output of chart connected to display and lamp
Output
Display shows the process is on or off in the form of binary number and lamp show in the form of different light color
Gear Model
Steps
- Select chart then

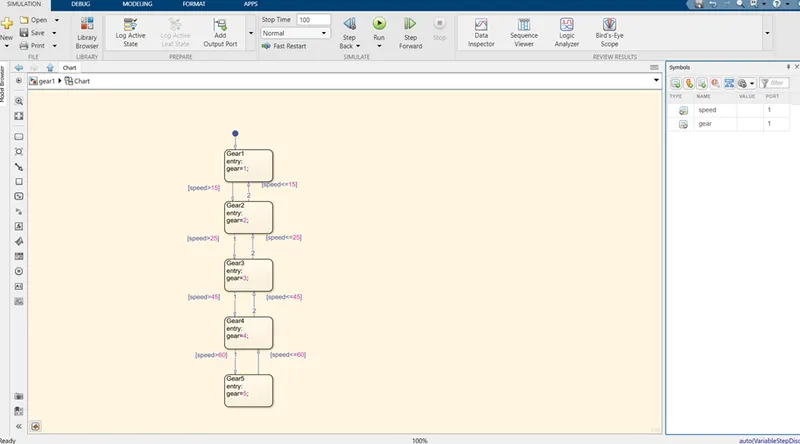

- Select 5 states which is our gear
- Arrange states with transition and gives conditions for each transition
- Specify inpute and output of the model

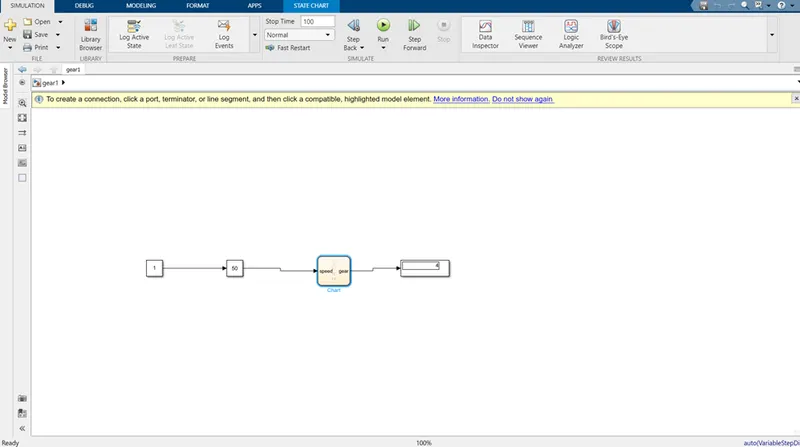

- Gives input as constant and slider gain and ouput connected to display
Output
Display show the gear number as per input of speed
