Challenge-1:

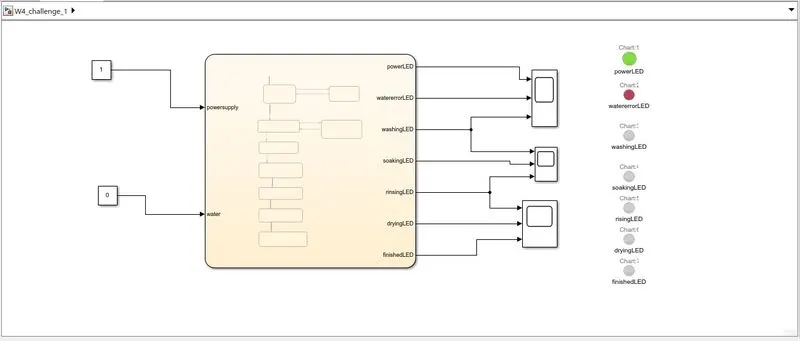

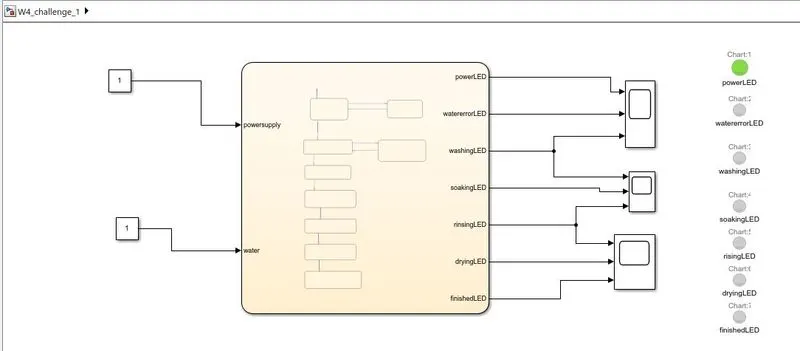

The washing machine operation is as per the model below, with powersupply and water as input and the LED indications as output for user indication.
The below chart shows the operation states.
1.first the power supply input will be red and the state start washing, if the power supply input is high or skip all the operations if power supply input is low.
2. If the water indication is high then only it will enter to washing cycle, or if water input is low the rest cycles will be skipped and water error indicator LED will glow.
3. if water input is high, then the soaking cycle will start and run for 200sec.
4. after soaking cycle the washing cycle will start and run for 100sec.

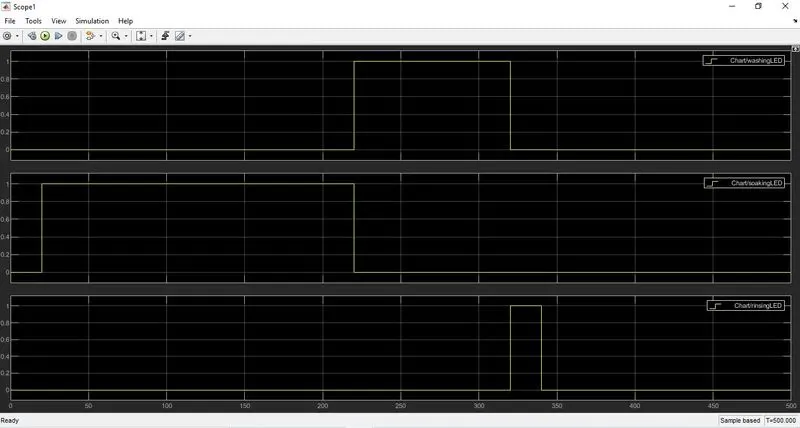

5. after washing cycle the rinsing will hapen for 20Sec,after this drying cycle will run for 50sec. after drying cycle is done the finished LED will glow.

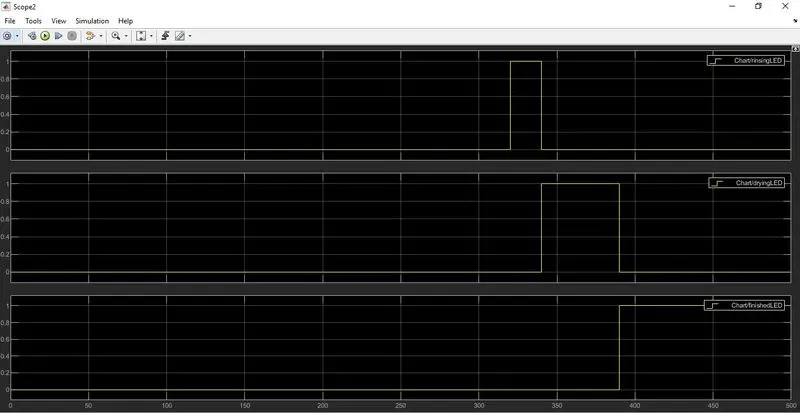

the all above stages will be indicated by LED's.

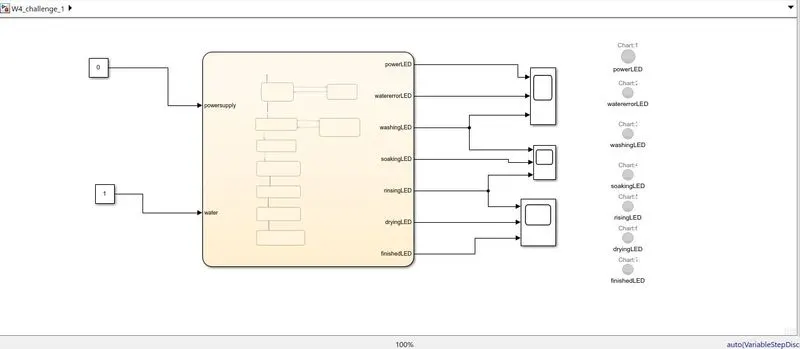

The LED indication all are of shows the powersupply is '0',All LED's are OFF.

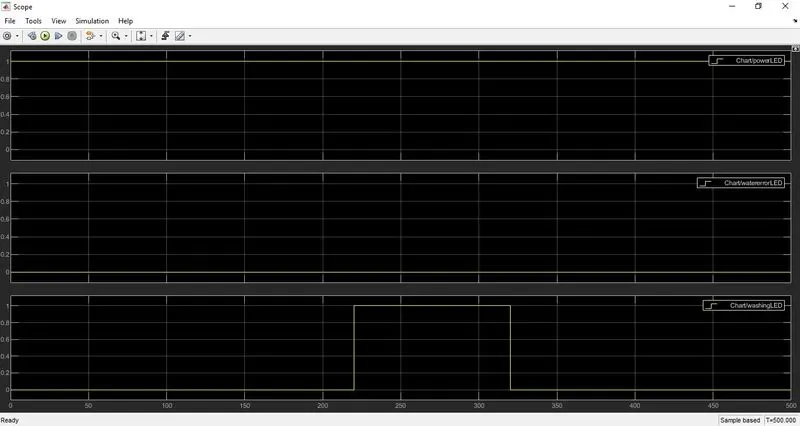

The LED indication that stops the washing cycle if water level indication is '0'.

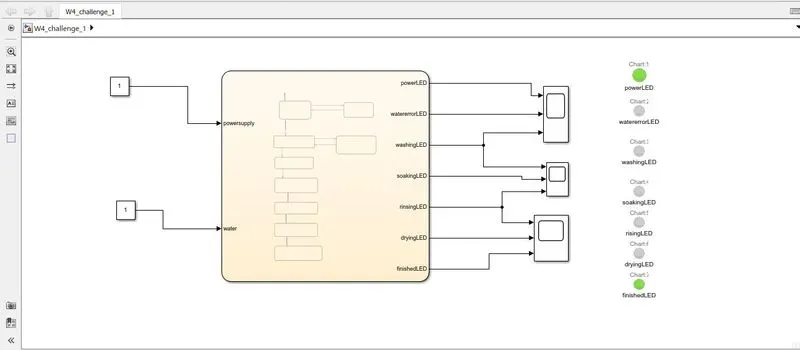

The finishedLED glowing after full cycle complete
Challenge-2:

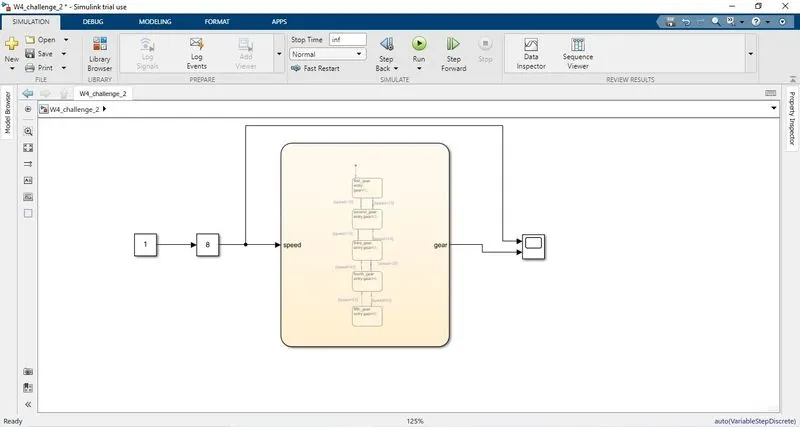

the gear system model will be as per below,

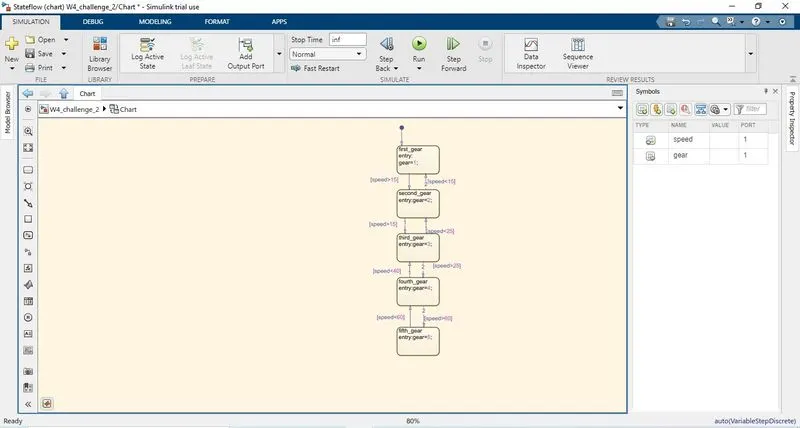

The internal flow chart is as per below,

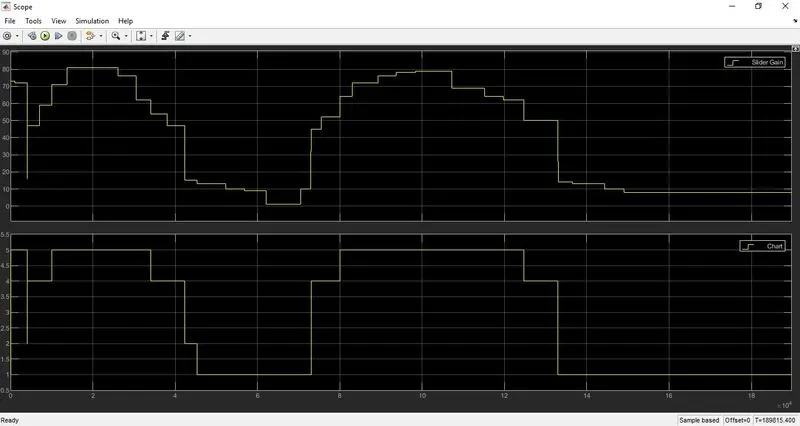

The unit constant will provide the constant input, with the slider gain, which can be continuously changed while the simulation is running. The simulation result below shows the change of gears with the speed(input from slider gain from 0-100).
