Week - 4
- Implement control logic of a “washing machine” using Stateflow as per given sequence:
- If the power supply is available, the system gets activated
- If the Water supply is not available, stop the process & indicate through LED
- Soaking time should be 200s followed by Washing time of 100s.
- Then rinsing happens for next 20s & dryer runs for 50s
Aim: -To plot the Stateflow of washing machine as per above condition.

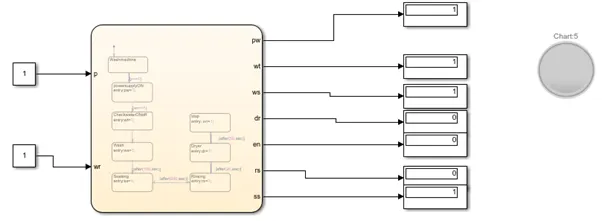

Control logic:
In the above Simulink we use input as a constant block, chart block as use to create the Stateflow condition and for output use display and lamp.
------------------------------------------------------------------------------------------------------------------------
2. Make a Simulink chart for the “Gear shift” logic as per below conditions:
Speed Range(kmph) Gear
0 to 15 1
16 to 25 2
26 to 40 3
41 to 60 4
Above 61 5
Give speed input while the simulation is running & display the gear number.
Aim: -To make a Simulink for gear shifting according to speed for above condition.

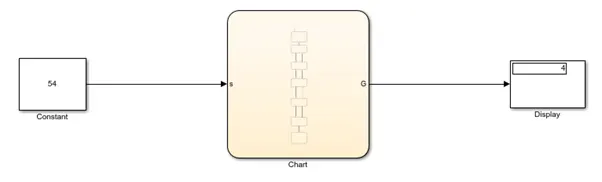

Control logic:
In the above Simulink we use input as a constant block, chart block as use to create the Stateflow condition and for output use display.
