Week 4.2: Project - Transient simulation of flow over a throttle body
Introduction:
Definition of the throttle valve:
A valve designed to regulate the supply of.. (as steam or gas and air) to an engine is operated by a
handwheel, a lever, or automatically by a governor. Especially the valve in an internal-combustion engine
incorporated in and are regulated for controlling the volume of vaporized fuel charge delivered to the cylinders. PURETI SIVA NAGA MASTHAN VAI
A throttle is a mechanism by which fluid flow is managed by the obstruction of a throttle.
An engine's power can be increased or d.ruased by the restriction of inlet gas. (by the use of a throttle), but
usually decreased. the term throttle has come to refer, informally, to any mechanism by which the power or speed of an engine 0 regulated, such as a car's accelerator pedal. What has often termed a throttle (in an aviation context) is also called a thrust lever, particularly for jet engine-powered aircraft For a steam locomotive, the valve which controls the Stearn is known as the regulator.

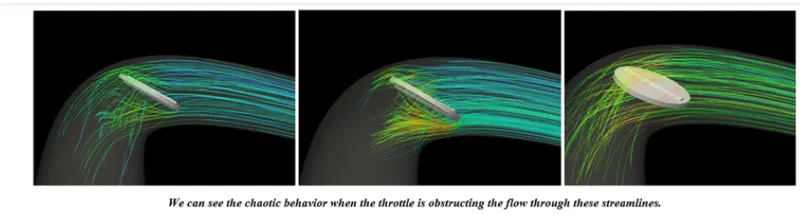

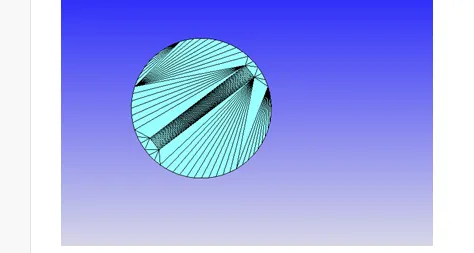

In an internal combustion engine, the throttle is a means of controlling an engine's power by regulating the amount of fuel or air entering the engine. To regulate the power output from an engine there has to be some restriction of how much fuel-air mixture reaches the cylinders. One way to do this is to use some kind of valve that restricts the air, fuel then gets the corr.t fuel-air mixture. To perform a steady-state simulation in an elbow consisting of a throttle body in it in order to analyze. the flow parameters and the fluid behavior in the vicinity of the nozzle inside the throttle body. The geometry and the Case setup are the same as steady state. The only preparation required for the transient case is the rotation of the throttle valve in the elbow joint After hiding the elbow geometry we enable only the throttle valve. To rotate the valve we need to find its center of axis and normal of the valve about which we desire rotation.

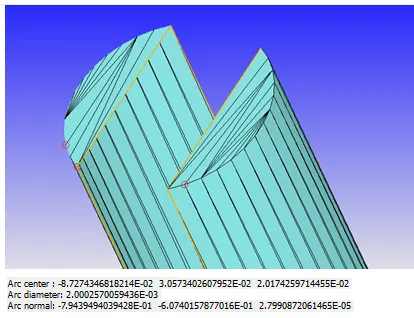

We need to hide the rest of the surfaces except the cylindrical shape shown below and keep these enabled, as the center of the throttle valve is the center of the rotation. So, we used the Measure tool and select the Arc normal, and following that we select 3 vertexes on the arc of the below shown cylindrical body. This gives the value of arc center and arcnorrnal values which we copy and page and apply in the Boundary condition of the throttle instead of the law of wall as we selected before in case of steady-state. More details are provided in the Case setup.

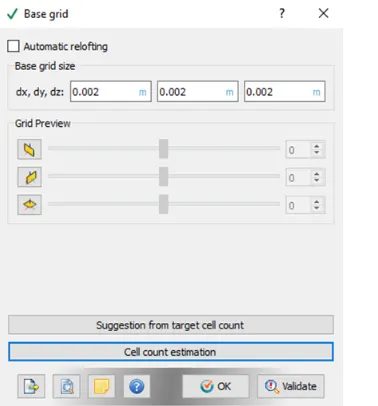

The mesh is kept slightly Coarse than the steady-state here just dew. computational time. The element size is 0.002 in with fixed embedding of 2 scales and 2 layers as we applied in steady-state simulation as well.

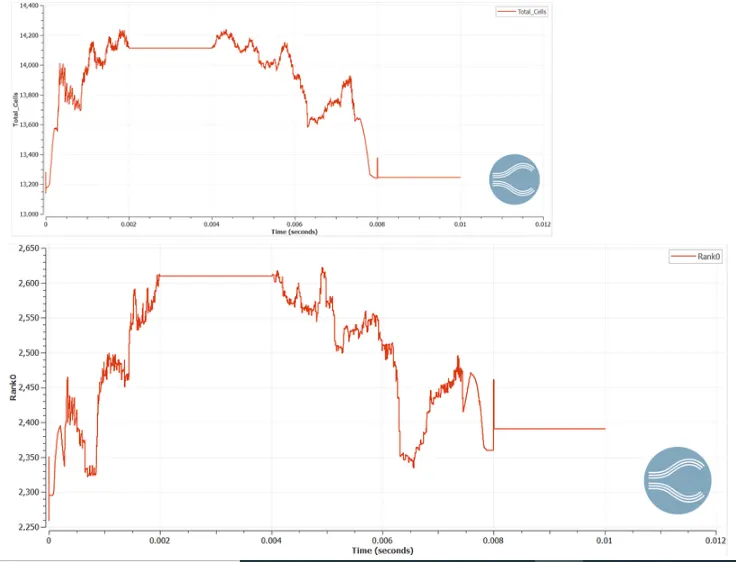

Total cell count:

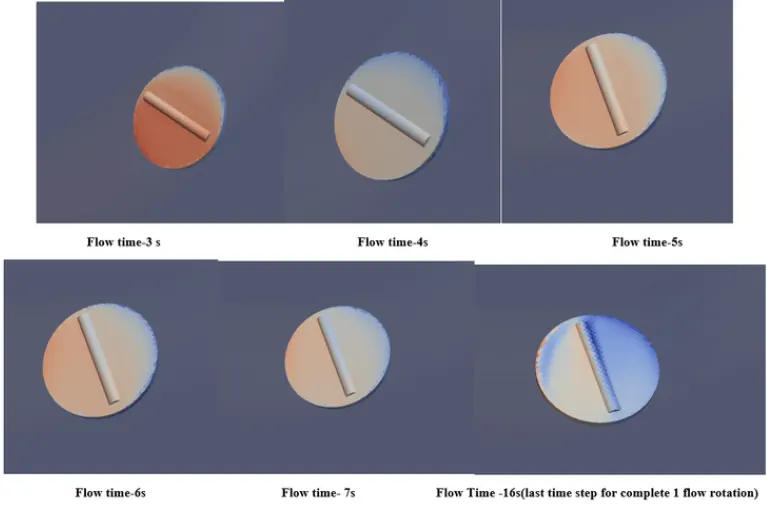

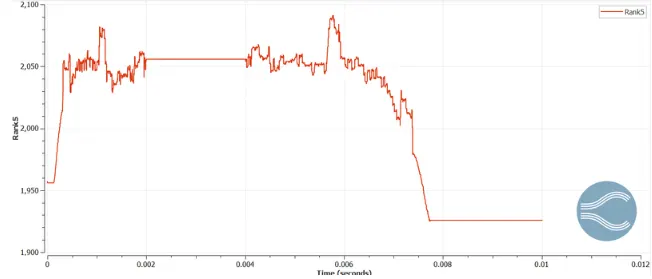

The total cell count is actually not constant because of the rotation of the throttle valve tor which our mesh is being continuously refined. The cell count is varying exactly on the time of flow we have rotated the valve to a specific angle(25 deg here in the present study) and becomes constant when id not rotating or we can rather say that when it comes back to id original position after one rotation. The maximum flow time is 0.01S.
Since we are rotating the valve to25 degrees from 2 to 4m/s total count has a specified value when throttle valve starting rotating and with the application of fixed embedding.

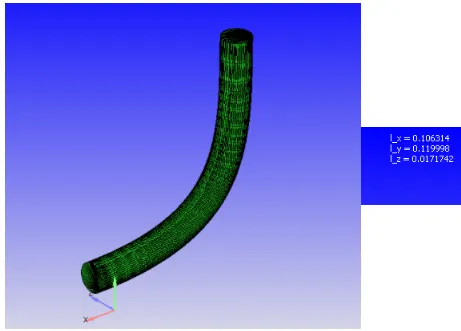

From the dimensions of the elbow, we can predict the flow time and end up deciding the end time which is 0.01s. We assume the total length to be 0.02m in the x and y direction and from the steady-state solution, it was observed that the avg flow velocity was above 180 and near 200 m/s, at the outlet. For the sake of convenience if we consider 200 m/s average flow then the total time for one complete flow will be 0.001s.
Case Setup:

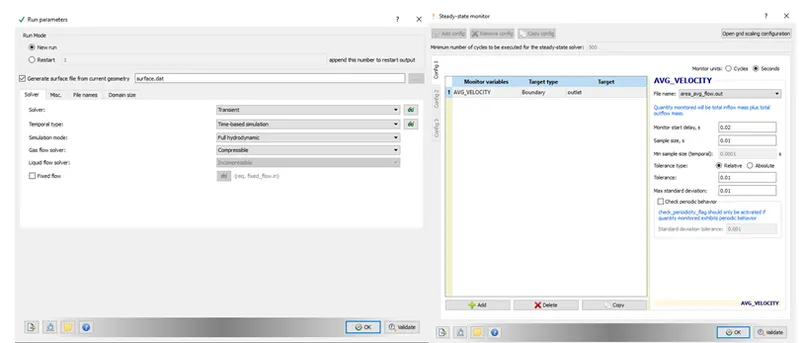

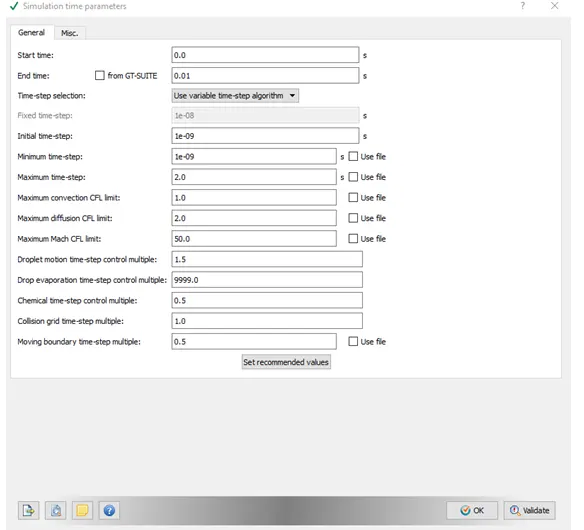

(all same except the boundary condition of the throttle valve and the simulation run parameter)

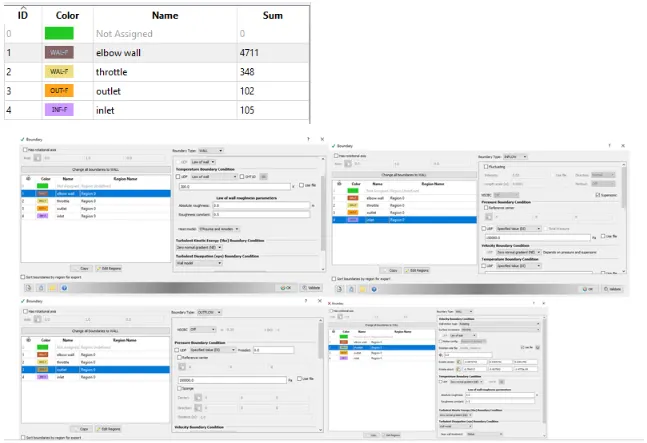

Boundaries were created namely, elbow wall, throttle, inlet, and outlet, and proper Boundary conditions were assigned to them according to requirement.
Application of general flow:
Material simulation:

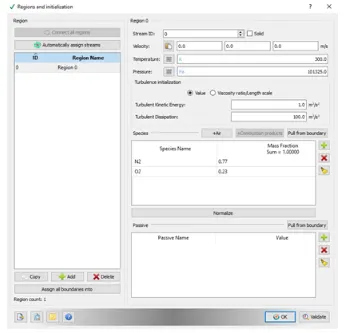

Gas simulation and Global properties were set as default.
Boundary condition:
Elbow(Boundary id 1) and throttle were assigned. ROTATION boundary type with all rotation conditions
(axis of rotation, rotation center). Inlet (Boundary Id 3) boundary type Inflow and pressure are 150000Pa,
species inflow O2, N2. Outflow (Boundary Id 4) boundary type outflow and pressure are 100000.
Physical modelling : Turbulence modelling with RNG

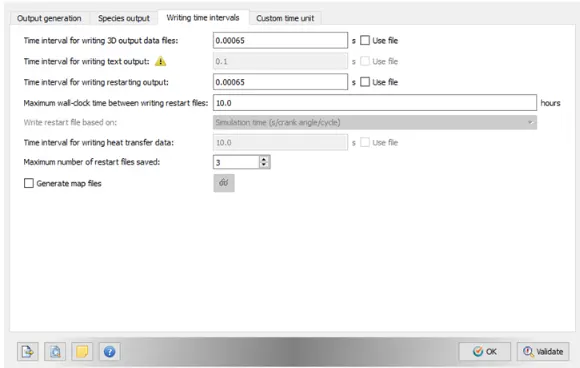

Output files:

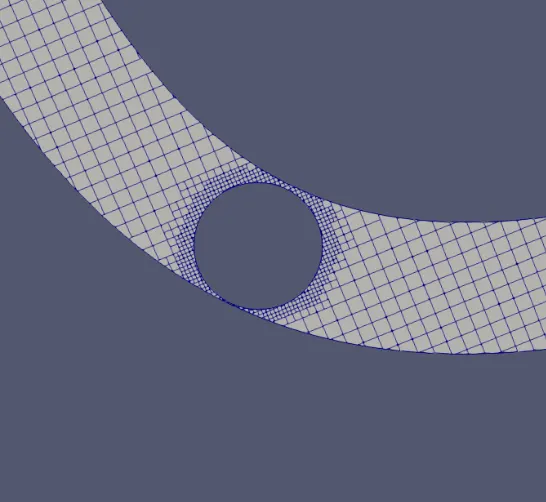

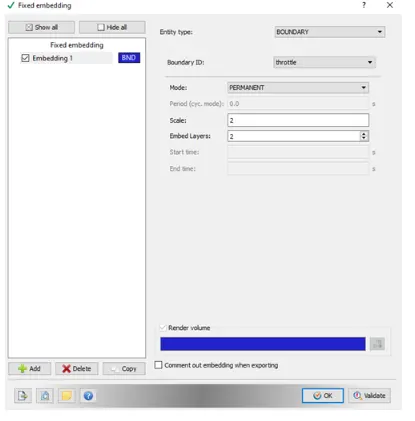

Fixed embedding is applied to refine the grid at specific locations in the domain where a finer resolution is
necessary for the accuracy of the solution. Fixed embedding allows the rest of the grid to remain coarse to minimize simulation time. For each fixed embedding one must specify an embedding scale.. indicates bow CONVERGE Wine the grid in that location were, in thIs case, the vicinity of Me throttle valve). The embedding embed scale parameter embedded, which must be a positive Integer, scales the base grid sizes according to the formula
Embedding Size = Basic Grid size / 2 Embedding scale
Post Processing Results
Velocity and pressure contour:

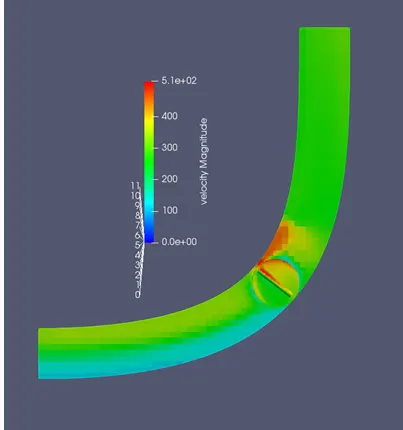

The maximum velocity attained is increased from the steady-state, it's around 510 m/s Mr transient case whereas it was around and within 200 m/s Mr steady state. The physics of the Maw and velocity distribution is the same as n the steady Mate except for the profile of average velocity value itself. The contour is for the last flow time 0.01 second.

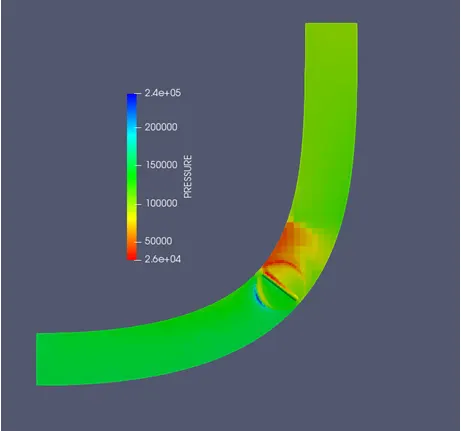

The max pressure was set at 240,000 Pa. The lowest pressure observed decreased that observed from the steady-state. The low pressure obtained near the cylinder region of the throttle is due to its shape when the throttle body provides the least hindrance to flow where velocity is max.

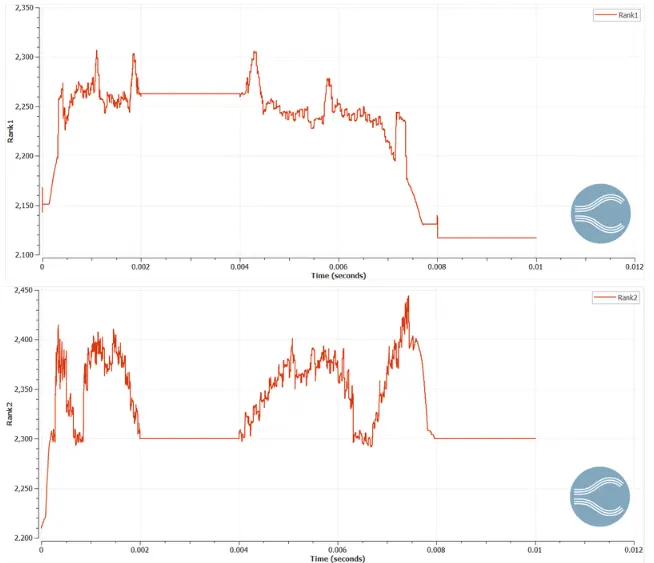

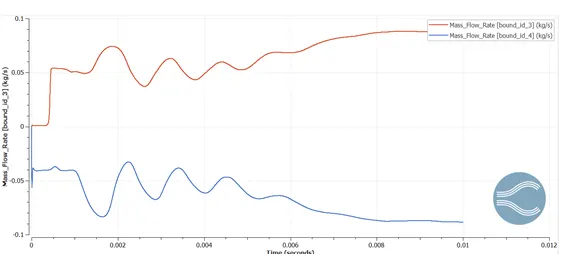

Plots for mass flow rate

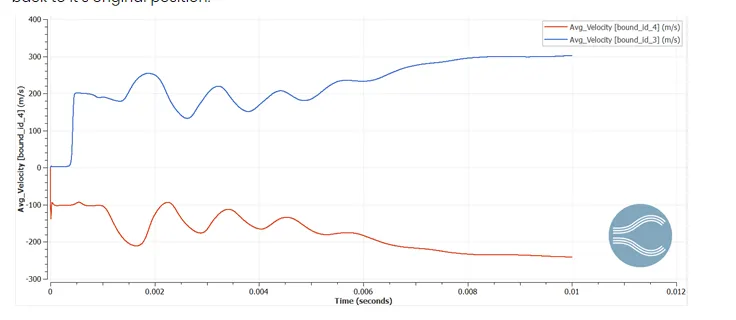

Plot for the average velocity at inlet:

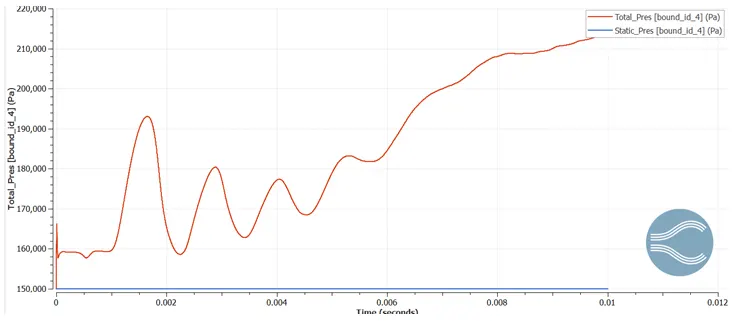

Outlet:
