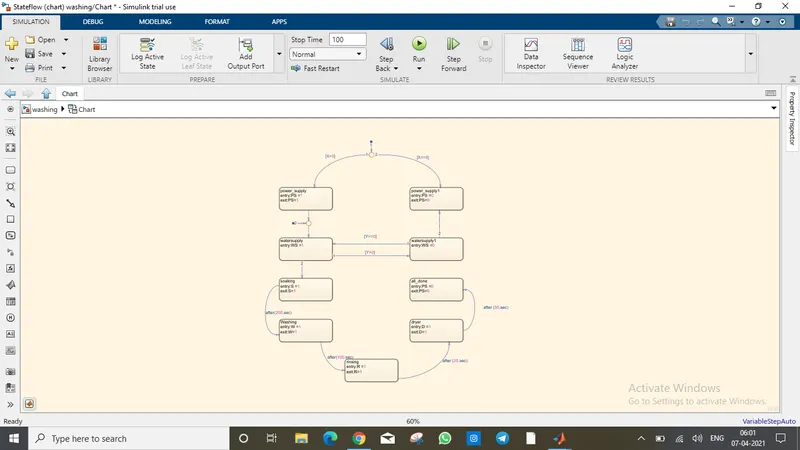

Washing machine control logic structure:-

1. First control logic circuit first junction is created as power supply one is power supply available x>0 and without aupply x==0

2. after that power supply state is created with two seperate supply one is power on (ps=1

)and another one is power off (ps=0)

3. After that create water supply junction with input as y>0 is on condition y==0 is off condition

4. next 4 operation states are ordered by given question soaking, washing, rinding drying

5. after finishing all steps build constant block and display block to input and display the values

6. slider switch is used to operate the on off conditions and led lights shows the working condition correspnding to the input.

Over all view:-

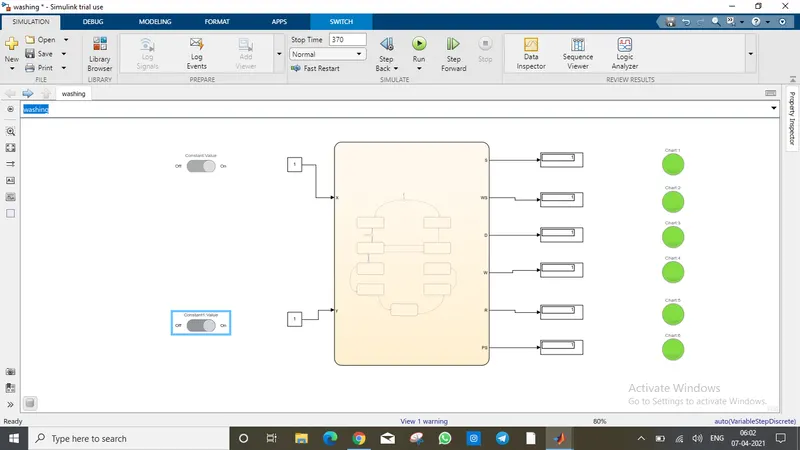

When power and water supply on at 370 sec:-

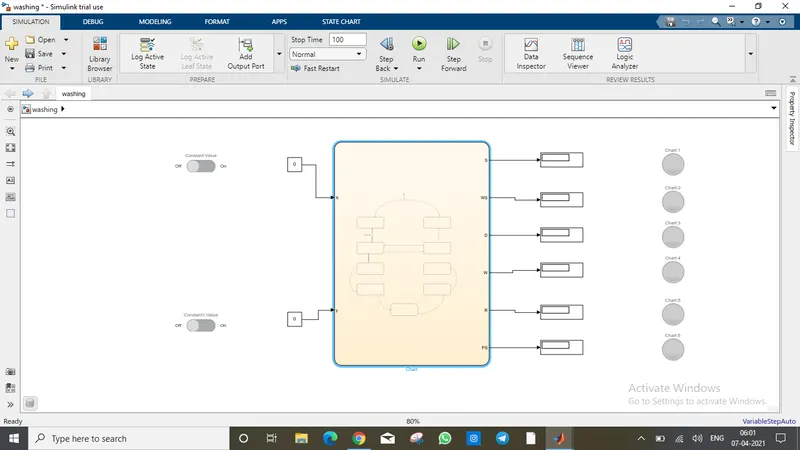

When power on and water supply off :-

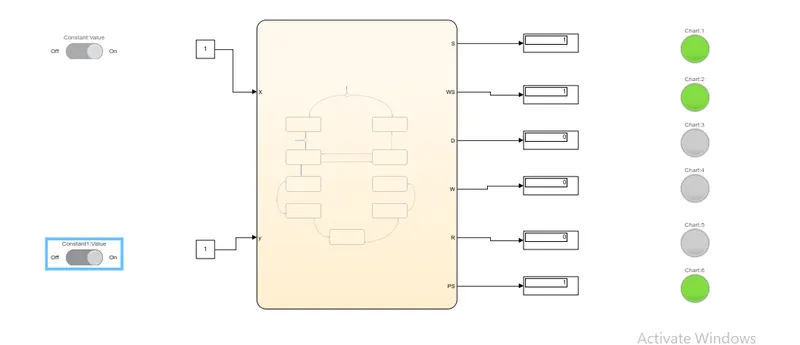

When power supply and water supply on at 200 sec:-

When power supply and water supply on at 300 sec:-

When power supply and water supply on at 320 sec:-

When power supply and water supply on at 370 sec:-

Gear shift using state flow:-

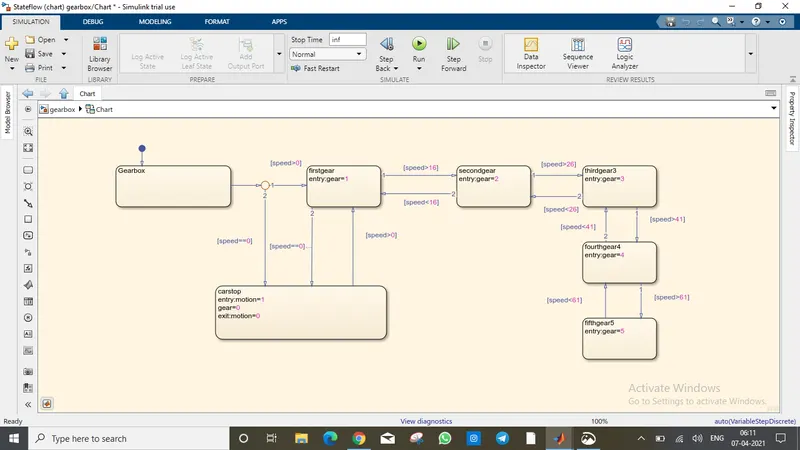

State flow chart for gearshift:-

1.first we need to create the chart and enter into the state for five gear inputs

2.create a gearbox state and connected to junction one end connected to firstgearbox and other end with car motion

3. same concept is followed for all gear states with respective speed limit

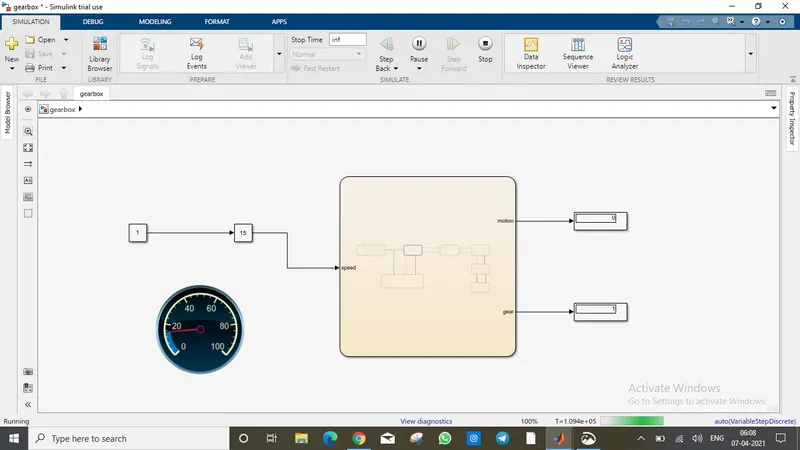

4. and the state flow is connected with constant and slider gain to input the km range and display shows the gear changes and car motion

when the speed is in 15 km the gear shifted into 1

when the speed is in 25 km the gear shifted into 2

when the speed is in 35 km the gear shifted into 3

when the speed is in 50 km the gear shifted into 4

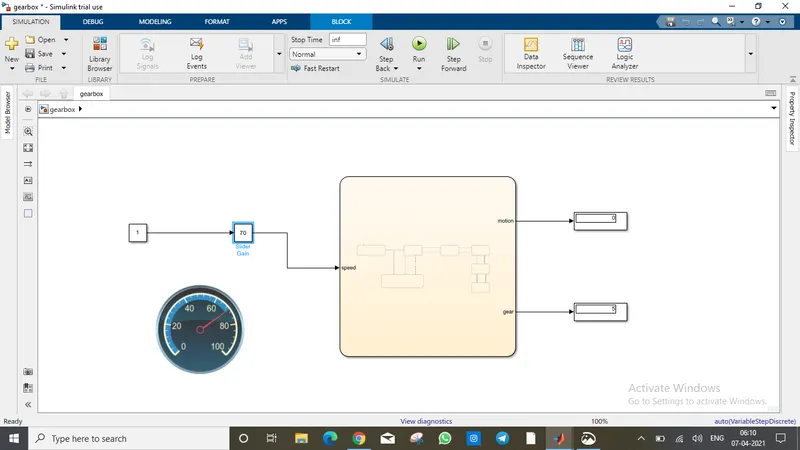

when the speed is in 70 km the gear shifted into 5

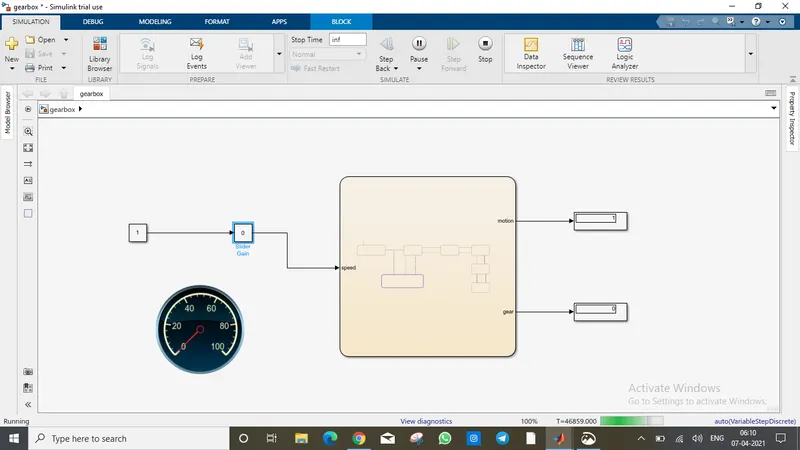

when the speed is in 0km the gear shifted into 0 and car will stop
