Week 4.1: Project - Steady state simulation of flow over a throttle body

Week - 4

Steady state simulation of flow over a throttle body

Aim :

  • To perform a Steady state simulation of flow over a throttle body in Converge 3.0

Workflow in Converge:

  1. Geometry.
  2. Mesh.
  3. Case setup.
  4. Solution.
  5. Results.

Geometry:

  • Open the Converge studio 3.0.
  • Import the geometry file

Mesh :

  • Mesh is the process of Discretizing a large single geometry into number of elements.
  • More refined mesh gives more accurate and good results.
  • dx = dy = dz =2.0e-3m
  • Fixed embedding

Case Setup:

  • First we need to choose the Application type as Time based.
  • Choose the Material as Air.
  • After that leave the Gas simulation and Global transport equation as default.
  • Add the O2 and N2 in the species.
  • Under Simulation parameters choose the steady state solver and then provide the maximum and min time cycles.
  • Run Parameters:
    Solver - Steady state
    Simulation mode - Full hydrodynamic
    Gas Flow Solver - Compressible.
  • Simulation time parameters:
    Start time - 0 cycles
    End time - 15000 cycles
    Initial time step - 1e-6 s
    Minimum time step - 1e-6 s
    Maximum time step - 1 s
    Maximum Convection CFL limit - 1
  • Solver Parameters:
    Solver scheme - PISO
    Solver type - Pressure based
  • Boundary conditions:
    Inlet - Inflow (101325 pa and 300 K)
    Outlet - Outflow (100000 pa)
    Wall - Wall (No slip)
    Throttle wall- Two-D
  • After assinging the boundary conditions we need to assign the regions for all the boundaries.
  • We need to create a region to initialize the setup.
  • The initial pressure and then the Inlet pressure should have to be same.
  • After that we need to select the RNG turbulence model.
  • Output/Post processing
    In this part we need to choose the variable which we want to plot.

Solution:

  • After setting up the case in Converge, we have to save the setup file
  • Aftet that we have to export the input files.
  • After exporting the files we have to open CYWIN to perform the simulation.
  • In the CYGWIN, we need to choose the directory at where we exported the input files.
  • Then we have to copy and paste the location of intelmpiconverge.exe.

Results:

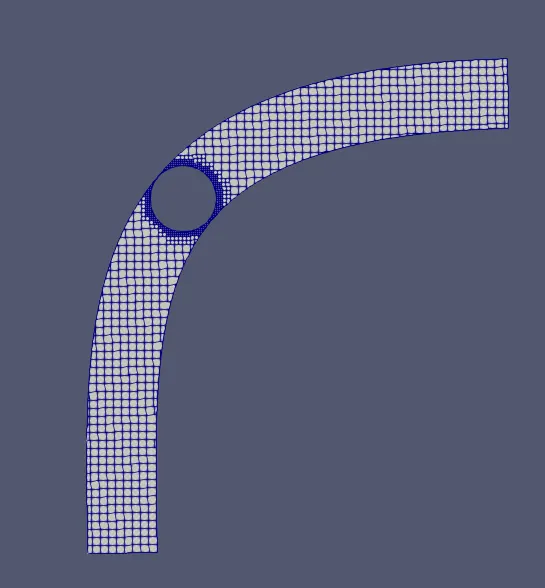

Mesh Image :

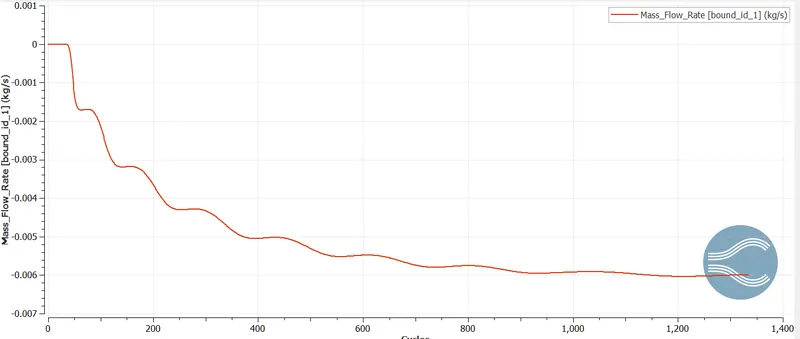

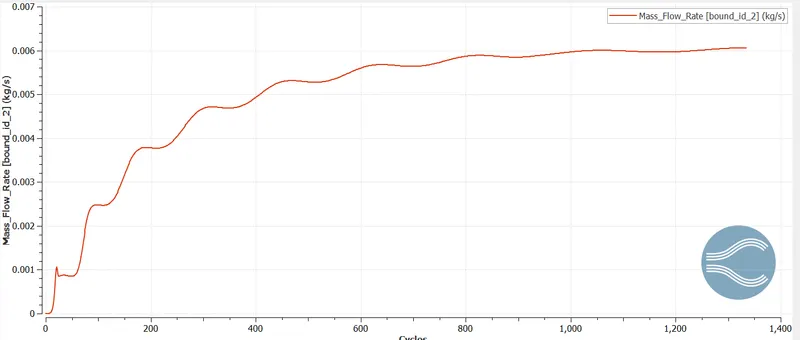

Mass flow rate plot :

Inlet:

Outlet:

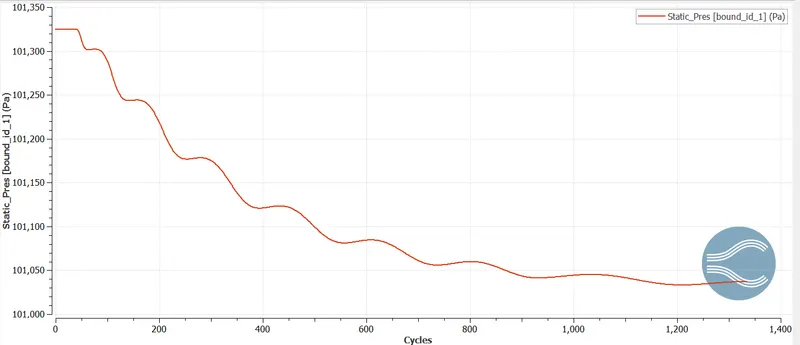

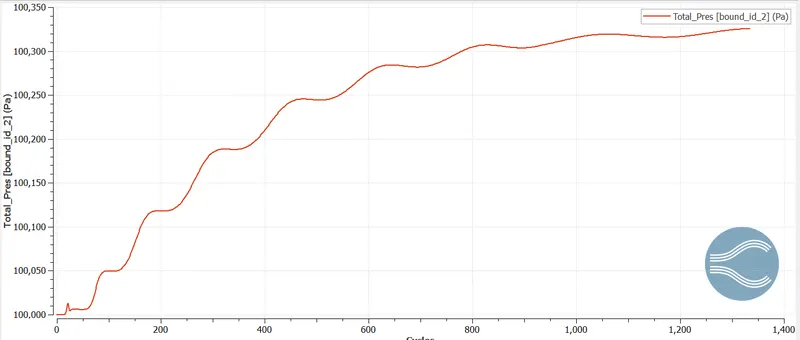

Pressure plot :

Inlet :

Outlet :

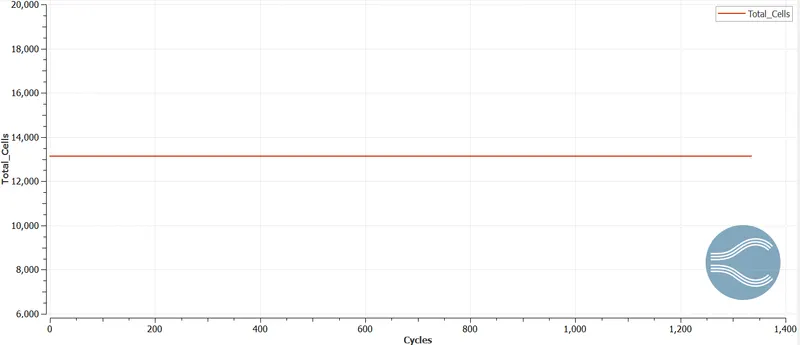

Total cells:

Velocity plot :

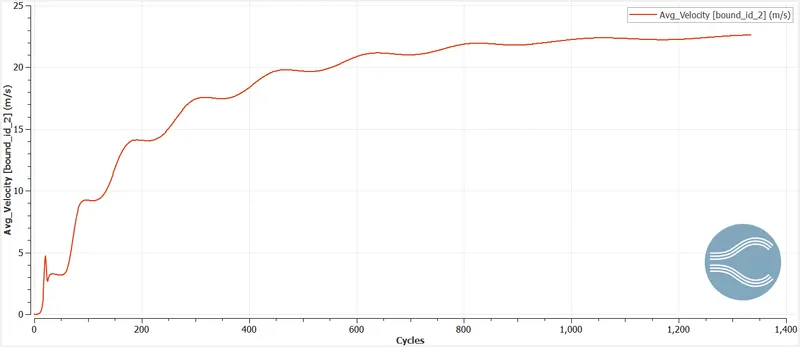

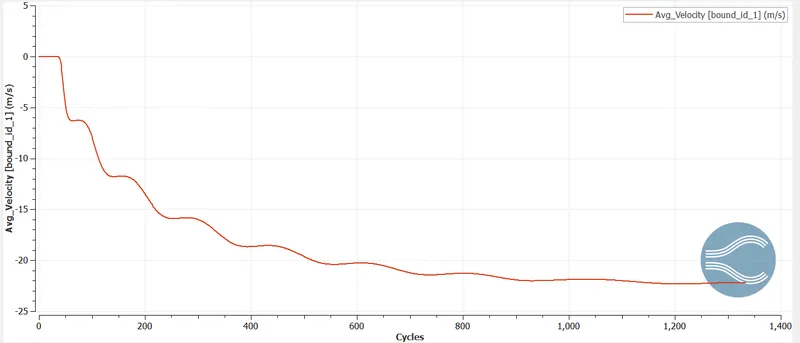

Inlet:

Outlet:

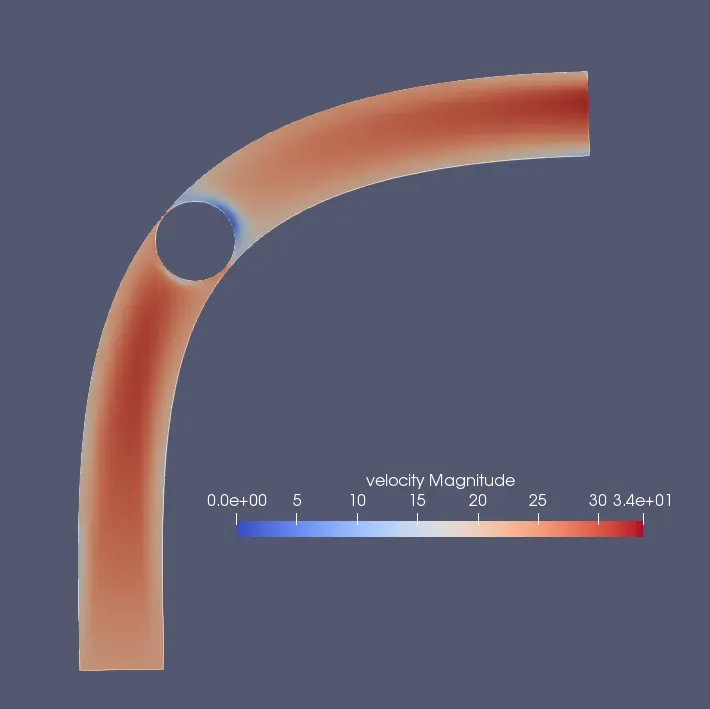

Velocity Contour :

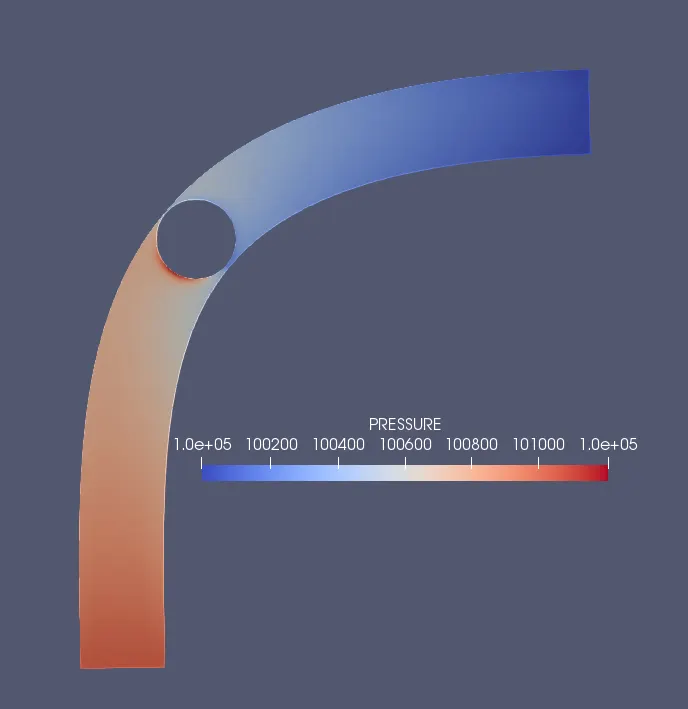

Pressure Contour:
