Week 4.1: Project - Steady state simulation of flow over a throttle body

Aim

To perform the Steady State Simulation of flow over throttle body using converge

Objective

1. Simulate flow over throttle body
2. Post process results and show Pressure contours and velocity contours
3. Show Mesh (Surface with edge)
4. Create the animation in which throttle movement should be visible

Steps

• Imported STL file in converge studio
• Setup the case
• Run the simulation in Cygwin
• Post process the results in PARAVIEW

Theory

Throttle:

A Throttle is a mechanism by which fluid flow is managed by constriction or obstruction.Engine power can be increased or decreased by the restriction of inlet gases. Term throttle has come to refer, informally to any mechanism by which the power or speed of an engine is regulated such as car accelerator pedal. Throttle is a device controlling the flow of fuel or power to an engine

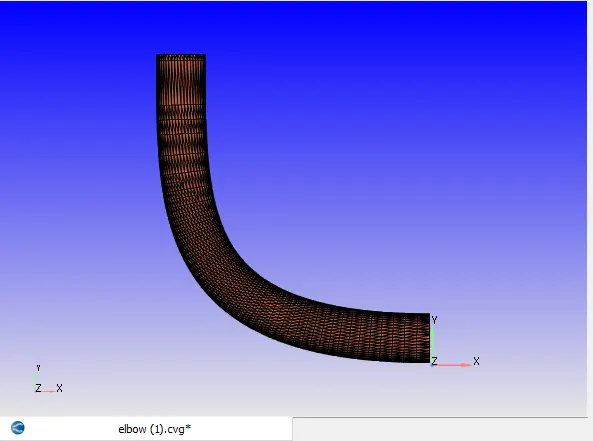

Geometry

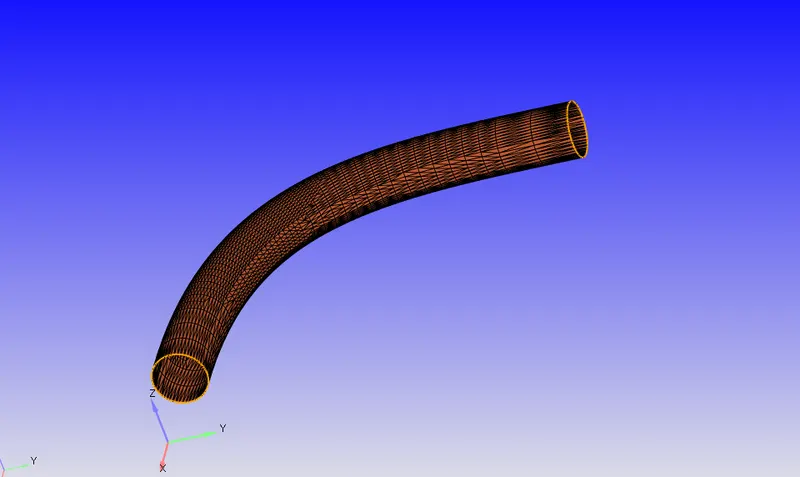

• Import STL files
• Cad cleans up means we don’t need thick pipe wall because it is nowhere useful to participate in the simulation. So, we will delete outer surface
• Then we used patch command for closing the open edges
• Then give boundary flagging
• Then check normal transformation, all the face normal direction should be facing towards the flow region
• And finally, diagnosis

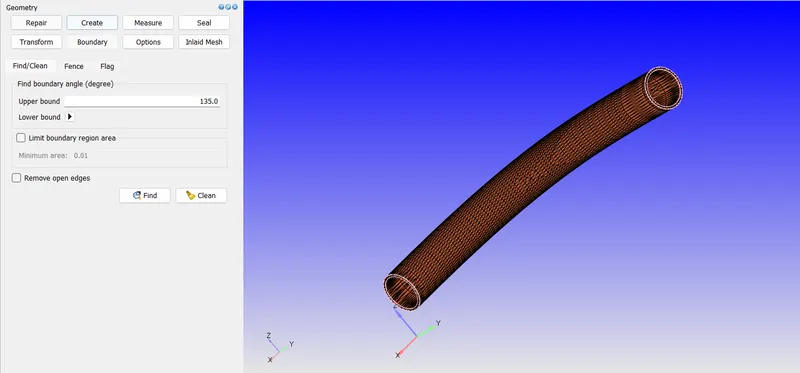

Creating boundary fence using Boundary>Find/clean as follows

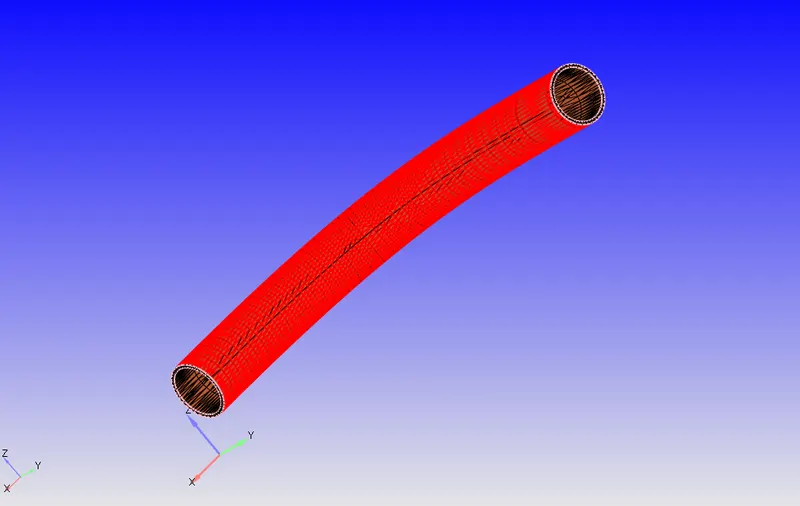

As the geometry has some thickness to it, and we are not interested in heat transfer so we will delete the thickness of the elbow using Traingles by angle selection as follows

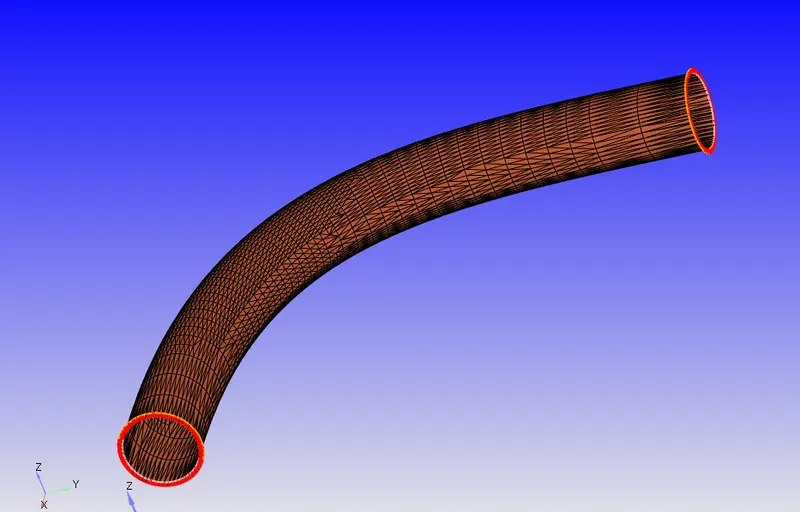

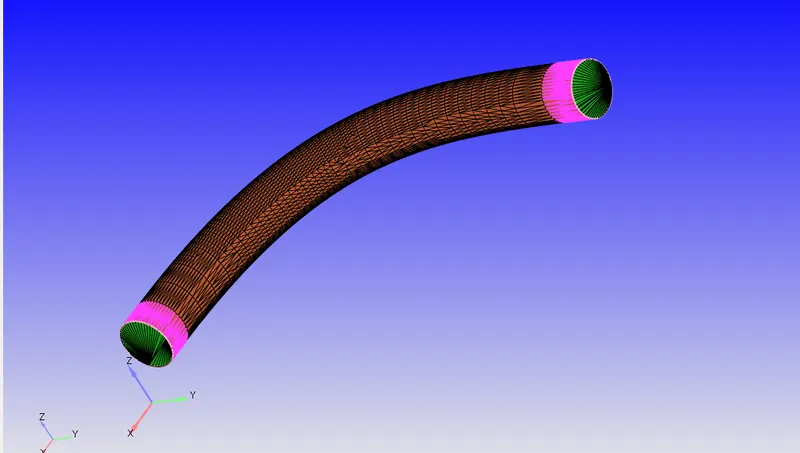

Now after deletion

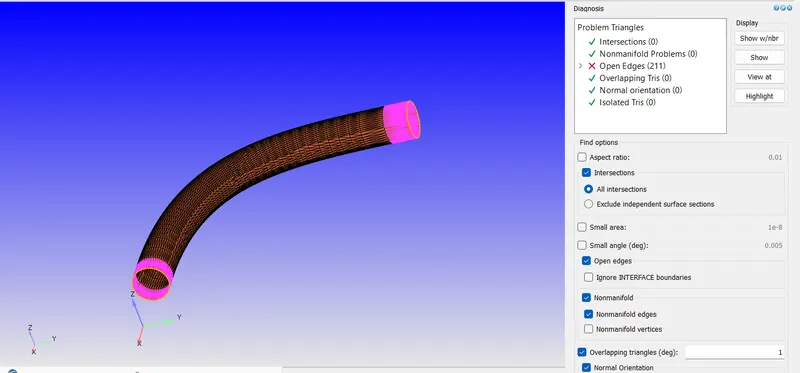

Now if we run the diagnosis we get the open edges error as there are in with yellow edge colour

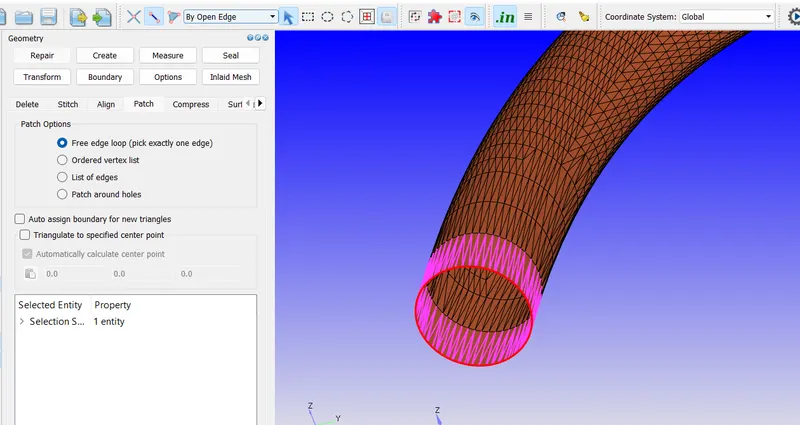

Using Repair>Patch with open edge selection we select and fill the openings

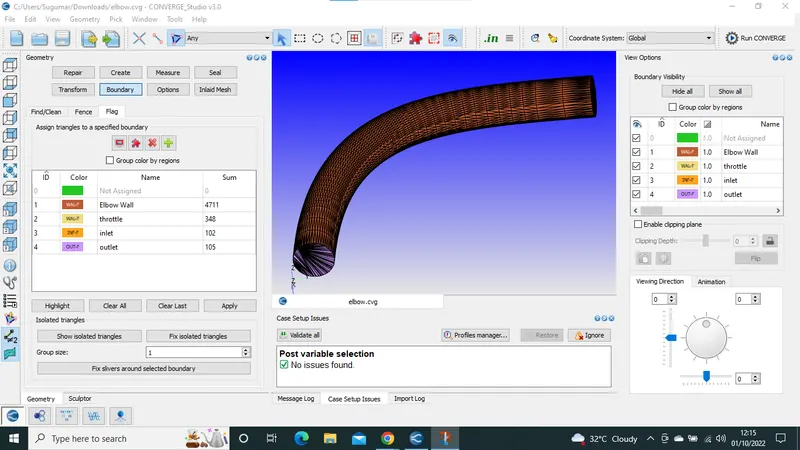

Click on boundary and Create boundary

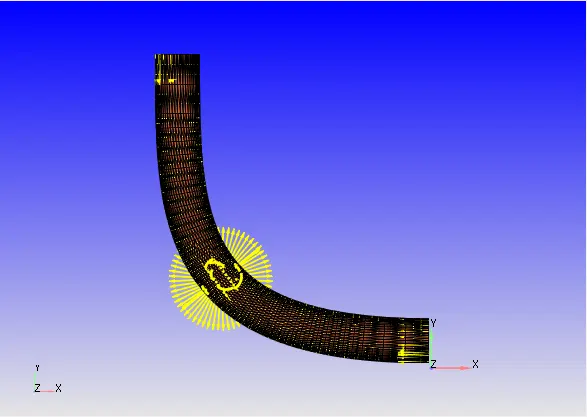

Checking normal

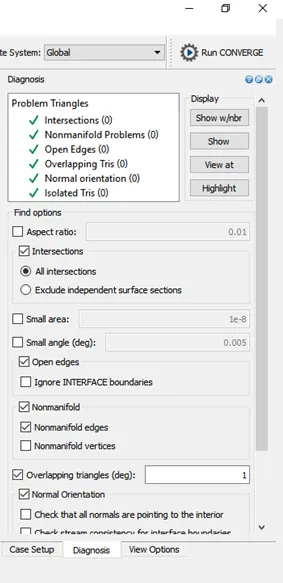

 Diagnosis dock

Before proceeding the error in geometry for that

View tab-diagnosis dock-default setting-select the find

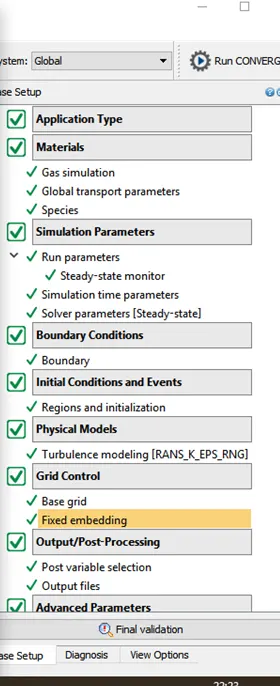

Case Setup

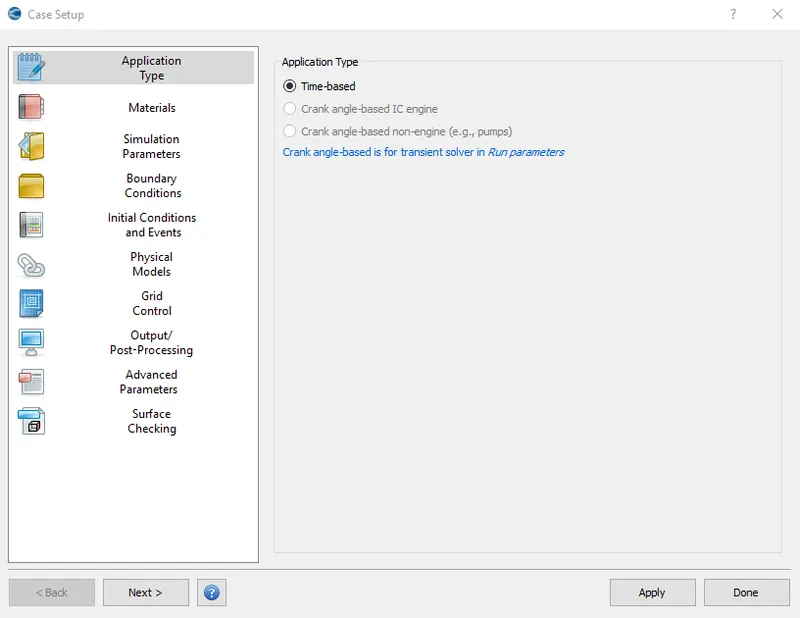

Application Type = Time-based

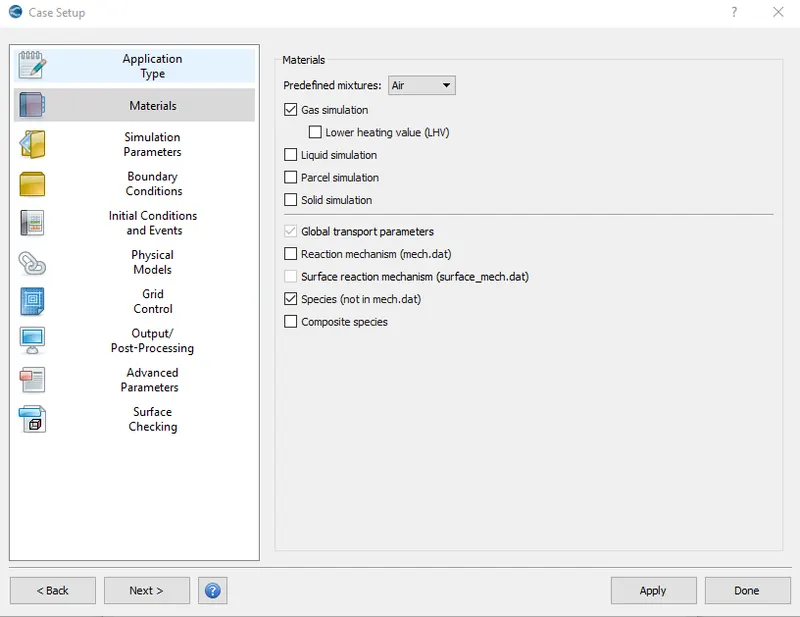

Materials -

Predefined mixtures = Air



Case Setup

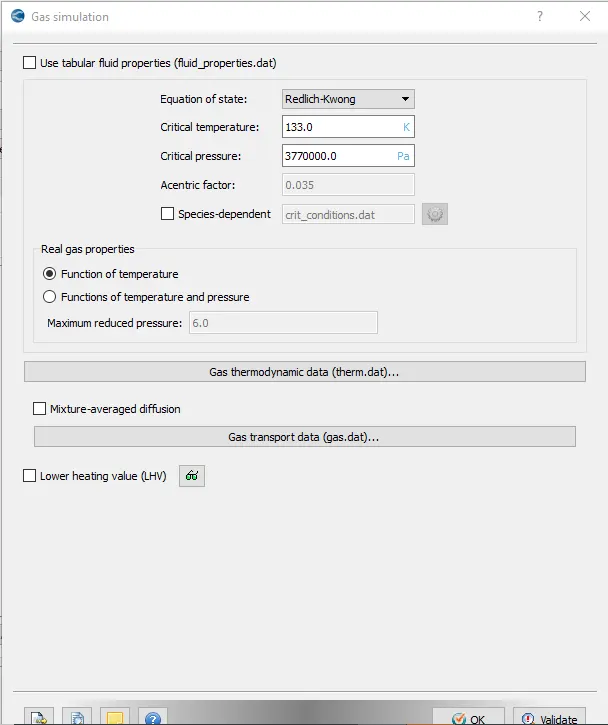

Gas Simulation

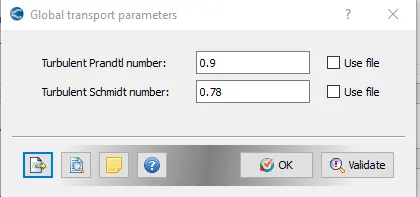

Global transport Parameters

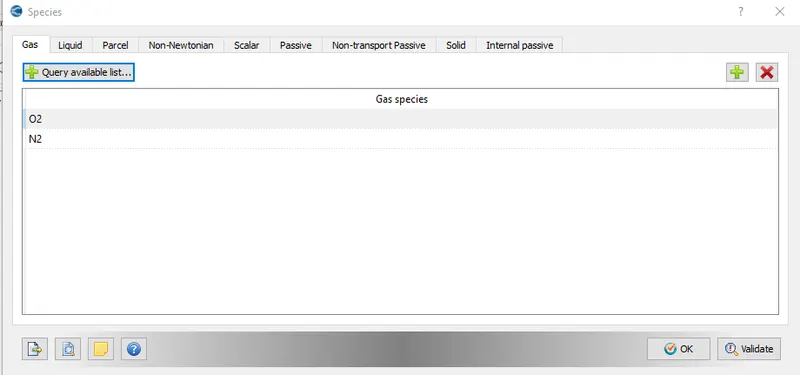

Species



Simulation Parameters

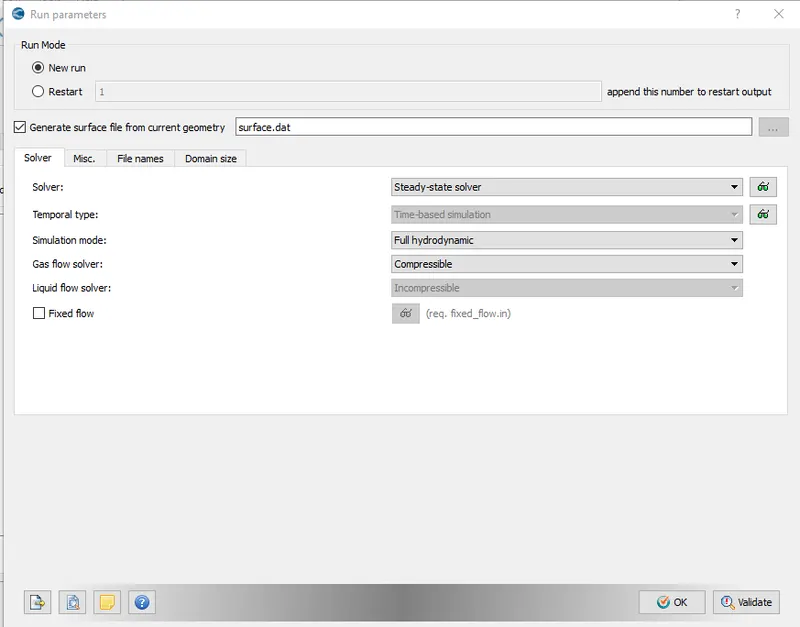

In Run Parameters two main things to be considered: -

select the following solver settings.

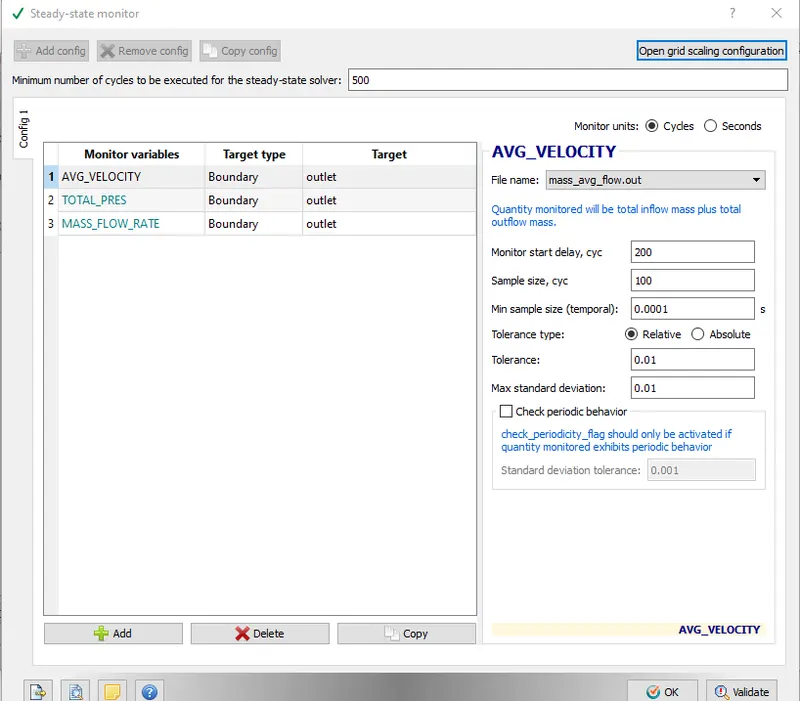

Steady-State Monitor

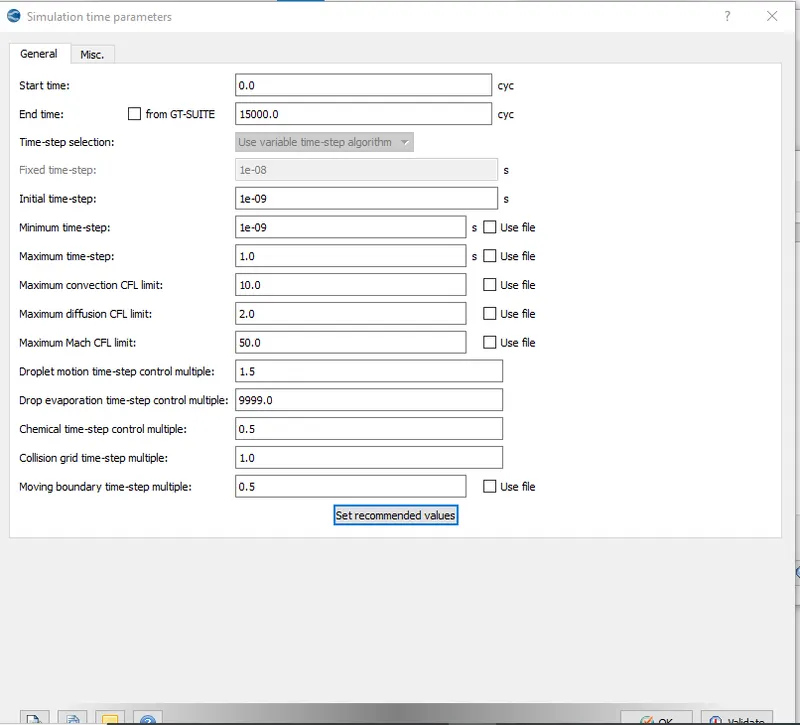

Simulation Time Parameters: -

Pressure based steady state solver

Start time-0

End time-15000 cycle

Initial time step-1e-09s

Minimum time step-1e-09s

Maximum time step-1s

Simulation

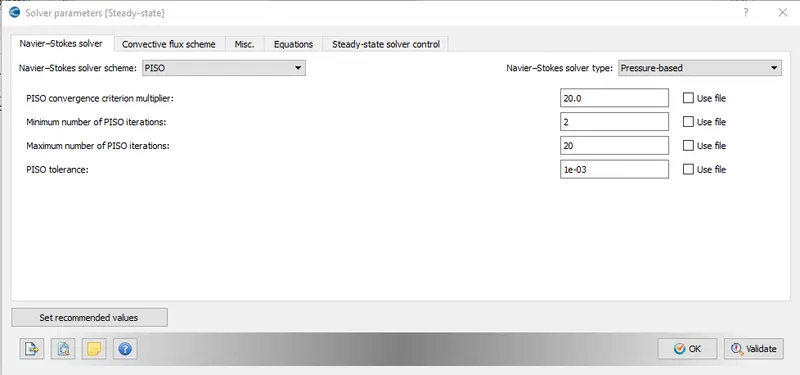

Solver Parameters [Steady-State]

Navier-Strokes Solver type- pressure based

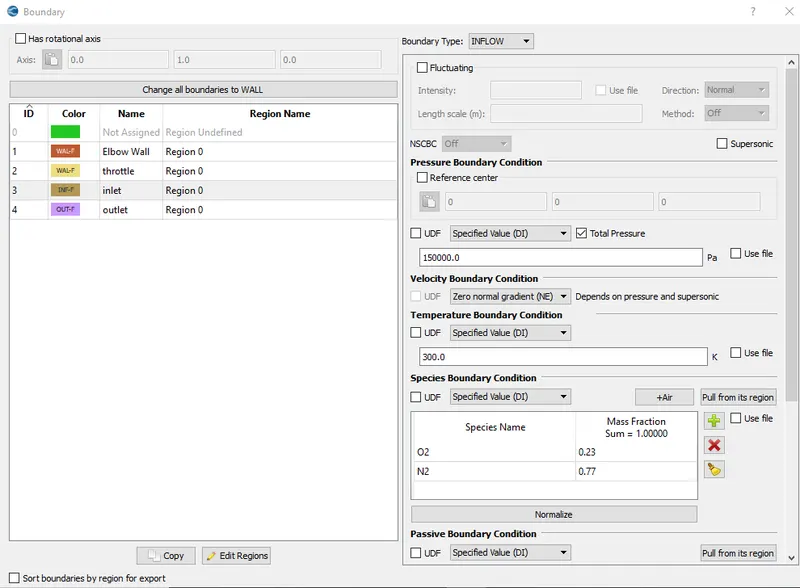

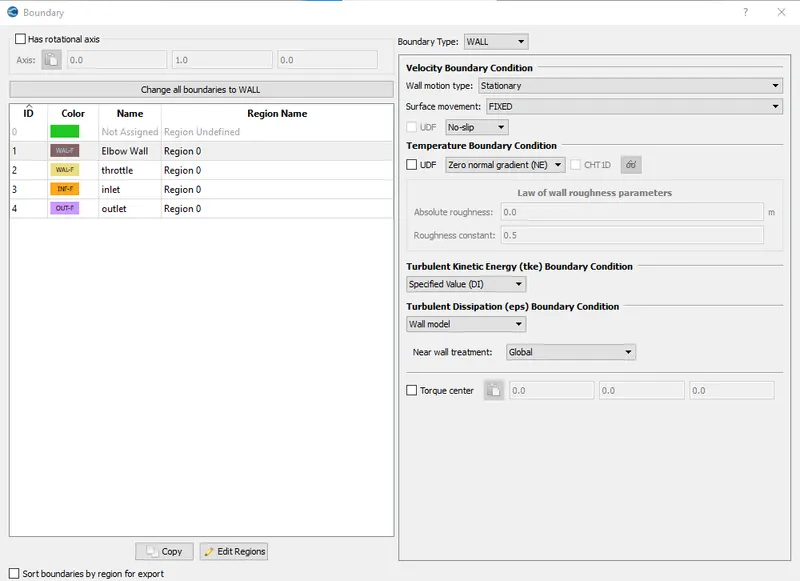

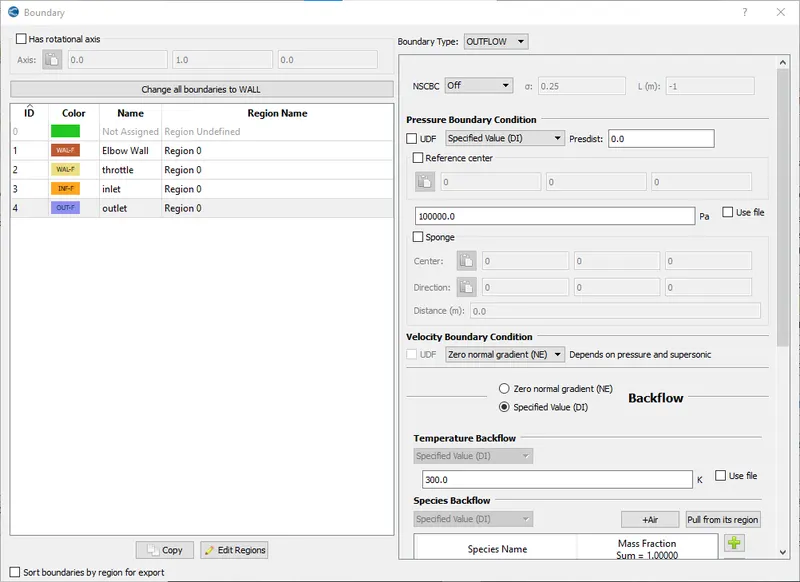

Boundary condition

Inlet-inflow-total pressure-150000 pa

Outlet-outflow-total pressure-100000 pa

Elbow wall-wall

Throttle-wall

inlet



outlet



 Elbow wall



Throttle wall

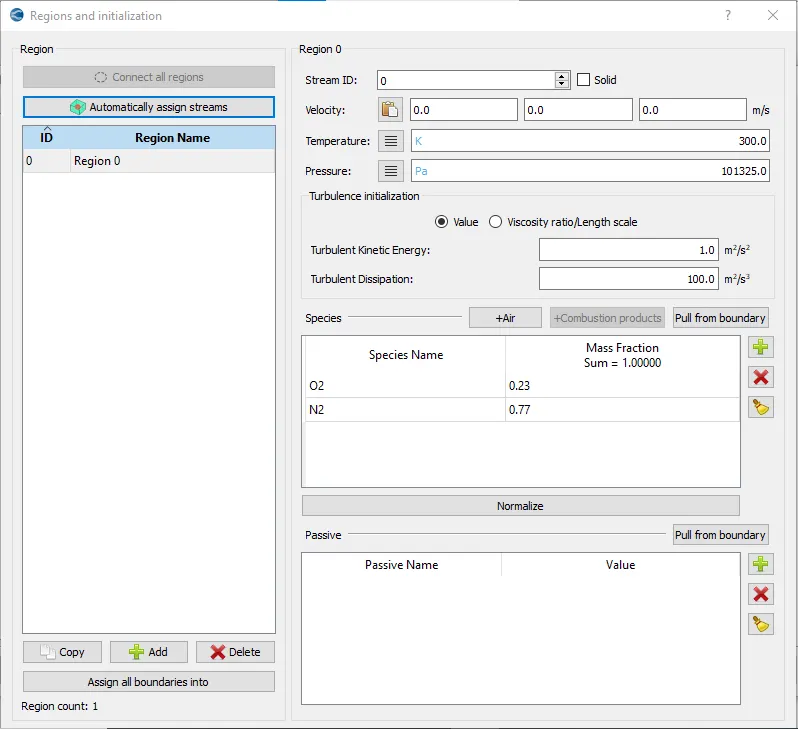

Region

Physical model

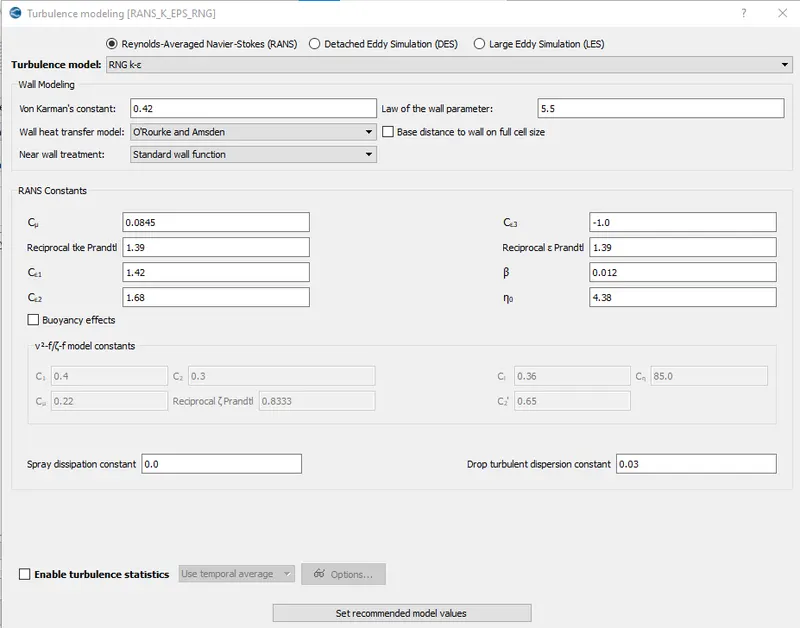

Turbulence Model

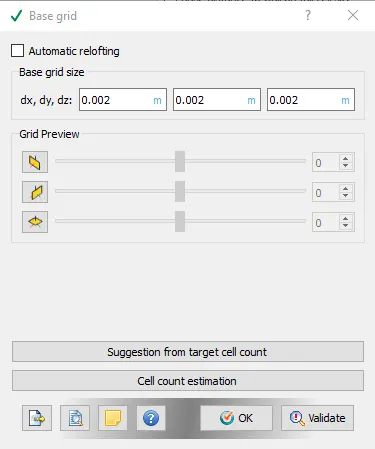

Base grid

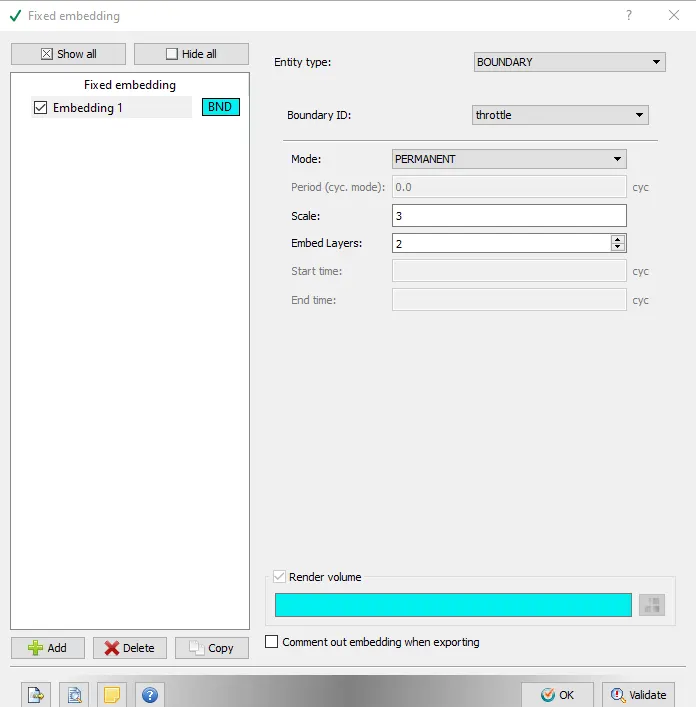

Fixed embedding

At throttle

Type-boundary, mode-permanent

Scale-3, embed layer-2



case setup

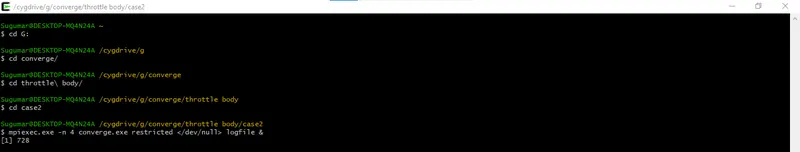

 Cygwin Window

Results

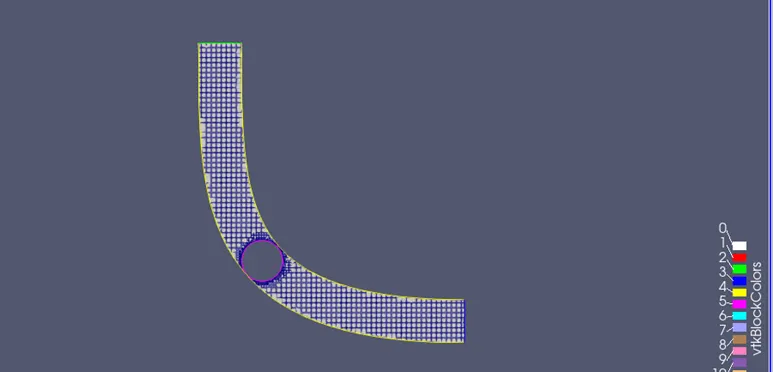

Mesh

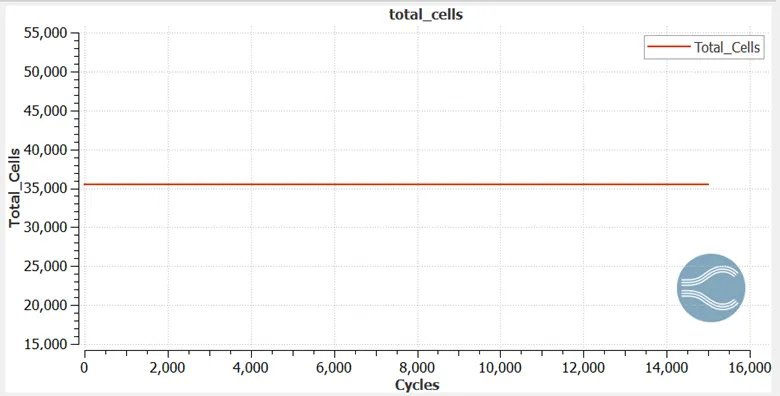

Total of cells

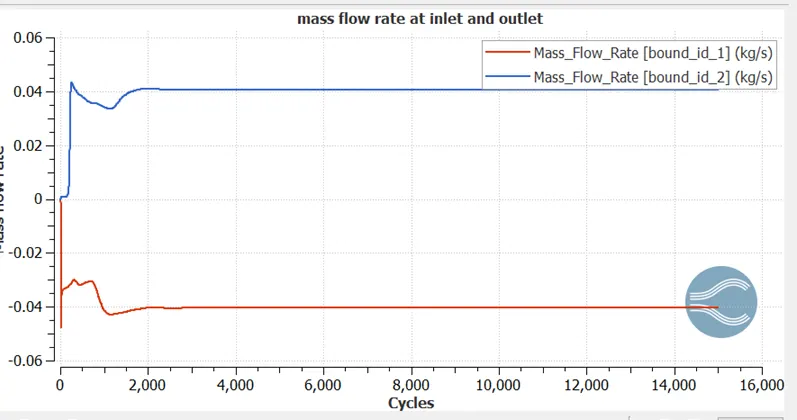

Mass Flow rate

Inlet And Outlet

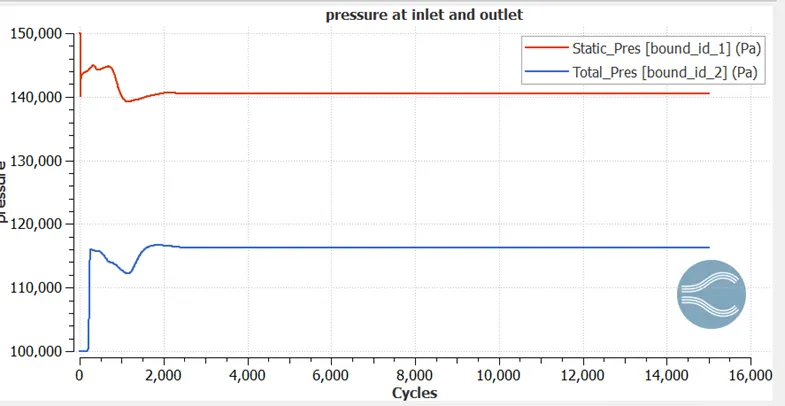

Pressure plot

Inlet and Outlet

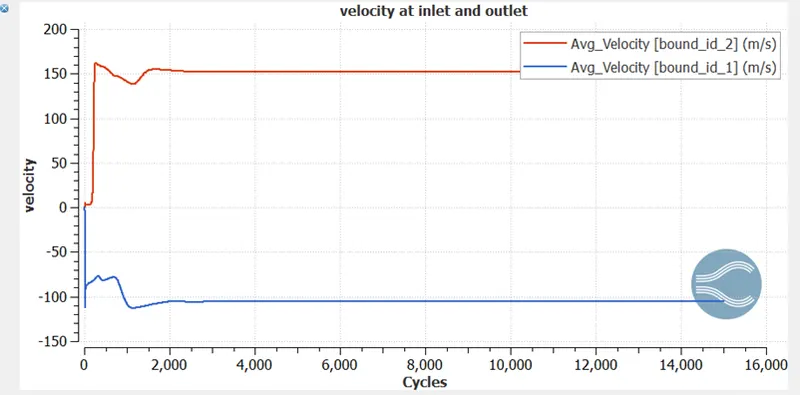

Velocity plot

Inlet and Outlet

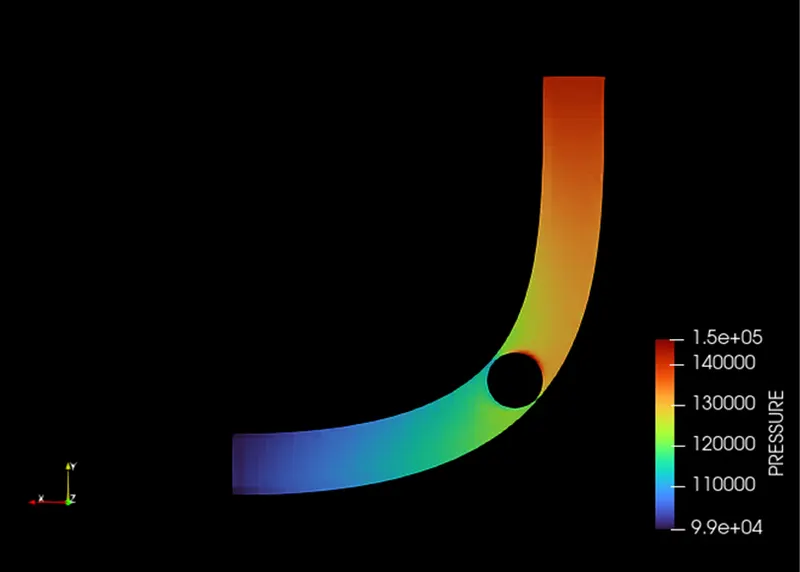

Pressure contour

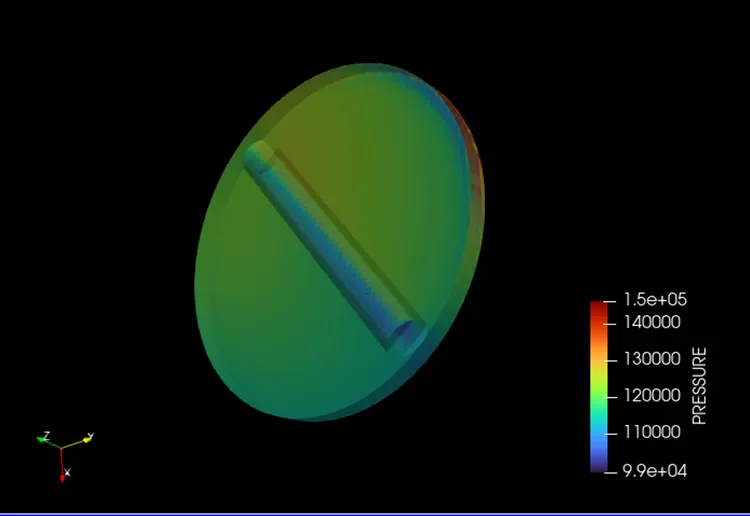

Pressure contour at throttle

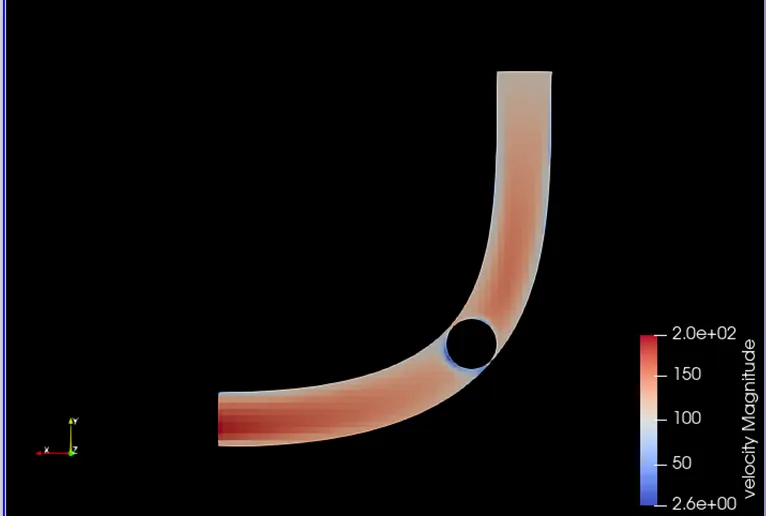

Velocity contour

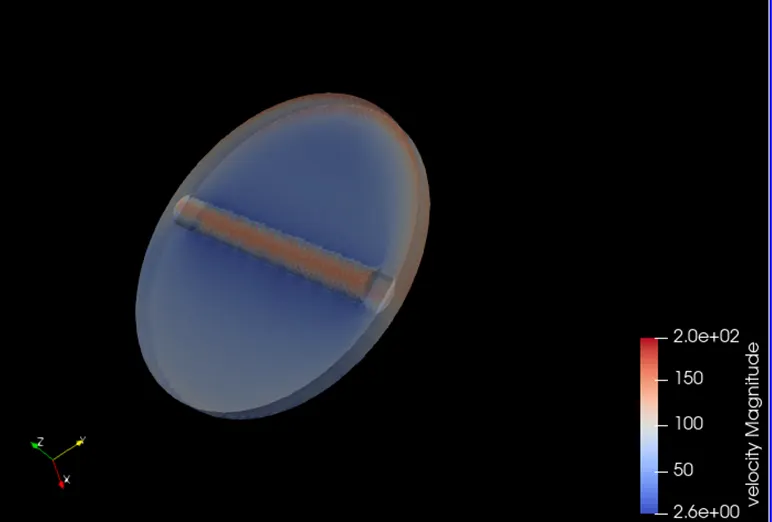

Velocity contour at throttle

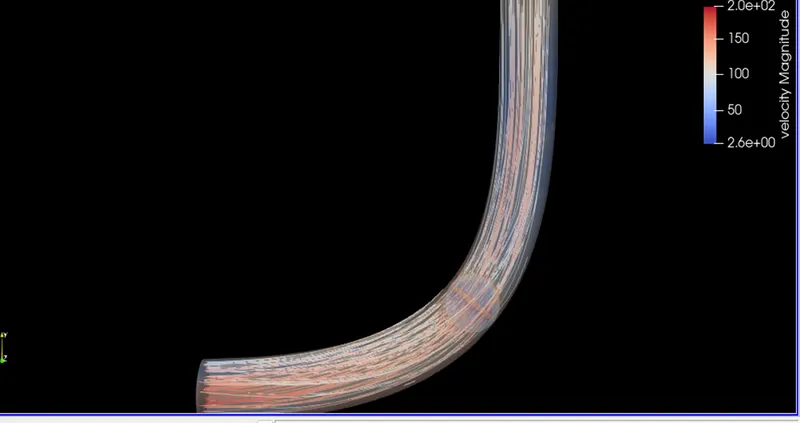

Stream trace:



Conclusions

• In these assignments we perform steady state simulation of flow over throttle body
• We observe the red zone near the throttle wall it is because of high pressure air coming from inlet
• Embedding is given because it ensured detailed physics near the wall
