Week 3 Verification of Weld Joints

AIM: Verification o f Weld joints.

PROCEDURE:

• So first we import the file in ANSYS and then edit that model file in Spceclaim.

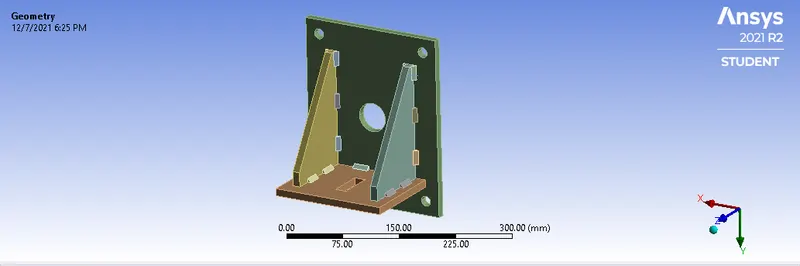

• The model is given below:

• Now after this we have to assign the material to the component as per the requirement.
• Now after this we will add the connection to the model as given below:

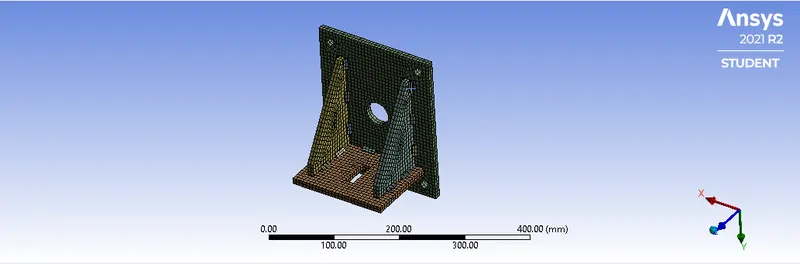

• After connection we will mesh the component, for the plates we will have mesh size as 6mm.

• Now after meshing we have to do the anlaysis setting.

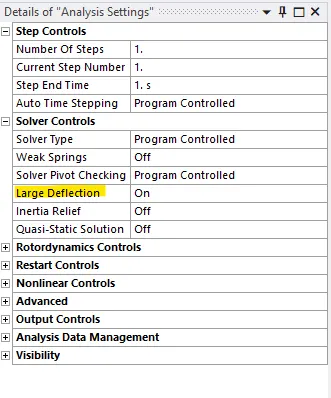

• Just turn on the large deflection.

• Now after this we will add the force and fixed the body.

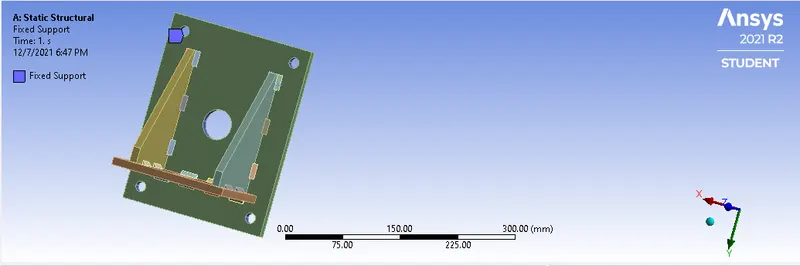

• So first create the fixed support at required point as shown:

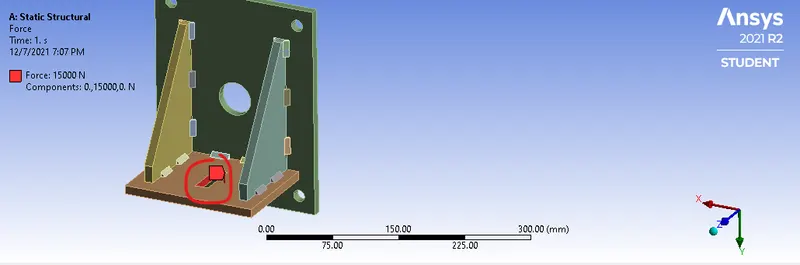

• After that we will apply the load of 15000N on the other plate. In Y-direction.

• Now we will add the solution which we required. And solve the program.

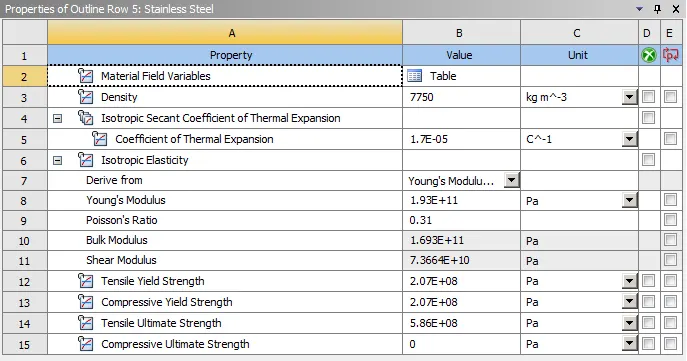

CASE 1: Stainless Steel: In this case, the material of the plates must also be the same. Use Stainless steel for both weldments and plates. No need to add flux to the weldments.

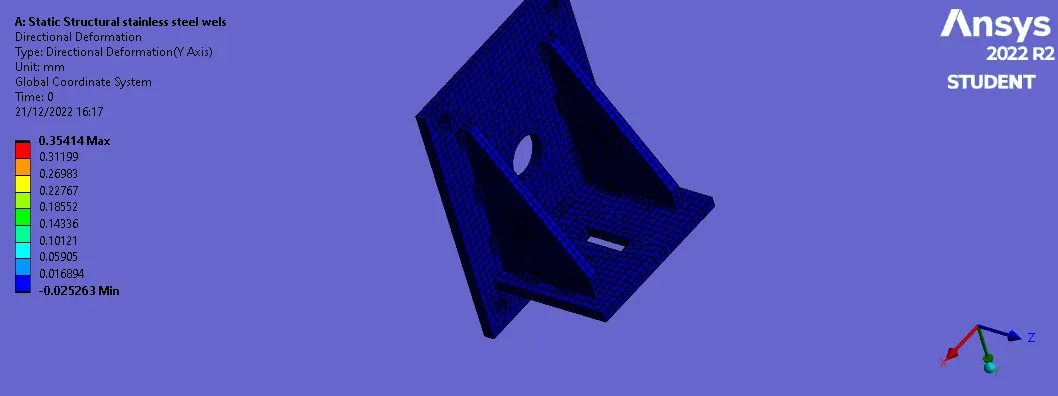

Directional Deformation:

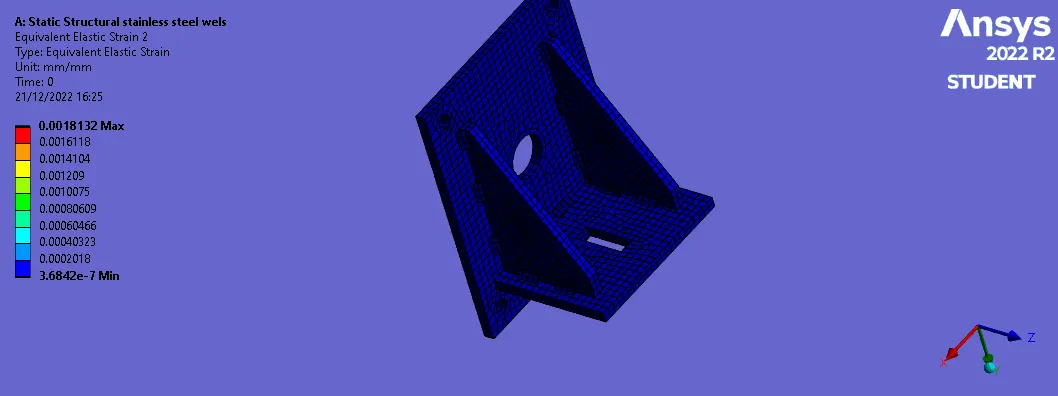

Equivalent Elastic Strain:

Equivalent Stress on RIBS:

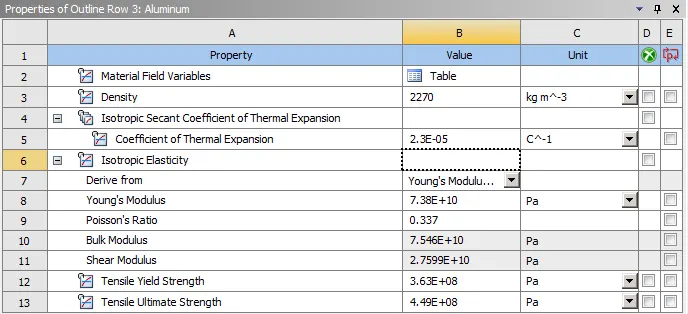

Case 2: Aluminium Alloy:The material to be chosen for this case is Aluminium alloy(high strength, wrought). [Plate material to be used is stainless steel]

Directional Deformation:

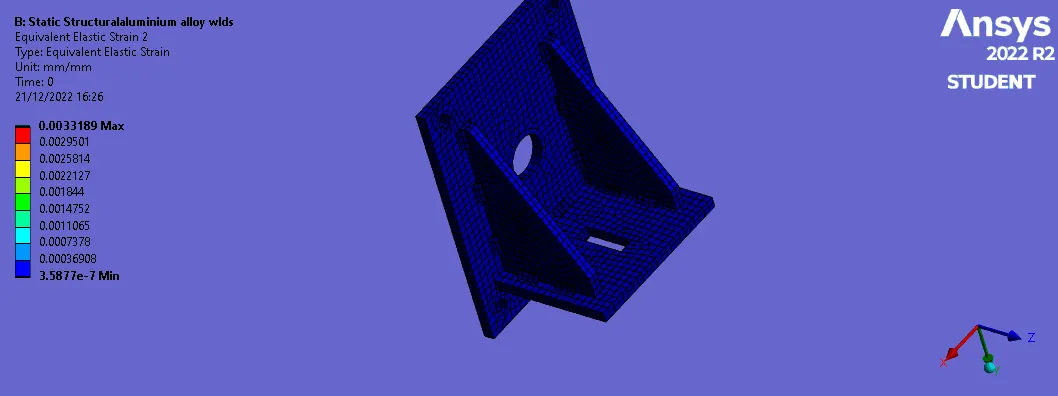

Equivalent Elastic Strain:

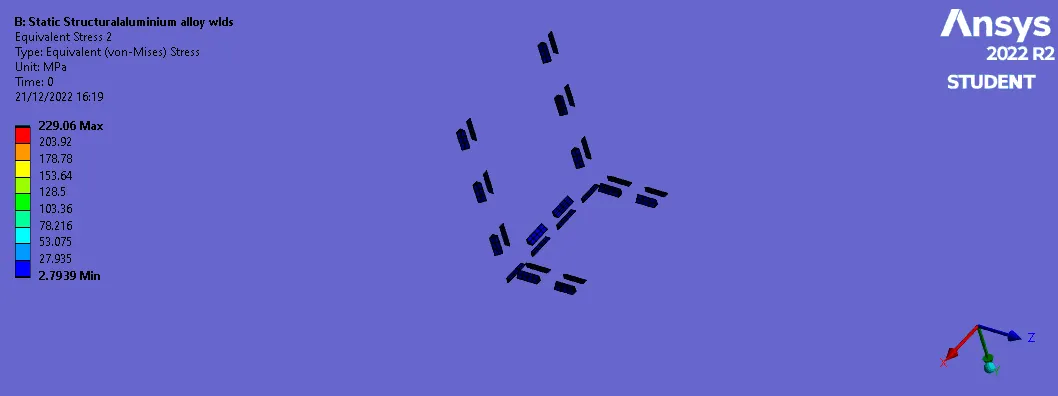

Equivalent Stress on RIBS:

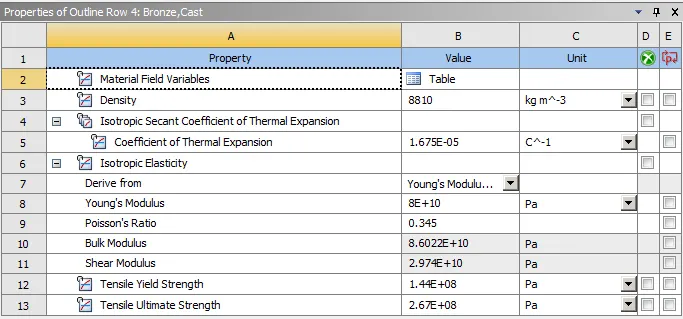

Case 3: Bronze: In order to simulate "Brazing", you should be using bronze as the weld material. Assign Stainless Steel to both plates and Copper to the "Ribs".

• In this we will assign the material only too welds. And after that we will run the simulation.

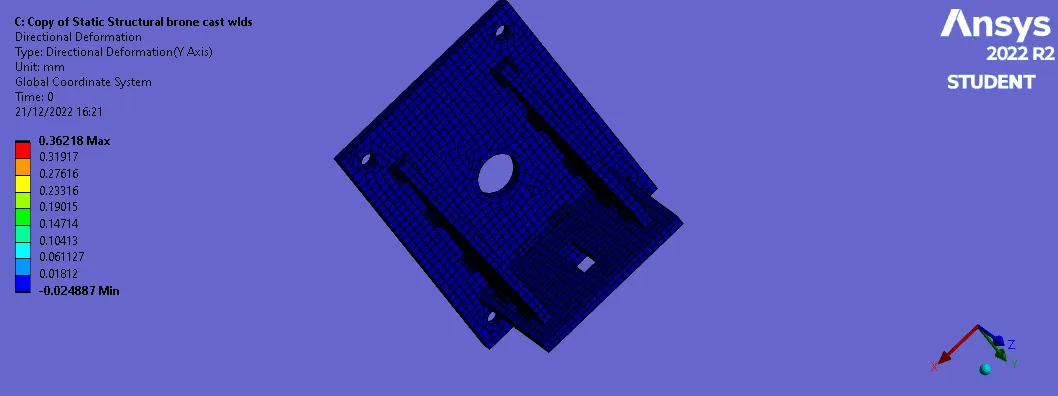

Directional Deformation:

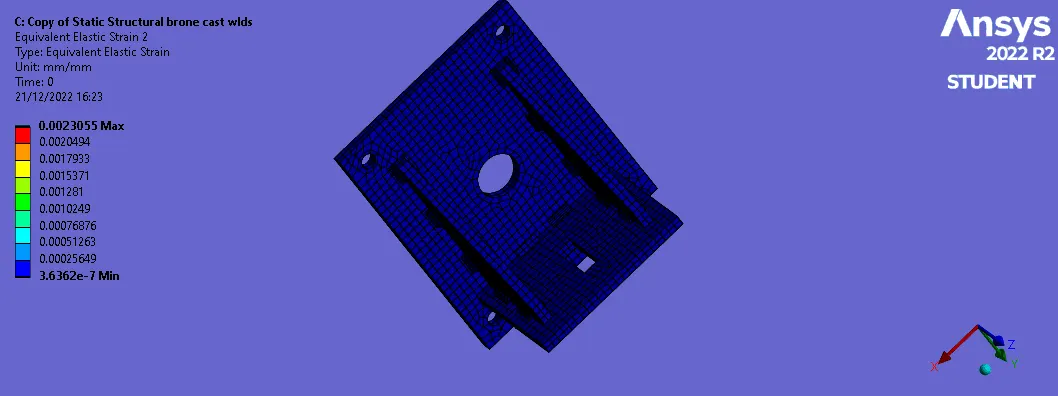

Equivalent Elastic Strain:

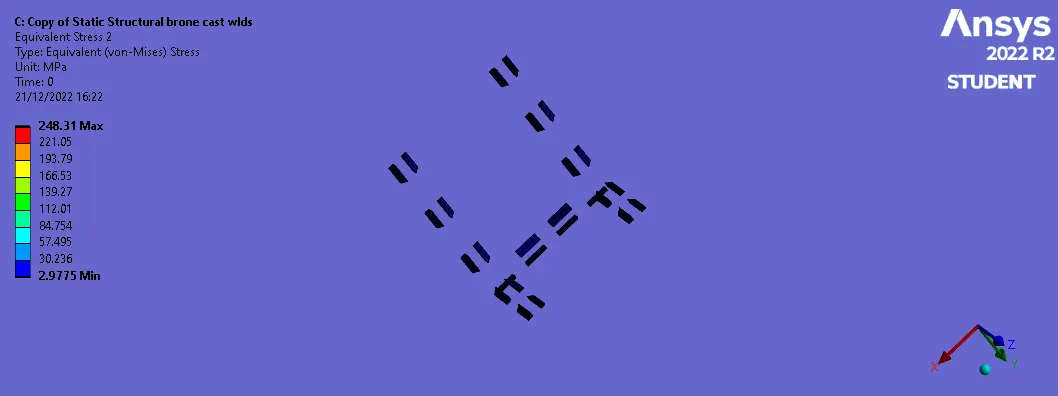

Equivalent Stress on RIBS:

Sr No.	CASES	DIRECTRIONAL DEFORMATION(mm)	Equivalent Elastic Strain (mm/mm)	Equivalent Stress on RIBS (MPa)
1	1	0.354	0.00181	283.11
2	2	0.372	0.00331	229.06
3	3	0.362	0.00230	248.31

CONCLUSION:

• So here we can see the bronze ribs having the less equivalent stress comapare to other material.
• Also the aluminum alloy has teh highest directional deformatuon and stress on ribs.
