Week 3 - Solving second order ODEs

Second order differential equation is a specific type of differential equation that consists of a derivative of a function of order 2 and no other higher-order derivative of the function appears in the equation.

1. The input variables are allocated.

• g = gravity in m/s2
• L = length of the pendulum in m
• m = mass of the ball in kg
• b=damping coefficient

2. Initial Conditions are mentioned.

• angular displacement=0
• angular velocity=3 rad/sec

3. Set a time period of 0-20sec with 100 iterations in it.

4. ode45 solver is used to solving the 2nd ODE

5. This is applied to make a function called ode_fun, which is called to
calculate the angular displacement along the change in time.

6. The pendulum is plotted using the Plot command.

7. The animation is created accordingly

Main Code

clear all
close all
clc
% Inputs

b = 0.05;
g = 9.81;
l = 1;
m = 1;

% Initial Condition

theta_0=[0;3];

% Time points
t_span=linspace(0,20,100);

% Solve ODE

[t,results]= ode45(@(t,theta)ode_func(t,theta,b,g,l,m),t_span,theta_0);

a = results(:,1);
ct=1;

for i=1:length(a)
    x0=0;
    y0=0;
    x1 = l*sin(a(i));
    y1 = -l*cos(a(i));
    plot([x0 x1],[y0 y1],'LineWidth',4,'Color','g')
    hold on
    plot([-0.5 0.5],[0 0],'LineWidth',8,'Color','b')
    plot(x1,y1,'Marker','.','Color','r','MarkerSize',45,'MarkerFaceColor','k')
    hold off
    axis([-1 1 -1  1])
    pause(0.03);
    title('Animation of pendulum')
    M(ct)=getframe(gcf);
    ct=ct+1;

end

movie(M)
videofile=VideoWriter('ode_main.avi','Uncompressed AVI');
open(videofile);
writeVideo(videofile,M);
close(videofile);

Function Code

function[dtheta_dt]=ode_func(t,theta,b,g,l,m)

theta1 =theta(1);
theta2 =theta(2);
dtheta1_dt = theta2;
dtheta2_dt = -(b/m)*theta2-(g/l)*sin(theta1);
dtheta_dt = [dtheta1_dt;dtheta2_dt];
end

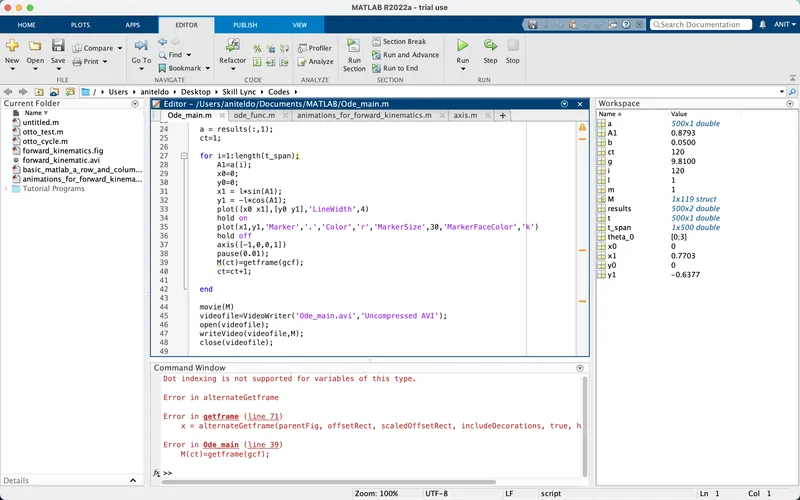

Error Faced

Result

The animation of the pendulum is created.

Google drive link: https://drive.google.com/drive/folders/1IP20feWQ2NljK1hqU2y1nQWhgRpdP4Oz
