Week 3 - Solving second order ODEs
AIM:
To write a program for simple pendulum using matlab.
THEORY:
The simple pendulum is another mechanical system that moves in an oscillatory motion. It consists of a point mass ‘m’ suspended by means of light inextensible string of length L from a fixed support. The motion occurs in a vertical plane and is driven by a gravitational force. The forces which are acting on the mass. The tangential component of the gravitational force, mg sin θ, always acts towards the mean position θ = 0 opposite to the displacement, restoring force acting tangent to the arc.
PROGRAM:
clear all
close all
clc
%initial condition of pendulum
l=1;
m=0.1;
b=0.02;
g=9.81;
%initial condition
theta_0=[0;3];
%time points
t_span=linspace(0,20,500);
%solve ode
[t,results]=ode45(@(t,theta)ode_fun(t,theta,b,g,l,m ),t_span,theta_0);

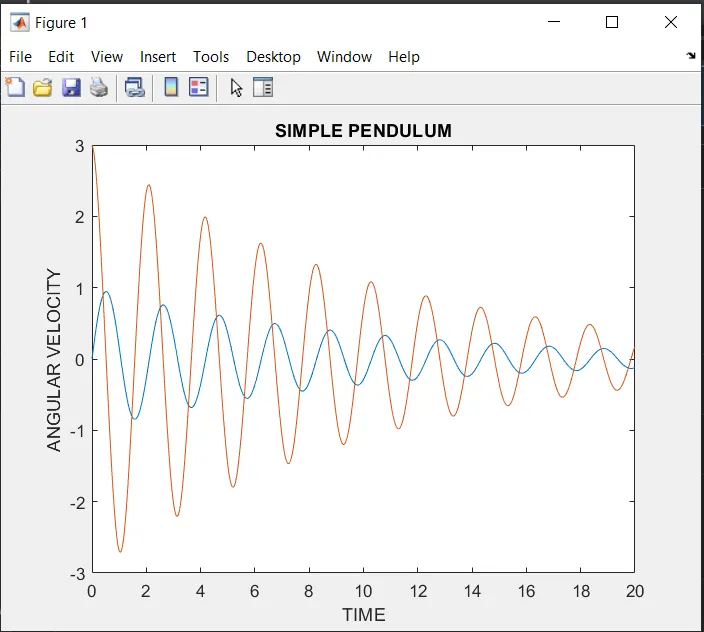

%plotting
figure(1)
plot(t,results(:,1))
hold on
plot(t,results(:,2))
title('SIMPLE PENDULUM')
xlabel('TIME')
ylabel('ANGULAR VELOCITY')
%pendulum animation
amplitude=results(:,1);
p=1;
for i=1:length(amplitude)
angle=amplitude(i);
figure(2)
title('SIMPLE PENDULUM')
%fix point of pendulum
x0=0;
y0=0;
%another end of pendulum
x1=1*sin(angle);
y1=-1*cos(angle);
%plotting
plot([-1.1 1.1],[0 0],'linewidth',2);
hold on
plot([x0 x1],[y0 y1],'color','g','linewidth',2);
plot(x1,y1,'o','Markers',20,'markerfacecolor',[1 1 0]);
hold off
grid on
axis([-1.5 1.5 -1.5 0.5])
pause(0.001)
M(p)=getframe(gcf);
p=p+1;
end
movie(M)
videofile=VideoWriter('SIMPLE PENDULUM.avi','Uncompressed AVI');
open(videofile)
writeVideo(videofile,M)
close(videofile)
function [dtheta_dt]=ode_fun(t,theta,b,g,l,m)
theta1=theta(1);
theta2=theta(2);
dtheta1_dt=theta2;
dtheta2_dt=-(b/m)*theta2-(g/l)*sin(theta1);
dtheta_dt=[dtheta1_dt;dtheta2_dt]
end
ANIMATION:
https://www.youtube.com/watch?v=2u9PKPvZass.
