Week 3 - Solving second order ODEs

Program to simulate simple pendulum

%Write a program that will simulate the pendulum motion

clear all
close all
clc

b=0.05;
g=9.81;
l=1;
m=1;

%Initial condition
theta_0=[0;3];

%time_plots
t_span=linspace(0,20,500);

%solve for ode

[t,results]=ode45(@(t,theta) ode_func(t,theta,b,g,l,m),t_span,theta_0);

%Pendulum

ct=1;
for i=1:length(results(:,1))
    x0=0;
    y0=0;
    x1=l*sin(results(i,1));
    y1=-l*cos(results(i,1));
   plot([-0.5,0.5],[0,0],'linewidth',3);
   line([x0,x1],[y0,y1],'linewidth',3);
   hold on
   plot(x1,y1,'o','MarkerS',20,'MarkerFaceColor','r');
   grid on
   axis([-1.5 1.5 -1 0.5]);
   pause(0.02);
   M(ct)=getframe(gcf);
   hold off
   ct=ct+1;
end

movie(M)
videofile=VideoWriter('Pendulum_motion.avi','Uncompressed AVI')
open(videofile)
writeVideo(videofile,M)
close(videofile)

Explanation of program:

1. Firstly the inputs are given such as damping coefficient (b), gravity (g),length (l),mass (m).
2. Initial conditions are given for velocity & displacement.
3. time span is defined using linspace command.
4. differential equation s solved using ode45 inbuilt command.
5. Time function is call to define the values of variables & calculates column matrics.
6. for loop is used to calculate motion of pendulum at different time interval.
7. Marker command is used to creat ball.
8. movie command is used to make movie.

Call function:

function[dtheta_dt]=ode_func(t,theta,b,g,l,m)
theta1=theta(1);
theta2=theta(2);
dtheta1_dt=theta2;
dtheta2_dt=-(b/m)*theta2-(g/l)*sin(theta1);
dtheta_dt=[dtheta1_dt;dtheta2_dt];
end

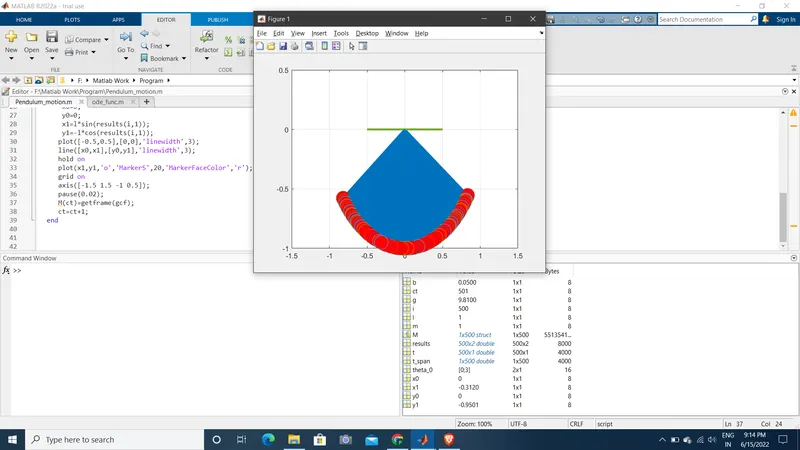

Image that represents position of pendulum

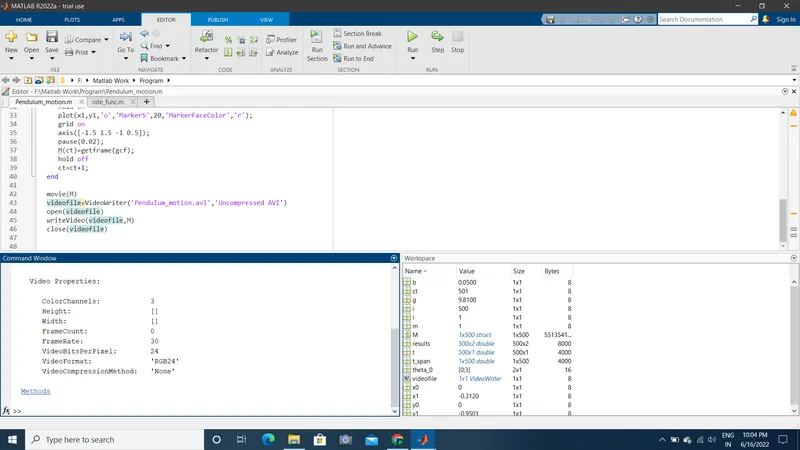

Output:

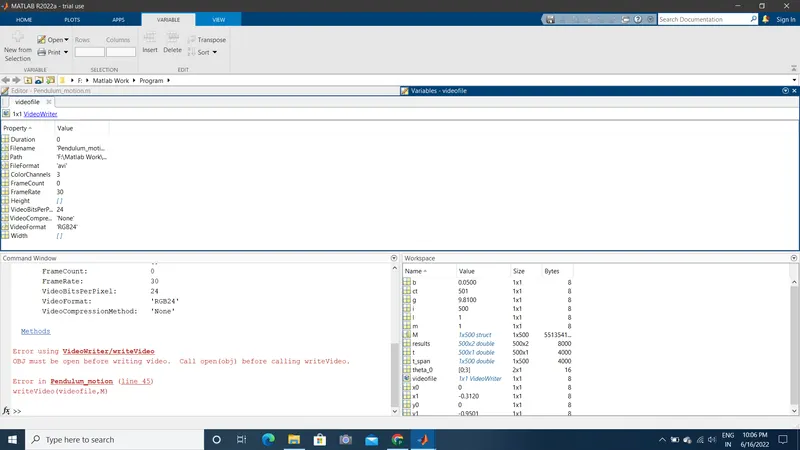

Error faced during Programming:

Inverted comma (') is given at videofile. Inverted comma removed and then run the program.

Video link of simulation
