Week 3 - Solving second order ODEs

Aim= To solve second oder ODE in matlab

code=

% second order ode to solve the pendulam motion
close all
clear all
clc
b = 0.05;
g = 9.81;
l = 1;
m = 1;

% initial condition
theta_0=[0;3];

% time points
t_span=linspace(0,20,100);

% solve ODE
[t,result]= ode45(@(t,theta)ode_func(t,theta,b,g,l,m),t_span,theta_0);

plot(t,result(:,1))
hold on
plot(t,result(:,2))


ct=1;
for i=1:length(result(:,1))

    x0=0;
    y0=0;

    x1=l*sin(result(i,1));
    y1=l*cos(result(i,1));

    figure(2)
    %plotting
     plot([1 -1],[0 0],'linewidth',3)
    hold on

    plot([-x0 -x1],[-y0 -y1],'linewidth',4)
    axis([-4 4 -4 4])
    plot(-x1,-y1,'.','markersize',35)
    M(ct)=getframe(gcf);
    ct=ct+1;
    hold off
end
movie(M)
videofile=VideoWriter('ode_function_for_loop.avi','uncompressed AVI');
open(videofile)
writeVideo(videofile,M)
close(videofile)

function[dtheta_dt]=ode_func(t,theta,b,g,l,m)
theta1=theta(1)
theta2=theta(2)
dtheta1_dt=theta2;
dtheta2_dt=-(b/m)*theta2-(g/l)*sin(theta1);
dtheta_dt=[dtheta1_dt;dtheta2_dt];
end

Explanation = m=mass, l=length, b=dampping co-efficient, theta in degree, t=time spain etc

converted second order ODE to frist oder

then by using inbuilt matlab command ODE 45 solved the given above equatio

and then after ODE function is called in main progrrame then the result is plotted

created the horizontal and vertical line in plot ,bob at the end

theta value is change by the help of for loop command and then plotted the figure

hold on the all figures in one frame and then movie is created and that file is saved as .AVI extension

Error=

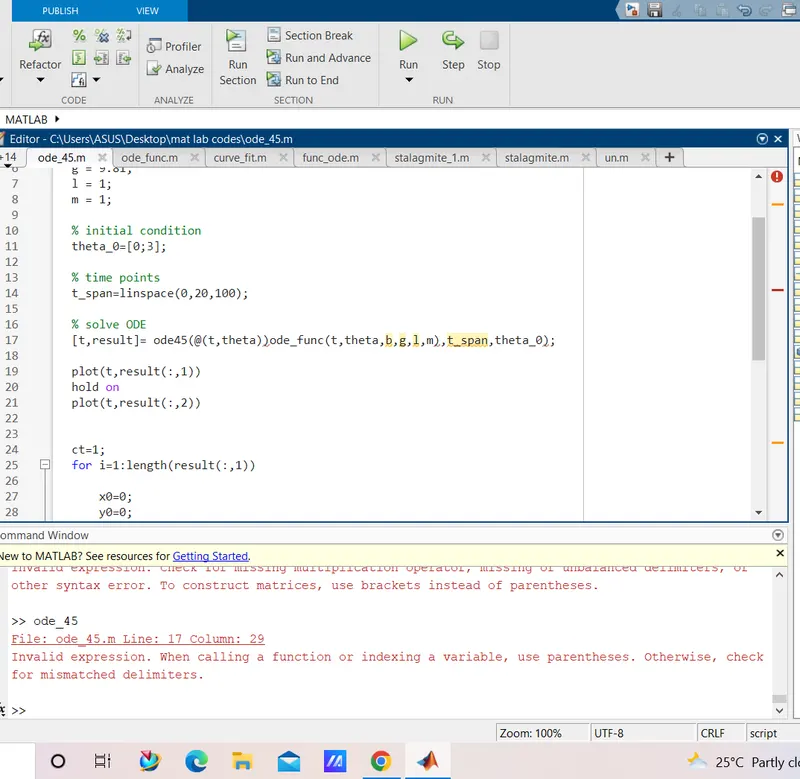

in line number 17 at ODE 45 ')'extra prantasis is written

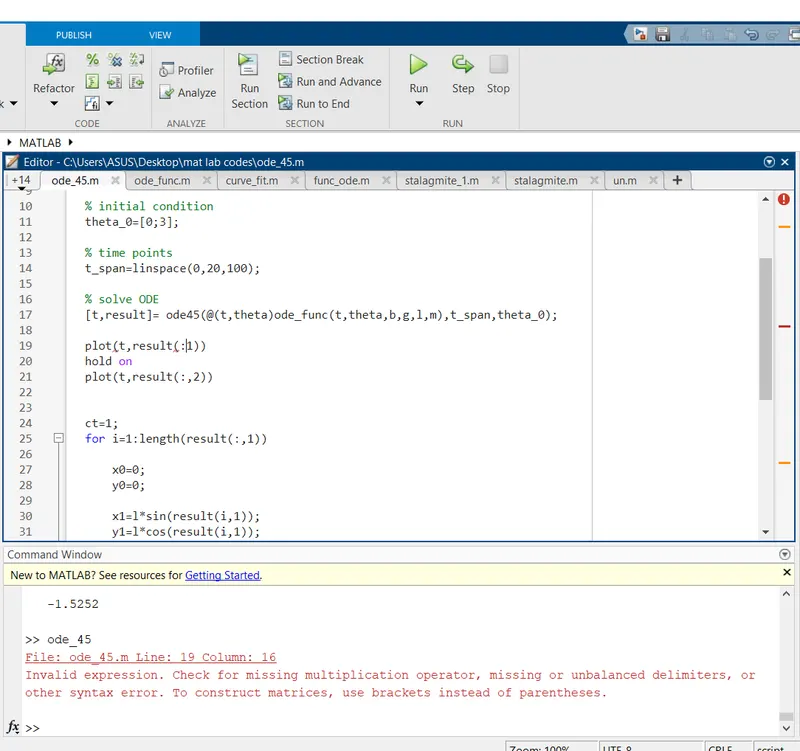

line num 16 comma is missing (:1)

corrected as (:,1)

Result= https://youtu.be/qBekjD-qgx0
