Week 3 - Solving second order ODEs
SOLVING SECOND ORDER ODEs
AIM:
- Solving a second-order ordinary differential equation of a simple pendulum and showing the effect of damping by an animation.
Objective:
- To convert second-order ordinary differential equation to 1st order ordinary differential equation.
- To create the function using MATLAB in-built function for solving ordinary differential equations.
- To plot the displacement and velocity damping through the time stipulated time of the simulation.
- To make the animation of a simple pendulum.

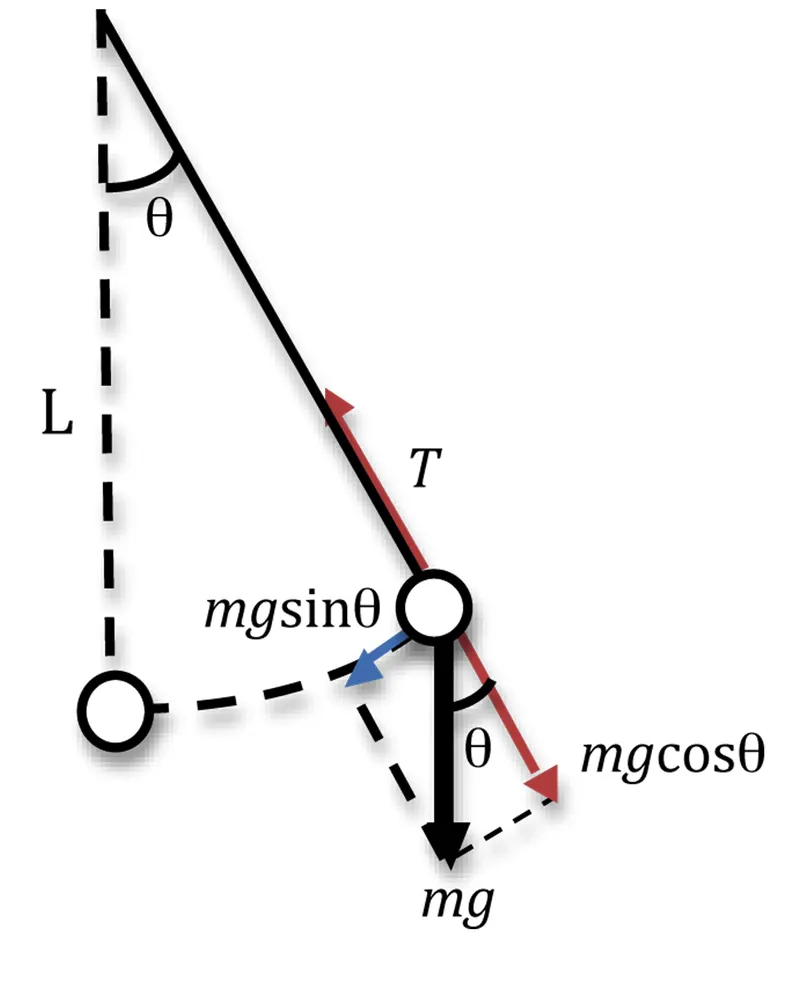

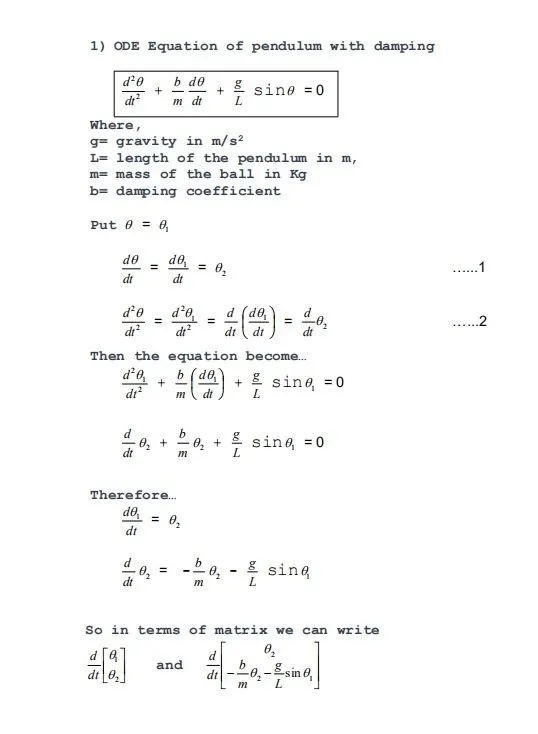

Description & Governing equation:
The differential equation is mostly used to define the complex physics phenomenon mathematically. A differential equation is divided into two classes: ordinary differential and partial differential equations. Solving a 1st order differential is quite easy and requires only one constant to define the equation, also it can be programmed easily. The main effort is taken while solving the 2nd-order differential equation. Most of the fluid equations and some structural phenomena are defined in the 2nd order differential equation which needs to solve eventually to implant the flow or the structural behavior.

PROGRAM:

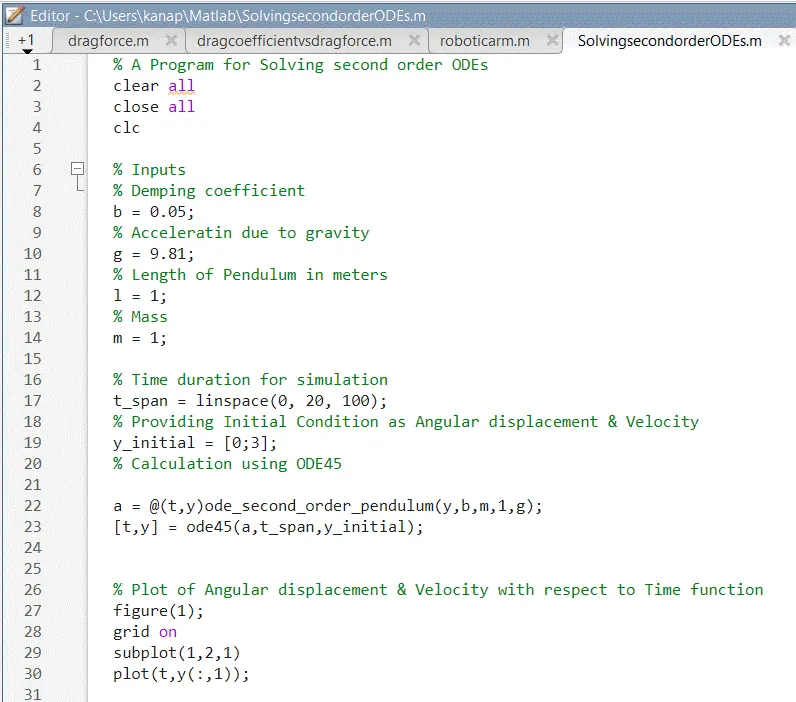

% A Program for Solving second order ODEs
clear all
close all
clc
% Inputs
% Demping coefficient
b = 0.05;
% Acceleratin due to gravity
g = 9.81;
% Length of Pendulum in meters
l = 1;
% Mass
m = 1;
% Time duration for simulation
t_span = linspace(0, 20, 100);
% Providing Initial Condition as Angular displacement & Velocity
y_initial = [0;3];
% Calculation using ODE45
a = @(t,y)ode_second_order_pendulum(y,b,m,1,g);
[t,y] = ode45(a,t_span,y_initial);
% Plot of Angular displacement & Velocity with respect to Time function
figure(1);
grid on
subplot(1,2,1)
plot(t,y(:,1));
title('Displacement vs Time');
xlabel('Time in seconds');
ylabel('Angular displacement in rad');
subplot(1,2,2)
plot(t,y(:,2));
title('Angular velocity Vs Time');
xlabel('Time in seconds');
ylabel('Angular velocity in rad/sec');
grid off

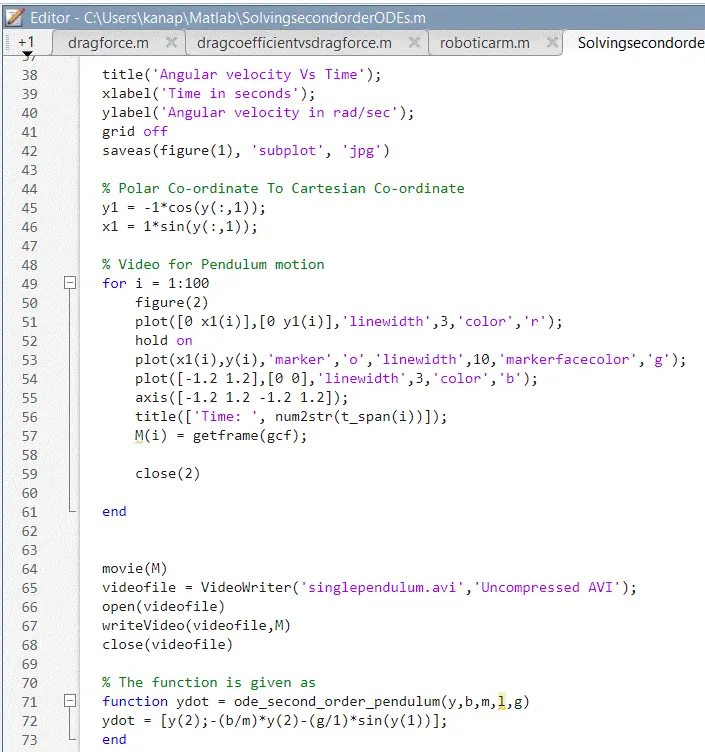

saveas(figure(1), 'subplot', 'jpg')
% Polar Co-ordinate To Cartesian Co-ordinate
y1 = -1*cos(y(:,1));
x1 = 1*sin(y(:,1));
% Video for Pendulum motion
for i = 1:100
figure(2)
plot([0 x1(i)],[0 y1(i)],'linewidth',3,'color','r');
hold on
plot(x1(i),y(i),'marker','o','linewidth',10,'markerfacecolor','g');
plot([-1.2 1.2],[0 0],'linewidth',3,'color','b');
axis([-1.2 1.2 -1.2 1.2]);
title(['Time: ', num2str(t_span(i))]);
M(i) = getframe(gcf);
close(2)
end
movie(M)
videofile = VideoWriter('singlependulum.avi','Uncompressed AVI');
open(videofile)
writeVideo(videofile,M)
close(videofile)
% The function is given as
function ydot = ode_second_order_pendulum(y,b,m,l,g)
ydot = [y(2);-(b/m)*y(2)-(g/1)*sin(y(1))];
end


EXPLANATION OF CODE:
-
For clearing command window & workspace, closing all plots.
-
The code starts with the inputs which are provided in the problems. then we make a time domain for which the whole code is going to run.
-
It was done by the 'linspace' command from 0 to 20 seconds with 100 values in between them.
-
After that, we provide the initial condition for the angular displacement and velocity in column vector form, because we need to calculate both values from the equation of motion for plotting purposes.
-
The code comprises of function which solves the second-order differential equation which is taken inside the main code.
-
The main code has another function that calculates the array of data for time and displacement.
-
After calculation plotting is done in which subplot command is used, in the first plot first column is plotted and in the second subplot, the second column is plotted concerning time.
-
Then we are changing the polar co-ordinate to cartesian co-ordinate because we have used the 'sin' command instead of 'sind' command in function.
-
Then we have created a for loop for which we are creating the frame motion for the simple pendulum and saving it in the movie.
-
saving the movie in .avi format.
- I have found a few errors and solutions were found during execution.
- Use of the semi-colon(;) in coding results in no output in the command window.

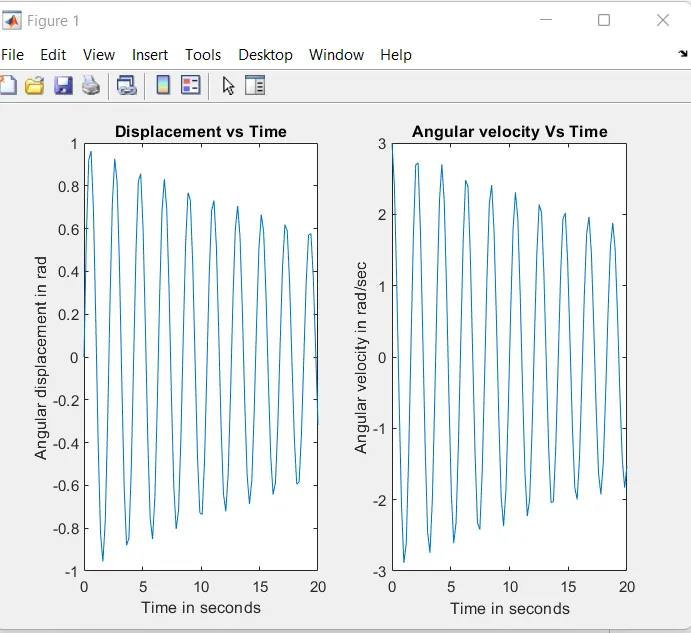

As we can see from the plots the displacement is getting reduced as we move further into time because of the damping factor. From the plot, we can clearly observe displacement is starting from 0 as an initial condition. In the angular velocity vs time plot, it has started from 3 rad/sec and then further gets decreased.
