Week 3 - Pitot tube

A pitot tube, also known as pitot probe, is a flow measurement device used to measure fluid flow velocity. It is widely used to determine the airspeed of an aircraft, water speed of a boat, and to measure liquid, air and gas flow velocities in certain industrial applications.

The basic pitot tube consists of a tube pointing directly into the fluid flow. As this tube contains fluid, a pressure can be measured; the moving fluid is brought to rest (stagnates) as there is no outlet to allow flow to continue. This pressure is the stagnation pressure of the fluid, also known as the total pressure or (particularly in aviation) the pitot pressure.

The measured stagnation pressure cannot itself be used to determine the fluid flow velocity (airspeed in aviation). However, Bernoulli's equation states:

Stagnation pressure = static pressure + dynamic pressure

The dynamic pressure, then, is the difference between the stagnation pressure and the static pressure. The dynamic pressure is then determined using a diaphragm inside an enclosed container. If the air on one side of the diaphragm is at the static pressure, and the other at the stagnation pressure, then the deflection of the diaphragm is proportional to the dynamic pressure.

In aircraft, the static pressure is generally measured using the static ports on the side of the fuselage. The dynamic pressure measured can be used to determine the indicated airspeed of the aircraft. The diaphragm arrangement described above is typically contained within the airspeed indicator, which converts the dynamic pressure to an airspeed reading by means of mechanical levers.

Instead of separate pitot and static ports, a pitot-static tube (also called a Prandtl tube) may be employed, which has a second tube coaxial with the pitot tube with holes on the sides, outside the direct airflow, to measure the static pressure.

Objective

For the values of velocity given below calculate the total and static pressures and find the error in percentage for velocity.

Velocity(m/s)	Gauge Pressure (Pa)
240	-2817
100	33287
62	65780

Pre-processing physics set up

Solver: pressure based

Simulation: steady state

Material: air

Viscous model: laminar

Boundary conditions:

Velocity	Inlet pressure (Pa)	Outlet pressure (Pa)
240	-2817	-2817
100	33287	33287
62	65780	65780

Post processing solution

Case 1

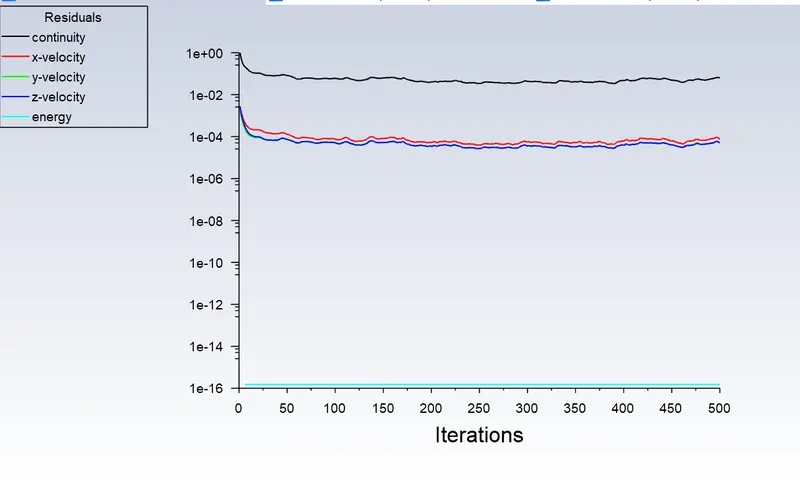

Iterations

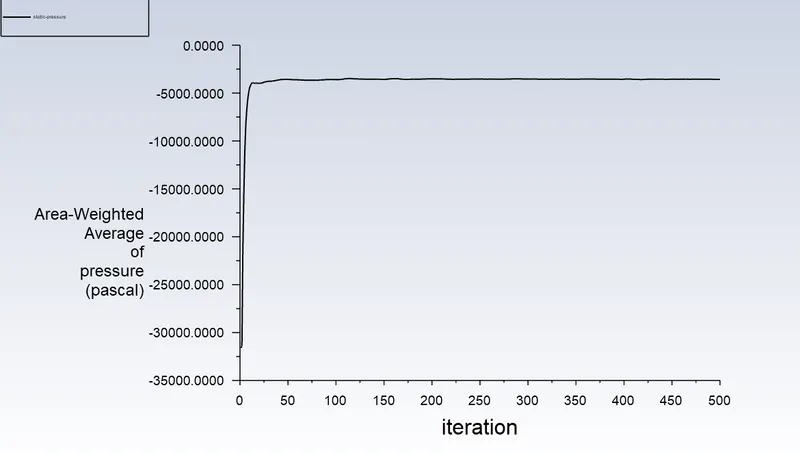

Static pressure

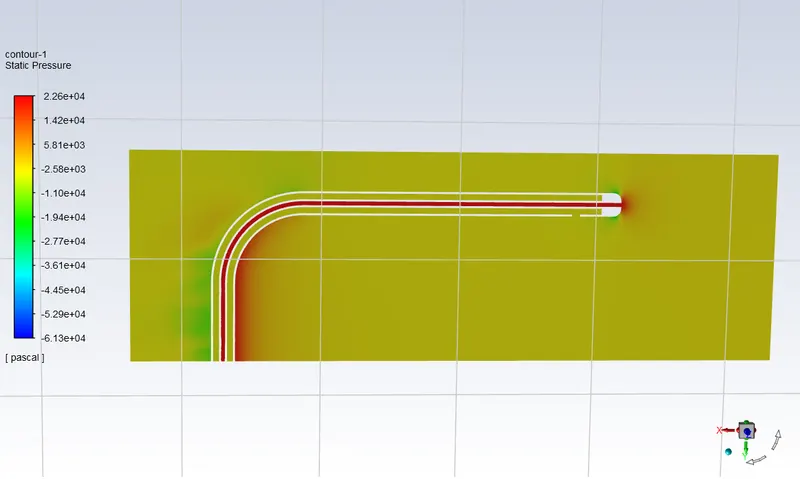

Static pressure contour

Case 2

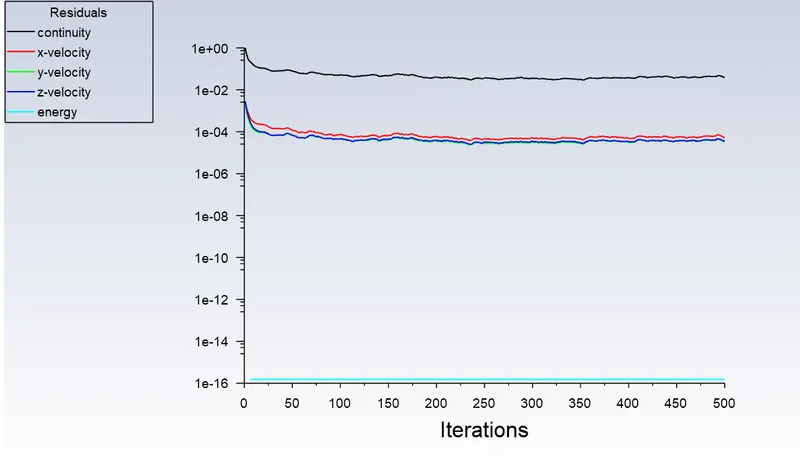

Iterations

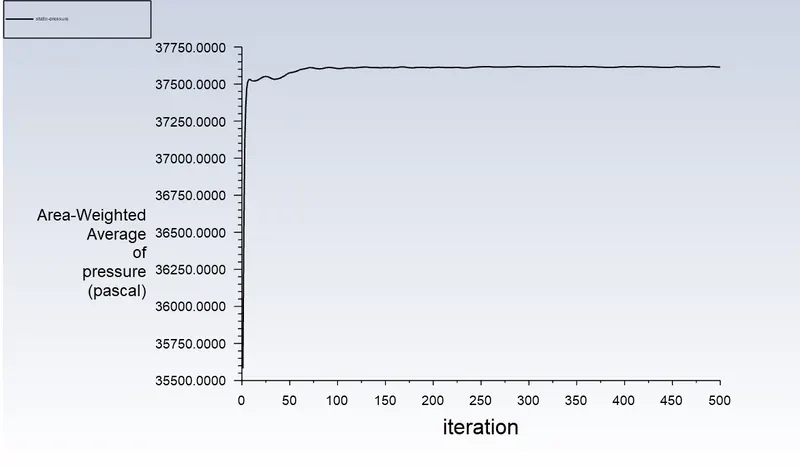

Static pressure

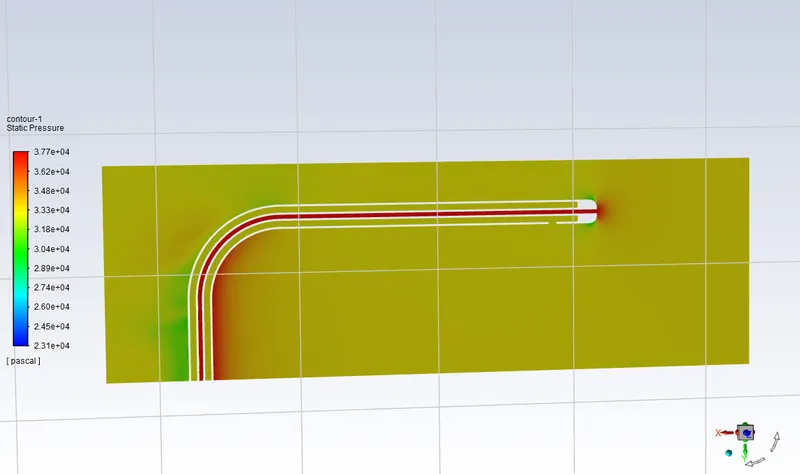

Static pressure contour

Case 3

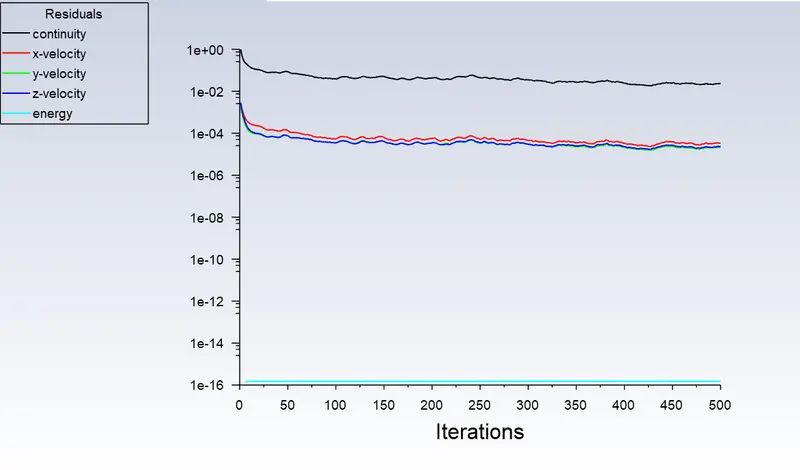

Iterations

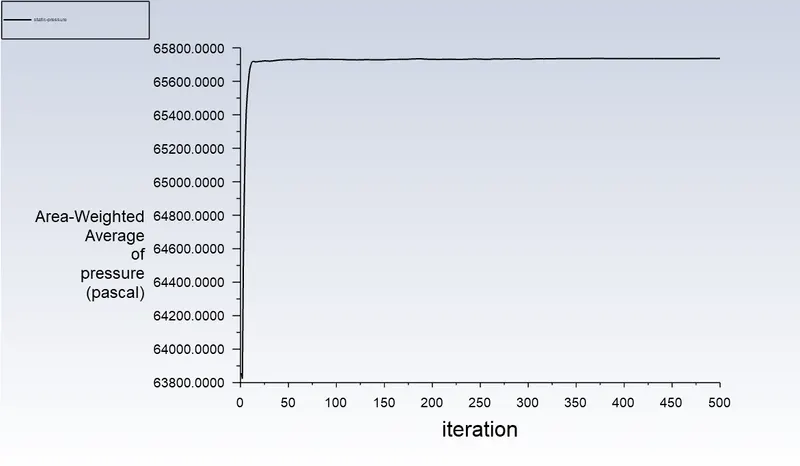

Static pressure

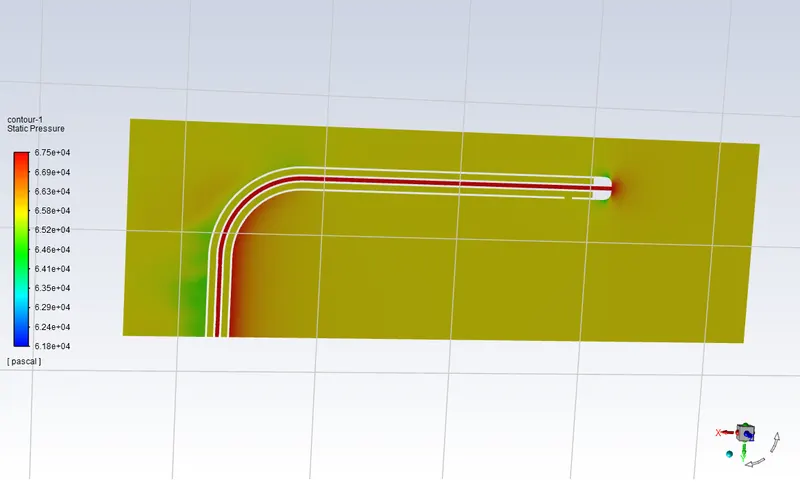

Static pressure contour

Validations with analytical data

Static pressure (Pa)	Total pressure (Pa)	Velocity (m/s)	Error %
-3574.3929	21997.782	226.16	5.76
33164.514	37615	94.344	5.56
65736.338	67449.93	58.54	5.58

conclusion

the pitot tube simulation is carried with different velocities to predict the static and total pressure at outlet. The variation of error is marginal and lies within the acceptable region.
