Week 3-Meshing of Hood Challenge

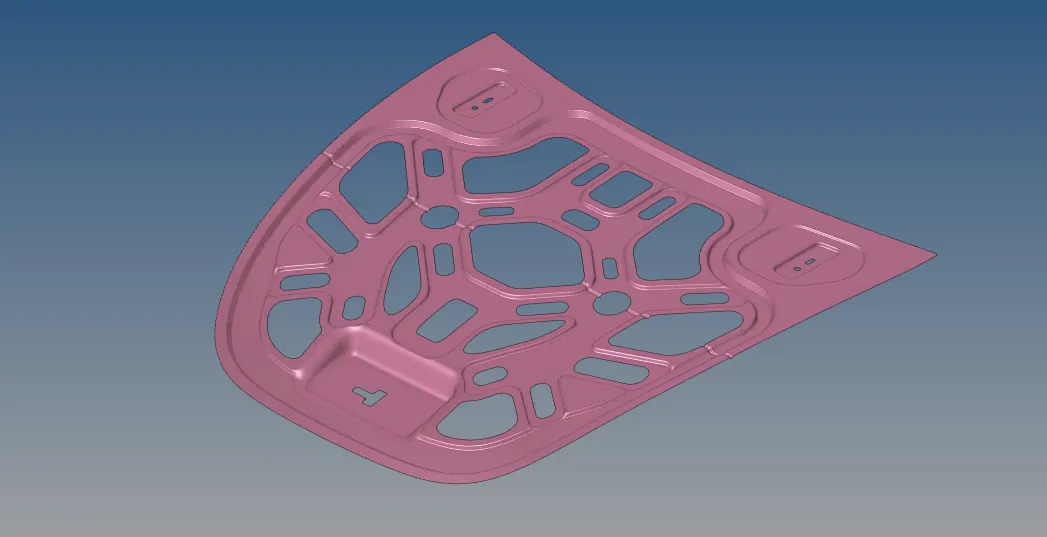

First of all go to Import Solver Deck > lmport Geometry > File type: STEP > Choose File > Import. The geometry is imported.

Then go to Features Tree > Components > Hide all the components except inner_extract_body1.

Delete - Solids- select-delete (mode - by topo)

Geom - Midsurface-surfaces- select - attached -extract

after extact midsurface clean the geometry by using geometry cleanup option

Fill the missing surface using Quick edit option

After cleanup go to 2D-automesh-surfaces- attached-mesh (element size 5, Mesh type-mixed), Check the mesh flow. And then remesh the improper mesh area.

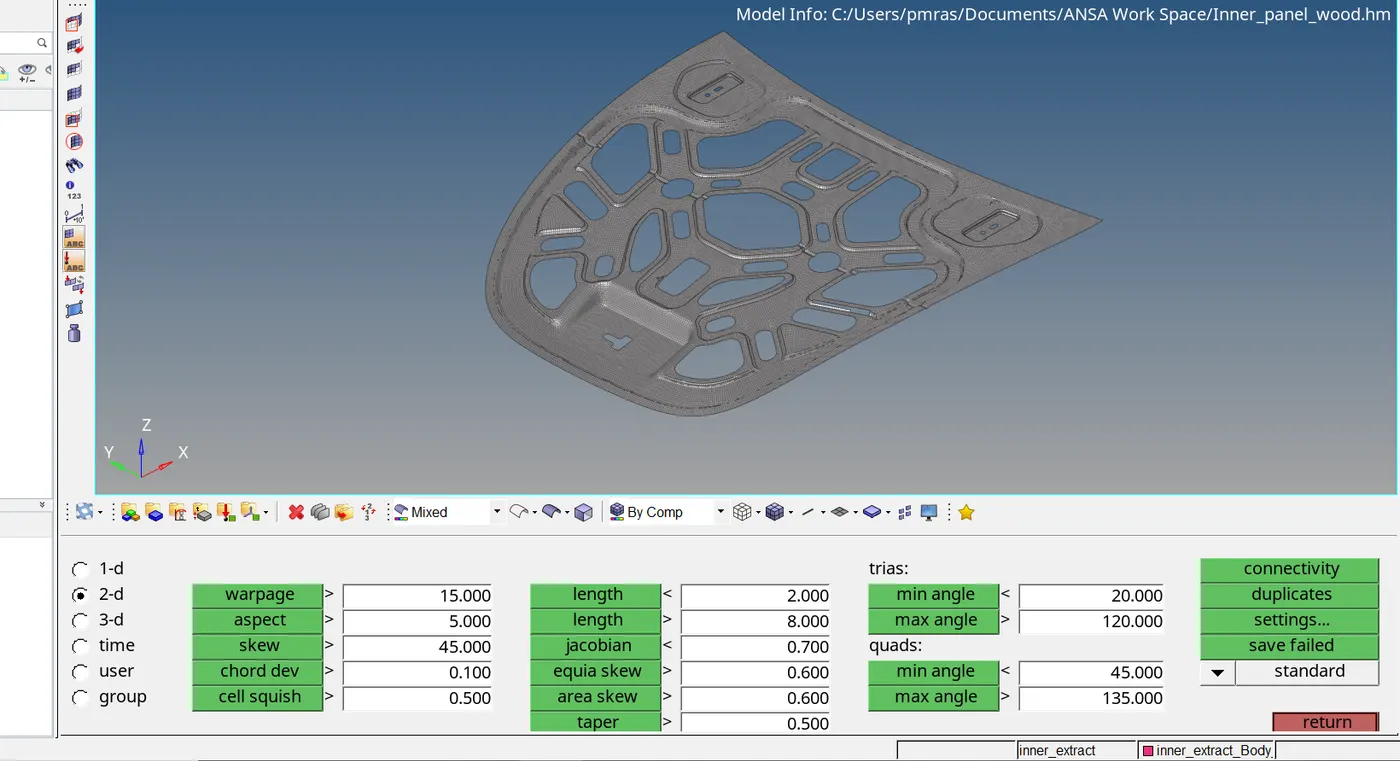

Go to Quality Criteria - Enter the Given Criteria.

Examine each type of element that has a value entered separately.

Certain elements may not meet the quality criteria; however, they can be modified by employing certain alternatives.

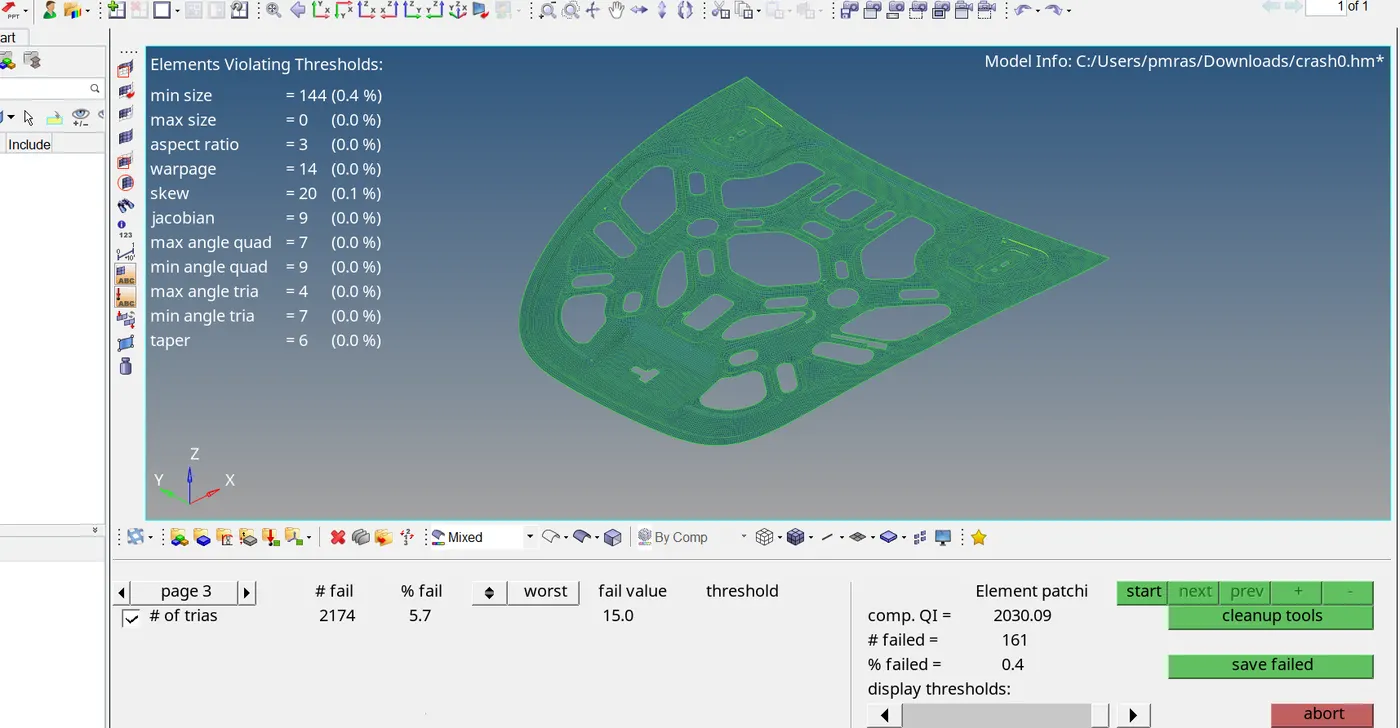

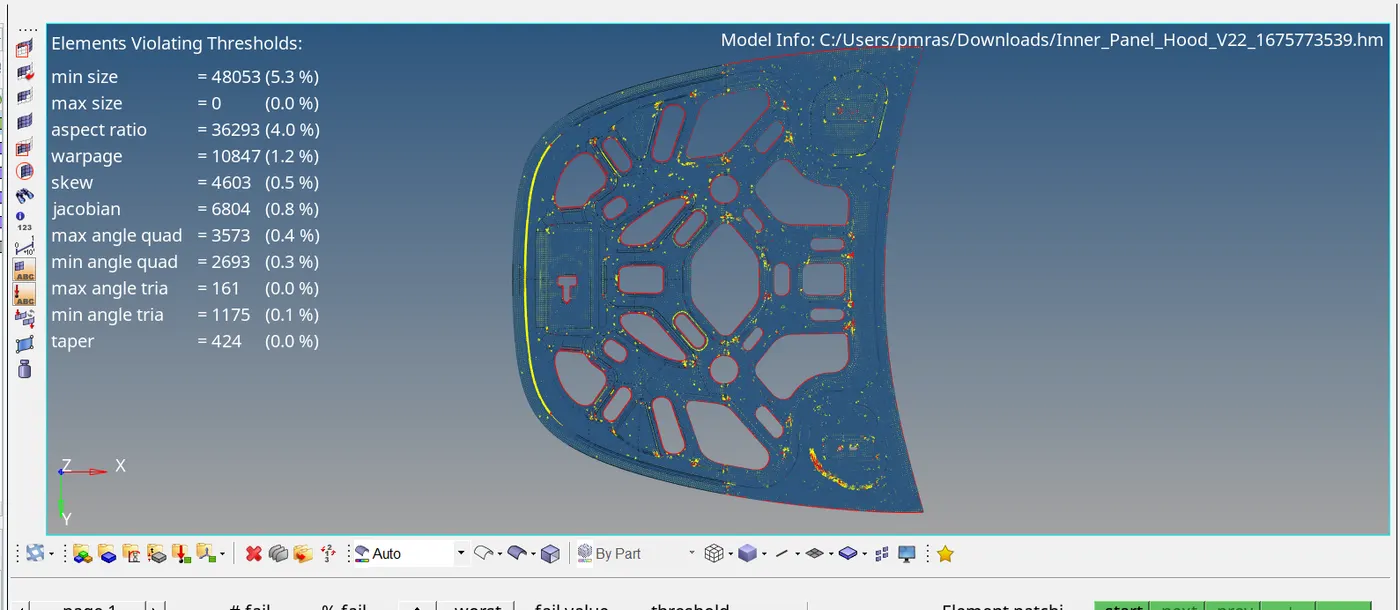

Tool -Verify Elements - Error Saving.
Tools -Mask -Elements - Extract - Mask -Reverse. (Only the elements that fail will be seen on the display.)
F12 -elements -Select elements - Mesh (Remeshing some unsuccessful elements will eliminate them.)

2d -Tools for cleaning -Qualityindex- There are numerous options in the cleanup tools. We can eliminate the failed components by utilizing the Display Threshold: fail - option.

And check for Quality that may redudced to less.

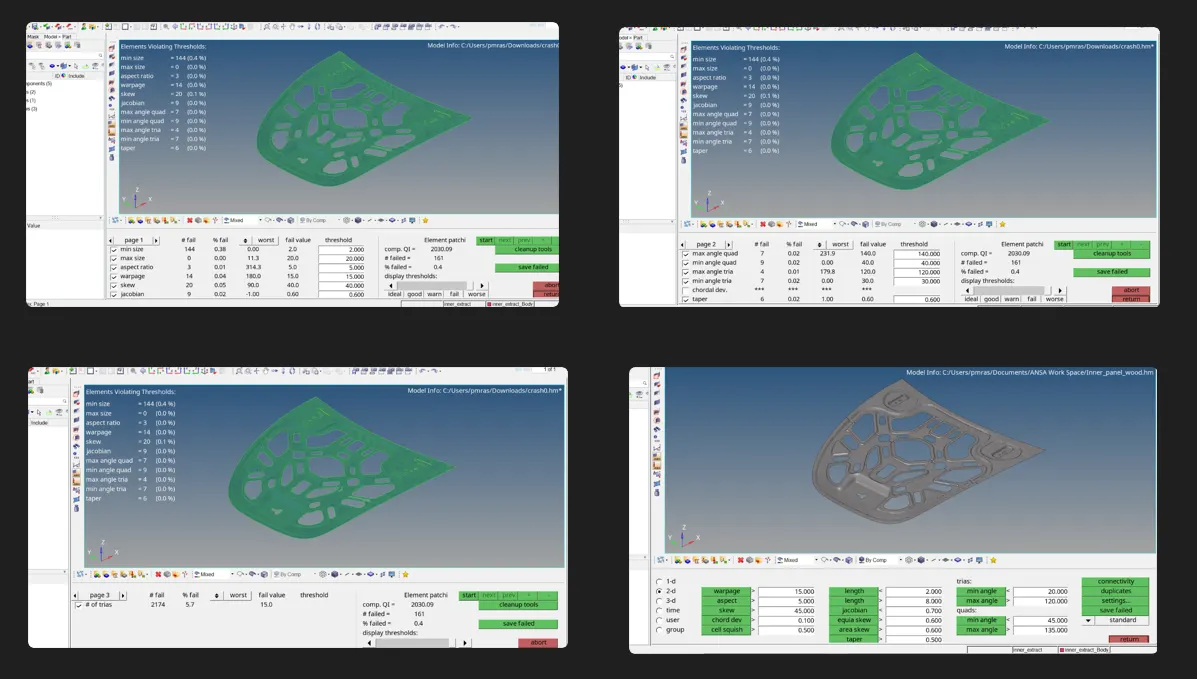

The results:

Week 3 : Inner_panel_wood : https://drive.google.com/file/d/1NUXnMBMRLdfFYRx7UmfDtca8cMfi5K3_/view?usp=drive_link

Thanks
