Project 1 - Meshing of Floor Panel

Hello,

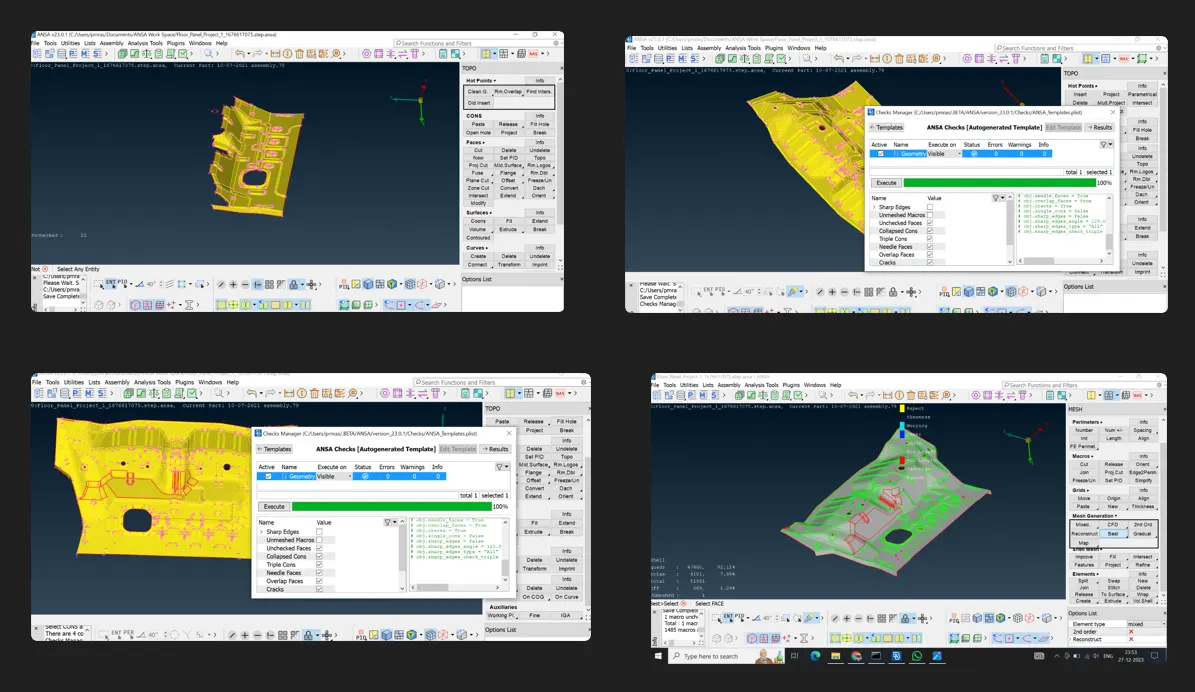

Using given modle of floor panel, I followed all the intial steps for setup. Performed topo checked geometry, errors. Tried fix some errors by auot fix & other by manual method Clened up the geometry.

Afther that try for auto mid surface generation but it is not possible because the part is not closed volume So, mid surfce generated by manualy offsenting (thickness is 1mm offseted the suraface to 0.5mm from on surafce end). Cheked geomerty that was clear. Then element size defined and checked in modle for element size distribution.

The Quality parmeter are applied as per requirement mentioned & mesh parameters also. Then performed the best mesh. got mesh. With results of

Quads - 47860 - 92.11%

Trais- 4101 - 7.89 %https://drive.google.com/file/d/1I-r56vZfica06o8UGcZwqhfgU3mVwiSj/view?usp=drive_link

Total - 51916
