Week 3 Challenge : CFD meshing on Turbocharger

• Aim of the project:

For the given model of a turbocharger, check for the geometrical errors to make appropriate volumes. Create and assign PIDs accordingly. Create surface mesh and use that to create a volumetric mesh.

• Objective of the project:

1. Perform surface mesh with the given target lengths as per PIDs.

1. Blade stage-1 = 1 mm
2. Blade stage-2 = 1 mm
3. Impeller = 2 mm
4. Shaft rotor = 1 mm
5. Turbo casing = 5 mm
6. Compressor casing = 5 mm
7. Inlet casing cover = 5 mm

2. Perform Volumetric mesh for the required volumes as shown in the videos.
3. Write a detailed report on your surface meshing & Volume meshing process.

• Turbocharger Model:

fig 1 a,b. Initial model and final geometry cleaned model

• Procedure of the project:

1. Mainly Topo/ geometry clean-up:

a. And Upload the ANSA file using the open option under file drop down.

b. Firstly Start with the topo clean by doing geometry check to find single and triple cons in the geometry. select topo under faces and box select the entire model so that any missing cons can be detected and the geometry clean up can be done more accurately.

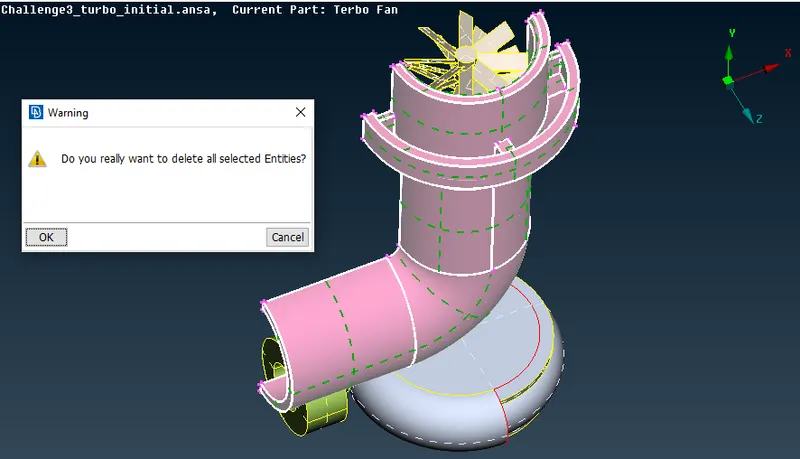

c. Then Delete the unecessary overlapping surfaces by using the universal delete option.

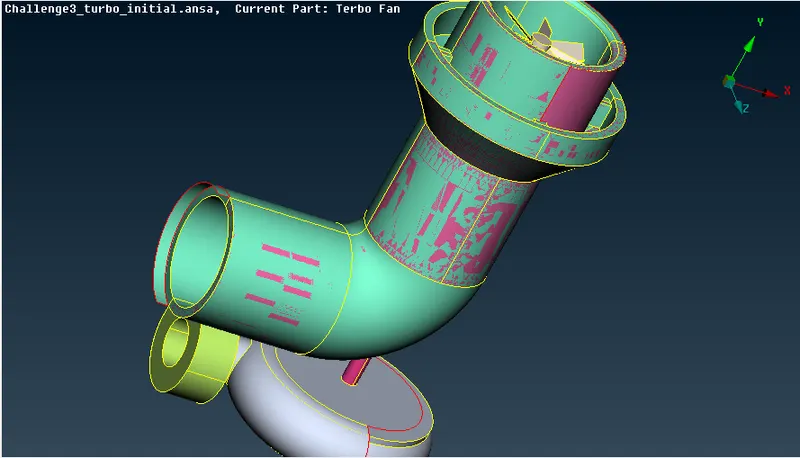

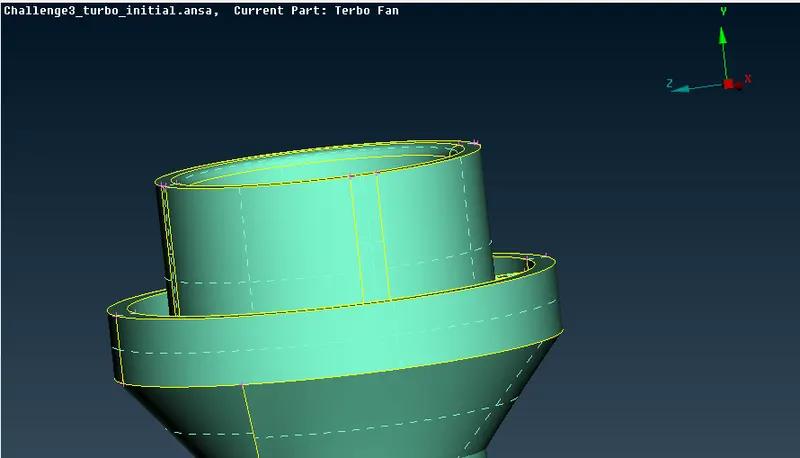

fig 2. Overlapping surface that is to be deleted

d. Then Start with fill the surface and clearing the single cons by creating surface where ever required.

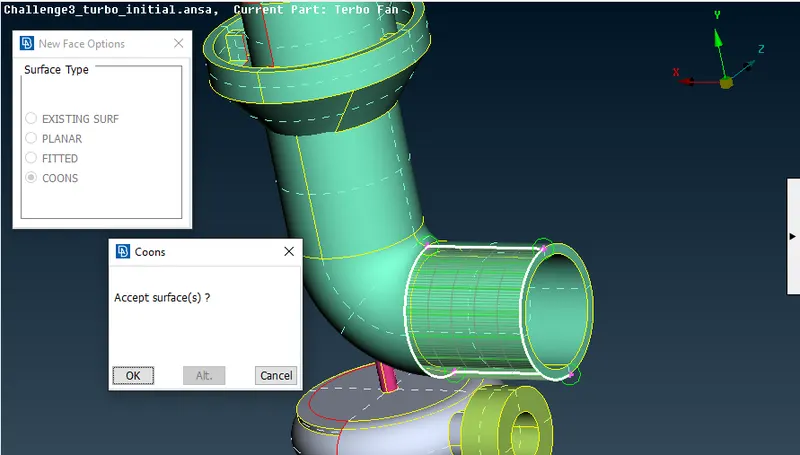

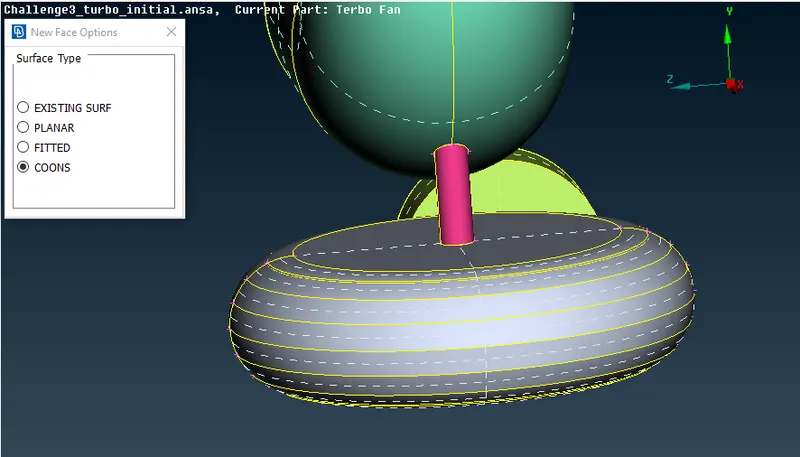

fig 3. Creating new surface using COONS surface method

d. After that Certain areas created by using the new option under faces don't satisfy the surface we require, therefore, certain hotpoints are projected so that small surfaces can be created and later can be joined and get the required geometry.

fig 4 a,b. Creating certain surface using several hotpoints

e. Use intersect option to delete the surface which has no separate entity, therefore a separate entity is formed when using intersect and can be deleted easily.

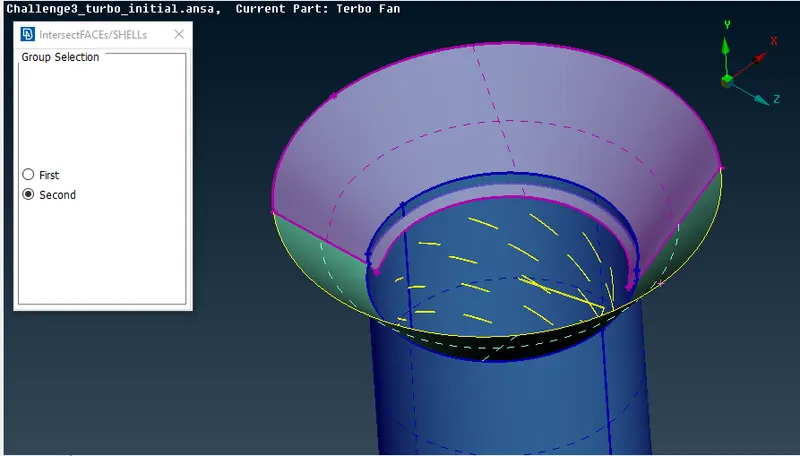

fig 5. Using intersect method to remove extra surface

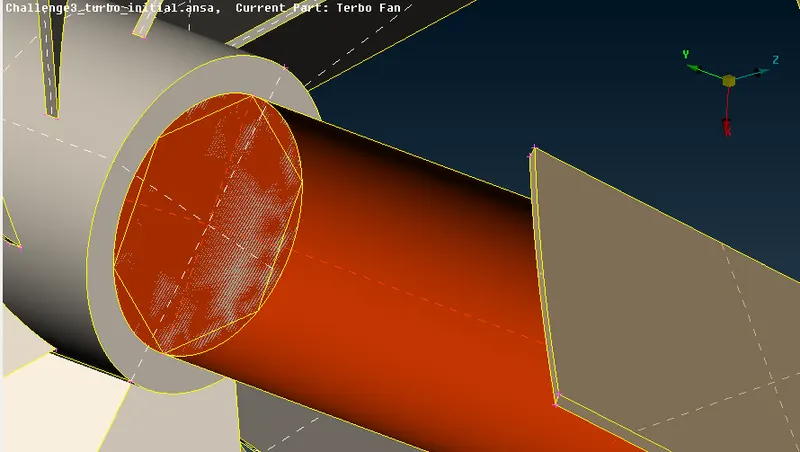

f. Once the single cons are solved for, we can focus now on solving for triple cons which are present at the shaft region, since we need to have a single volume which makes it easier to mesh in the later stage. Delete the overlapping surfaces to reduce them to double cons.

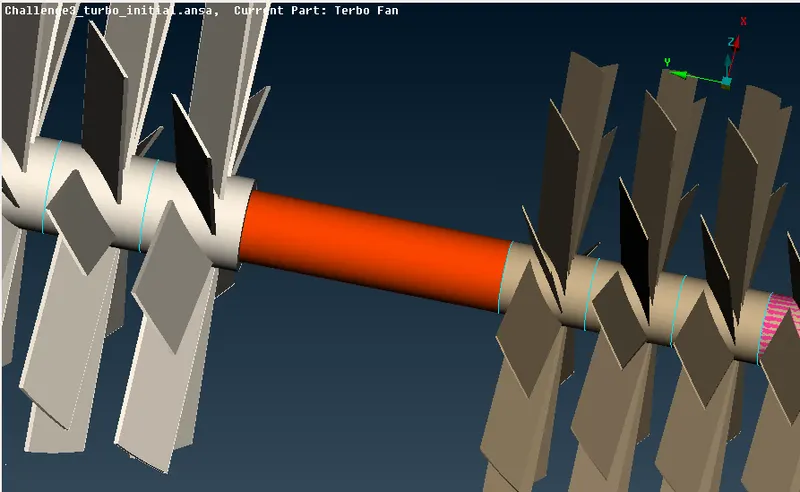

fig 6. removing triple cons and over lapping surfaces

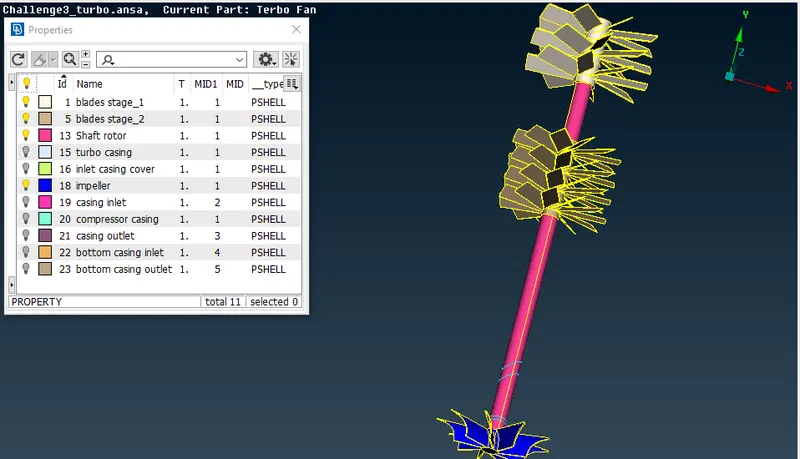

g. After the unecessary triple cons are removed, we can now start naming each part by assigning them an individual PID. After naming them, we can now move ahead with surface meshing.

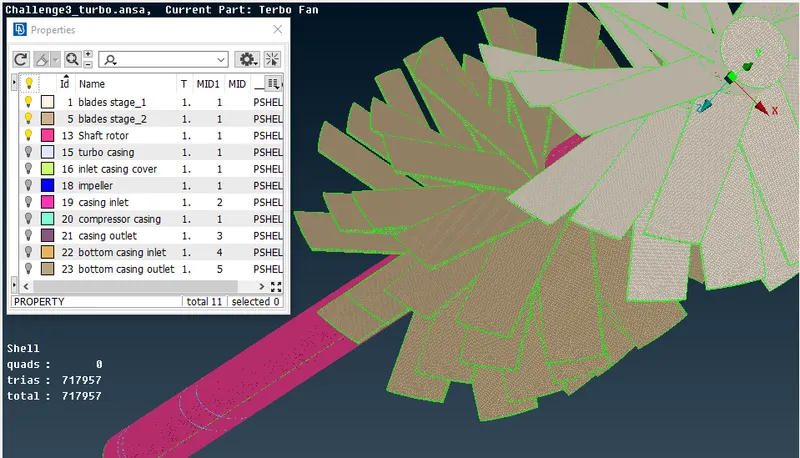

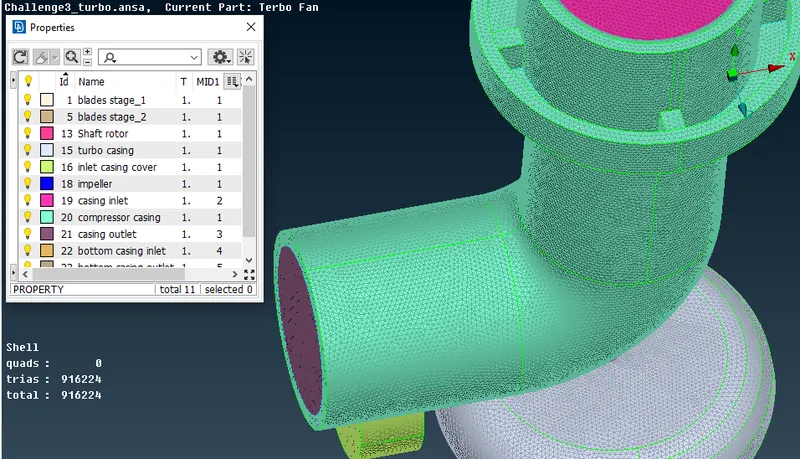

fig 7. Components named accordingly using PID

2. Surface meshing of Turbocharger:

1. We have to mesh each component as per the given criteria in the question, therefore we need to mesh the component individually through PID region.

2. Enter the quality and mesh parameters and length of the mesh accordingly for each component.

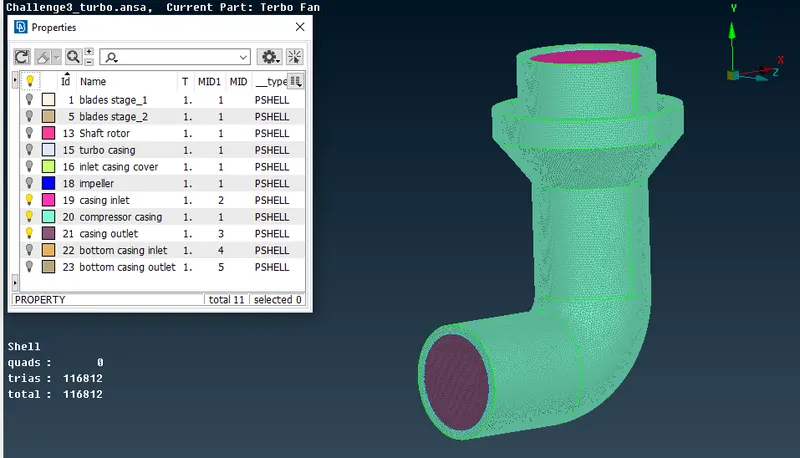

fig 8 a,b. Surface meshing for each component individually

3. when entering the mesh length, be aware of the change in mesh length between components with different mesh length, when they come in contact they tend to erase the other mesh, therefore while entering the perimeter and macros we need to give a range ranging from the bigger to smaller mesh length to avoid the mesh to get erased.

4. After the mesh is generated, we can create a boundary of the varrying mesh length and maintain a constant mesh length on the other side of the boundary.

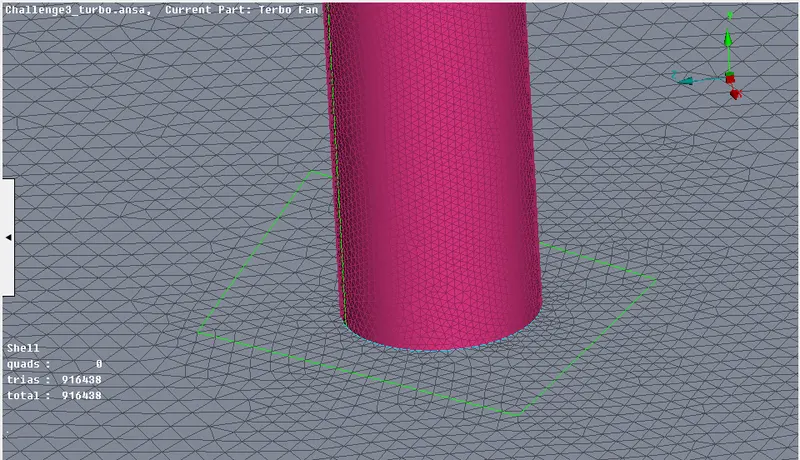

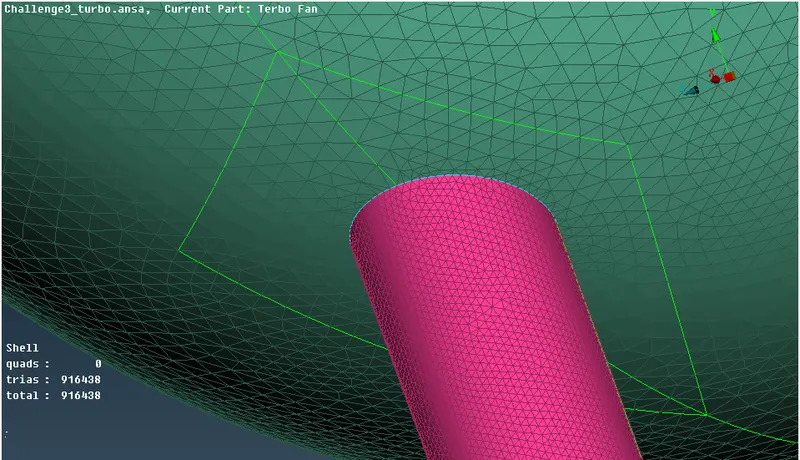

fig 9 a,b. Creating separate region for transition mesh

3. Volume meshing of Turbocharger:

1. When the surface meshing is done, we can now achieve volume meshing.

2. Under volume meshing, choose define and select whole db in the pop up window.

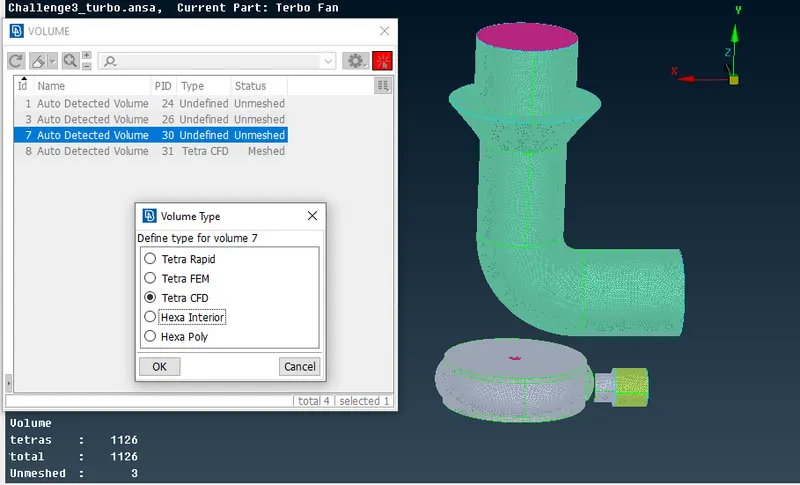

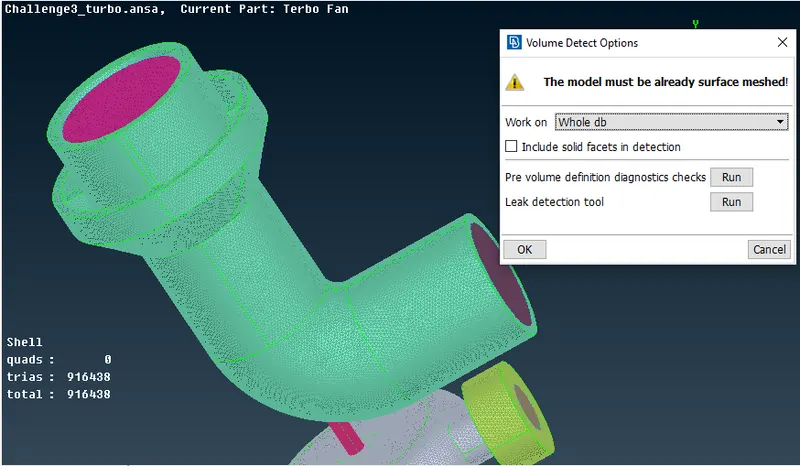

fig 10. Identifying volume using the define option

3. ANSA identifies various volume present in the geometry, we can delete the unwanted ones and keep the necessary volumes where the fluid can possibly flow in geometry.

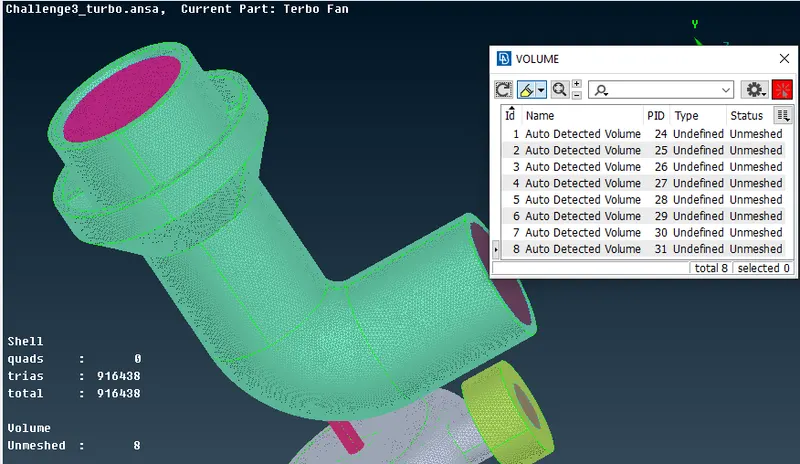

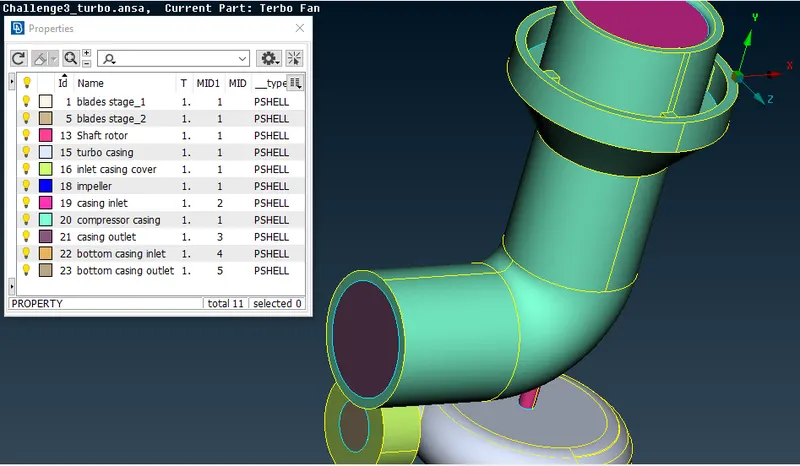

fig 11. Detected volumes present in the geometry

4. After the deletig the outer thickness volume and only keeping the fluid volume region, we can remesh each volume using the tetra CFD option under remesh.

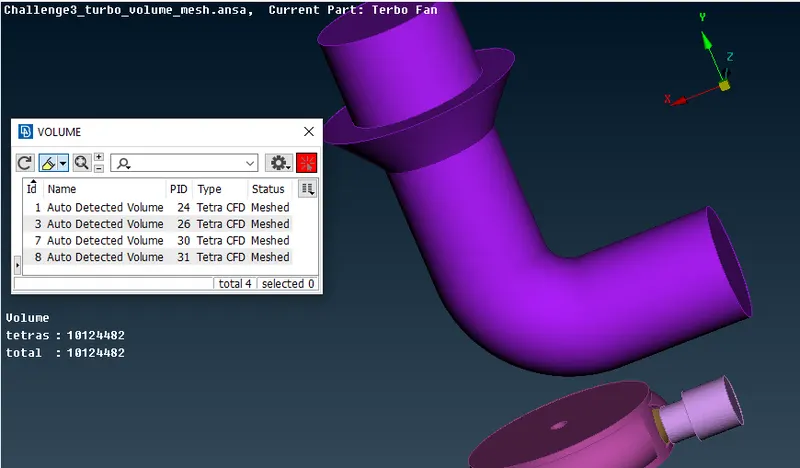

fig 12. Creating Tetra CFD volume mesh for the fluid volume region

5. After each volume is remeshed, the volume mesh can be viewed for each component.

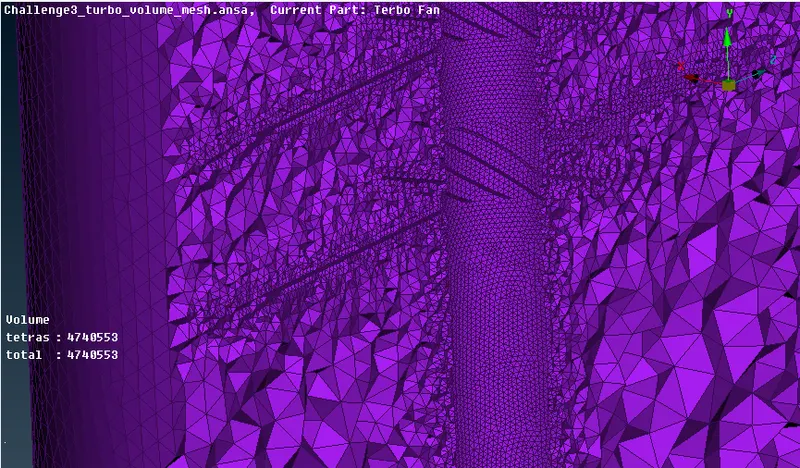

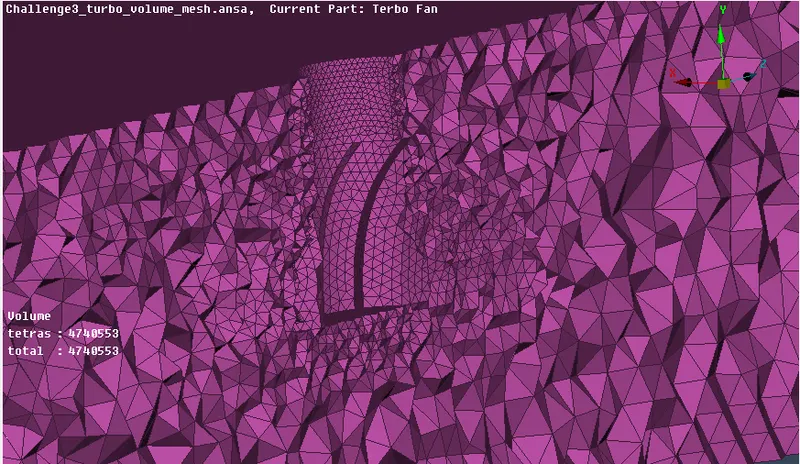

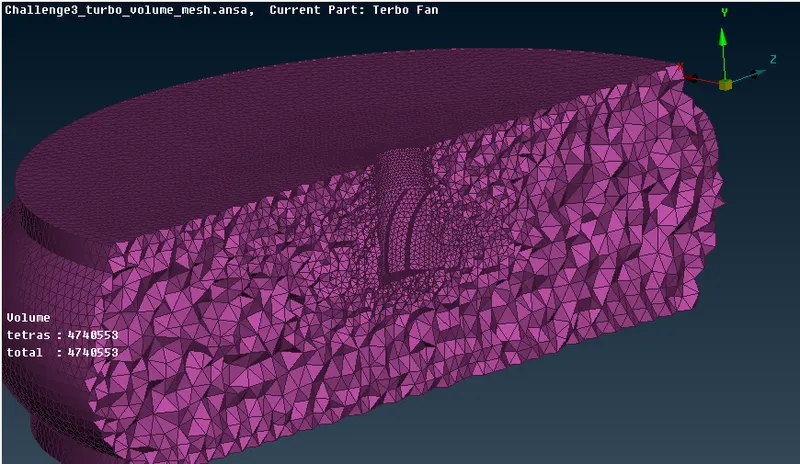

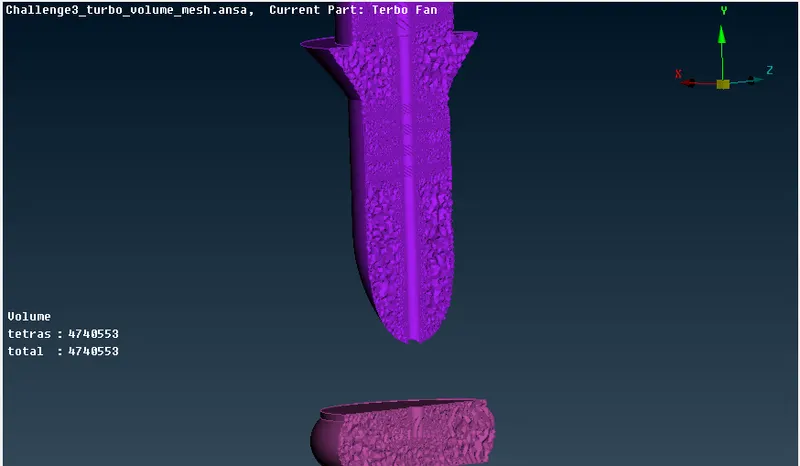

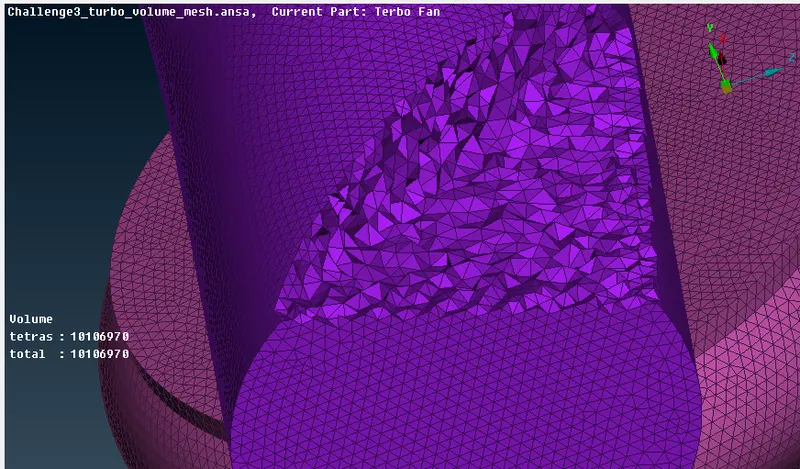

fig 13 a,b. Volume mesh created for each volume and cut section to view the 3D mesh

• Learning outcome:

1. Checking for geometry errors and correcting the geometry using different geometry editting tools.

2. Using fine under auxileries helps in giving a finer surafce finish at the connecting region.

3. Creating surface mesh individually and also maintaining mesh length range at the contact region between 2 different mesh lengths.

4. Identifying and creating volume mesh only for the fluid region part.

5. Tools to create volume mesh.

• Results:

1. Completed geometry clean-up with all the inlets and outlets closed to create a closed volume:

2. Surface Meshing achieved with different mesh lengths as per the question:

3. Volume mesh created for the fluid volume region along with cut sections to view the 3D mesh:

Completed model with volume mesh drive link: https://drive.google.com/file/d/1lskbDOP2utqpuN1XOUYbuAYi-RX-ewXy/view?usp=sharing
