Week-3 Challenge: ADVISOR Tool

Q=3

loading 'PRUS _jpn_defaults_in' in the ADVISOR TOOL.

ON CLICKING the contineous button the drive cycle window appears.

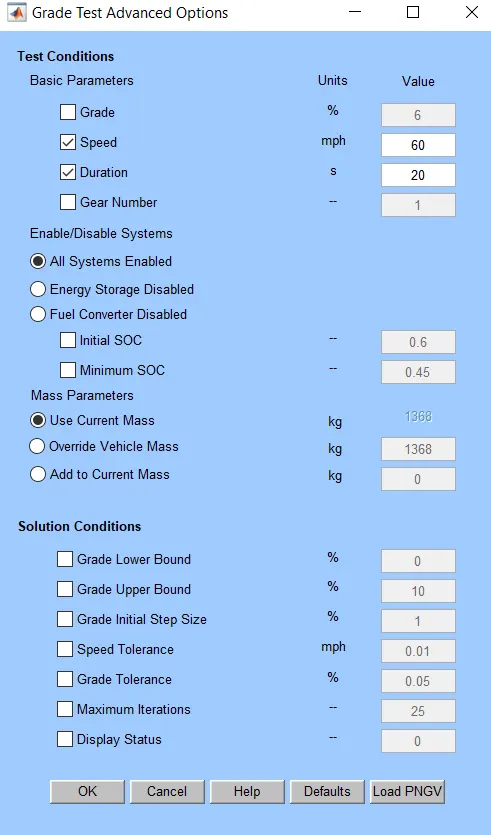

CASE 1=

SPEED= 60mph=96.6 kmph and duration = 2 seconds all others parameters are set as default.

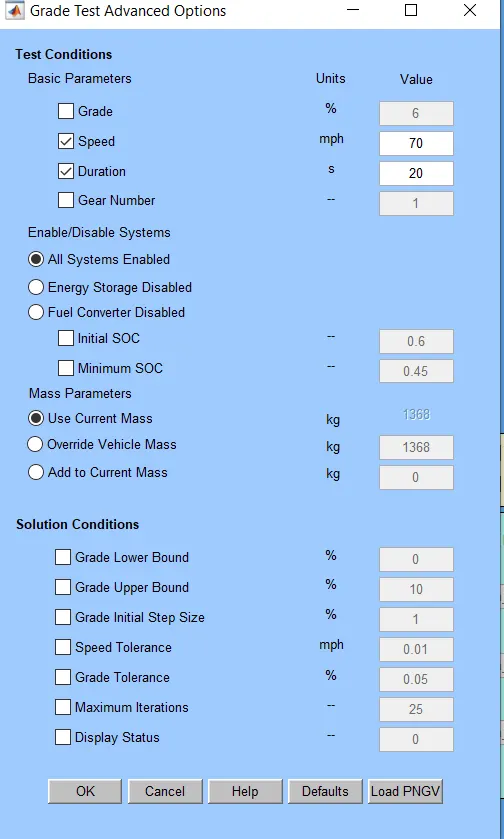

CASE2

SPEED= 70 mph=112.7 kmph and durations=20 seconds. all others parameters are set as default.

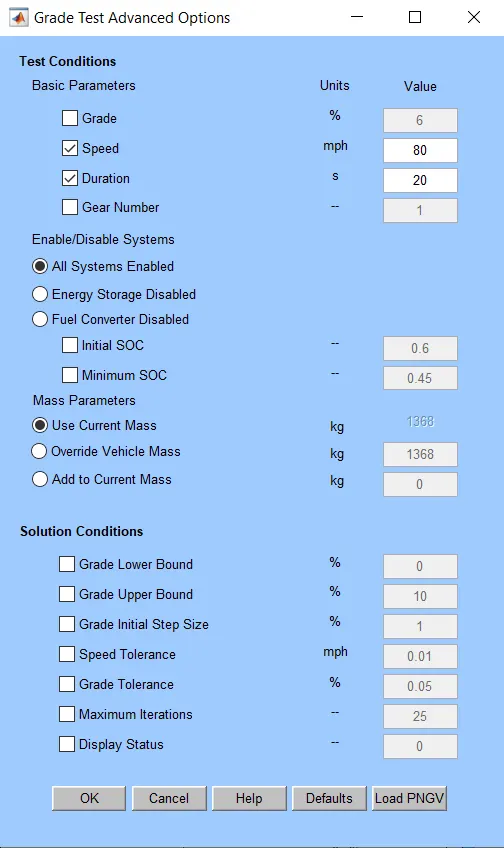

case3

SPEED=80MPH=128.7 KMPH and duration=20 seconds and all other parameters are set as default.

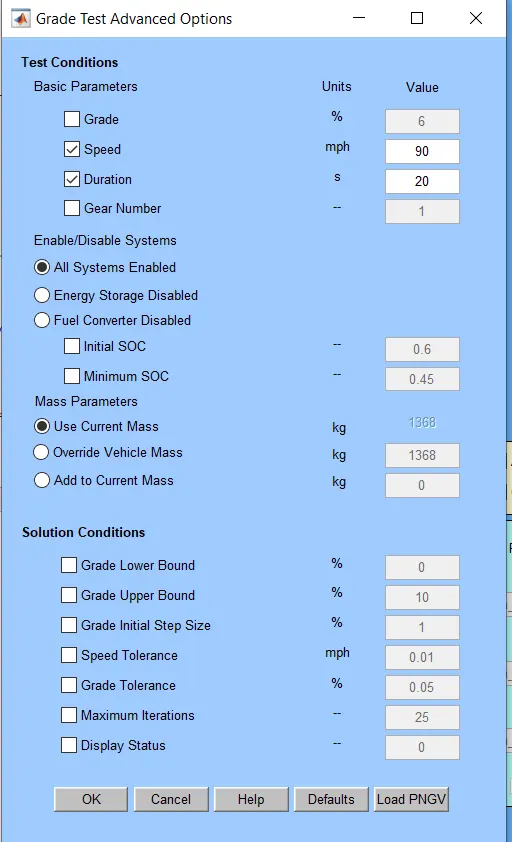

CASE4

SPEED=90mph=144.8 kmph and duration=20 seconds and all other parameters are set as defult.

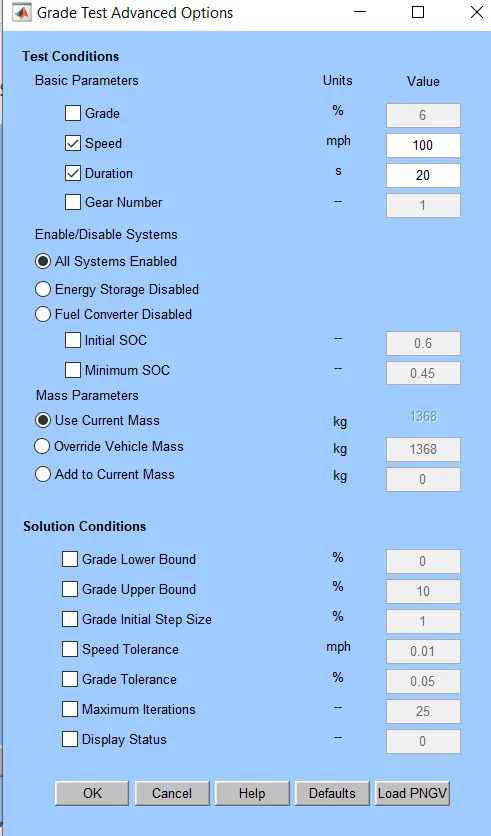

CASE 5

SPEED= 100 mph=160.9 kmph and duration=20 seconds and all other parameters are set as default.

CONCLUSION

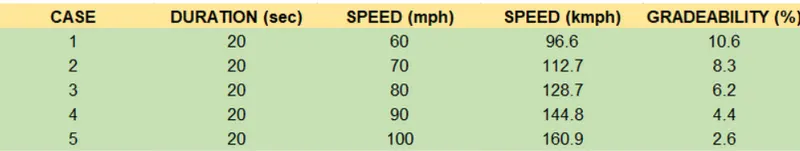

IN the above table the gradabiility test is shown while keeping the durationn time constant.it is seen that the gradibility decreases with the increase in the speed of the vehicle.

Q=2

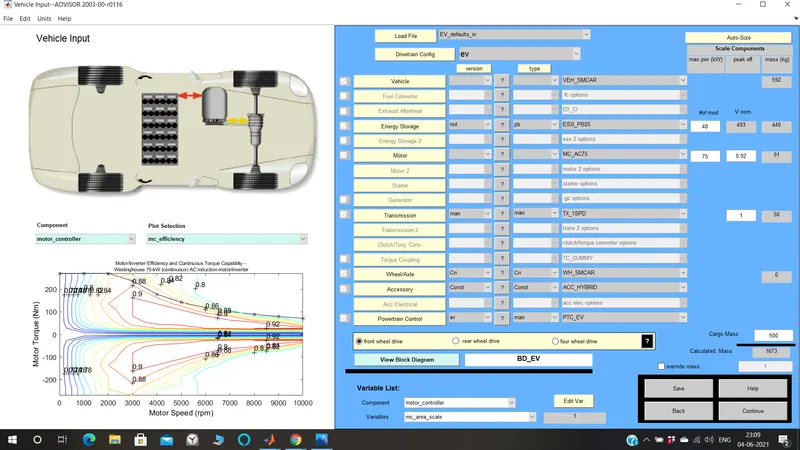

loading file 'EV_ defaults_in' in the AADVISOR toll and set the cargo mass as 500kg.in this case, we will increment the numbers of battery modules by 15. hence the too; is 40 resulting in a nominal voltage of 493 v.

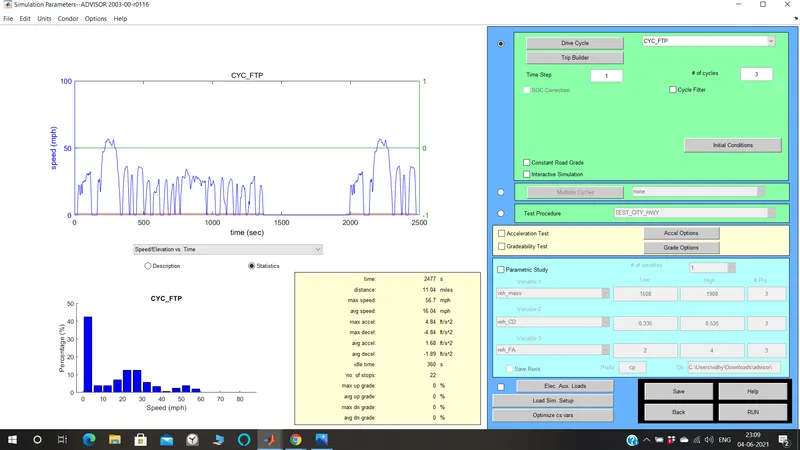

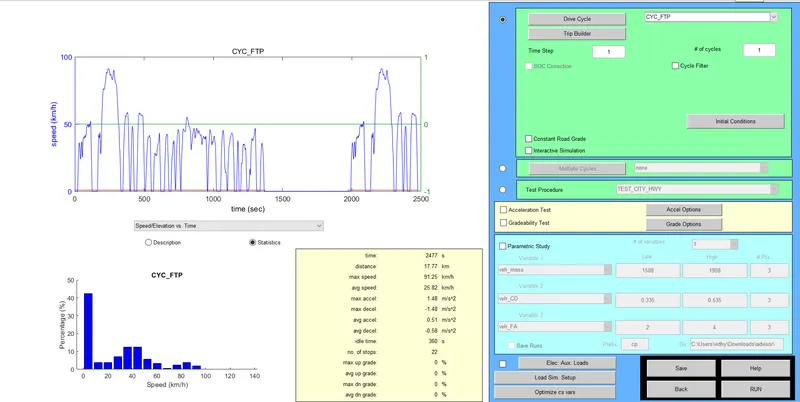

ON CLICKING continues the drive cycle windows appears selecting 'CYC_FTP' to be the drive cycle. each FTP drive lasts for a time period of 2477 seconds and a distance of 17.77 km . in order to varify the vehicle can travel for 45km , we considered that the number cycles is 4.

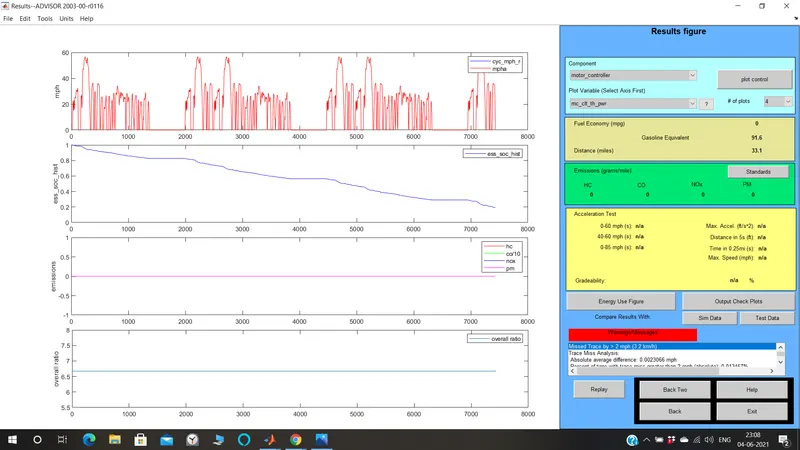

clicking on RUN

overall ratio are displayed..

Q=1

• overall ratios are displayed.

• Each FTP drive cycle lasts for a time period of 2.4 sec and a distance of 17.8 kmph.In order to verify if the vehicle can travel for 45km we have to consider the no. of cycle to be 4.

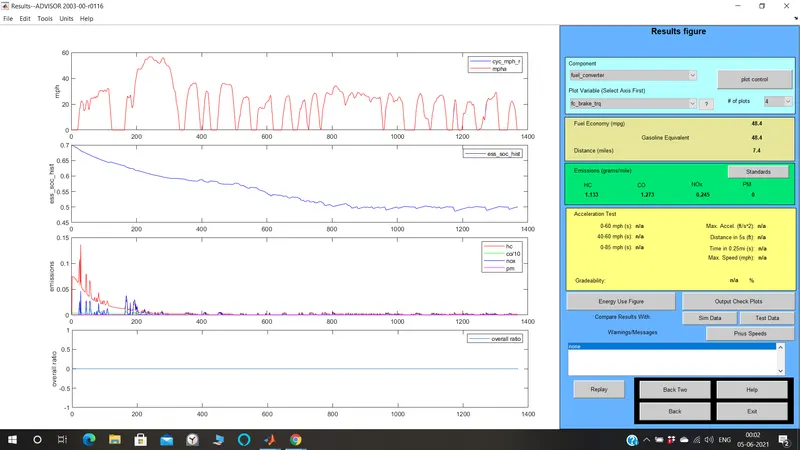

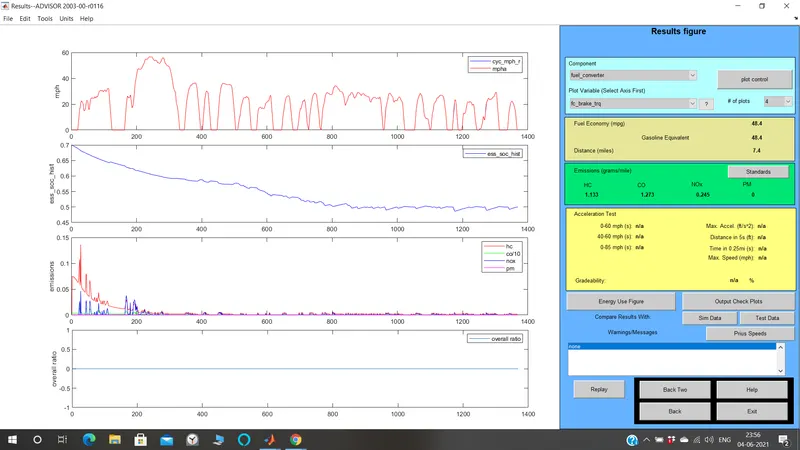

• On clicking RUN the results are obtained above .

• the above ADVISOR tool after changing CYC_FTP and the waveform is obtained.

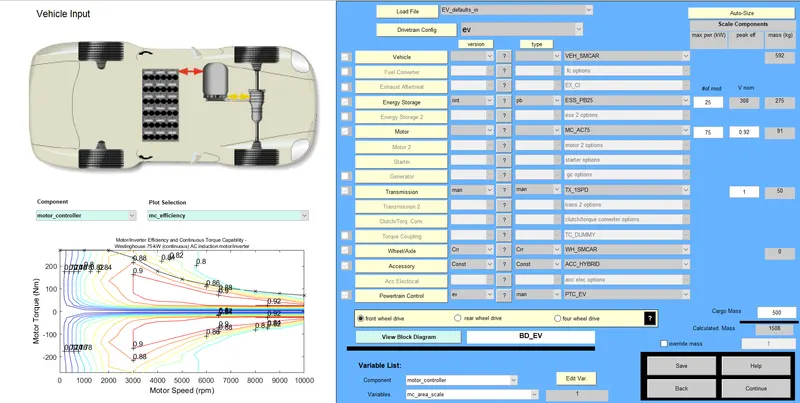

• loading file EV_defaults_in the ADVISOR tool and the cargo mass input as 500kg.
• on clicking continue the drive 'cycle window appears selecting 'cyc'_ftp' to the drive cycle.

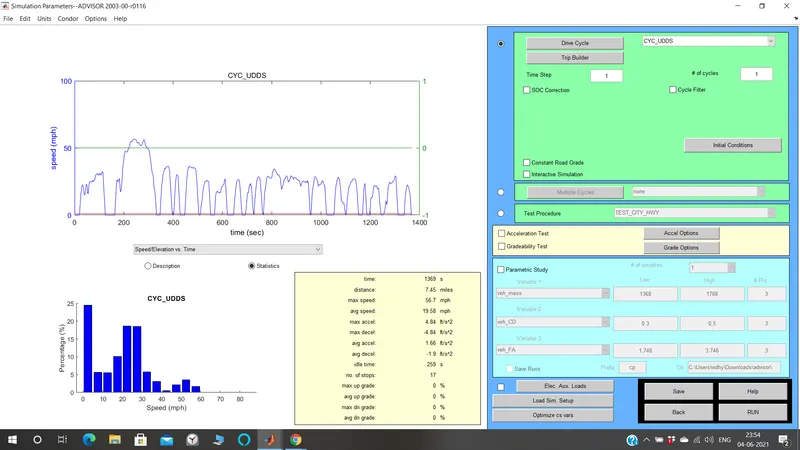

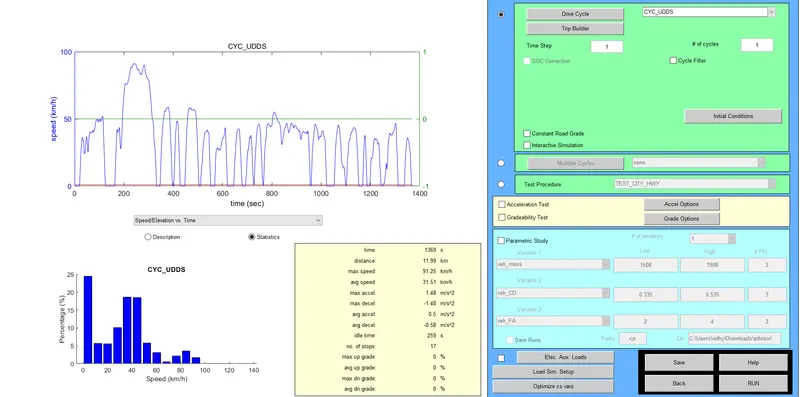

• the CYC_UDDS is before changing to CYC_FTP.

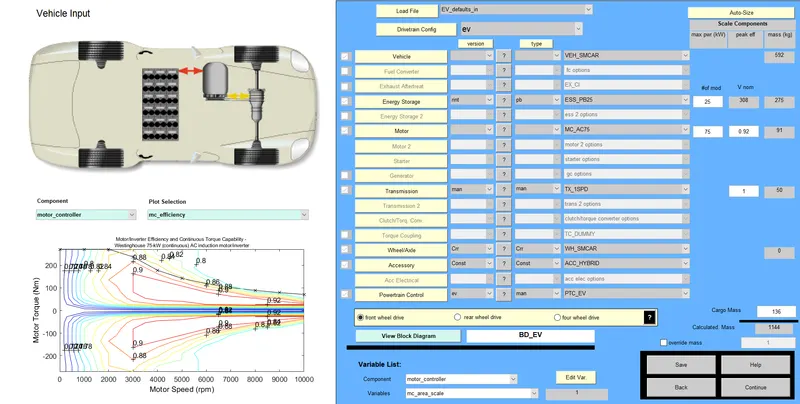

In ADVISOR tool, set the load file to EV_default_in components to motor controller.The below table before given the mass of 500kg of the above advisor tool after given mass 500kg.
