Week-3 Challenge: ADVISOR Tool
Q-1. For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations.
given:-
. 1- EV Default file
2-cargo mass=> 500 kg
3-vehicle speed 45km
4- FTP drive cycle
SOULTIONB:-

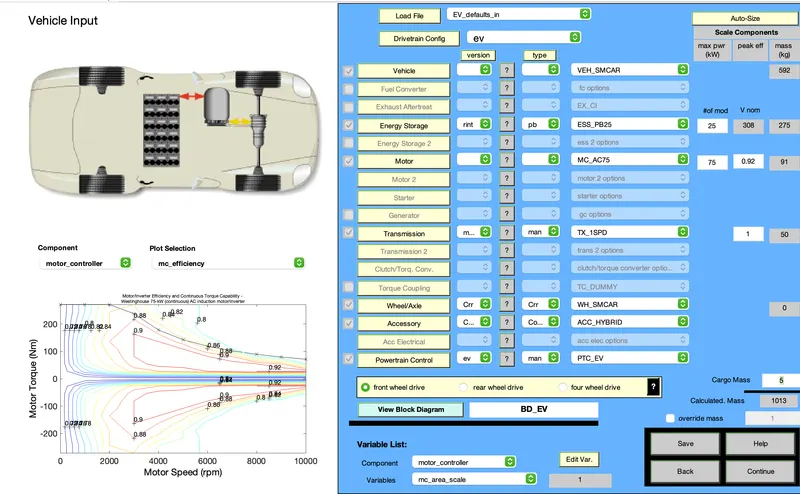

1-OPEN THE ADVISOR TOOL AND CLICK START TO OPEN THE VEHICLE INPUT IN ADVISOR SIMULATIC
2-SEARCH FOR 'EV_defaults _in FILE AND CLICK THE FILE OPEN
3-
4-IN ADVISOR TOOL THE SIMULATION CONSISTS OF EVERY PARAMETER OF VEHICLE MODELING, LIKE MASS, VEHICLE TYPE,
ENERGY STORAGE, MOTOR, TRANSMISSION, WHEEL/ AXLE, etc.

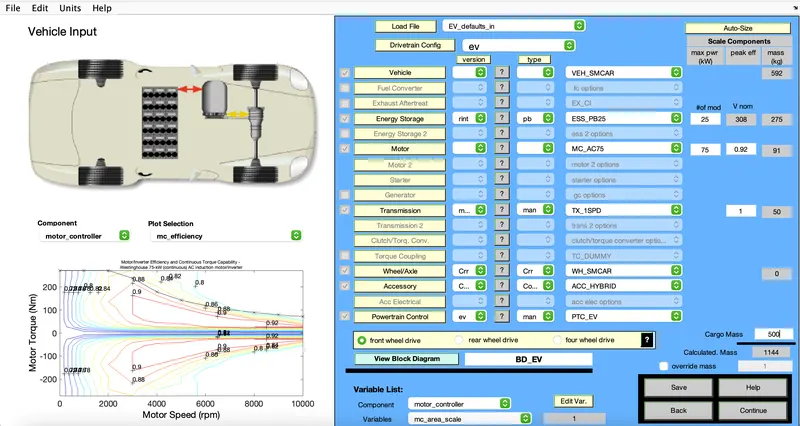

5-NOW CHANGE SOME PARAMETERS WHICH PRESENT IN EV_defaults_in FILE, LIKE CARGO MASS TO 500 kg.
6-
7-THEN CLICK CONTINUE TO OPEN THE SIMULATION PARAMETERS, THE SIMULATION PARAMETER CONSISTS OF DIFFERENT
DRIVE CYCLE AND TO CREATE A INDIVIDUAL OWN DRIVE CYCLE BY GIVING DIFFERENT DATA TO THE SIMULINK
PARAMETER LIKE, ACCELERATION TEST, GRADEABILITY TEST, PARAMETRIC STUDY, etc.
7-
8- now click to run
9-

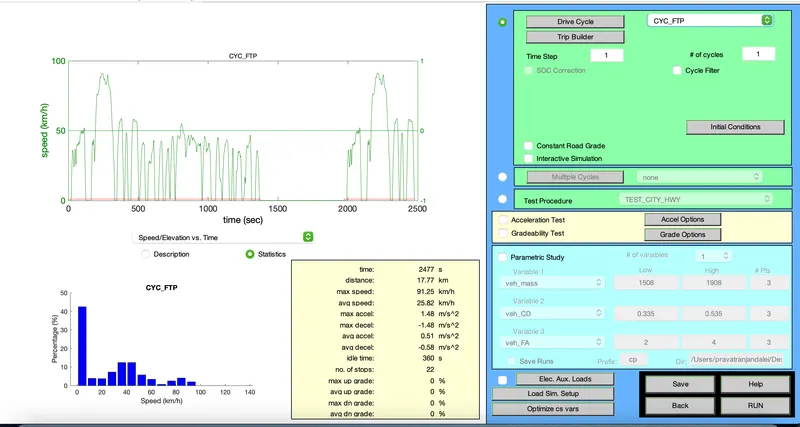

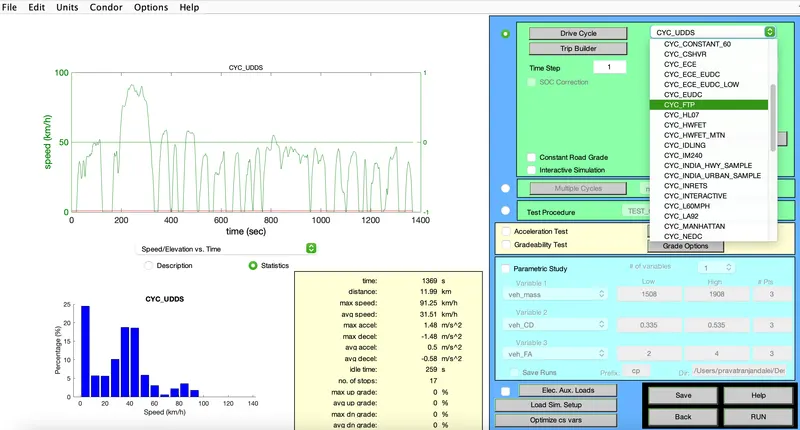

10- then change to Drive cycle -:"CYC_FTP"

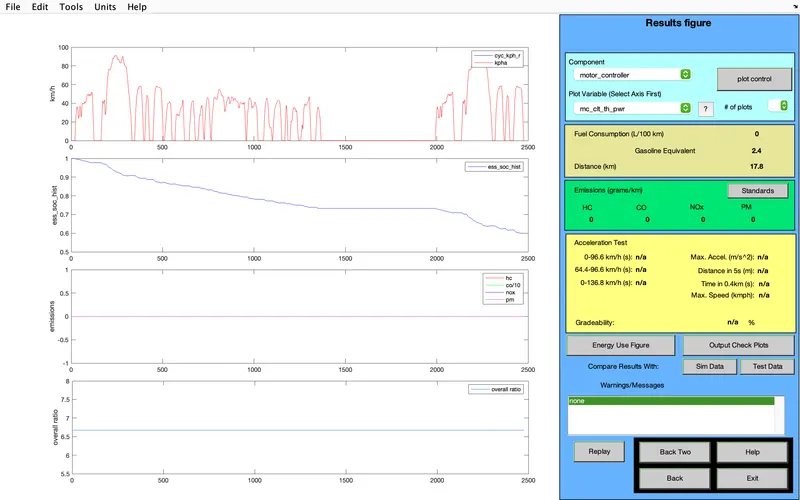

11-OF CYCLE -1

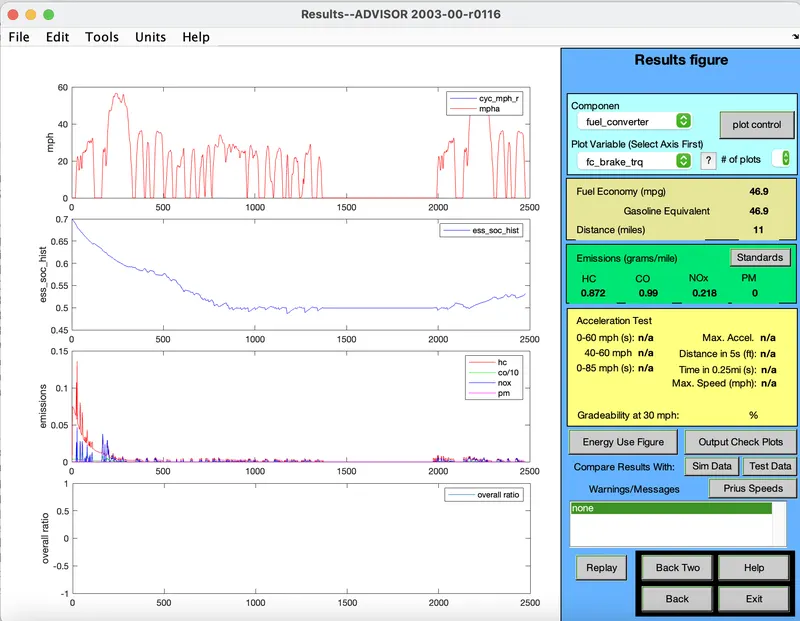

12-OF CYCLE -2

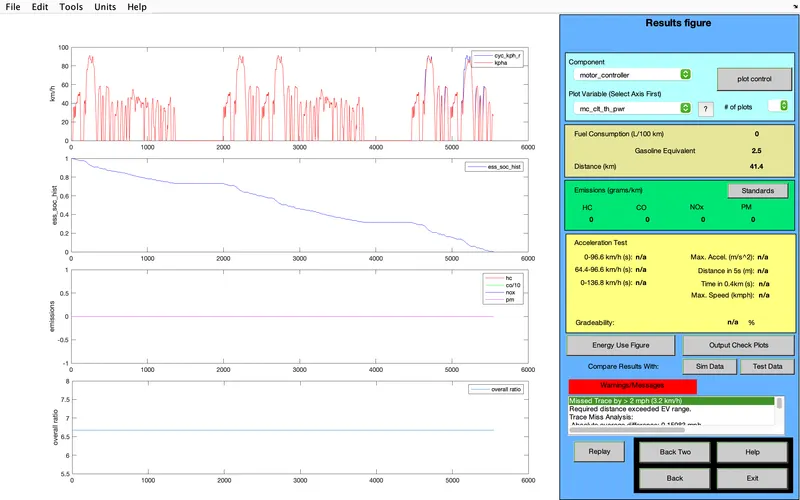

13-OF CYCLE -3

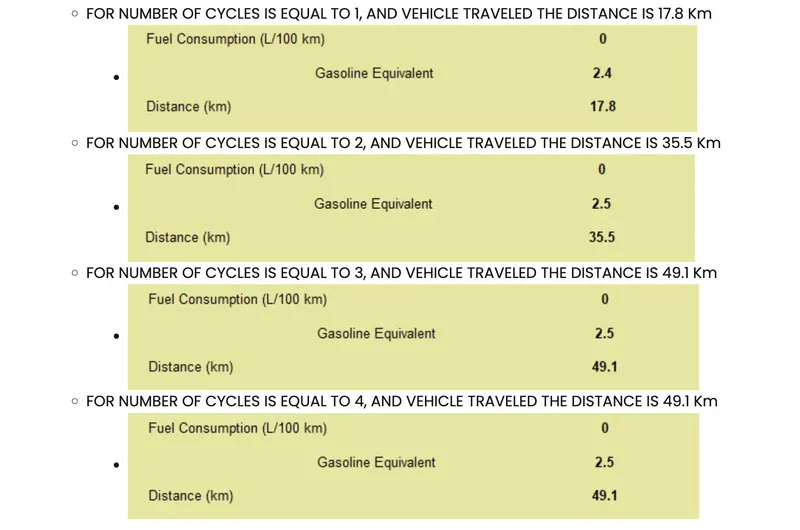

RESULT:- THE vehicle cant't travel 45 km with FTP drive cycle .Because cargo mass is high so the vehicle can travel maximum 48.2 km
Q2- In the above case, try changing the battery capacity and repeat the simulation.
changing the battery capacity :-

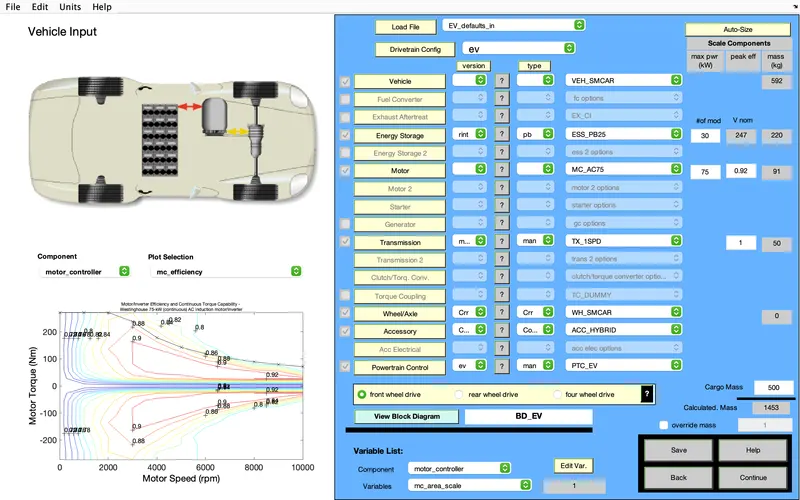

IF THE BATTERY CAPACITY CHANGE ABOVE 20 TO 30 MODULE
RUSULT :-
WHEEN THE BATTERY CAPACITY HAS CHANGE I GET RESULT

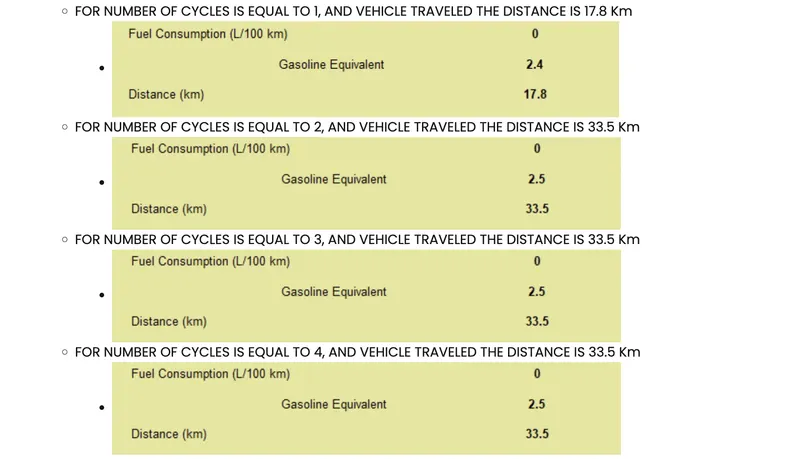

:- 1- WHEN change the battery capacity is less 25 module ,then the vehicle get less distance traveled
2- when change the battery capacity is more than 30 module the vehicle get moro distance
Q3-In ADVISOR tool Vehicle Input window select PRIUS_Jpn_default model.
o Continue to the next window.
• Simulation Parameter window will open.

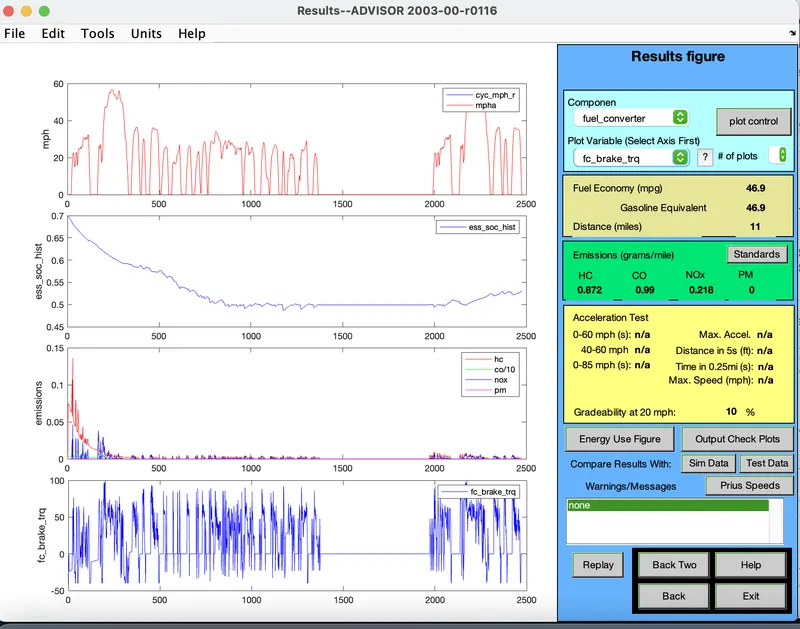

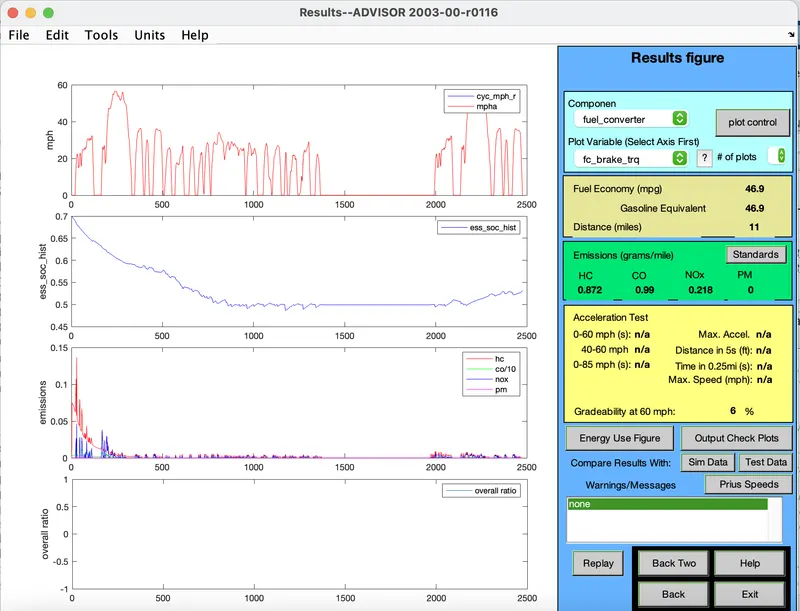

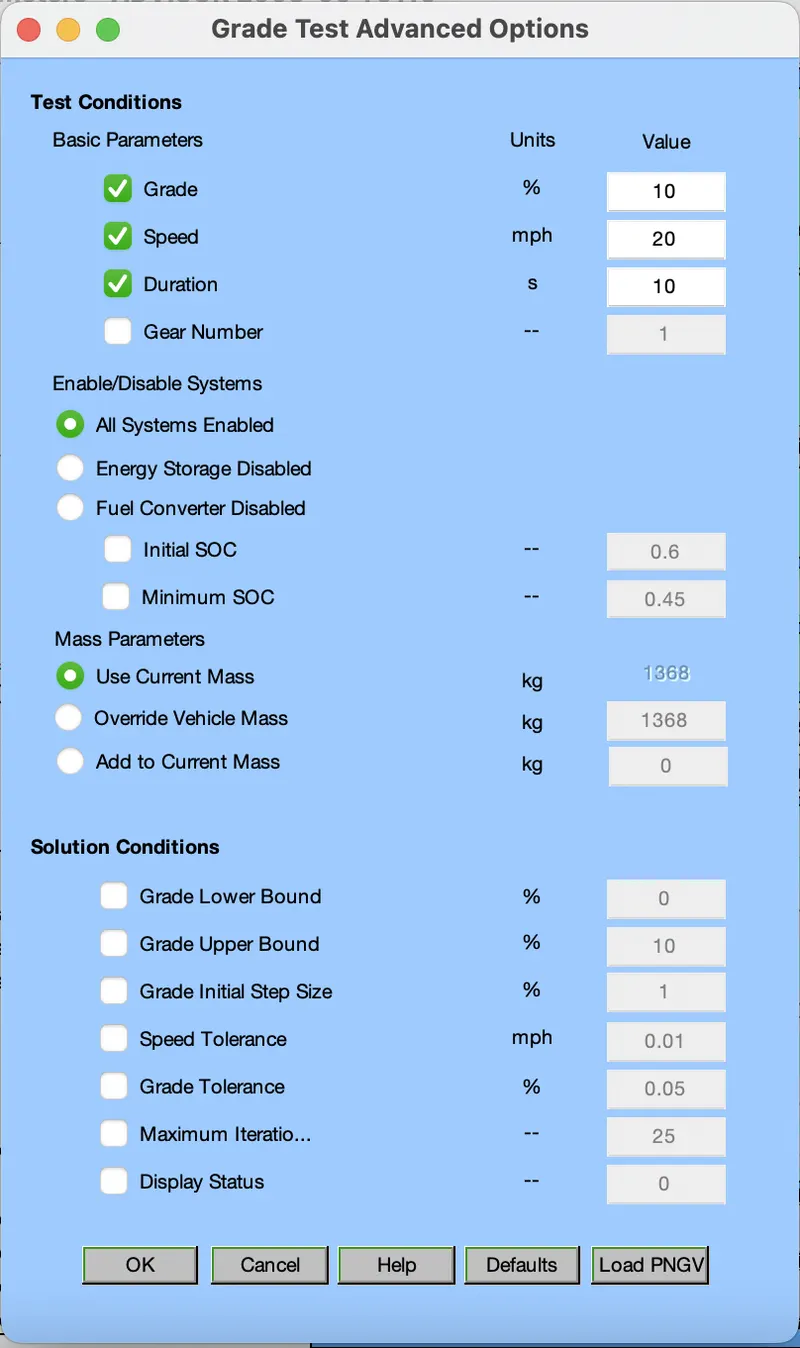

• Select the gradeability test and click on the grade Option box, a new dialogue box will open.then RUN
SPEED- 20 miles/hr or 46.9 kmph
Gradebility 10%
SPEED-30 miles/hr or 46.9 kmph
Gradebility 0%
speed -60- miles /hr or 46.9kmph
Gradebility 6%
