Week-3 Challenge: ADVISOR Tool

EV BATCH 17

1. For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations.

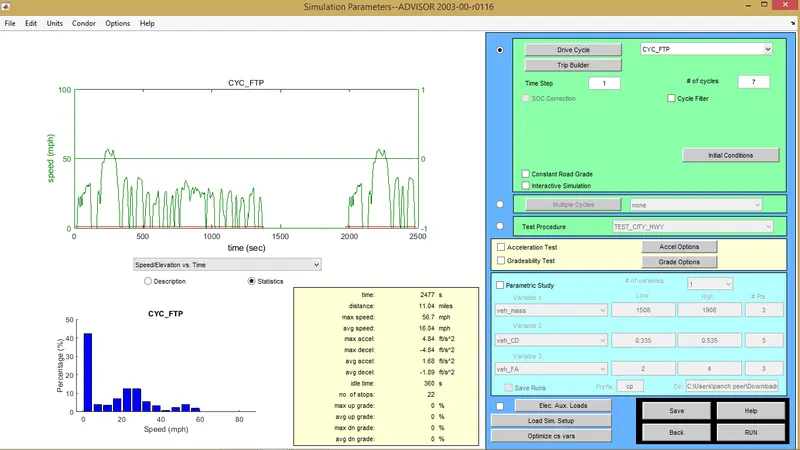

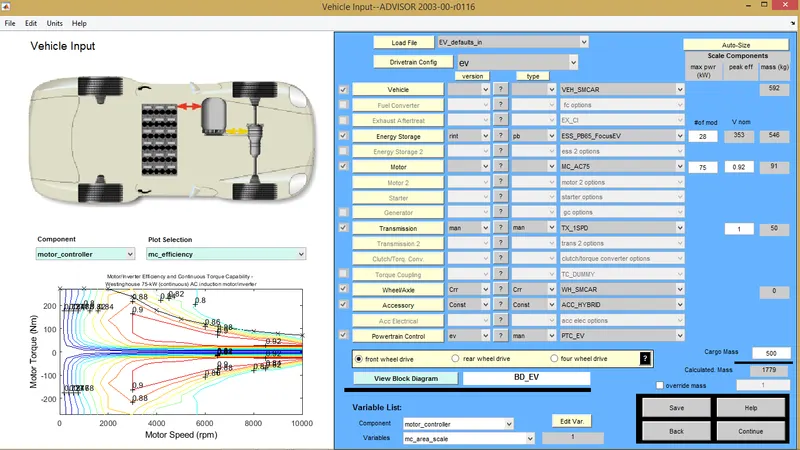

Select loadfile as Ev_default_in and cargo mass is 500kg.

Drive cycle as CYC_FTP

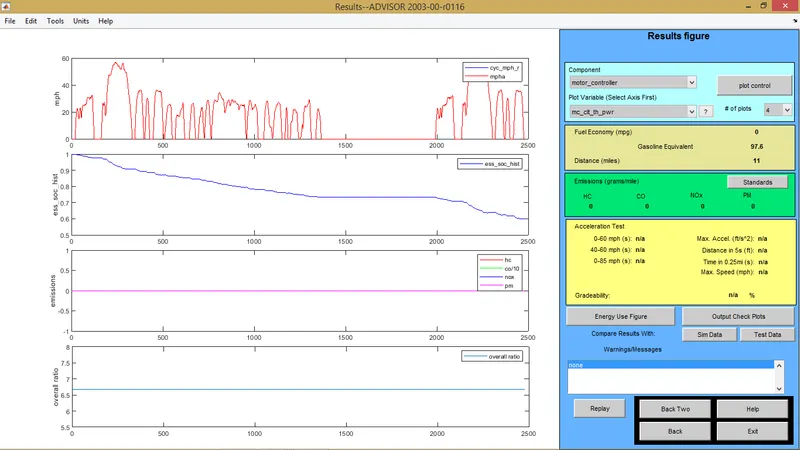

OUTPUT:

So, distance is 11km

State of charge fallen to zero nearly 2500sec.

2. In the above case, try changing the battery capacity and repeat the simulation.

Energy storage is changed ESS_P665_FocusEV,

Number of cycle to 7.

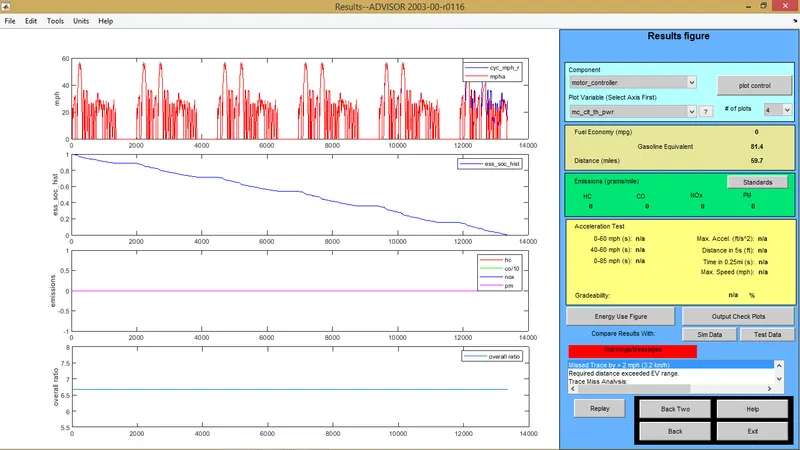

OUTPUT:

the vehicle drive for a single charge is 59.7km

State of charge 13000 approx

3. Perform gradeability test with PRIUS_Jpn_defaults_in fill Compare your results in table and conclude.

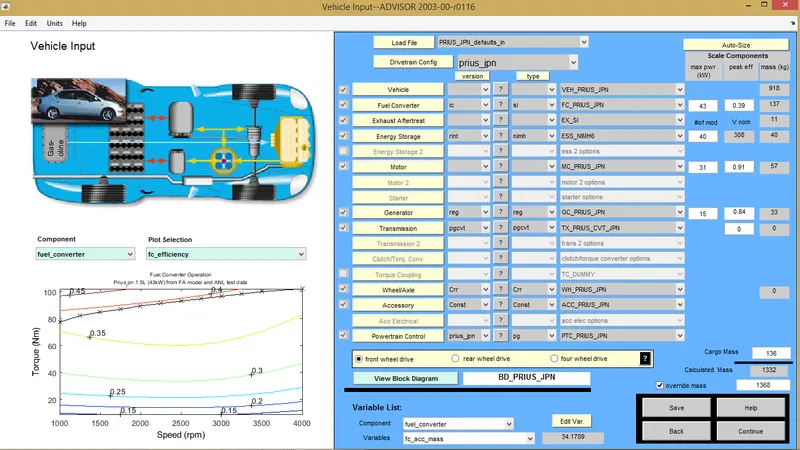

Select prius_jpn model in drivetrain_configuration.

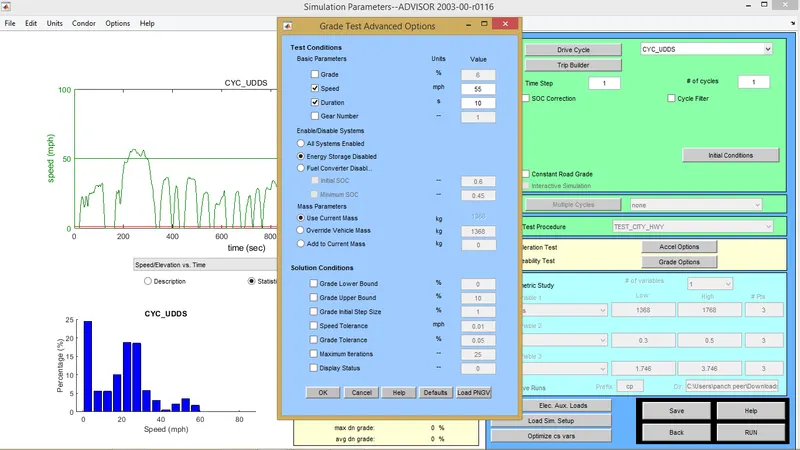

choose gradeablity test

speed 55kmph

time 10sec

OUTPUT:

speed 55 gradeblity is 1.7%

changed values

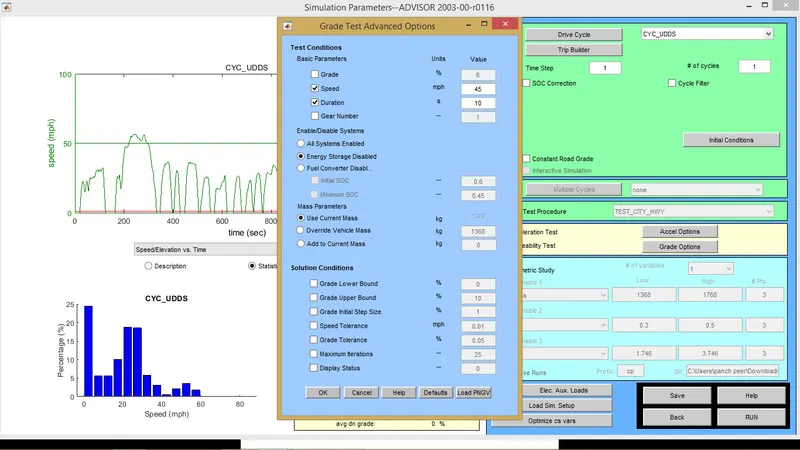

speed is changes to 45kmph

and time 10sec

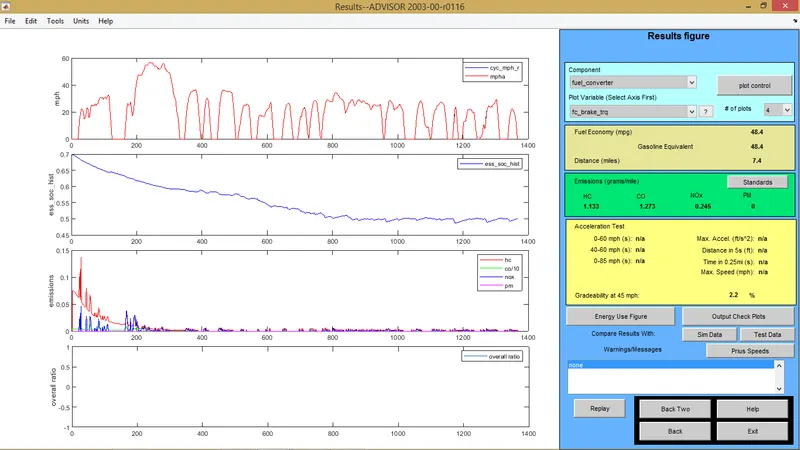

OUTPUT

gradeblity at 45mph is 2.2%.
