Week-3 Challenge: ADVISOR Tool

1. If cargo mass is 500 kg with all other default conditions, vehical will travell only 25.7 mile (41.46km) with 3 FTP cycles with each FTPc cycles contibuting 11mile(17.70km).

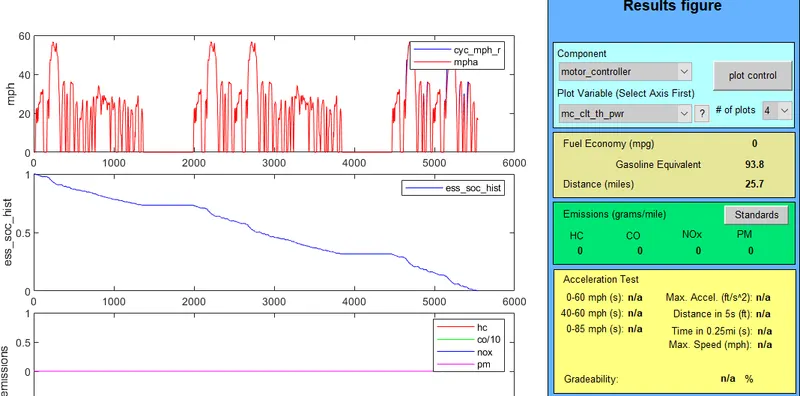

fig: out of default ev with 3 ftp cycle

a. above figure we can clearly abserve that battery gets to 0 at the half of 3rd cycle and distence coverd is only 25.7mile which is 41.46km

2. if we incerease battery capacity by 5kw that is with 30Kw battery pack we will be doing 30.5 miles (49.08km) distence coverd with 0 battery power.

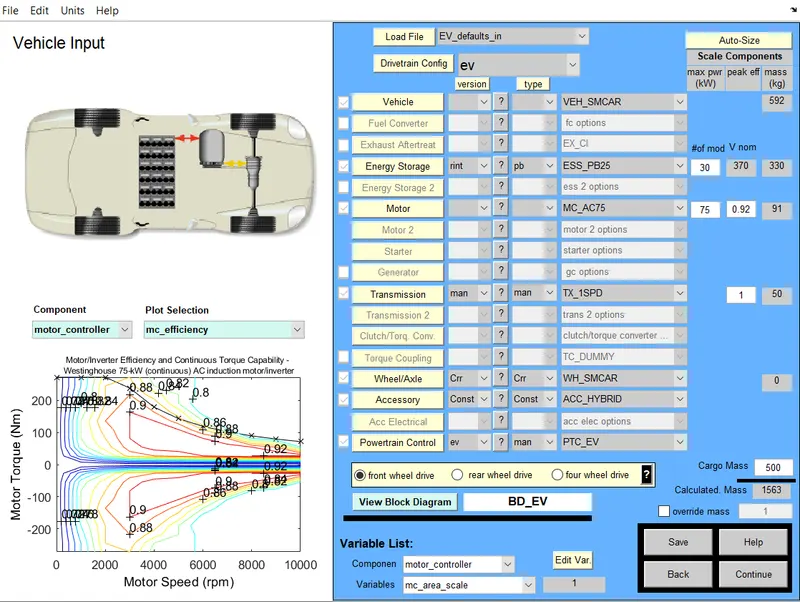

fig input of EV_defaults_in with 30 kw battery pack

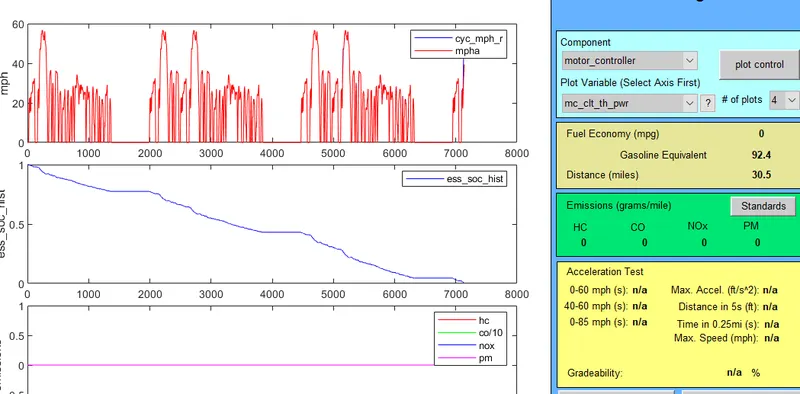

fig output of EV_defaults_in with 30Kw battery pack

3.

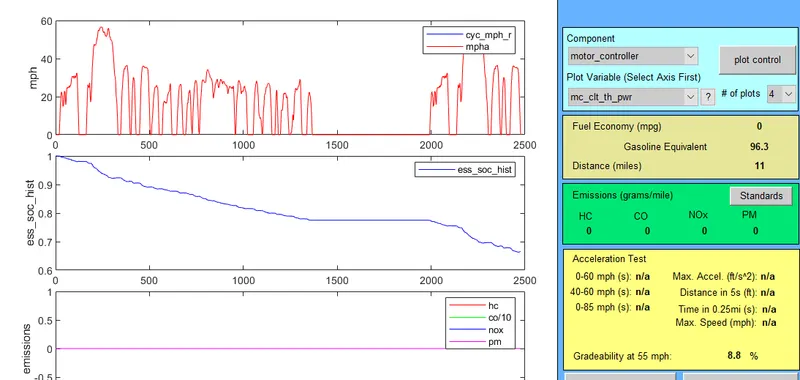

fig :gradeability test of EV_default_in

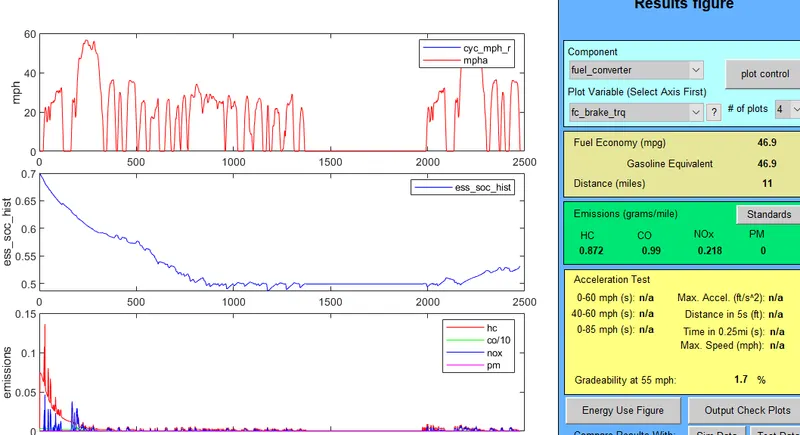

fig Prius _japan_defaultin

table of comparison

speed in mph	EV_defalut_in gradeability 30kw and 500kg cargo load	Prius_japan _default gradeability
35	16.4%	2.4%
45	12%	2.2%
55	8.8%	1.7%
60	7.5%	1.5%
65	6.3%	1.2%

looking at the table we can conclude that as the grade increases the speed decreases .
