Week-3 Challenge: ADVISOR Tool

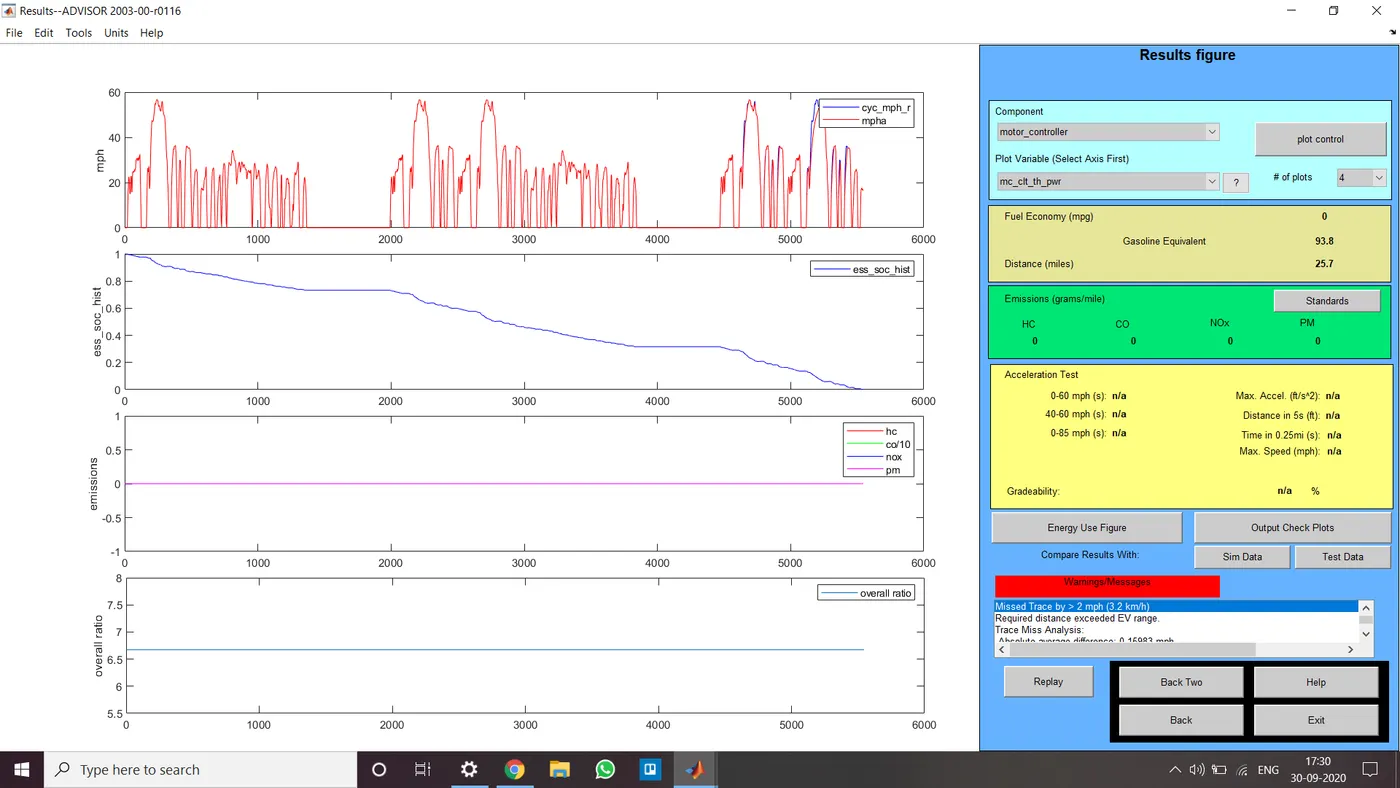

1) No, with 500kg cargo mass, the battery has enough capacity to travel only 25.7 miles (41.36 km). The battery does not have enough capacity to propel the forces on the vehicle for 45 km during the FTP drive cycle. Its SOC has reached 0 before that.

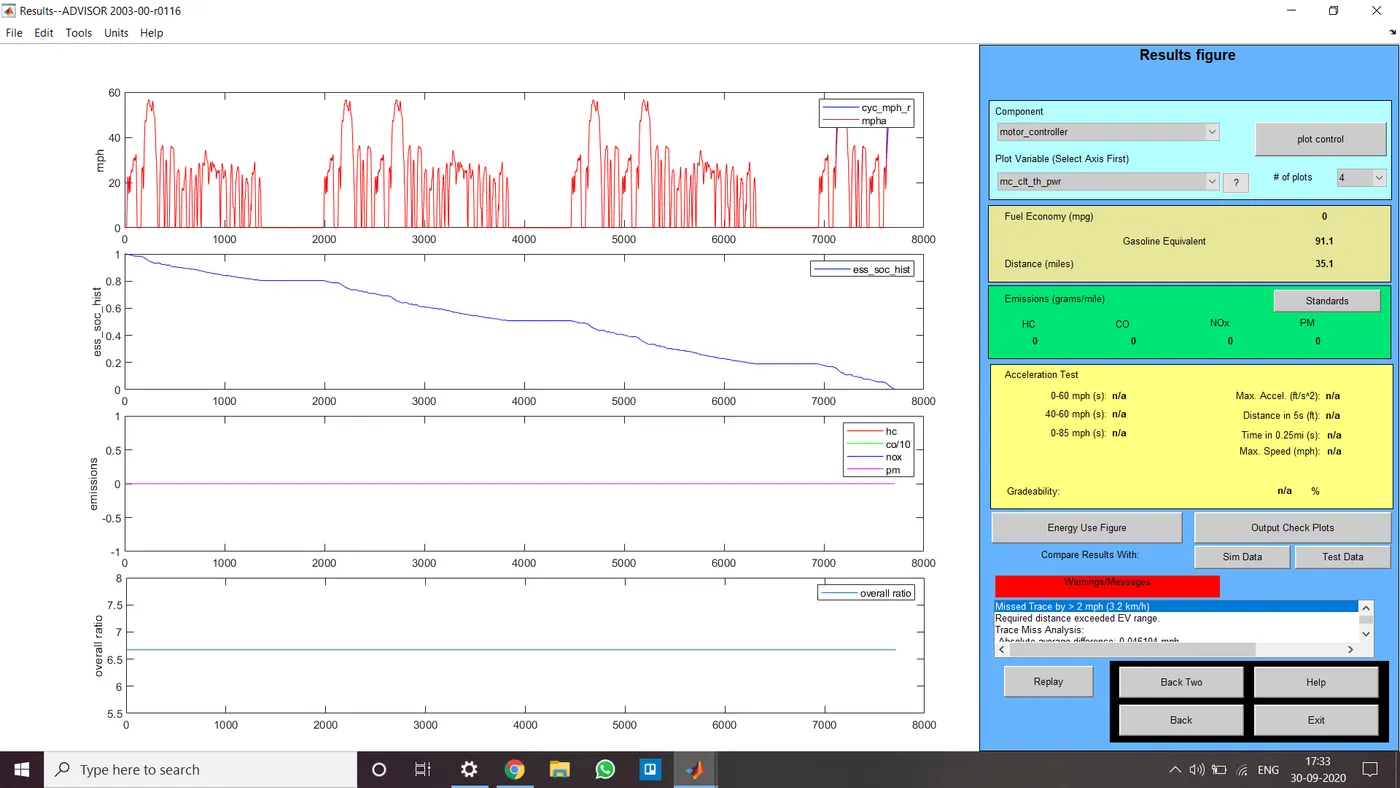

2) After the number of modules was increased from 25 to 35, the car was able to travel more than 45 km. It traveled 35.1miles that is 51.6 km.

3) Both Systems were enabled.

a) At 88.5kmph

b) At 72.4kmph

c) At 56.3 kmph

d) At 40.2kmph

e) At 24.4kmph

Tabulation -

Velocity (kmph)	Max. Sustainable Gradeability (%)
88.5	8.9
72.4	10.7
56.3	13
40.2	16.5
24.4	24.4
With Both Systems Enabled
