Week 3 Challenge

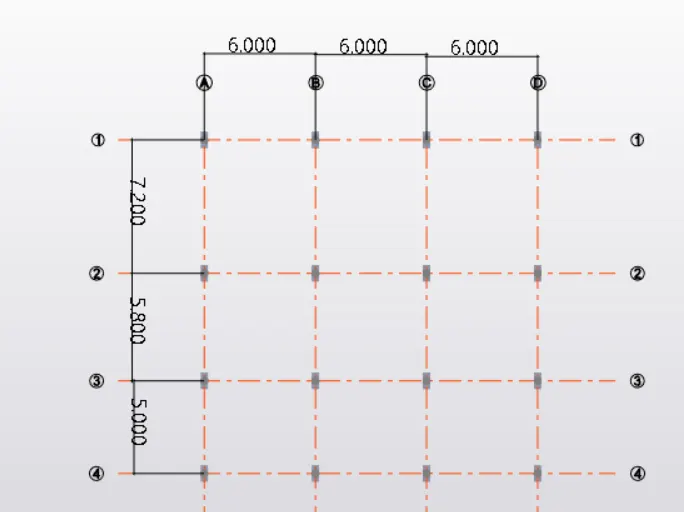

FROM THE ABOVE INFORMATION

FROM WEEK 2 DEVELOP THE REMAING

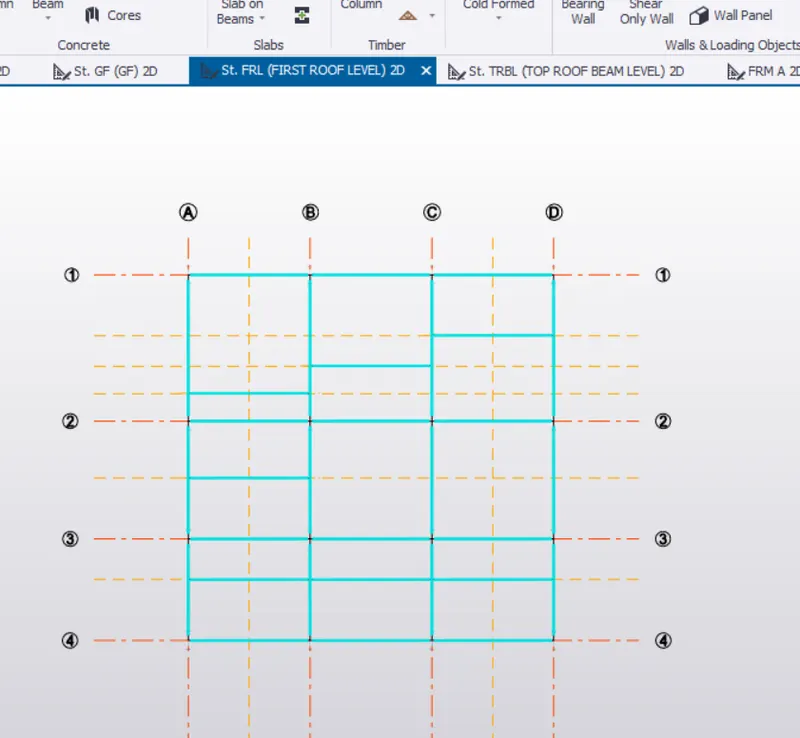

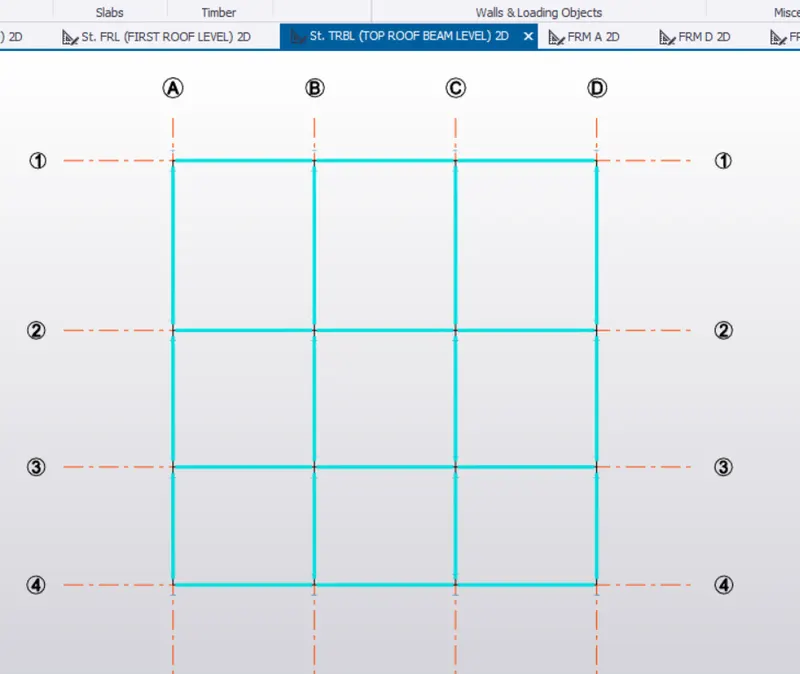

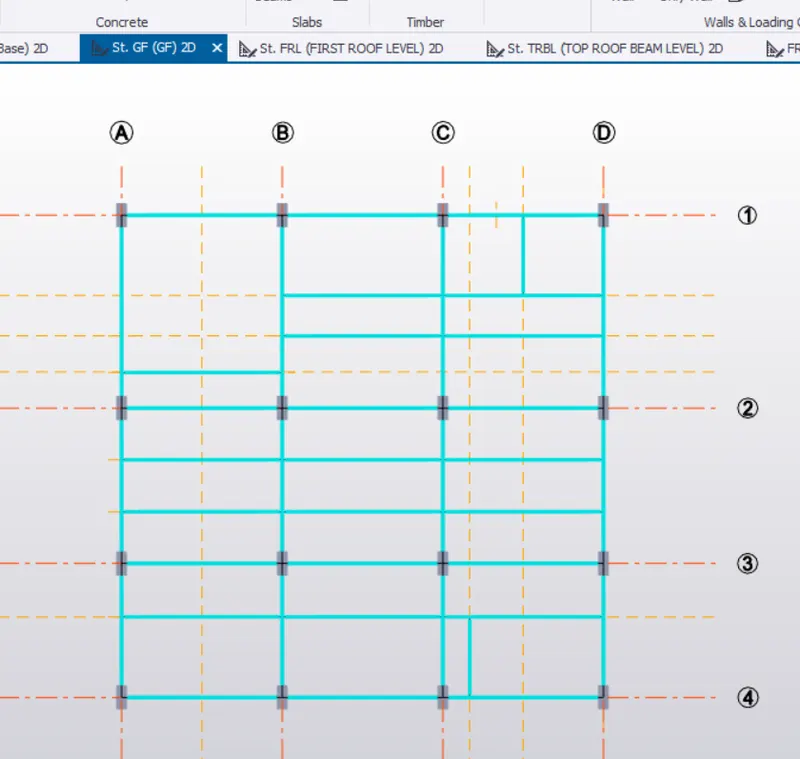

IN THE SAME ADD THE BEAM TO FIRST FLOOR AND TOP FLOOR LEVEL

USE THE MAKE OF COPY OPTION FOR FAST WORK

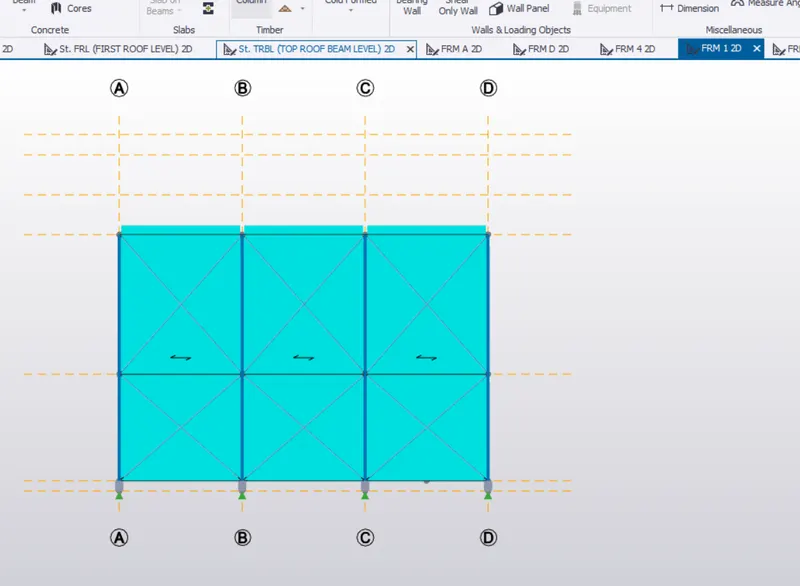

FORM THE FRAMES, THE OPTION IS AVAIBLE IN MODEL UDER THE LEVELS,

CLICK ON IT AND SELECT THE GRIDS TO FROM THE CROSS SECTIONS ,

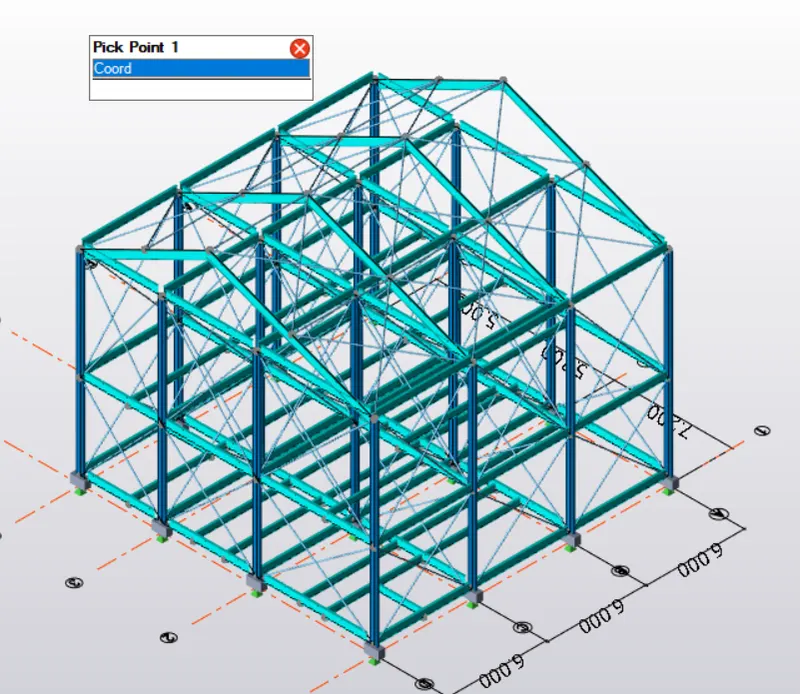

AFTER AND DRAW THE BRACE, IT ALSO AVAIBLE DIRECT IN MODEL FIRST DRAW THE STRAIGHT LINES AT REQUIRD AREA(WHERE LENGTH IS MORE).

AFTER SELECCT THE X-BRACE AND SELECT THE FOUR END POINTS,

FOR EASY WORK USE FRAME SECTIONS AND COMPLETE IT

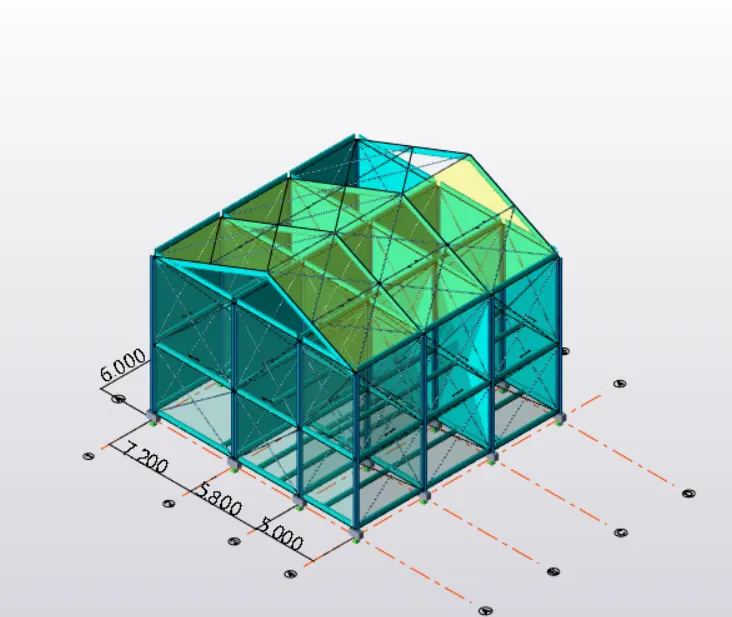

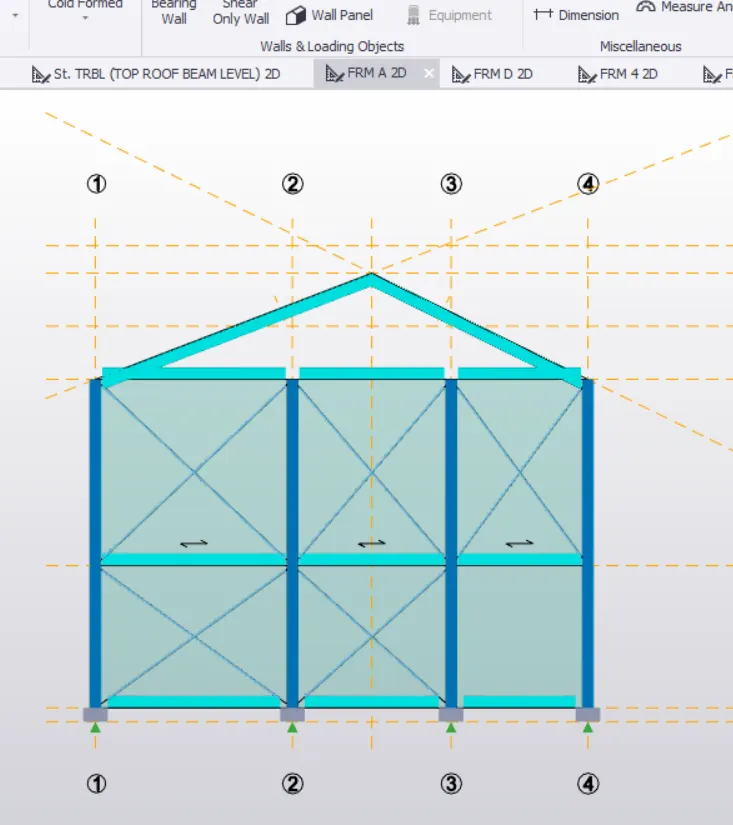

NOW SELECT OPTION WALL PANEL, IT IS AVAIABLE IN MODEL, WALLS AND LOADINDS MODE

SELECT IT, AFTER THAT SELECT TO OPPOSITE SIDES IN FRAMES .

IN THE SAME WAY ROOF PANEL, BUT HERE SELECT FOUR END POINTS

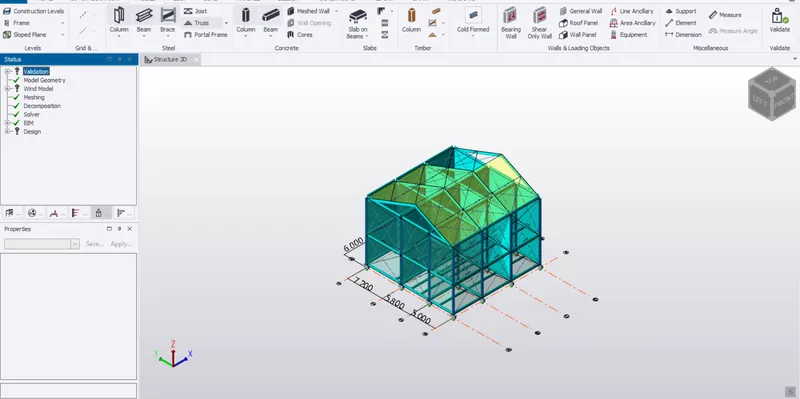

AT ENDING PRESS VALIDATE, IT IS AVAIABLE IN MODEL, RIGHT TOP END

IT SHOW IF ANY MISTAKES ARE THERE.
