Week 2 Challenge : Surface meshing on a Pressure valve

AIM: To check Geometrical errors, perform Topology cleanup and do meshing the model with 3 sample cases as target length as 1mm, 3 mm and 5 mm with Element type Tria.

Procedure:

Case I: Setting target length as 5 mm

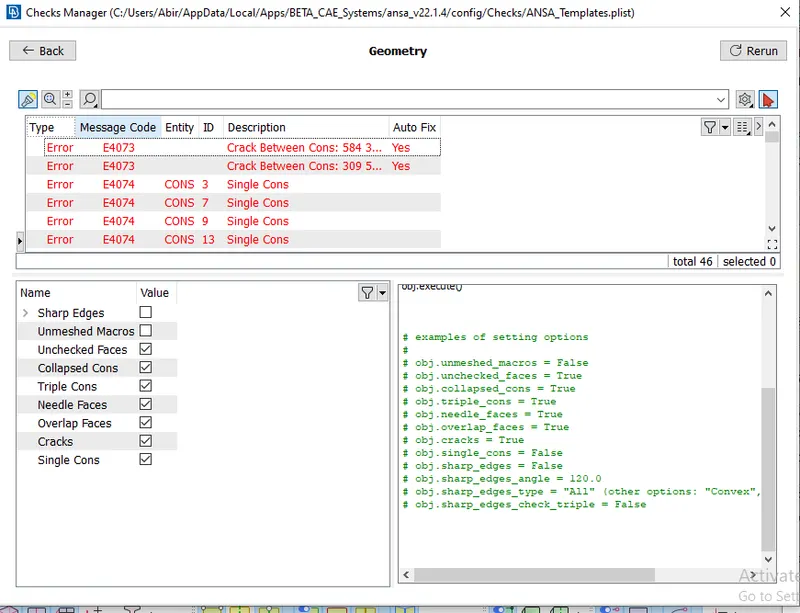

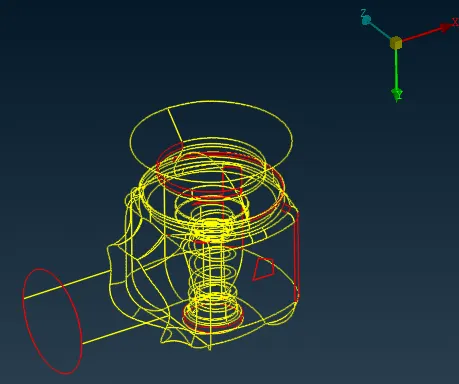

1st step is to conduct Geometry checks using check manager and below set of errors are shown up

To minimize these errors topo cleanup is done and to do that we need to check how many single cons and present as shown below,

Above figure shows combined with single, double and tripple cons

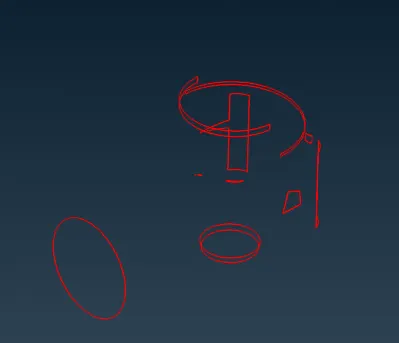

Above figure shows single cons that we need to cleanup

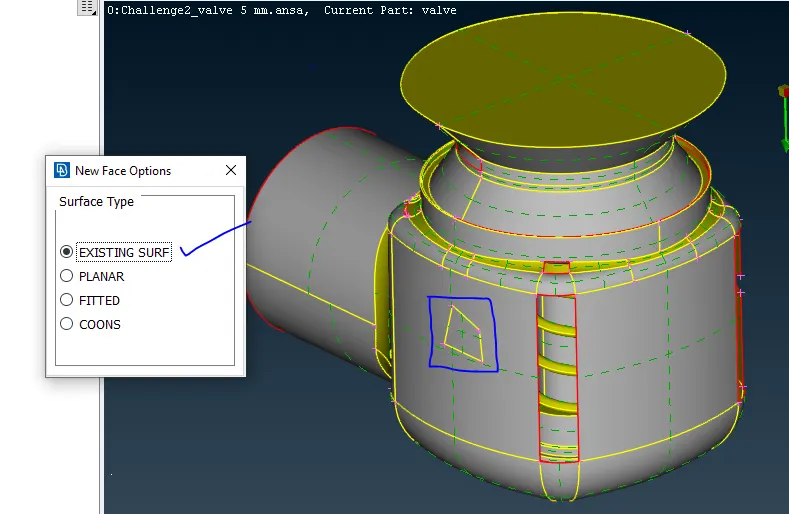

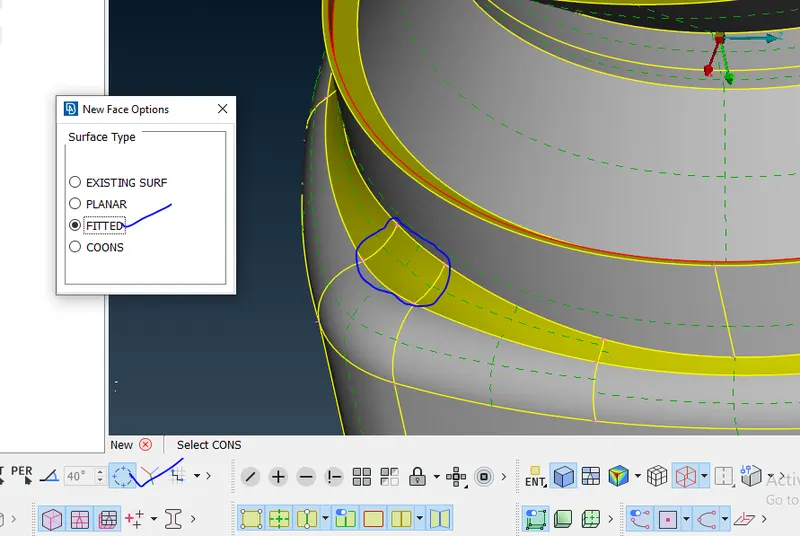

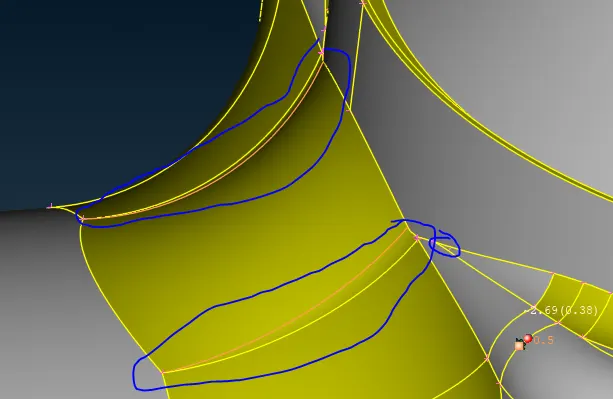

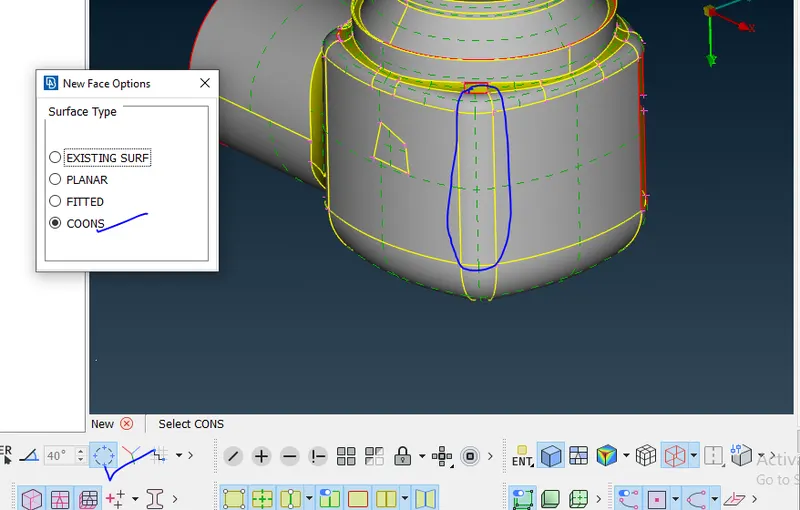

To do this we need to create 1st faces on these single cons using Face new option as shown below,

I

II

III

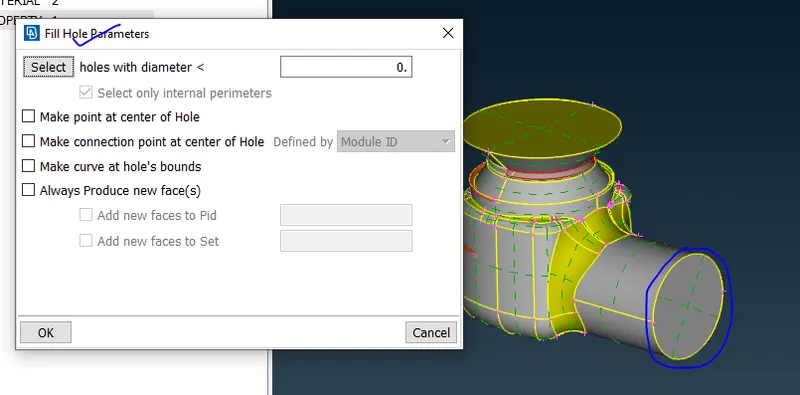

III above figure shows filling using Hole option

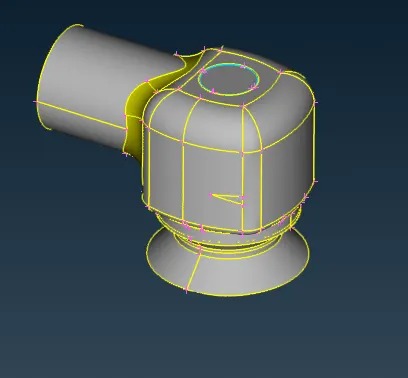

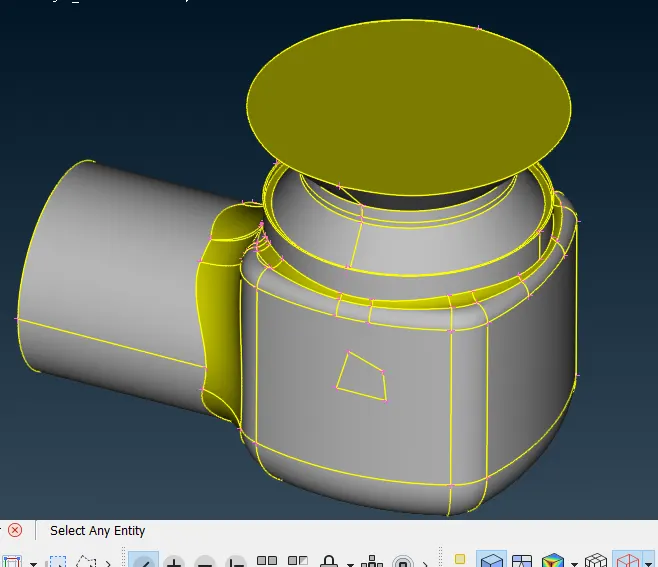

Above figure shows final cleaned up

removing unnecessary close face lines

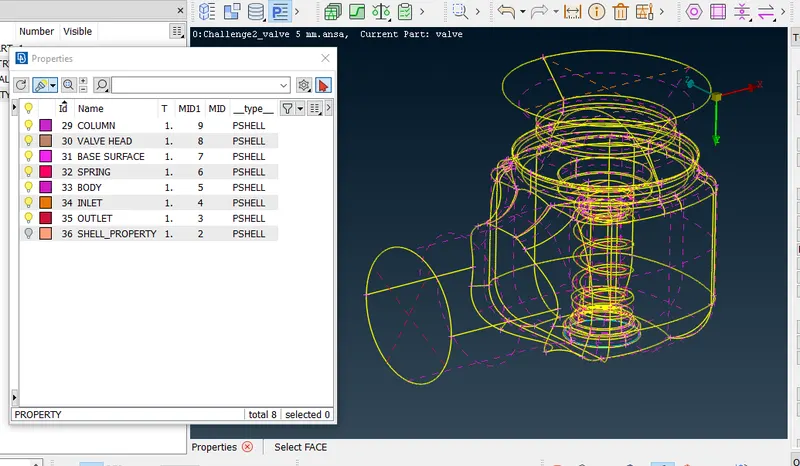

Assigning PID's

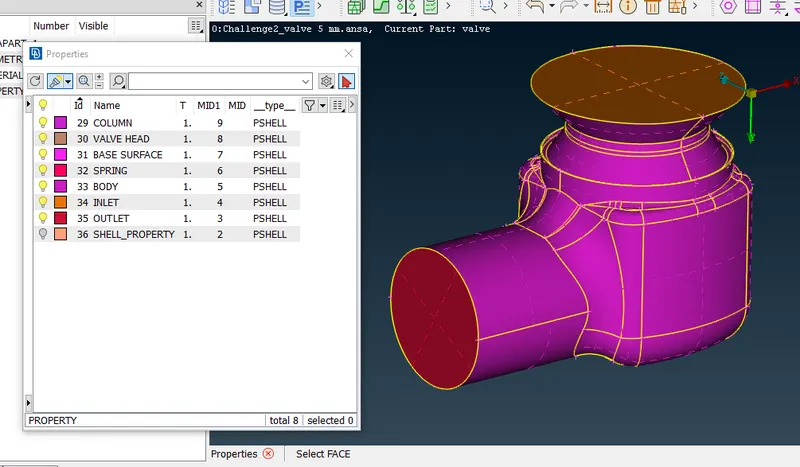

Same Solid model image

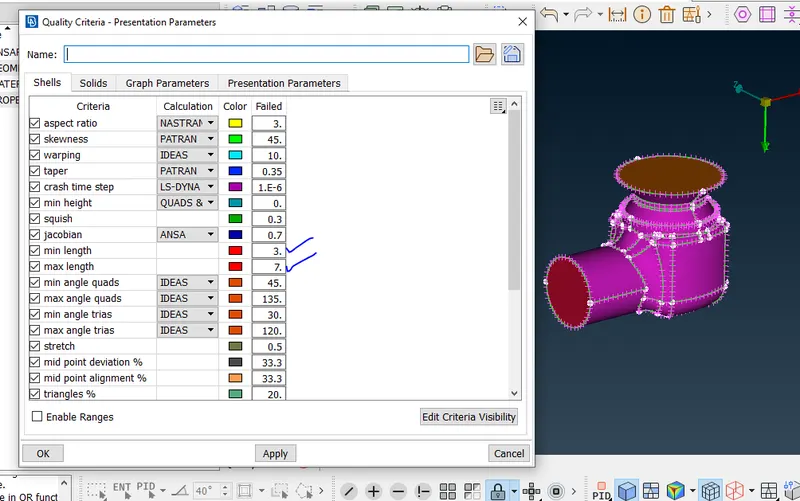

Updating qulity criterial

Setting up length as 5mm

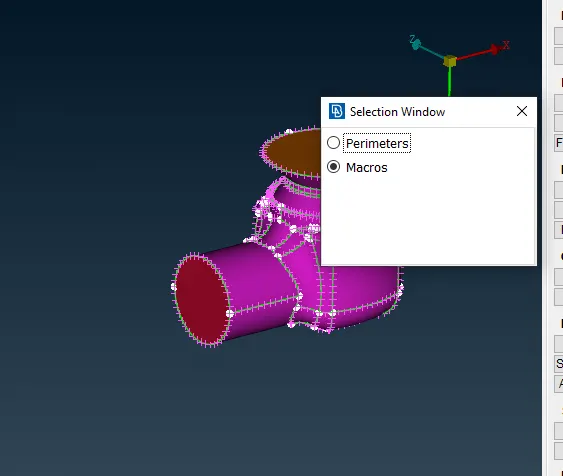

Messed Full assembly

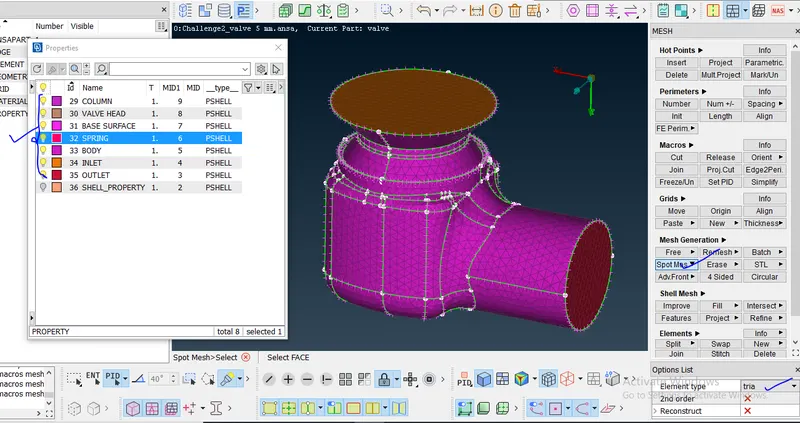

Messhed internal objects
