Week 2 Challenge
Ans1.1)
Ans1.2)
Ans1.3)
Ans1.4)
- In Staad pro the Codal standard is incorporated for Steel, Concrete, Aluminum.
- For the Steel the codal provision are IS 800, IS 800: 2007, IS 800:2007 WSD, IS 801

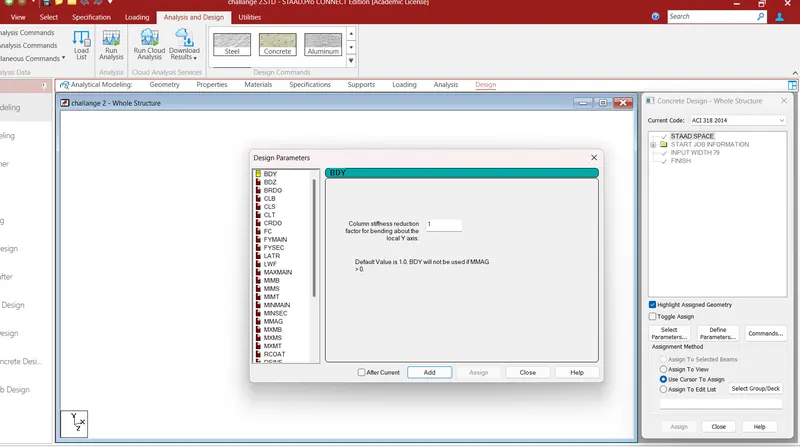

- For the concrete Codal provision are the IS 456 and IS 13920 for the Seismic Design
Ans1.5)
Ans2.1)
steps Involved in RCC design are

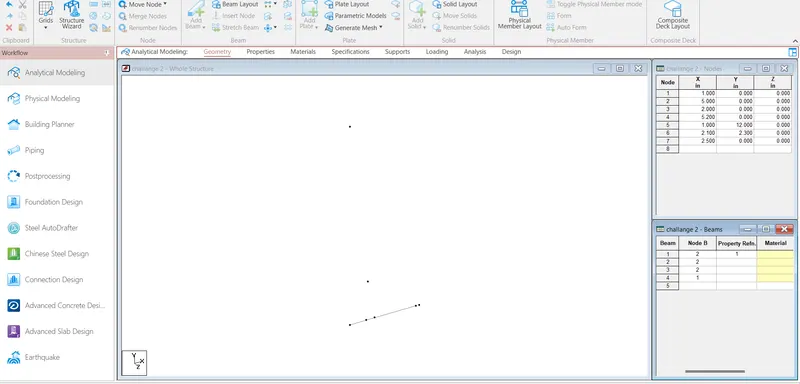

1. Geometry: The Node location and the node spacing are given

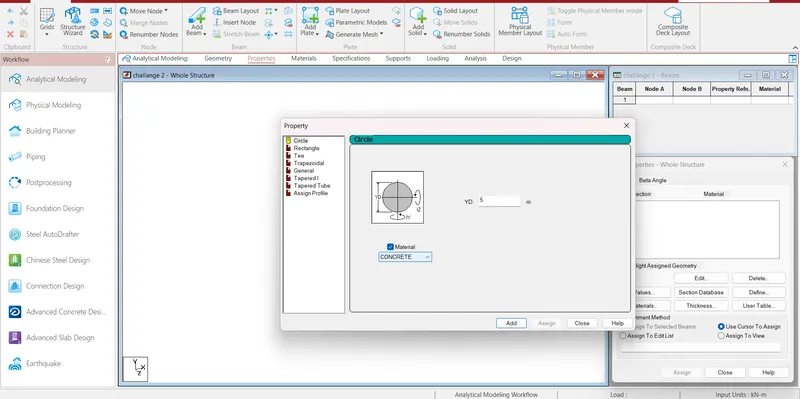

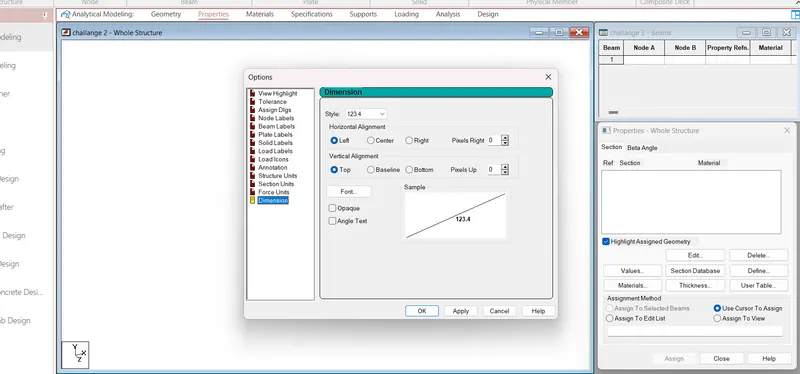

2. Properties: Specify the Sectional properties of the section
3. materials: Specify the properties of the material
4. Specifications: The specifications are given
5. Support: The end support is to be given
6. Loading: Need to provide the loading pattern and the loading combination
7. Analysis: Need to Analysis the modal and all the Input Specification are Given
8. Design: Finally, the Design are to be done
Ans2.2)

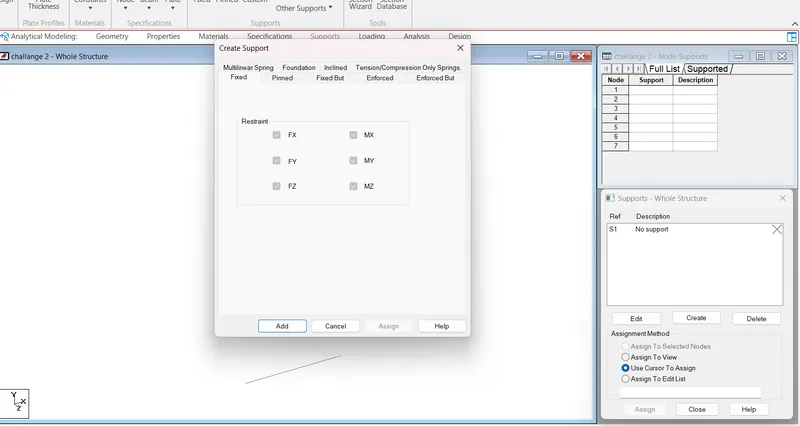

- In STAAD, support displacement loads cannot be applied to such models when the FIXED type of support is specified.
- For the ENFORCED BUT type, there is no provision to specify a spring constant.
- The only choices, which are built into the program, are - zero stiffness
Ans3.1)
The steps involved in analysis of a model are

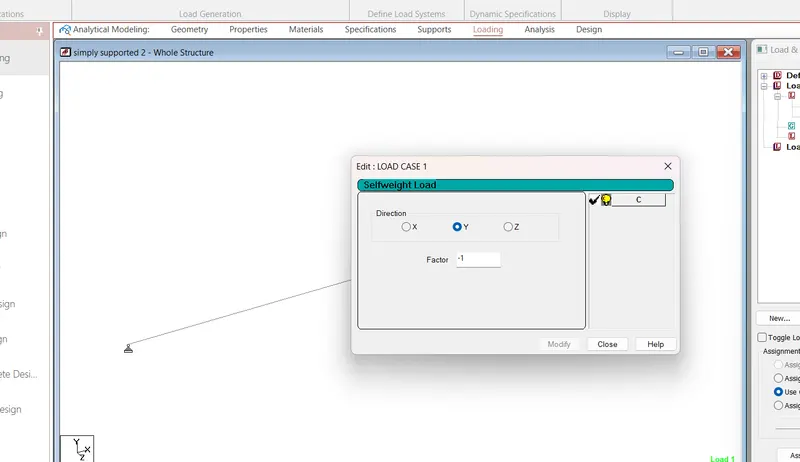

- Before Analysis the model the load pattern and the load combination are to be provided to the model
- Then go to Analysis option
- Define Command
- Select the data for the analysis of the model by perform analysis, P delta analysis, Nonlinear analysis
- It depends upon the support conditions
Ans3.2)

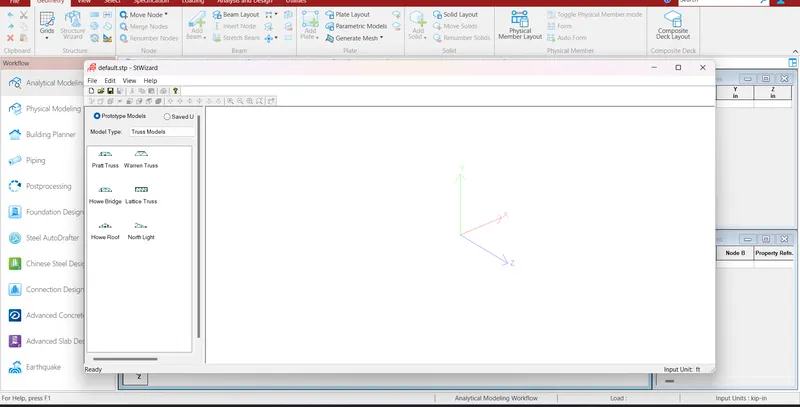

The two ways to model a structural framework is

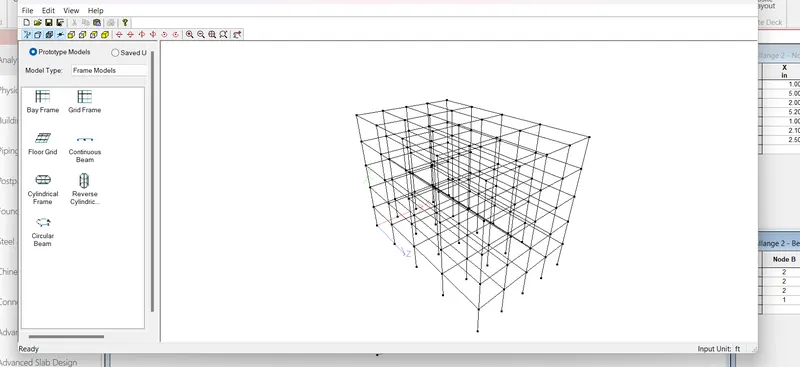

1. Creating model by Node by Node

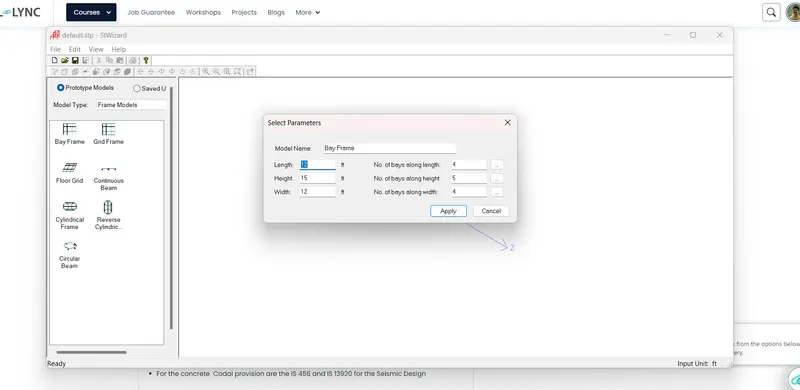

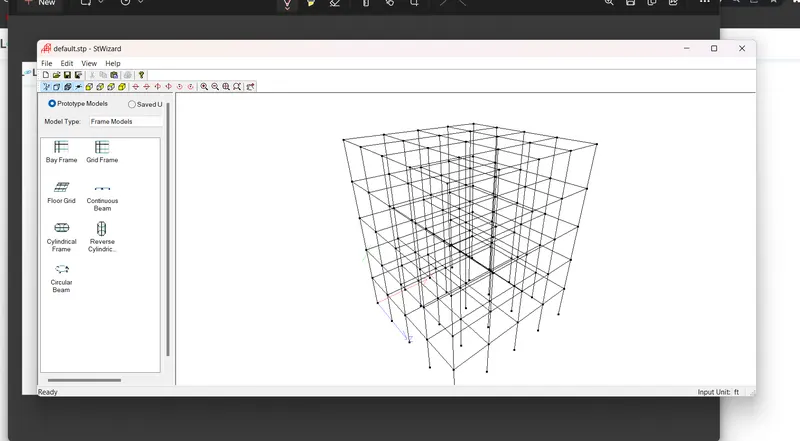

2. Creating model by Bay frame by
Ans3.3)
Ans3.4)
- The Design of Staircase slab is done by Node placement
- The creation of plate is used in stair case
- BY using Generate mesh
- The stress distribution for the staircase slab is done by viewing color in the slab of the design
Ans3.5)
- After completion of the Design the staad pro will automatically provide the BMD & SFD
- By Entering to the Post processing process click on ok
- By clicking the beam results check the shear force Fx and bending moment in Mz
PRACTICAL

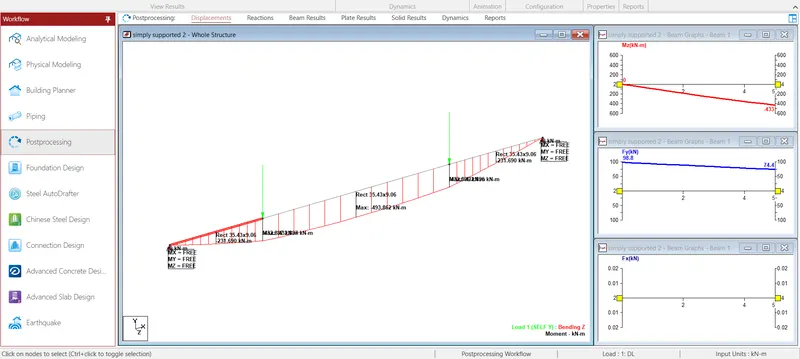

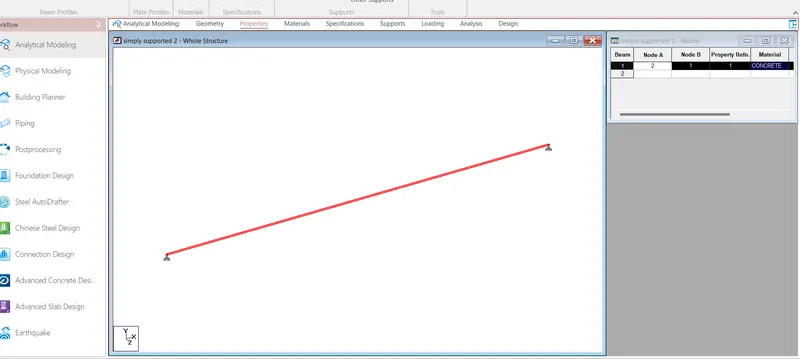

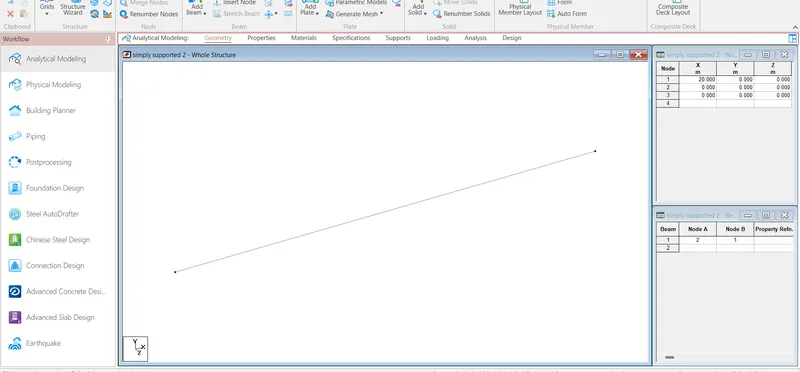

Simply supported beam

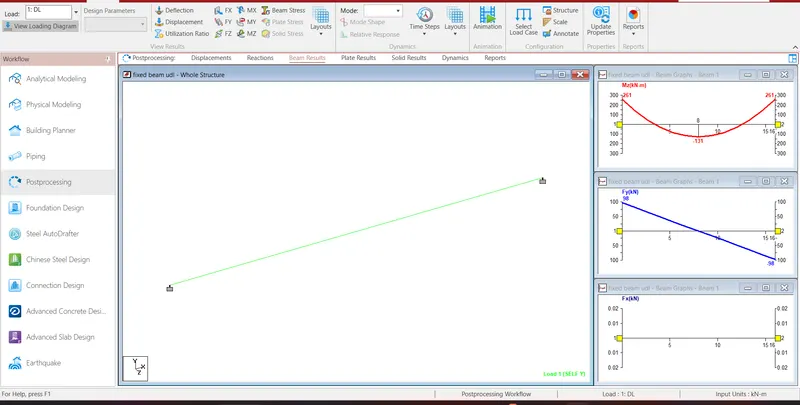

Fixed Beam with 16m span and 9kn/m UDL

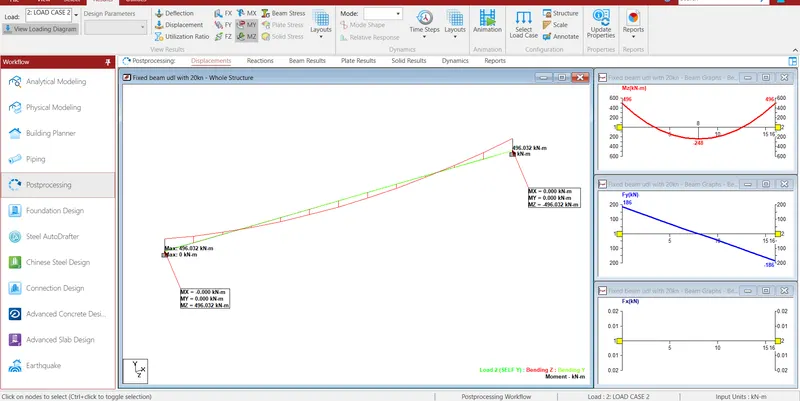

fixed beam with 20kn udl for ex
