Week -2

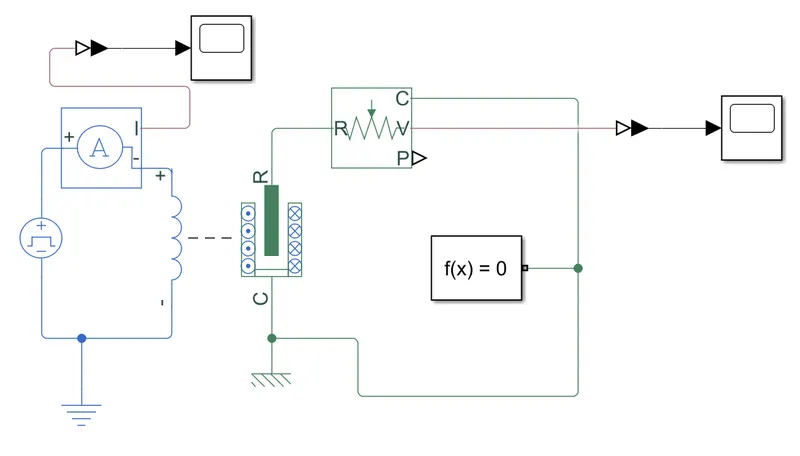

Task 1 : Doorbell using solenoid

In the discription of the Translational Motion Sensor, it says that :

V and P report the displacement and velocity, respectively.

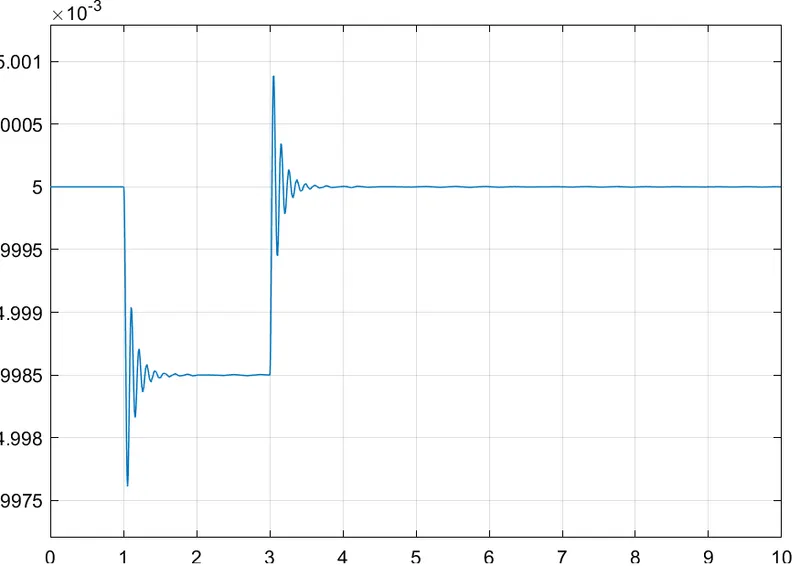

The order is given wrong and that confused me in the beginning. For a while I looked at the velocity graph as it was the position graph. Then I noticed that it was the velocity. Above I ve shared the displacement graph which is the expected one.

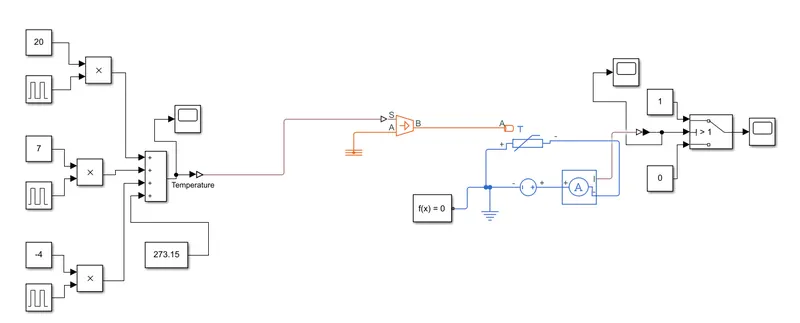

Task 2:

This task was a bit hard to configure but I ve achived the results.

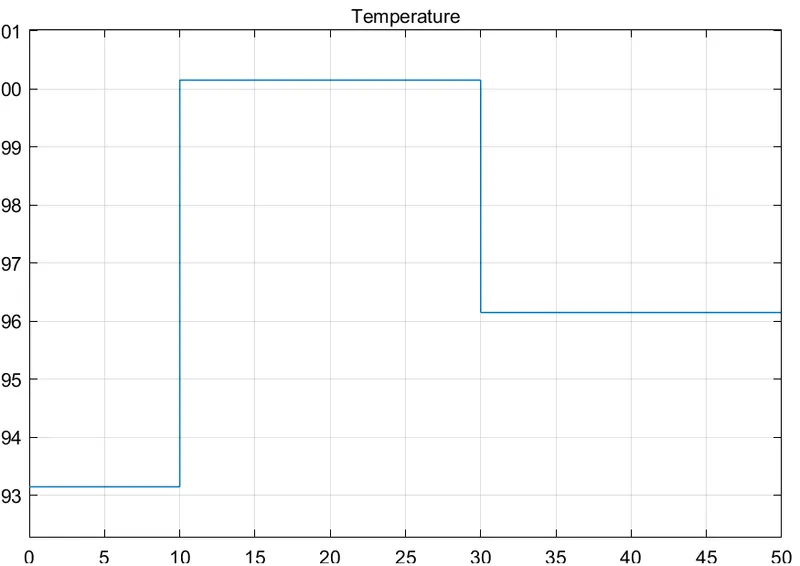

This is the temperature information.

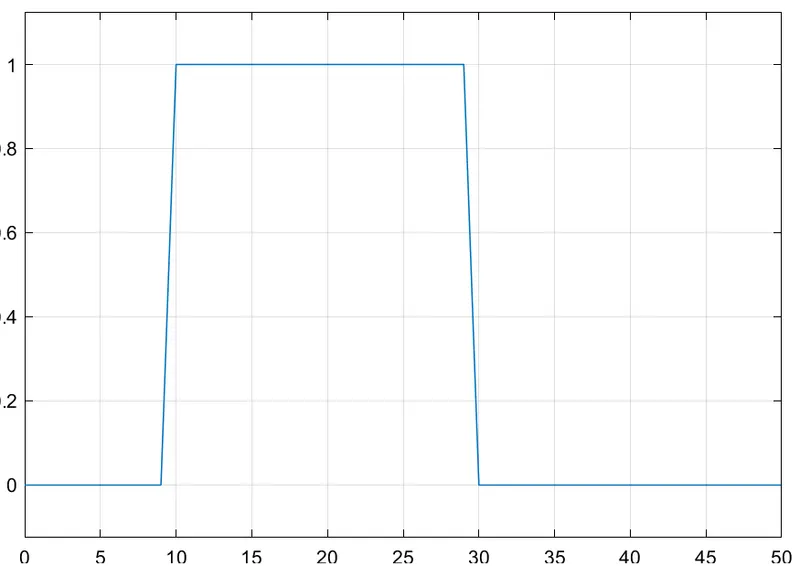

This is the signal that must be send to the fan.
