Week 2- 2R Robotic Arm Challenge

%R2_arm Kinematic Animation

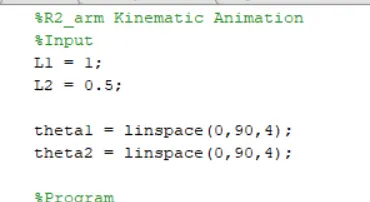

%Input
L1 = 1;
L2 = 0.5;

theta1 = linspace(0,90,10);
theta2 = linspace(0,90,10);

%Program
  ct = 1;
for i=1:length(theta1)
    THETA1 = theta1(i);

    for j = 1:length(theta2)
        THETA2 = theta2(j);

        X0 = 0;
        Y0 = 0;

        X1 = L1*cosd(THETA1);
        Y1 = L1*sind(THETA1);

        X2 = X1+ L2*cosd(THETA2);
        Y2 = Y1+ L2*sind(THETA2);

        %Plotting

        plot([X0 X1],[Y0 Y1],[X1 X2], [Y1 Y2],'linewidth',3)
        axis([-0.1 1.5 0 1.5])
        pause(0.3)
        M(ct) = getframe(gcf);
        ct = ct+1;

    end
end
movie(M)
videofile = VideoWriter('Forward_kinematics.avi','Uncompressed AVI');
open(videofile)
writeVideo(videofile,M)
close(videofile)

Aim : To generate 2R robotic arm reachability animation profile

Inputs:

Length of the arm 1 = 1m

Length of the arm 2 = 0.5m

Angular travel of both the arms = 0° to 90°

Process:

Initially generated the code for the end points of both the arms.

X0 Y0, X1 Y1 & X2 Y2.

Processed the code under two for loops

Ie for first angular travel of the Arm1, the Arm 2 should complete its 0 to 90° of rotation.

& generated the animation file with the writevideo command.

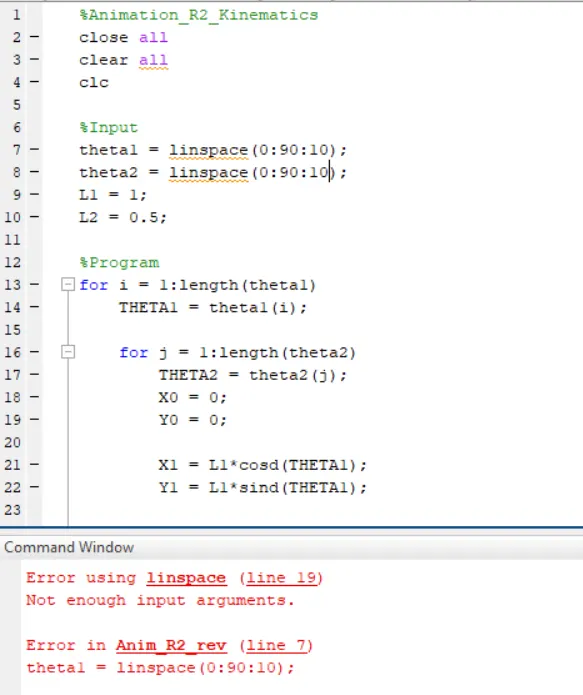

Errors faced:

Not enough arguments

Theta1 = linspace(1:90:10)

Rectification: Wrongly framed linspace command

Theta1 = linspace(1,90,10)

Conclusion:

Succesfully generated the 2R_robotic arm reach video file.

Video link: https://www.youtube.com/watch?v=CiaqWlhA2F0
