Week -2

1.

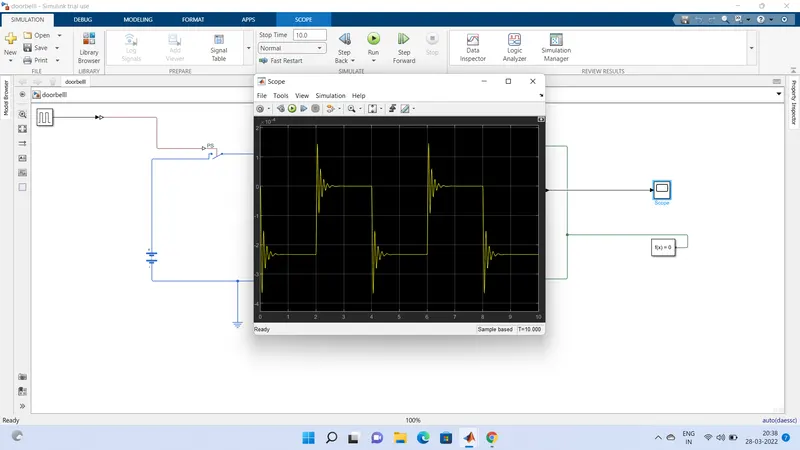

Door bell is created according to the challenge given using solenoid block and created a simulation which the switch is closed for 2 sec and relased according to the question and the output is noted with help of scope and attaching the screenshot of the graph along with this and program also attached with this.

2.

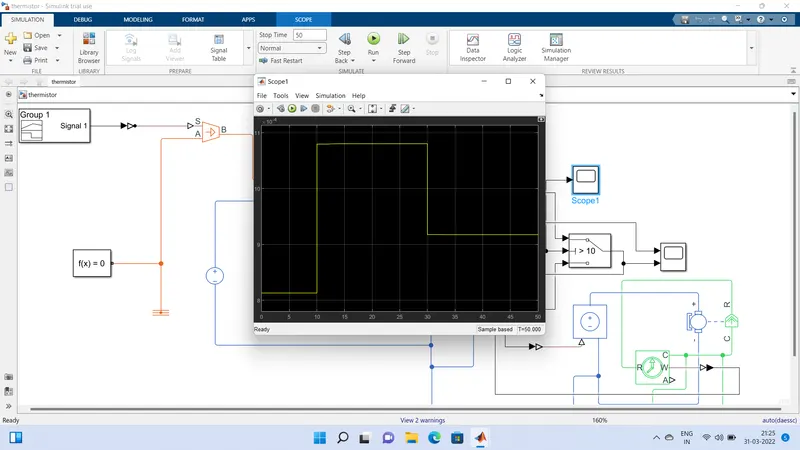

The thermistor challenge is done according to the challenge question and temperature are setted to kelvine as per requirment and the value are given to the signal bulider block and threshhold value of 25 degree celcius is calculated and given to the switch and runed the simulation for 50 sec and attaching the simulation below and the screenshots also.
