Week -2

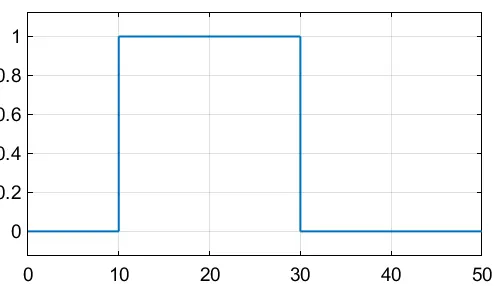

2) The fan is turned On once the Temperature is reached to 27 degree celcius from time 10 to 30 and again Off after 30 sec. Above graph shows the output.

1) When the switch gets closed, The signal is converted into Translational motion using Solenoid. Below Graph describes the same.
