Week -2

1)simulink:
https://drive.google.com/file/d/1Mi36XuCIL0KEKg8kJRJ27rFQYPOvkGCE/view?usp=sharing

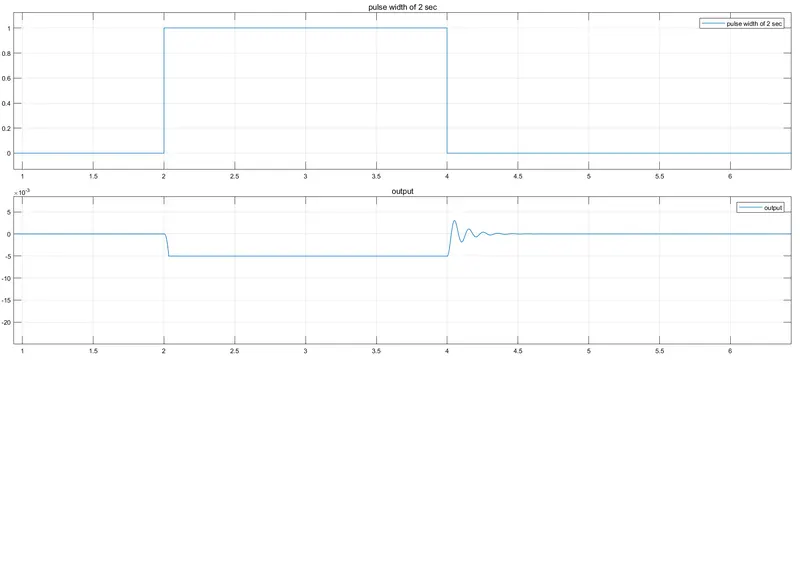

these are the results obtained for the electromagnet bell using solenoid. When the switch is on at 2 sec for 2 sec then according to that the bell is rings and the remaining time the bell will remain at zero position.

2)

https://drive.google.com/file/d/1S-AglmEa58P_y9TFkD2BYC1E9s13vhGe/view?usp=sharing

Temperature source: 20 °C from 0 to 10 seconds, 27 °C from 10 to 30 seconds, 23 °C from 30 to 50 seconds

Fan conditions: ON if the temperature above 25 °C, OFF otherwise

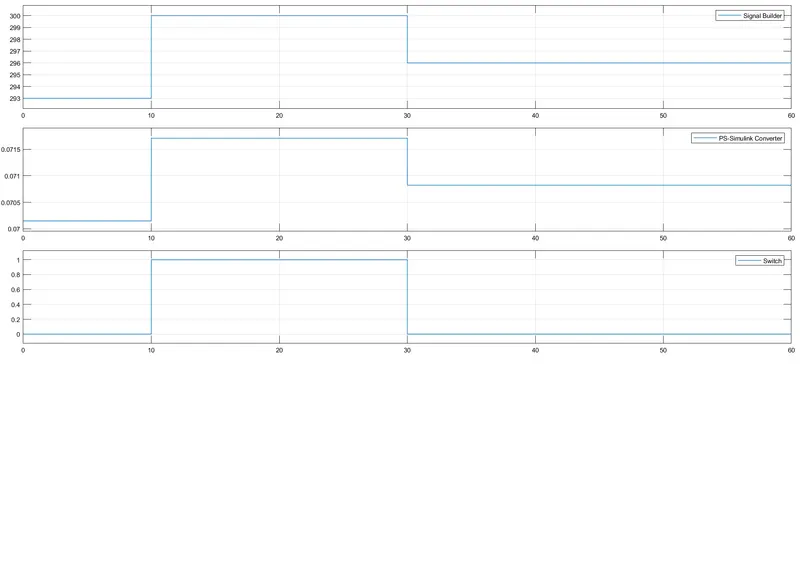

Temperature source: 20 °C from 0 to 10 seconds, 27 °C from 10 to 30 seconds, 23 °C from 30 to 50 seconds is created using signal builder and is connected and the output is shown above.

Fan conditions: ON if the temperature above 25 °C, OFF otherwise, the result is obtained and we can see it from the last graph which is copied from the scope.

and the result from the switch is connected to the fan load.
