Week 14 challenge

                                                                                                                               REPORT ON BUTTERFLY VALVE ASSEMBLY

 INTRODUCTION-

A VALVE THAT CAN BR USED FOR REGULATING OR ISOLATING THE FLOW IS CALLED A BUTTERFLY VALVE. THIS VALVE IS USED TO OPEN OR CLOSE THE CIRCULAR BUTTERFLY PLATE, WHICH ROTATES WITH A PUNGENT AND IS USED AS A CUT-OFF VALVE.

THE INDIVIDUAL COMPONENTS ARE DESIGNED AS PER THE DESIGN REQUIREMENTS. THESE COMPONENTS ARE ASSEMBLED BY PROVIDING THE REQUIRED CONSTRAINTS.

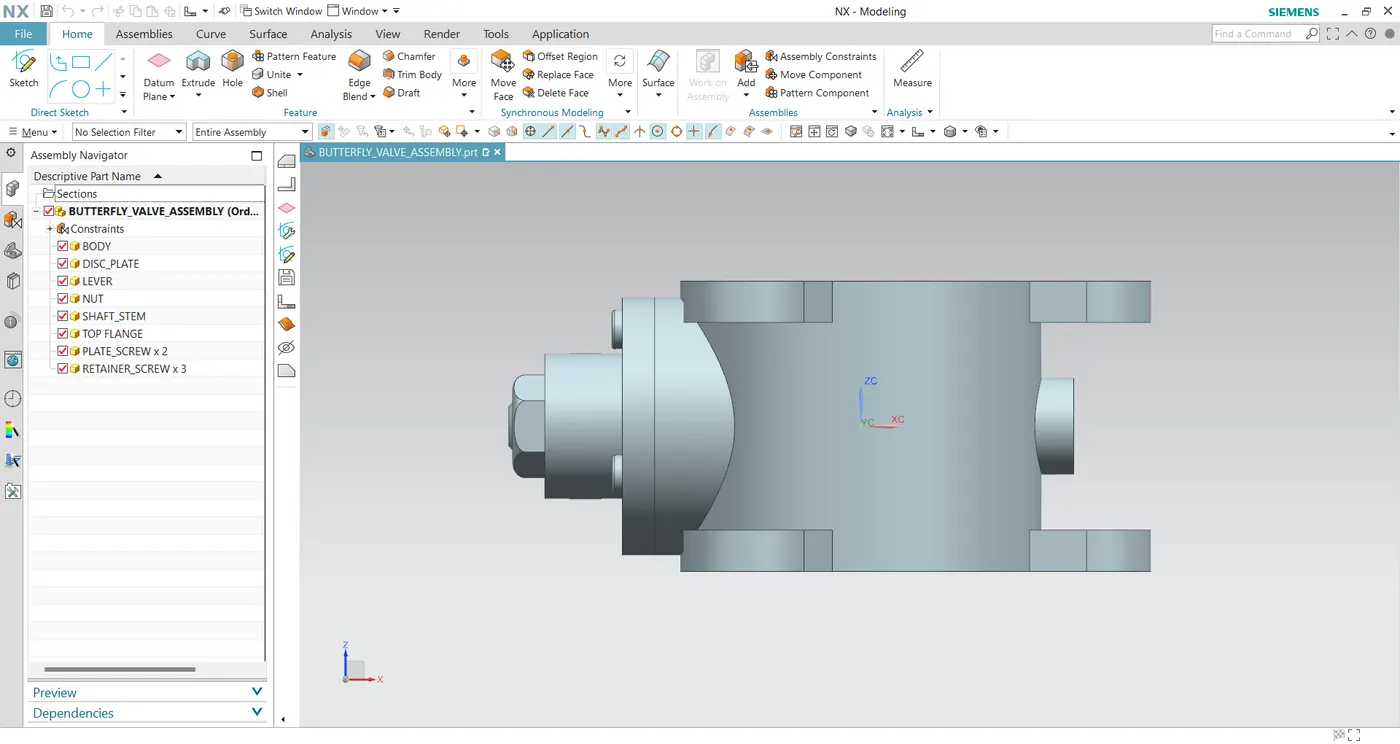

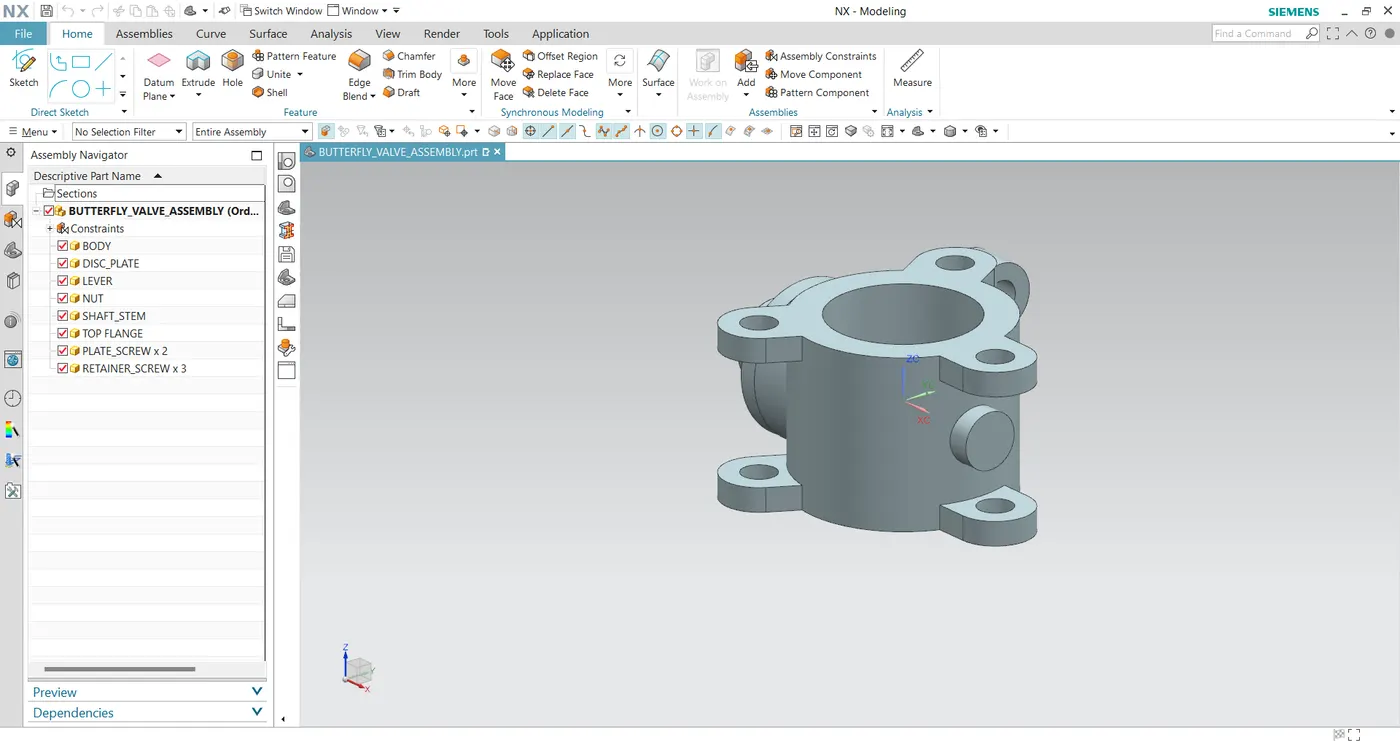

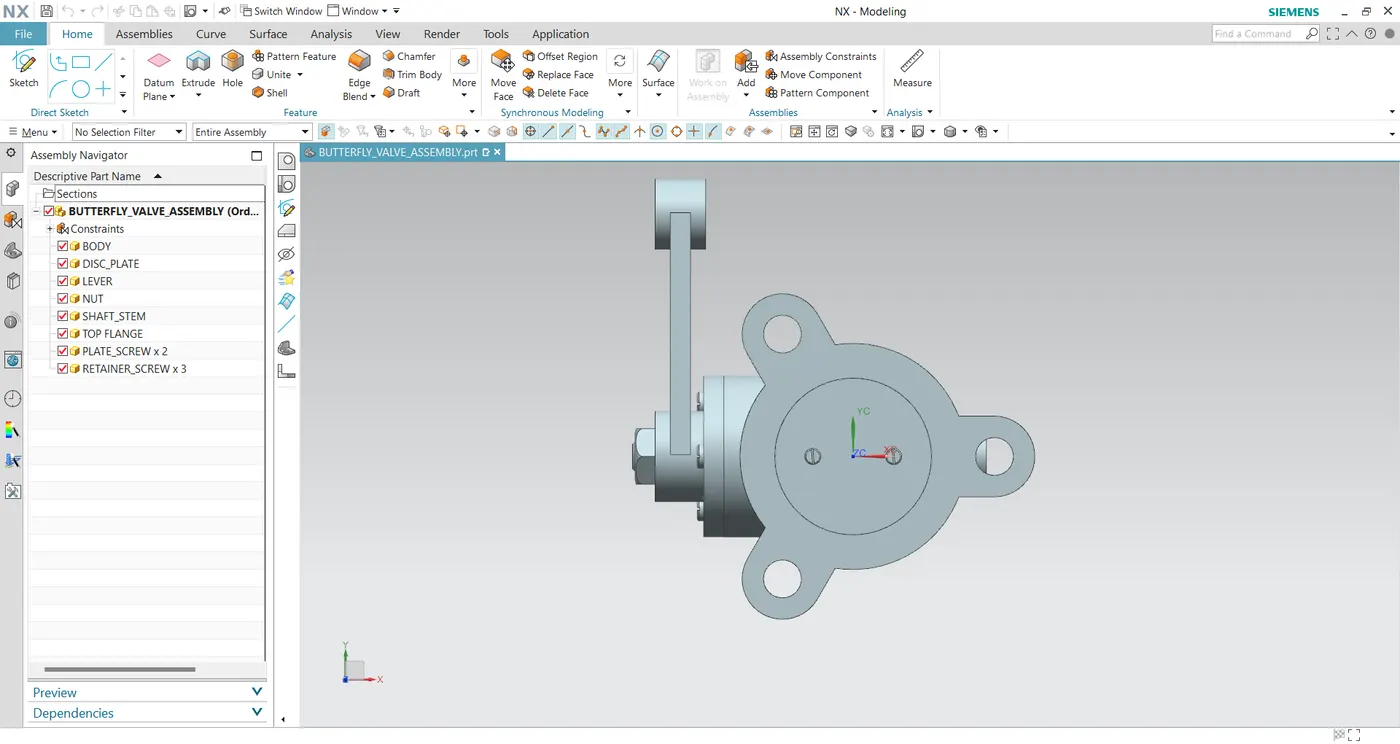

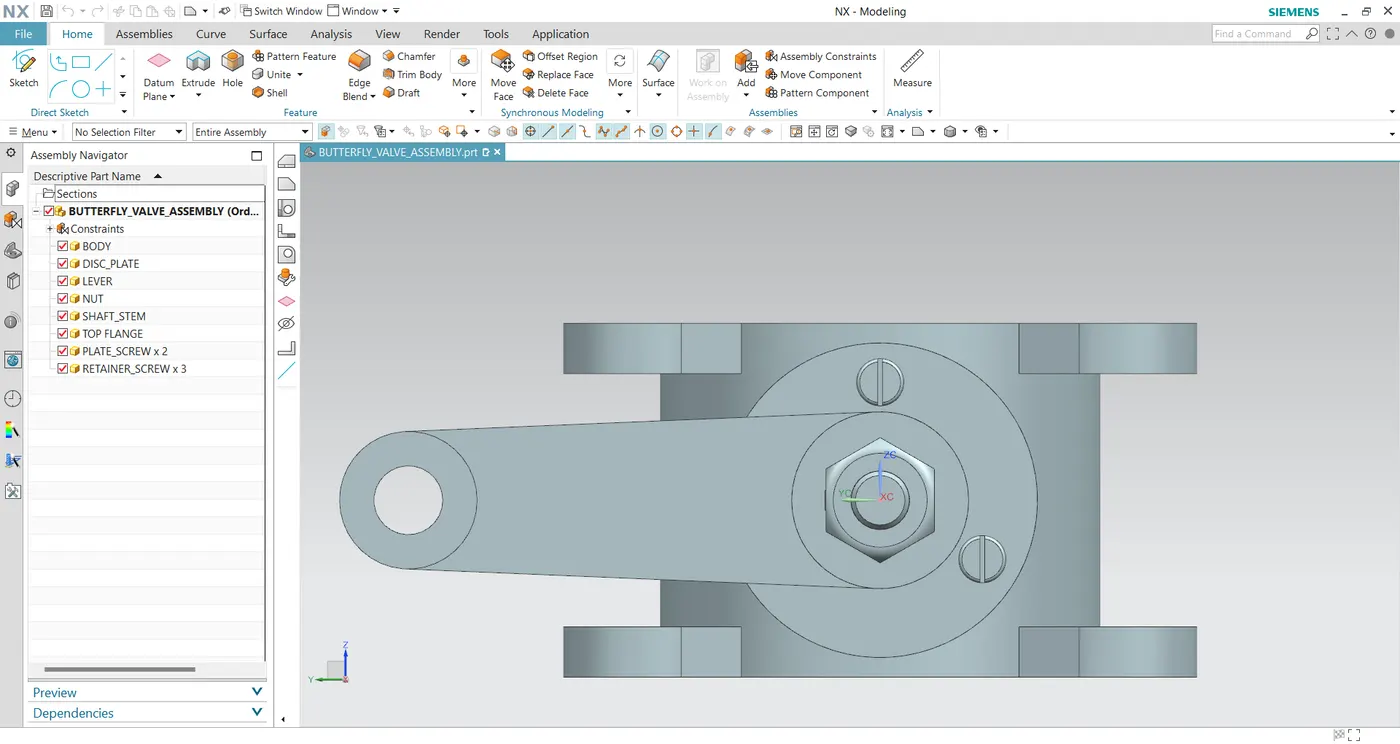

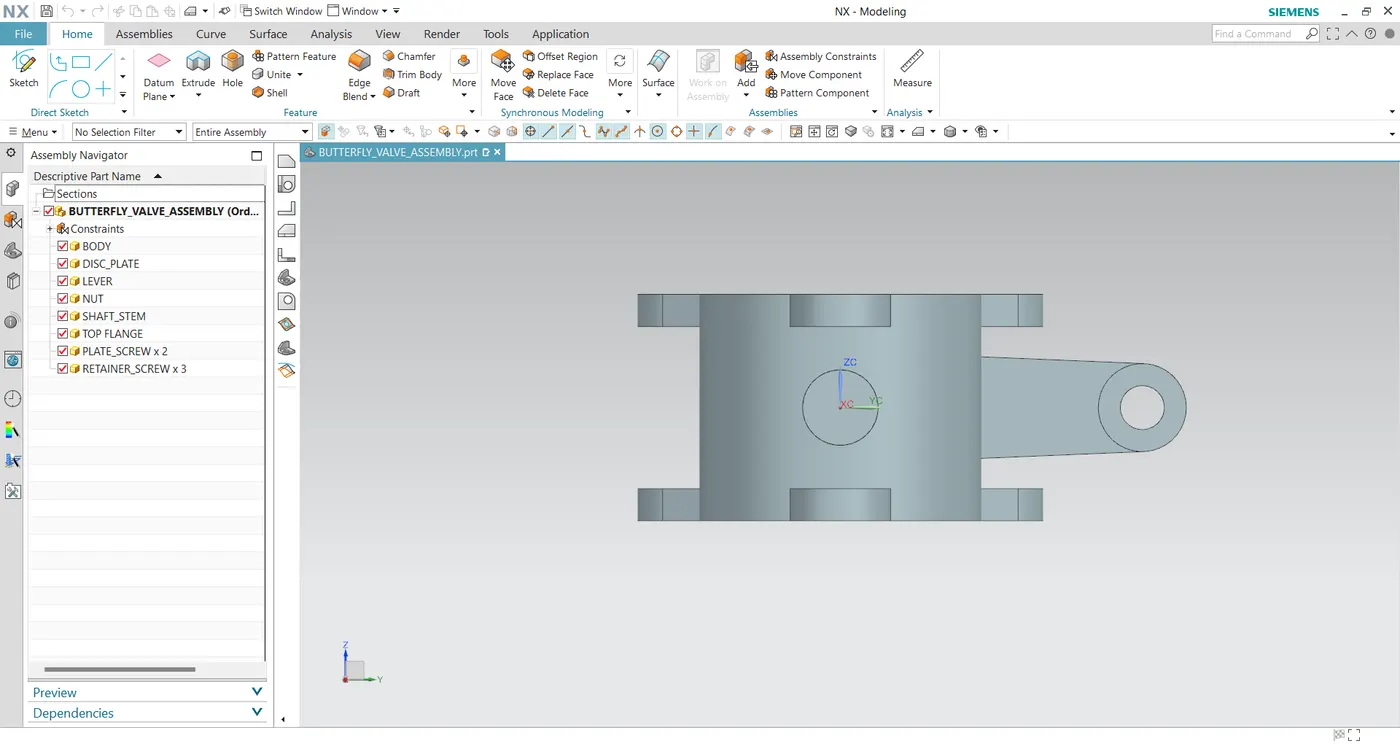

• VIEWS OF BUTTERFLY VALVE-

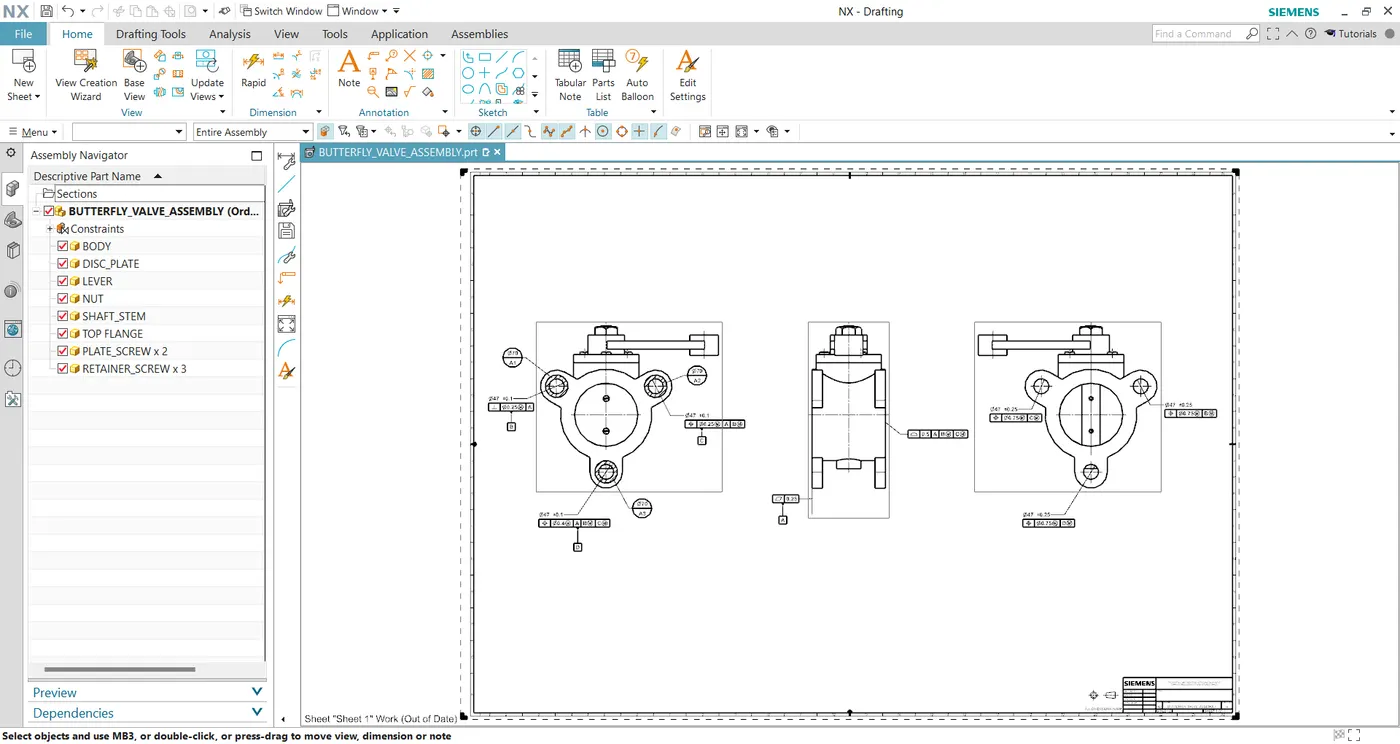

• DRAFTING-

THE GD&T IS IMPLEMENTED TO 2D DRAWING OF THE BUTTERFLY VALVE AND THE SYMBOLS ARE DENOTED AS SHOWN IN BELOW IMAGES.
