Week 14 challenge

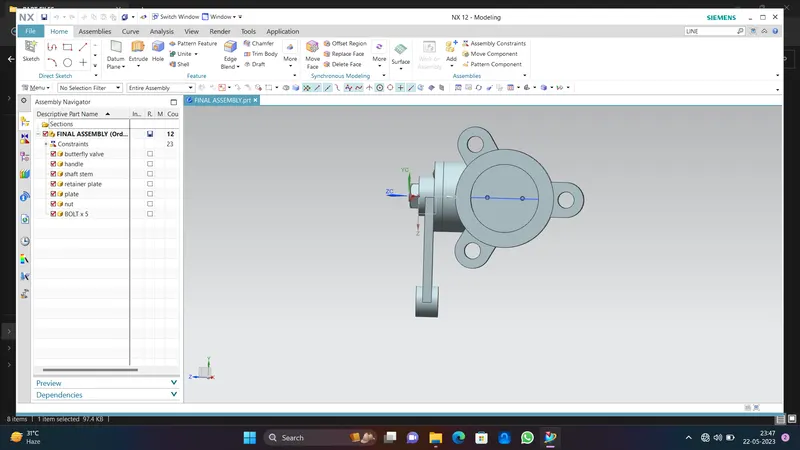

FINAL ASSEMBLY:FIRST FIX THE PLATEBY USING ALIGN AND TOUCH COMMAND TO MAKE IN CONTACT WITH THE SHAFT BY USING BOLTS AND THEN ALIGNED THE CENTRE AXIS OF SHAFT AND HOLE AXIS IN BUTTERFKY VALVE.THEN USE TOUCH OPTION TO MAKE CONTACT WITH THE BOTTOM SURFACE OF THE PLATE AND INNER SURFACE OF THE BUTTERFLY VALVE.NEXT TO ASSEMBLE THE RETAINER PLATE FIX THE HOLE AXIS WITH THE BUTTERFLY HOLE AND ALIGN THEM AND ALSO USE TOUCH COMMAND .ALSO USE ALIGN AND TOUCH COMMAND WITH BOLTS TO MAKE CONTACT WITH RETAINER PLATE.THEN FIX THE LEVER WITH SHAFT BY USING CENTER AXIS,ALIGN AND TOUCH COMMAND.FINALLY I GOT A FULL ASSEMBLY OF BUTTERFLY VALVE.

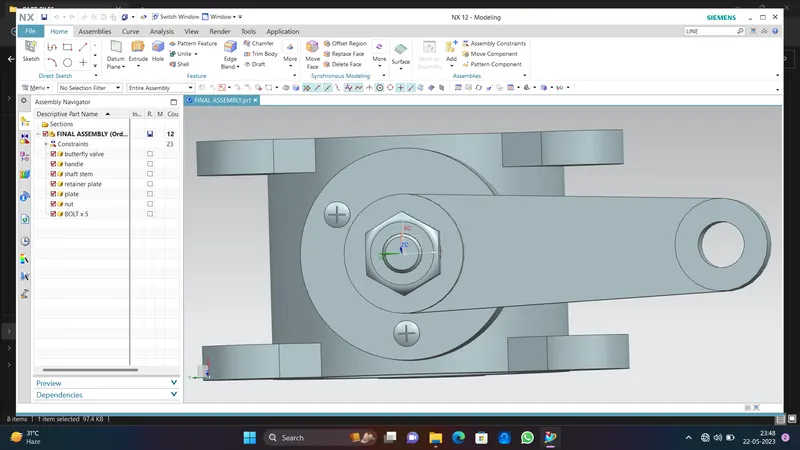

SIDE VIEW :

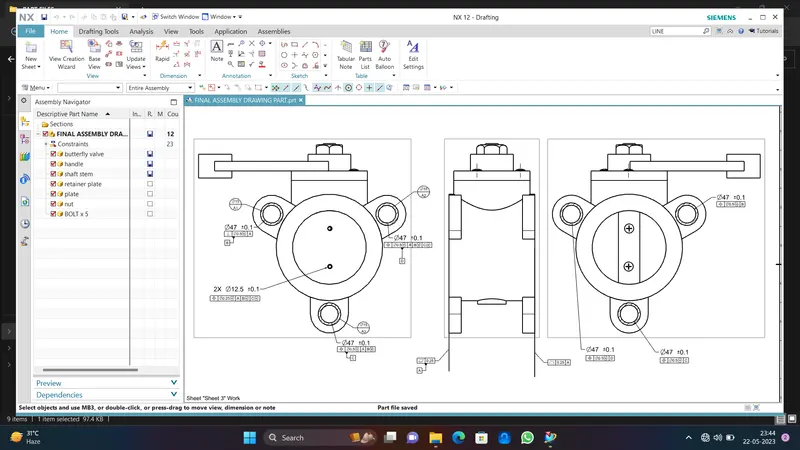

DRAWING :

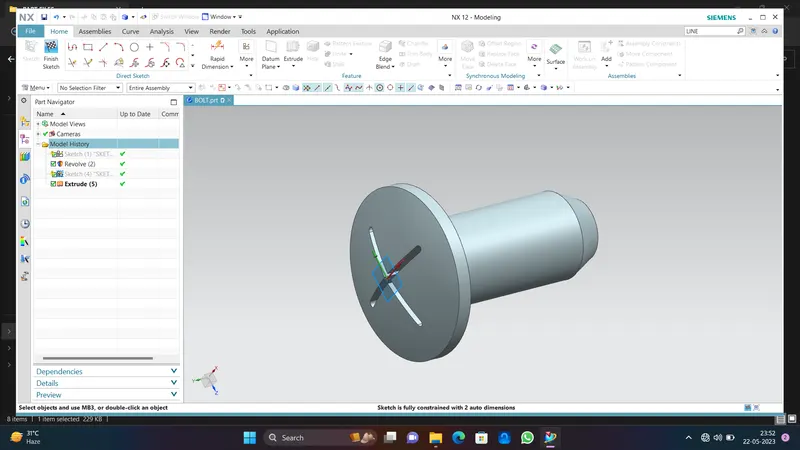

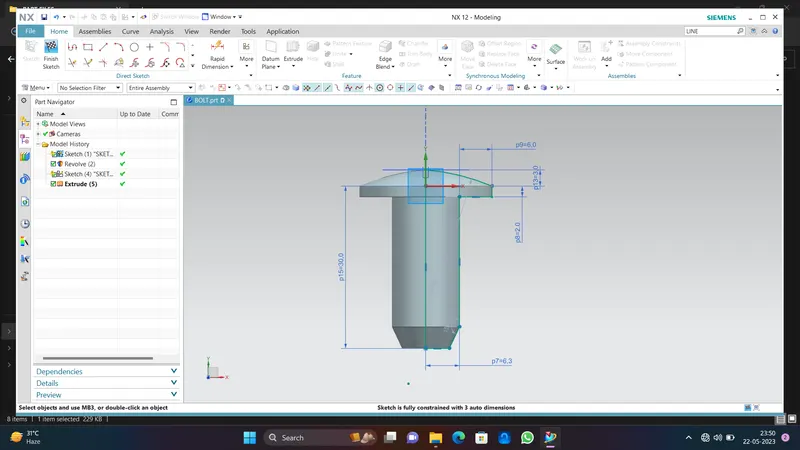

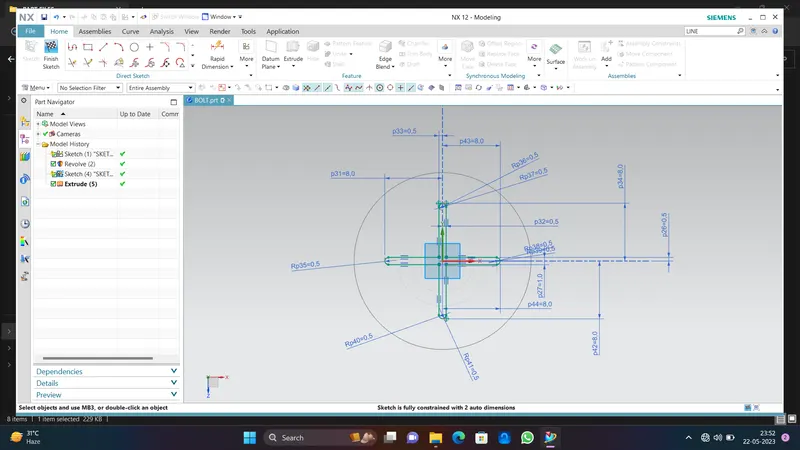

ALSO I HAVE ATTACHED THE SCREW IMAGES BELOW.
