Week 14 challenge

Objective:

Design and assembly of butterfly value with all the necessary constraints with GD&T symbol.

Procedure:

* All the part files are created separately and ready for assembly.

* Import all the parts in the Assembly workbench and the respective constraint is applied.

* After the assembly it is required to check whether all the degrees of freedom are arrested.

* By using the explode option that can be checked.

* By using the save management option all the part files are saved in a single folder.

* Then, Necessary GD&T symbols are applied and the required output is performed.

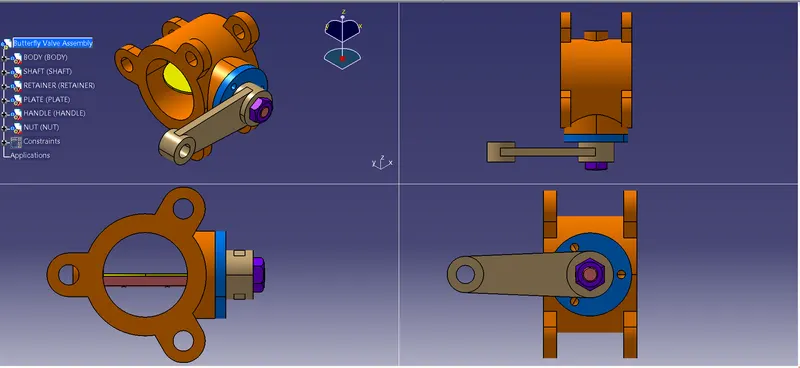

Isometric View:

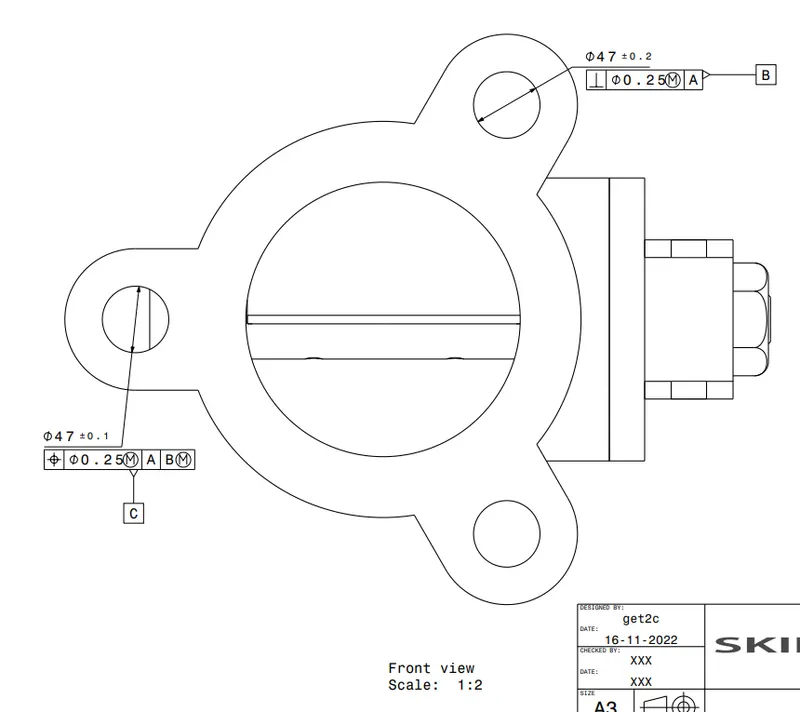

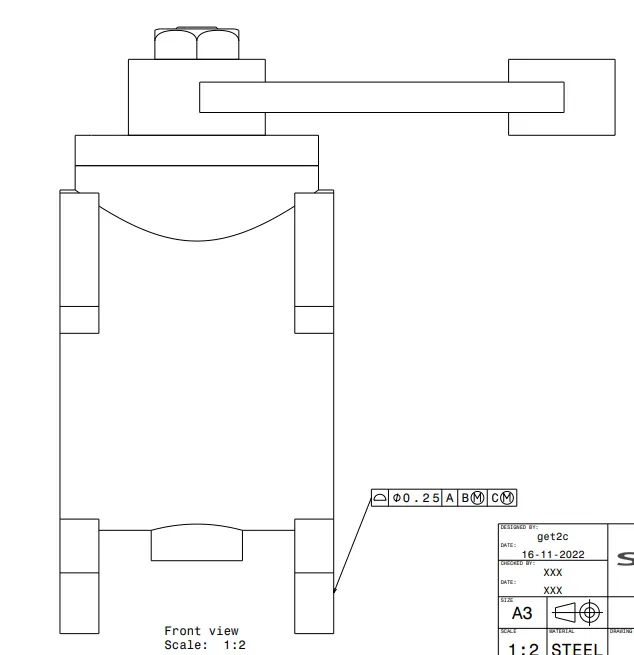

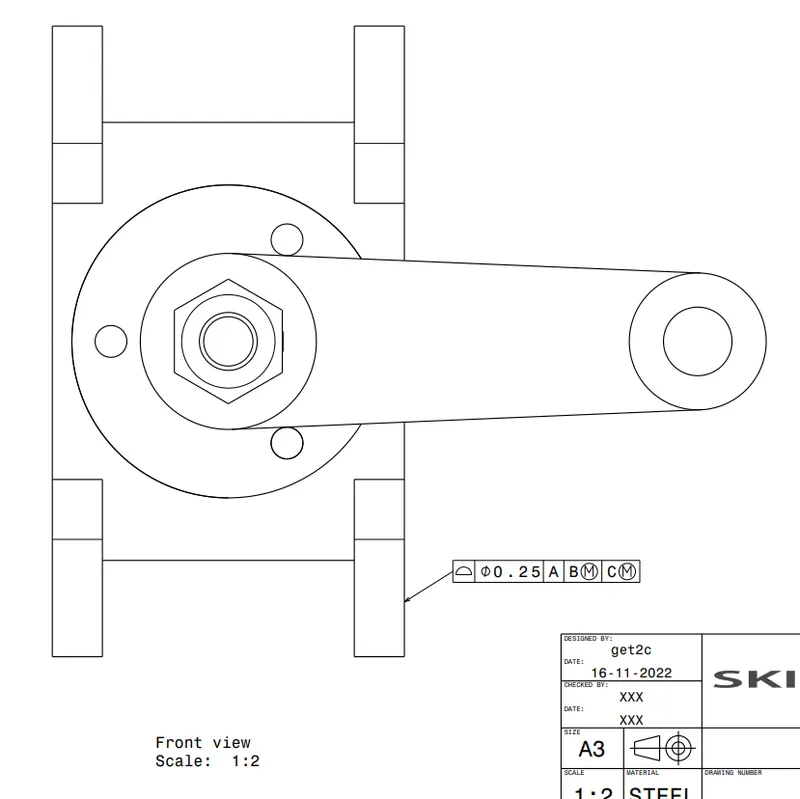

GD&T Symbol:

Conclusion:

Thus all the parts of the butterfly valve are created and assembled by using CATIA V5 software. And all the necessary GD&T symbols are created in separate parts as well as assembly.
