Week 14 challenge

Assemble and apply GD&T to the butterfly valve assembly drawing

Introduction

Butterfly Valve is a mechanical componend used to control the flow of fluid in different application in different areas.

The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow

Methodology

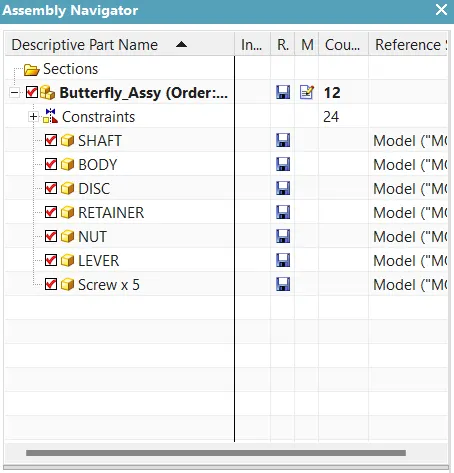

The methodology is that Create a Assmply Model Then add All the Butterfly Valve components then Move and Constrain to Respective positions.After that Plot on the Drawing Sheet and Apply GD&T.

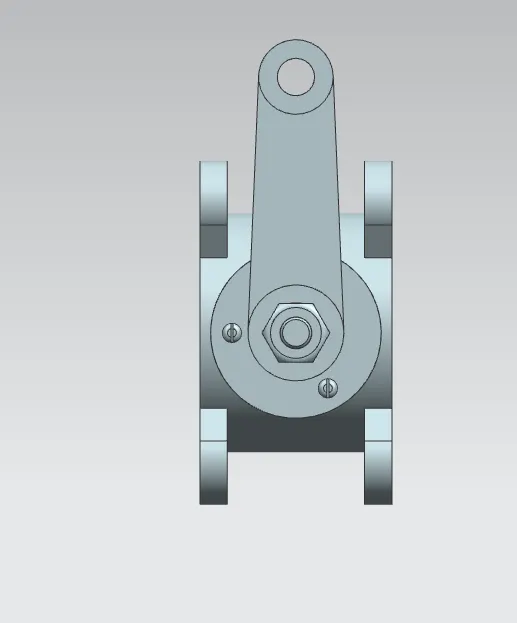

Front View

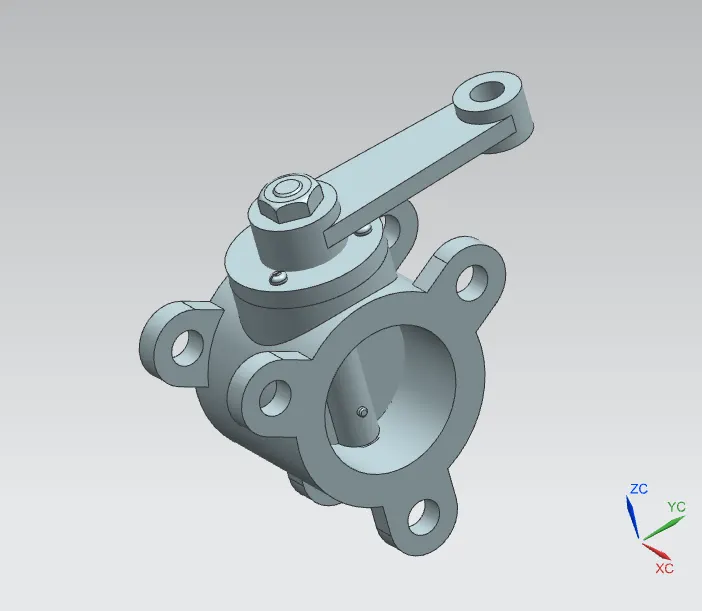

Isometric View

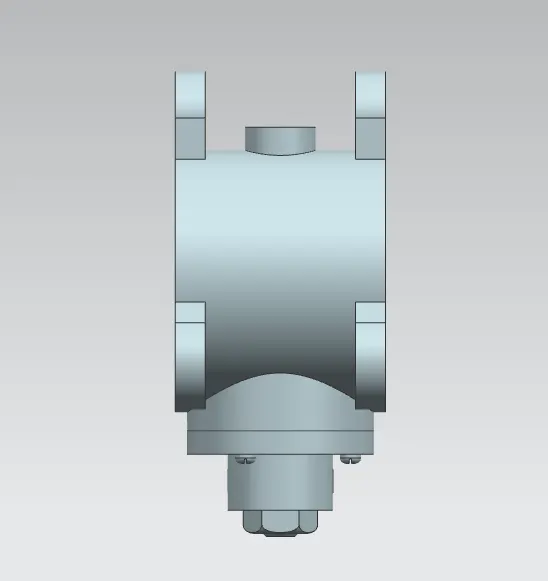

Side View

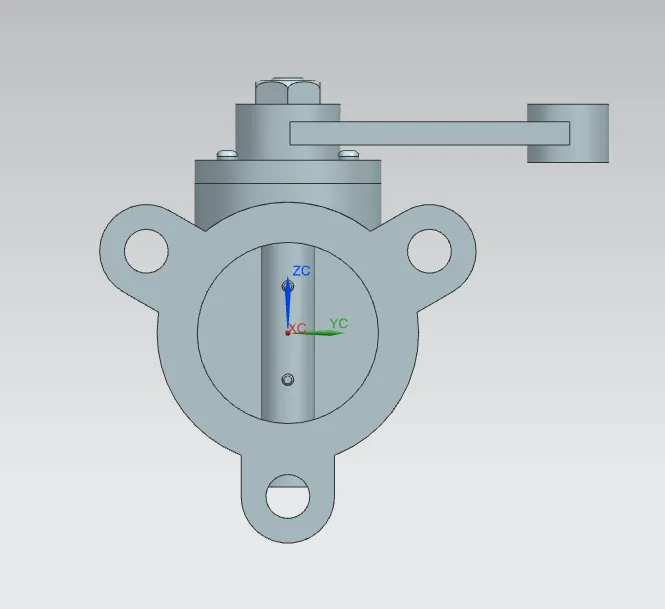

Top view

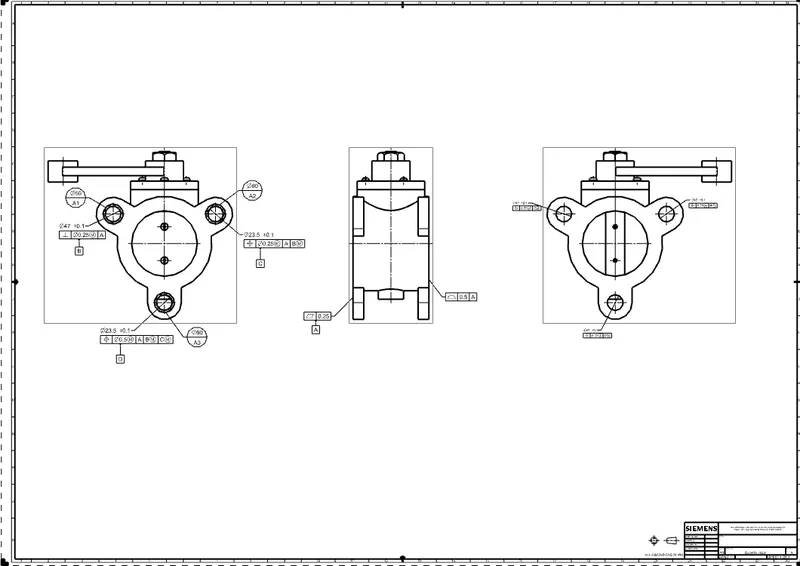

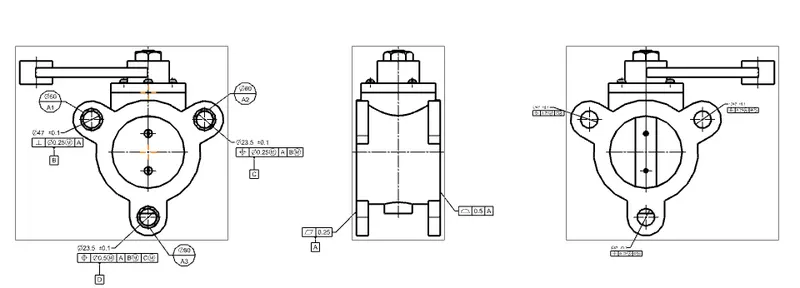

Drawing Sheet

Conclusion

Hence we Learn to Assemple the Butterfly Valve and Able to Know How to Apply the GD&T.
