Week 12 - Validation studies of Symmetry BC vs Wedge BC in OpenFOAM vs Analytical H.P equation
Aim: To study the influence of wedge angle and boundary conditions on the simulation of axisymmetric laminar flow in a cylindrical pipe.
Theoretical introduction:
Axisymmetric Flow: A flow pattern is axisymmetric when it is identical to every plane that passes through a particularly straight line. The line in question is referred to as the axis of symmetry.
Each longitudinal plane passing through the axis would show the same flow pattern.
Laminar Flow: In fluid dynamics, laminar flow is characterized by fluid particles following smooth paths in layers, each layer moving smoothly past adjacent layers with little or no mixing. At low velocities, the fluid tends to flow without lateral mixing and adjacent layers slide over each other like playing cards. There are no cross-currents perpendicular to the direction of flow, nor eddies or swirling of fluids. In laminar flow, the motion of fluid particles is highly ordered, with particles near a solid surface moving in straight lines parallel to that surface.
Laminar flow is a flow regime characterized by high momentum diffusion and low momentum convection.
When a fluid flows through a closed channel such as a pipe or between two flat plates, depending on the fluid's velocity and viscosity, one of two types of flow can occur: laminar flow or turbulent flow. Laminar flow occurs at lower velocities, below the threshold at which the flow becomes turbulent. The velocity is determined by a dimensionless parameter characterizing the flow called the Reynolds number, which also depends on the viscosity and density of the fluid and the dimensions of the channel.
Comparison of turbulent and laminar flow.
Reynolds Number: Reynolds number (Re) helps predict flow patterns in various fluid flow situations. At low Reynolds numbers, laminar (sheet-like) flow predominates, while at high Reynolds numbers, the flow tends to be turbulent. Turbulence results from differences in fluid speed and direction, which can sometimes cross or even move against the general direction of flow (eddy currents). These eddies begin to stir up the flow and consume energy in the process, increasing the chances of cavitation in liquids. Reynolds numbers are an important dimensionless quantity in fluid mechanics.
The Reynolds number has a wide range of applications, from fluid flow in pipes to the passage of air over an aircraft wing. It is used to predict the transition from laminar to turbulent flow and is used when scaling similar but different-sized flow situations, such as between a wind tunnel model aircraft and a full-scale version. Predictions of turbulence onset and the ability to calculate scaling effects can be used to predict larger-scale fluid behavior, such as local or global air or water movement, and thus associated meteorological and climatological effects.
Method:
1. The procedure for this challenge involves modifying the previously created MATLAB code and changing the input and boundary conditions in OpenFoam.
2. In the Automated BlockMeshDict file, we need to adjust the wedge angle for one specific boundary condition. The angles at which we perform the simulation and later study the simulation results are:
AND.
10, 25, 45 degrees
The code for Wedge Boundary Condition at a wedge angle of 45 deg is as follows:
clear all
close all
clc
%Inputs:
l= 1.5; %Length of the pipe.
theta = 45.0; %Wedge angle.
d = 0.01; %Diameter of the pipe.
c = 1.0; %Conversion Factor.
r = d/2; %Radius of the Cylinder.
nx = 500; %number of Mesh points in x-direction on the block.
ny= 25; %Number of Mesh points in the y-direction on the block.
nz= 1; %number of Mesh Points in the z-direction on the block.
gx = 1; %Grading along the x-direction.
gy = 1; %Grading along the y-direction.
gz = 1; %Grading along the z-direction.
f1 = fopen('BlockMeshDict.txt','w');
fprintf(f1,'/*--------------------------------*- C++ -*----------------------------------*n');
fprintf(f1,' ========= | n');
fprintf(f1,' / F ield | OpenFOAM: The Open Source CFD Toolbox n');
fprintf(f1,' / O peration | Website: https://openfoam.org n');
fprintf(f1,' / A nd | Version: 8 n');
fprintf(f1,' / M anipulation | n');
fprintf(f1,'/*------------------------------------------------------------------*/ n');
fprintf(f1, 'FoamFile n');
fprintf(f1,'{ n');
fprintf(f1,' version 2.0; n');
fprintf(f1,' format ascii; n' );
fprintf(f1,' class dictionary; n');
fprintf(f1,' object blockMeshDict; n');
fprintf(f1,'} n');
fprintf(f1,'// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * // n');
fprintf(f1,'convertToMeters %0.1f; n',c);
fprintf(f1,'n');
fprintf(f1,'vertices n');
fprintf(f1,'( n');
fprintf(f1,'(0 0 0) n');
fprintf(f1,'(%0.6f %0.6f %0.3f)n',r*sind(theta/2),r*cosd(theta/2),0);
fprintf(f1, '(%0.6f %0.6f %0.3f)n',-r*sind(theta/2),r*cosd(theta/2),0);
fprintf(f1,'(0 0 %0.3f) n',-l);
fprintf(f1,'(%0.6f %0.6f %0.3f)n',r*sind(theta/2),r*cosd(theta/2),-l);
fprintf(f1, '(%0.6f %0.6f %0.3f)n',-r*sind(theta/2),r*cosd(theta/2),-l);
fprintf(f1,'); n');
fprintf(f1,'n');
fprintf(f1,'blocks n');
fprintf(f1,'( n');
fprintf(f1,'hex (0 3 5 2 0 3 4 1) (%0.0f %0.0f %0.0f) simpleGrading (%0.0f %0.0f %0.0f) n',nx,ny,nz,gx,gy,gz);
fprintf(f1,'); n');
fprintf(f1,'n');
fprintf(f1,'edges n');
fprintf(f1,'( n');
fprintf(f1,'); n');
fprintf(f1,'n');
fprintf(f1,'boundary n');
fprintf(f1,'( n');
fprintf(f1,'in n');
fprintf(f1,'{ n');
fprintf(f1,'type patch; n');
fprintf(f1,'faces n');
fprintf(f1,'( n');
fprintf(f1,'(0 1 2 0) n');
fprintf(f1,'); n');
fprintf(f1,'} n');
fprintf(f1,'out n');
fprintf(f1,'{ n');
fprintf(f1,'type patch; n');
fprintf(f1,'faces n');
fprintf(f1,'( n');
fprintf(f1,'(3 5 4 3) n');
fprintf(f1,'); n');
fprintf(f1,'} n');
fprintf(f1,'ft n');
fprintf(f1,'{ n');
fprintf(f1,'type wedge; n');
fprintf(f1,'faces n');
fprintf(f1,'( n');
fprintf(f1,'(0 3 4 1) n');
fprintf(f1,'); n');
fprintf(f1,'} n');
fprintf(f1,'bk n');
fprintf(f1,'{ n');
fprintf(f1,'type wedge; n');
fprintf(f1,'faces n');
fprintf(f1,'( n');
fprintf(f1,'(3 0 2 5) n');
fprintf(f1,'); n');
fprintf(f1,'} n');
fprintf(f1,'top n');
fprintf(f1,'{ n');
fprintf(f1,'type wall; n');
fprintf(f1,'faces n');
fprintf(f1,'( n');
fprintf(f1,'(5 2 1 4) n');
fprintf(f1,'); n');
fprintf(f1,'} n');
fprintf(f1,'axis n');
fprintf(f1,'{ n');
fprintf(f1,'type empty; n');
fprintf(f1,'faces n');
fprintf(f1,'( n');
fprintf(f1,'(0 3 3 0) n');
fprintf(f1,'); n');
fprintf(f1, '} n');
fprintf(f1,'); n');
fprintf(f1,'n');
fprintf(f1,'mergePatchPairs n');
fprintf(f1,'( n');
fprintf(f1,'); n');
fprintf(f1,'n');
fprintf(f1,'// ************************************************************************* // n');
%END
The code for Symmetry Boundary Condition at a wedge angle of 45 deg is as follows:
clear all
close all
clc
%Inputs:
l= 1.5; %Length of the pipe.
theta = 45.0; %Wedge angle.
d = 0.01; %Diameter of the pipe.
c = 1.0; %Conversion Factor.
r = d/2; %Radius of the Cylinder.
nx = 500; %number of Mesh points in x-direction on the block.
ny= 25; %Number of Mesh points in the y-direction on the block.
nz= 3; %number of Mesh Points in the z-direction on the block.
gx = 1; %Grading along the x-direction.
gy = 1; %Grading along the y-direction.
gz = 1; %Grading along the z-direction.
f1 = fopen('BlockMeshDict.txt','w');
fprintf(f1,'/*--------------------------------*- C++ -*----------------------------------*n');
fprintf(f1,' ========= | n');
fprintf(f1,' / F ield | OpenFOAM: The Open Source CFD Toolbox n');
fprintf(f1,' / O peration | Website: https://openfoam.org n');
fprintf(f1,' / A nd | Version: 8 n');
fprintf(f1,' / M anipulation | n');
fprintf(f1,'/*------------------------------------------------------------------*/ n');
fprintf(f1, 'FoamFile n');
fprintf(f1,'{ n');
fprintf(f1,' version 2.0; n');
fprintf(f1,' format ascii; n' );
fprintf(f1,' class dictionary; n');
fprintf(f1,' object blockMeshDict; n');
fprintf(f1,'} n');
fprintf(f1,'// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * // n');
fprintf(f1,'convertToMeters %0.1f; n',c);
fprintf(f1,'n');
fprintf(f1,'vertices n');
fprintf(f1,'( n');
fprintf(f1,'(0 0 0) n');
fprintf(f1,'(%0.6f %0.6f %0.3f)n',r*sind(theta/2),r*cosd(theta/2),0);
fprintf(f1, '(%0.6f %0.6f %0.3f)n',-r*sind(theta/2),r*cosd(theta/2),0);
fprintf(f1,'(0 0 %0.3f) n',-l);
fprintf(f1,'(%0.6f %0.6f %0.3f)n',r*sind(theta/2),r*cosd(theta/2),-l);
fprintf(f1, '(%0.6f %0.6f %0.3f)n',-r*sind(theta/2),r*cosd(theta/2),-l);
fprintf(f1,'); n');
fprintf(f1,'n');
fprintf(f1,'blocks n');
fprintf(f1,'( n');
fprintf(f1,'hex (0 3 5 2 0 3 4 1) (%0.0f %0.0f %0.0f) simpleGrading (%0.0f %0.0f %0.0f) n',nx,ny,nz,gx,gy,gz);
fprintf(f1,'); n');
fprintf(f1,'n');
fprintf(f1,'edges n');
fprintf(f1,'( n');
fprintf(f1,'); n');
fprintf(f1,'n');
fprintf(f1,'boundary n');
fprintf(f1,'( n');
fprintf(f1,'in n');
fprintf(f1,'{ n');
fprintf(f1,'type patch; n');
fprintf(f1,'faces n');
fprintf(f1,'( n');
fprintf(f1,'(0 1 2 0) n');
fprintf(f1,'); n');
fprintf(f1,'} n');
fprintf(f1,'out n');
fprintf(f1,'{ n');
fprintf(f1,'type patch; n');
fprintf(f1,'faces n');
fprintf(f1,'( n');
fprintf(f1,'(3 5 4 3) n');
fprintf(f1,'); n');
fprintf(f1,'} n');
fprintf(f1,'ft n');
fprintf(f1,'{ n');
fprintf(f1,'type symmetry; n');
fprintf(f1,'faces n');
fprintf(f1,'( n');
fprintf(f1,'(0 3 4 1) n');
fprintf(f1,'); n');
fprintf(f1,'} n');
fprintf(f1,'bk n');
fprintf(f1,'{ n');
fprintf(f1,'type symmetry; n');
fprintf(f1,'faces n');
fprintf(f1,'( n');
fprintf(f1,'(3 0 2 5) n');
fprintf(f1,'); n');
fprintf(f1,'} n');
fprintf(f1,'top n');
fprintf(f1,'{ n');
fprintf(f1,'type wall; n');
fprintf(f1,'faces n');
fprintf(f1,'( n');
fprintf(f1,'(5 2 1 4) n');
fprintf(f1,'); n');
fprintf(f1,'} n');
fprintf(f1,'axis n');
fprintf(f1,'{ n');
fprintf(f1,'type empty; n');
fprintf(f1,'faces n');
fprintf(f1,'( n');
fprintf(f1,'(0 3 3 0) n');
fprintf(f1,'); n');
fprintf(f1, '} n');
fprintf(f1,'); n');
fprintf(f1,'n');
fprintf(f1,'mergePatchPairs n');
fprintf(f1,'( n');
fprintf(f1,'); n');
fprintf(f1,'n');
fprintf(f1,'// ************************************************************************* // n');
%END
3. So, we must run the simulation and plot the necessary graphs at all the Boundary Conditions' angles, i.e. Wedge Boundary conditions and the Symmetry Boundary Condition. We must make use of the plot over line command to study how the shear force is varying with a change in the distance along the radial direction. In contrast, the Pressure drop is to be studied in the fully developed region along the Axial Direction.
To plot the line, we must use the plot over line command. This will help us study the data variation along that line.
Then, we must plot the co-ordinates along which we want to study the data. Here, we need to properly give the coordinates as they will determine the plot and the data we study.

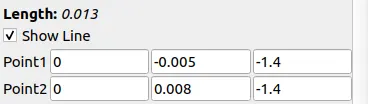

The coordinates are given as follows:
The line is drawn, as shown below:
4. We must change the Boundary condition for this and then run the simulation for the same angles. Another location where we need to change is the Initial Conditions. For the wedge's front and Back faces, we must specify the condition as Symmetry instead of Wedge.
5. After all the simulations were run, the results are to be compared and then findings are to be studied.
Result:
1. The first simulation comparison is with the Wedge Boundary condition. Within this Boundary Condition, the simulation comparison for all the above-mentioned angles is as follows.
We will compare the Shear Stress developed for both the boundary conditions at all three angles.
a.Shear Stress Variation with respect to the Radial Distance.

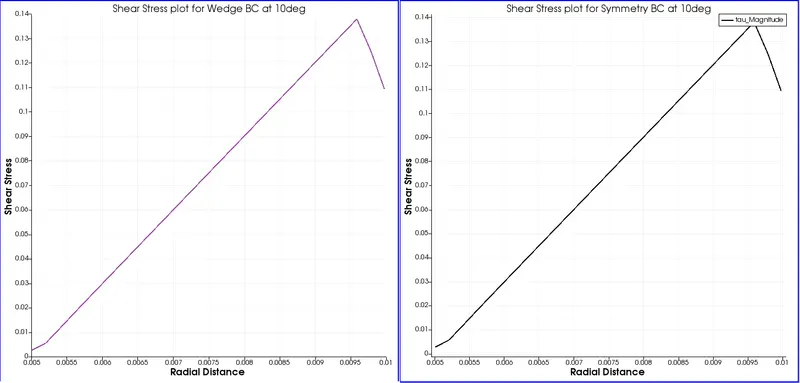

The Shear Stress plot for both the Boundary Conditions, the wedge Boundary Condition and the Symmetry Boundary Condition are shown at 10degrees. We can see that when we apply the Symmetry Boundary Condition, the slope of the curve is much higher than when we apply the Wedge Boundary Condition. So, when we apply the Symmetry Boundary Condition, the Mesh becomes 3D, and the computation is done for all three global axes. This affects the calculation as well. The peak value in the Wedge Boundary Condition is approximately 0.145 units, but whereas when we apply the Symmetry Boundary Condition, the peak value touches around 0.140units.
The graph shown above is comparing the Shear Stress for both the boundary conditions for when the wedge angle is 25degrees.

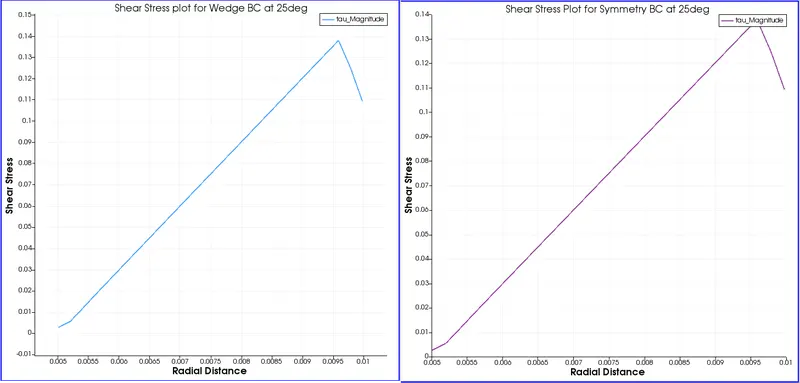

Similarly, we plot and study all the graphs, as shown below:

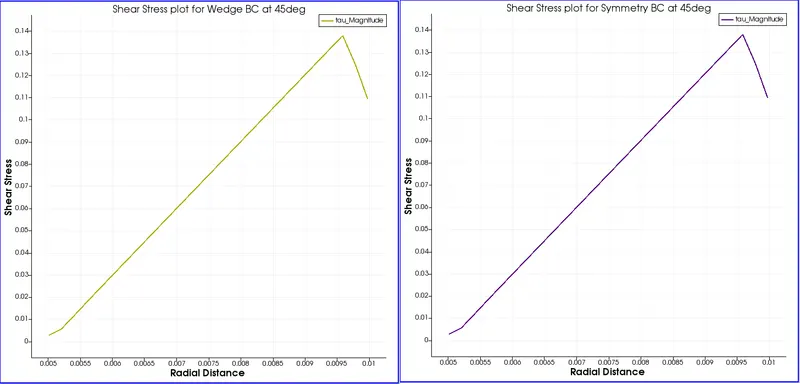

This graph compares the Shear Stress at 45 Deg for both the Boundary conditions.
b. Velocity Variation with respect to Radial Distance.

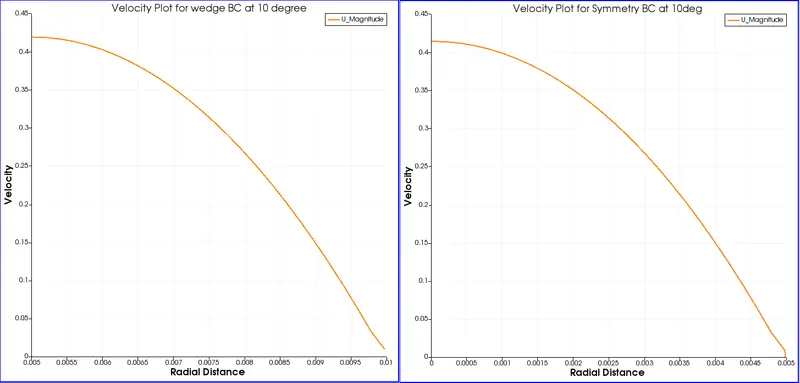

Velocity variation at 10degrees for the two Boundary Conditions.

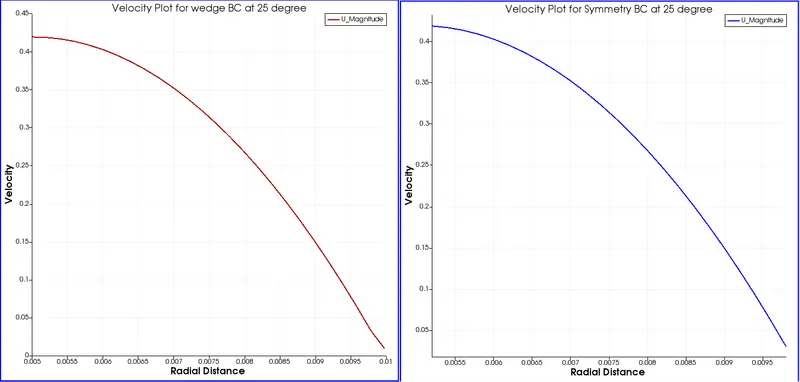

Velocity variation at 25 degrees for the two Boundary Conditions.

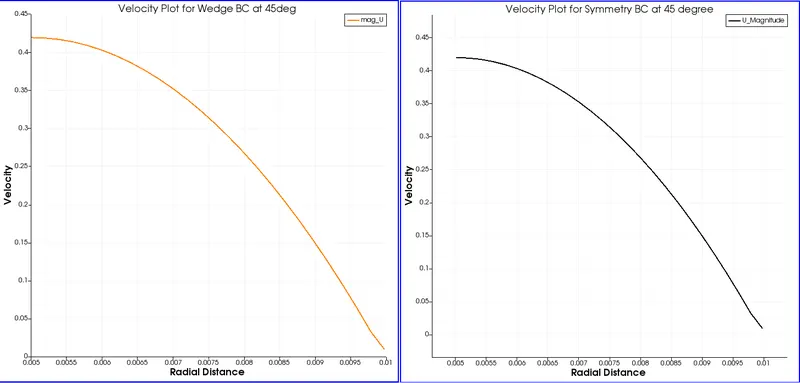

Velocity variation at 45 degrees for the two Boundary Conditions.
c. Pressure Drop across the axial Distance
c. Pressure Drop across the axial Distance

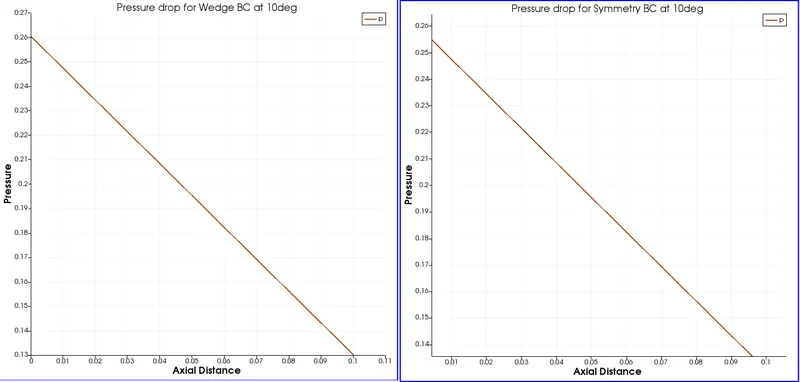

Pressure drop at 10 degrees across the Axial Distance.

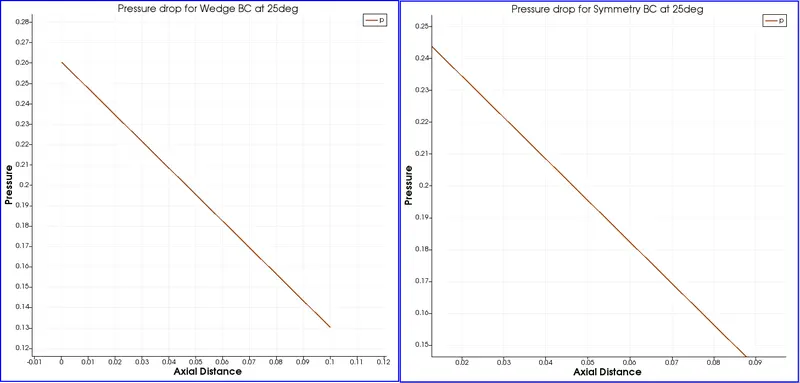

Pressure drop at 25 degrees across the Axial Distance.

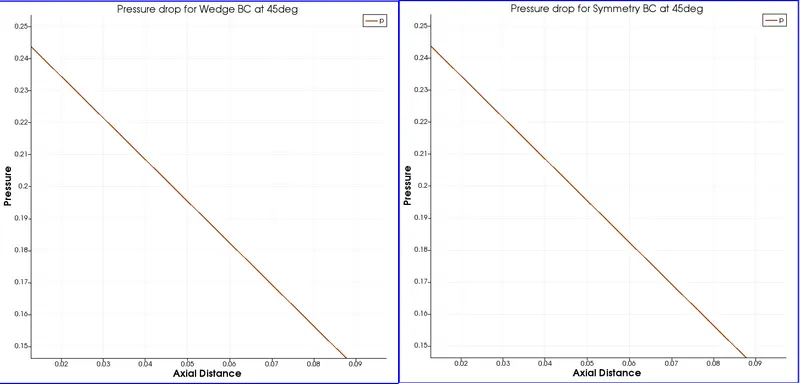

Pressure drop at 45 degrees across the Axial Distance.
Validation:
a.Validation of Maximum Pressure drop in the Fully developed Region.
These graphs depict the change in the various parameters for both the Boundary Conditions, and we can compare these quantities properly.
Like for example, we can compare the pressure drop from the graph and the pressure drop that we get analytically.
From the graph, we can see that the maximum value - minimum value = 0.26 - 0.13 = 0.13units = 130Pascal.
And, when we calculate it analytically, we know that the formula is :
△P=Vavg⋅μ⋅LD2
We know all the values, they are as follows:
Vavg=0.21units
μ=0.01924
L=0.2units
D=0.1units
For a Kinematic Viscosity of 1.924e-5(Used in the simulation), the Dynamic Viscosity is 1.924e-5*1000 = 1.924e-2units.
Calculating using these values, we get:
△P= 0.129units = 129Pascal.
The error between the Analytical value and the value obtained from the graph is (0.13-0.129) / (0.129) = 0.7%, which is under the tolerance limit of 5%.
Now, because the error is under tolerance, we can conclude that the simulation has reached a Steady State.
b.Validation of the Maximum Velocity
Now, if we wish to compare the Maximum velocity from the graph, we can see that the value is 0.42units.
According to the Analytical formula, we know that the maximum velocity must be:
2⋅Vavg
And our Vavg is 0.21units; hence the analytical value will be 0.42units that matches the value that we get from the graph.
c. To validate the Hydrodynamic length with the Numerical Result.
So, In fluid dynamics, the entrance length is the distance a flow travels after entering a pipe before the flow becomes fully developed. Entrance length refers to the length of the entry region, the area following the pipe entrance where effects originating from the interior wall of the pipe propagate into the flow as an expanding boundary layer.
Here, numerically, we know that the velocity profile will be different before and after the Hydrodynamic entry length. After the Hydrodynamic entry length, the Velocity profile will be the final parabolic profile that it must have in a fully developed region.

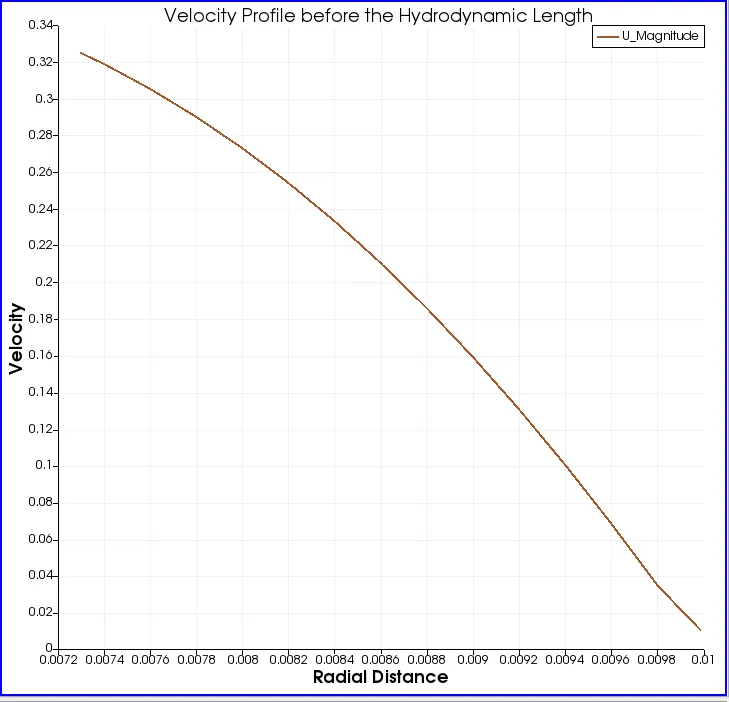

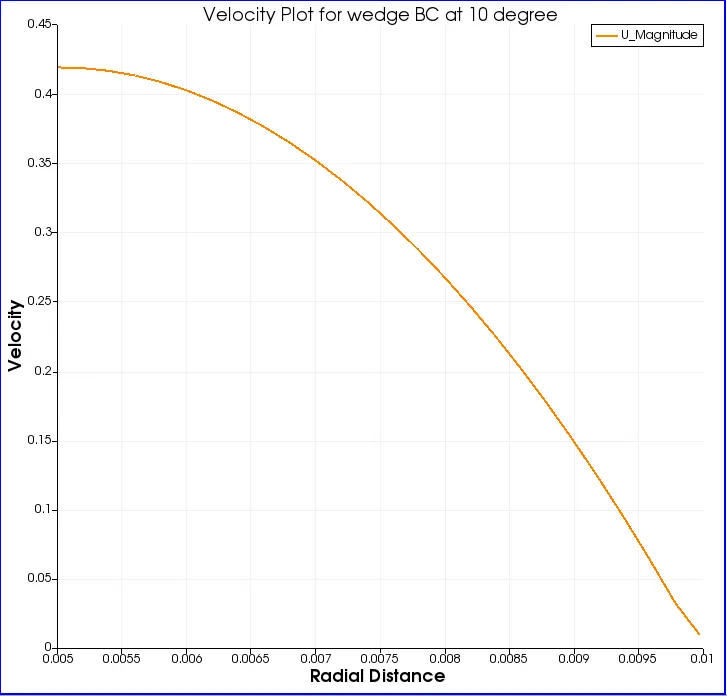

Velocity profile before the Hydrodynamic Length
Here is the velocity profile before the Hydrodynamic Length. We can see that this plot is not properly parabolic.

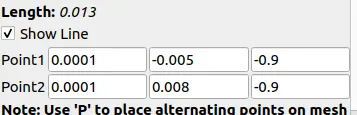

The location where the velocity was measured for the above plot:
Whereas, if we compare the velocity profile at a location after the hydrodynamic length and in the fully developed region, the velocity profile will be much more defined and proper.
Velocity after the Hydrodynamic length
The location where the velocity was measured for the above plot:
Now, If we wish to calculate the Hydrodynamic length analytically, the formula is as follows:
Lh=0.005⋅Re⋅D
where:
Re = Reynolds number.
D = Diameter.
In our case, Re = 2100 and the Diameter = 0.1m, so the Hydrodynamic Length is:
Lh = 0.005*2100*0.1 = 1.05m.
And from the two graphs above, we can confirm that only after the Hydrodynamic length of approximately 1.0m, the velocity profile is changing into a fully parabolic shape.
d. Shear Stress Plot:

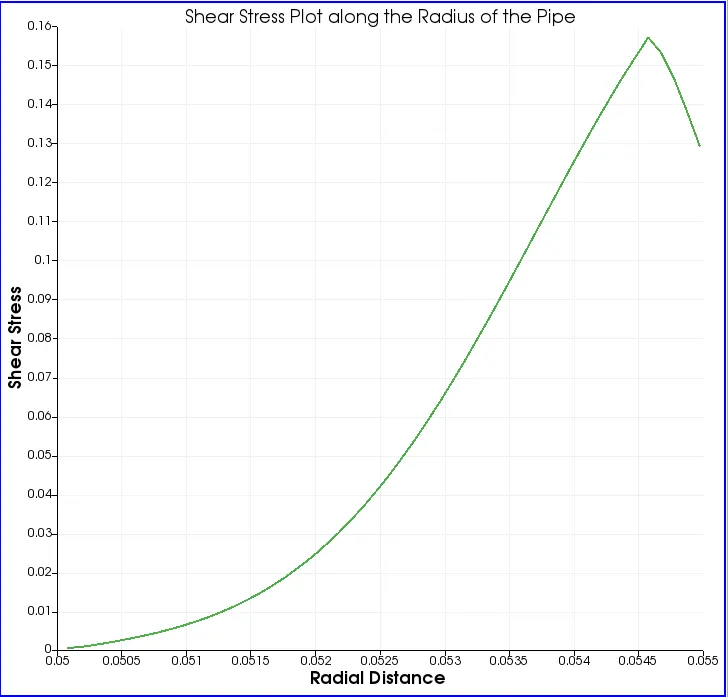

Shear Stress Plot
Shear Stress is the maximum near the wall because of the friction that the wall has. But, as we move away from the wall, the Shear Force decreases, and it can be confirmed with the graph above.
According to the Analytically calculated profile, the graph is:
u(r)=2⋅Vavg⋅(1−r2R2)
And we know that this profile also gives out a Parabolic curve similar to the one we have gotten in the graph.
e. Comparison between the two Boundary Conditions.
We performed the simulation for two boundary conditions; these are the symmetry boundary condition and the wedge boundary condition.
During the simulation of the wedge boundary condition, the simulation is not performed over the wedge arc, but while in the case of the symmetry boundary condition, the calculation is performed over the wedge arc; therefore, the simulation time is higher in this case. The Courant number increases slightly in the case of a wedge boundary condition and therefore the symmetry boundary condition will be slightly more accurate. The Symmetry boundary condition treats the mesh as 3D and the calculation is performed along all three global axes.
We understand that the results should not change due to a change in the boundary conditions, because the physics of the problem does not change and remains the same.
Conclusion: In conclusion, I would like to say that this challenge helped me understand the difference between the two boundary conditions and how to simulate them as per the need of the problem we are going to simulate.
