Week 12:Project 2-Meshing of Rear Wheel Holder challenge

Aim :

The aim is to extract the midsurface and mesh the given model.

Objective:

Target Element Length = 5 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

Procedure:

Initially import the iges model in the hypermesh,

then check for the geometry errors and clean up it,

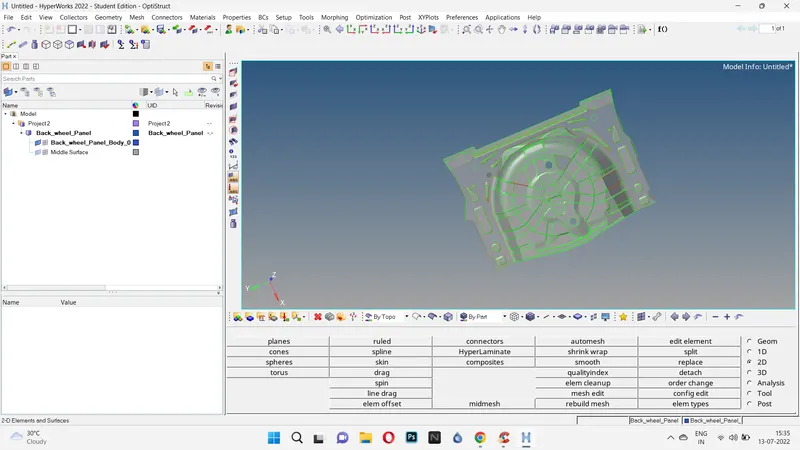

Now extract the midsurfce and check for the errors,

Then autocleanup and add washersplit and toggle the unnecessary lines,

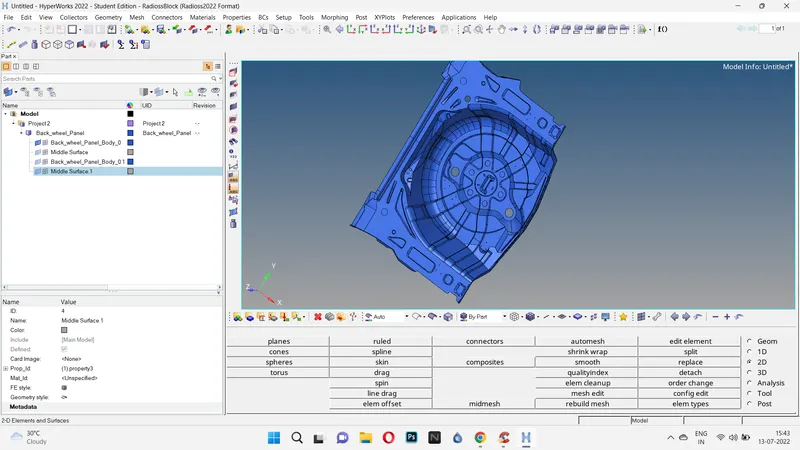

Now go to 2d and automesh and choose mixed and size as 5,

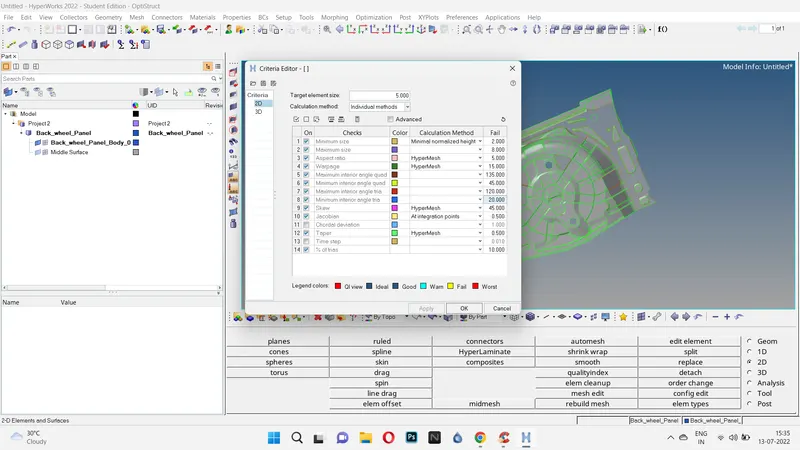

and do the mesh and check for the quality criteria,

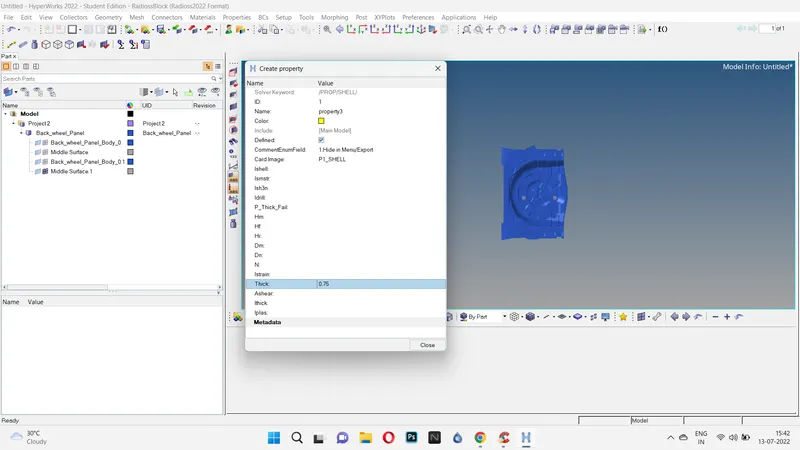

Assign the thickness and save the file.

Result:

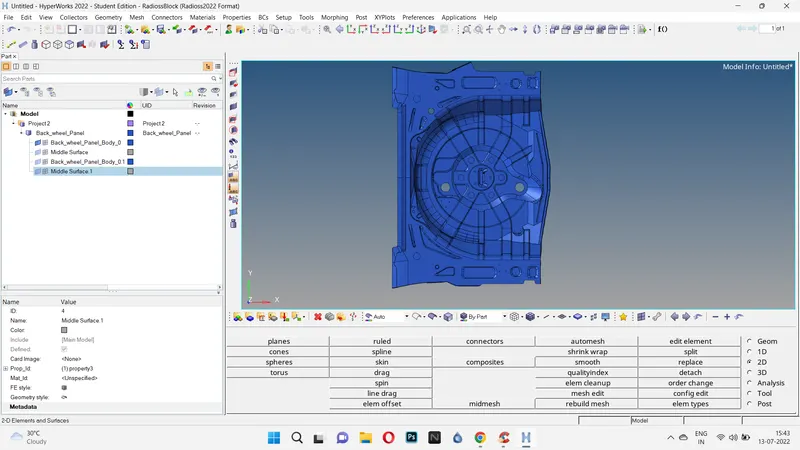

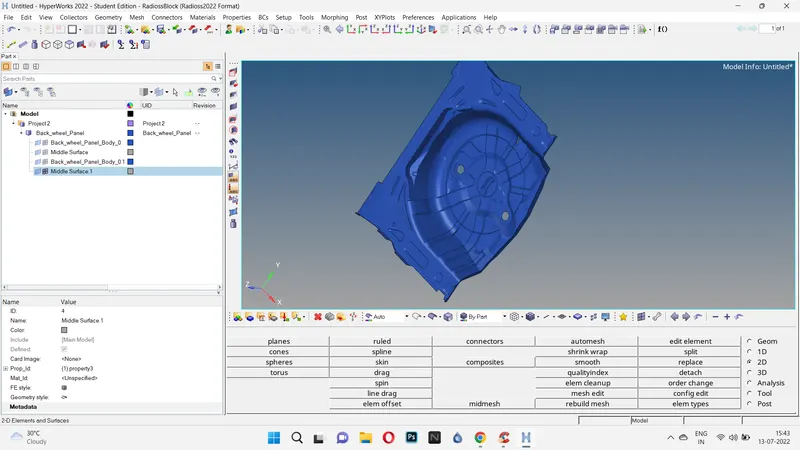

Therefore the given model habeen meshed and midsurface hasbeen extracted, the model has been attached in the asset.
