Week 12:Project 2-Meshing of Rear Wheel Holder challenge

Procedure:

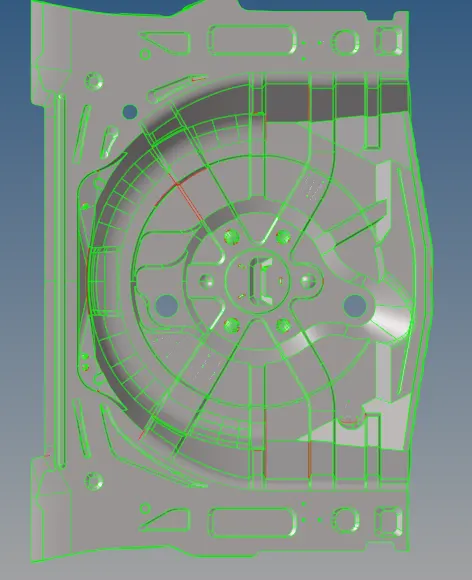

We must comprehend the geometry and look for faults in the parent geometry.

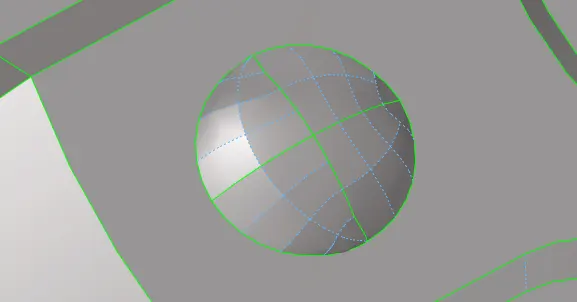

There were numerous missing and additional surfaces in this rear wheel holder design.

But, disregarding those, we should go straight to the mid surface, whether by automidsurface or manually.

I initially try automidsurfacing, and if that fails, I go to manual offset midsurfacing.

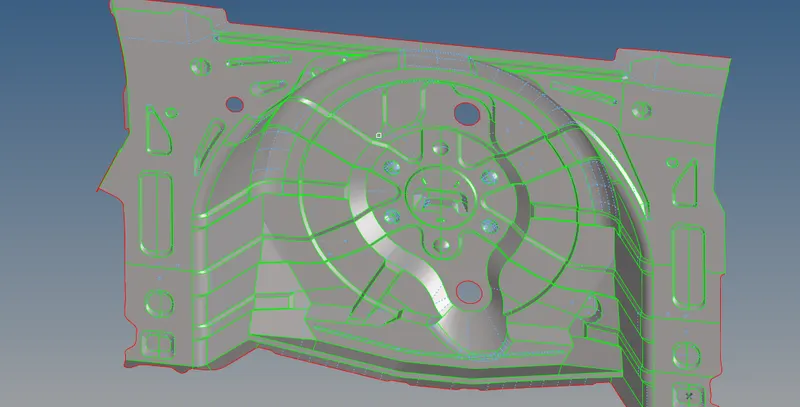

With the offset-only option in automidsurface, I was able to achieve the correct mid surface.

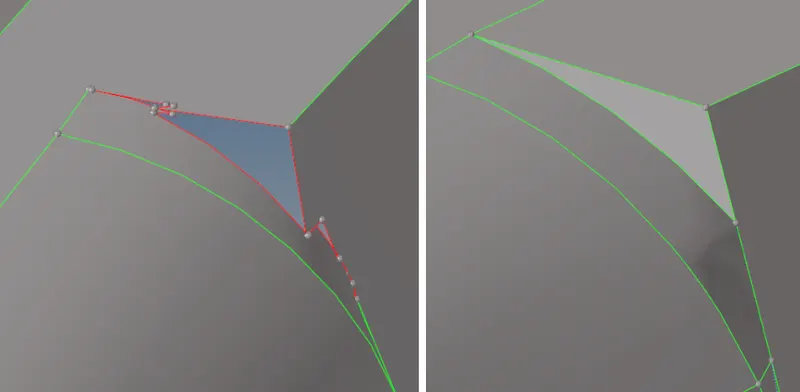

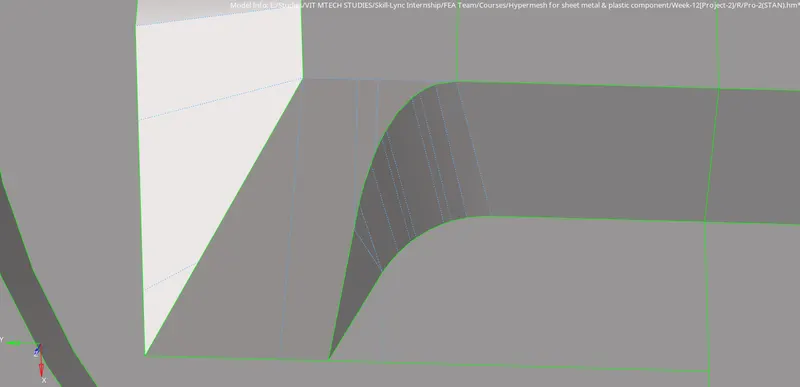

Because of the parent geometry, the mid surface likewise has missing and irregular surfaces.

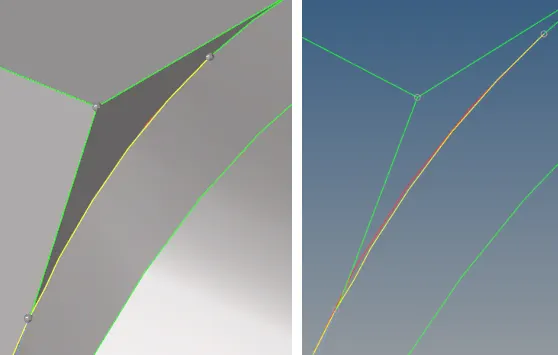

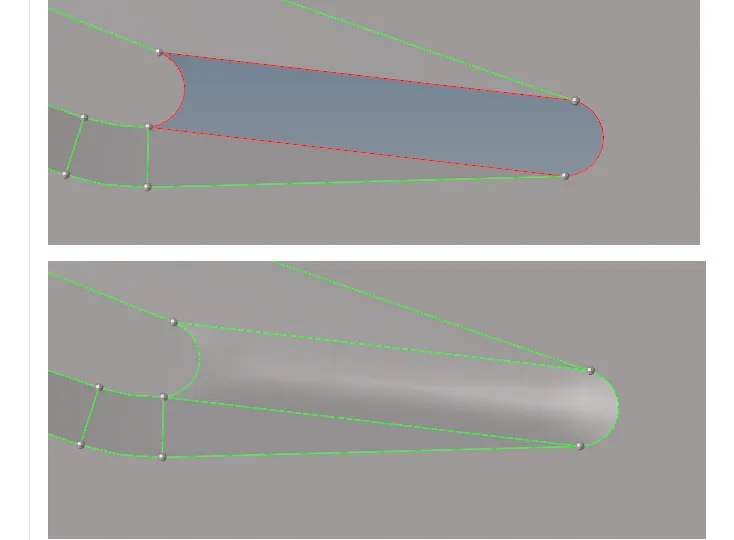

That was deleted by replacing points, adding a new surface, constructing a new surface using ruled lines, and then editing the surface to achieve the appropriate geometry.

We had to replace points, add a new surface, build a new surface using ruled lines, and then make a surface change to acquire the appropriate shape.

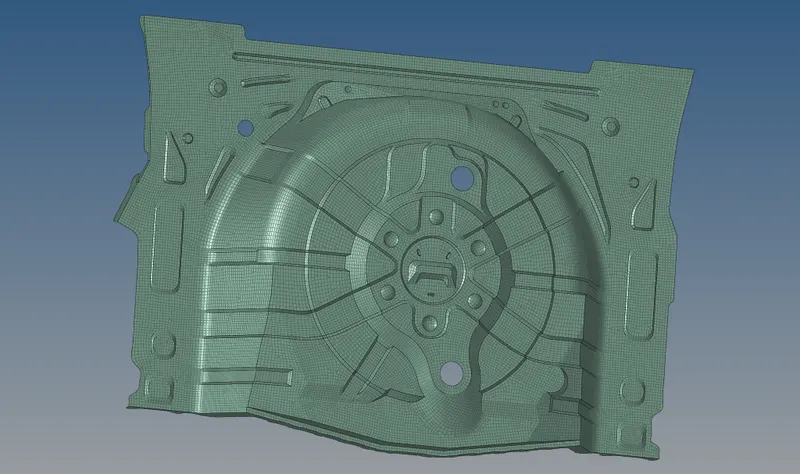

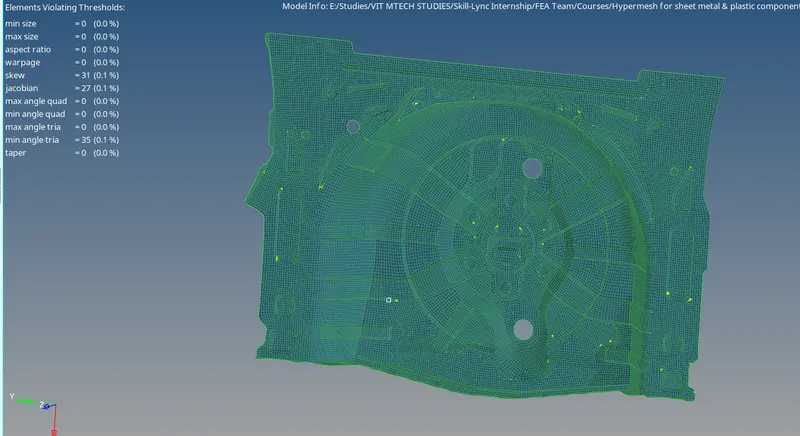

Mesh it properly with proper quality criteria

During meshing, these surfaces irritated me even more.

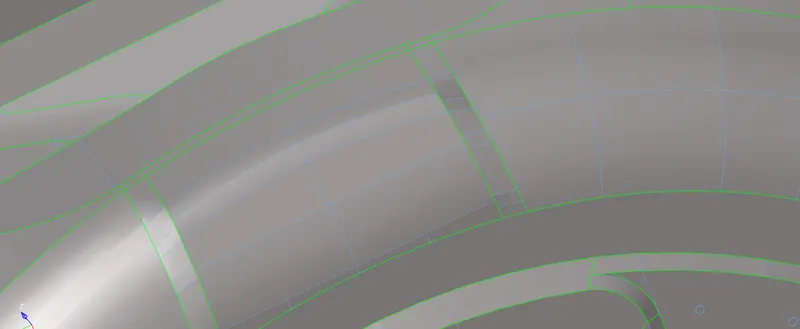

It was necessary to manually change points and fix the mesh.

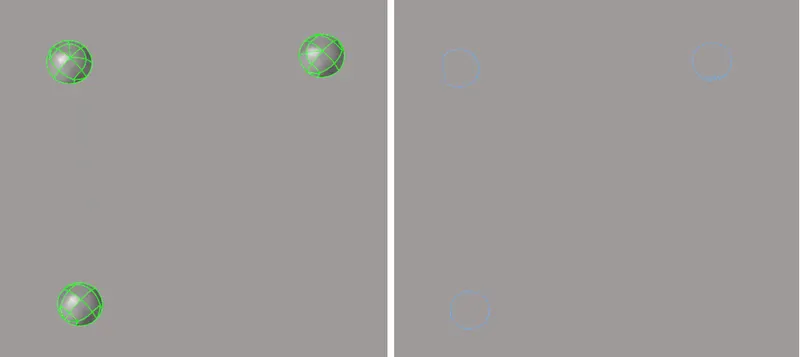

There were also excess surfaces that needed to be removed or points that needed to be replaced.
