Week 12:Project 2-Meshing of Rear Wheel Holder challenge

Objective-

To mesh the rear wheel holder after creating mid surface. Remove the quality failure and assign the thickness to the component.

Procedure-

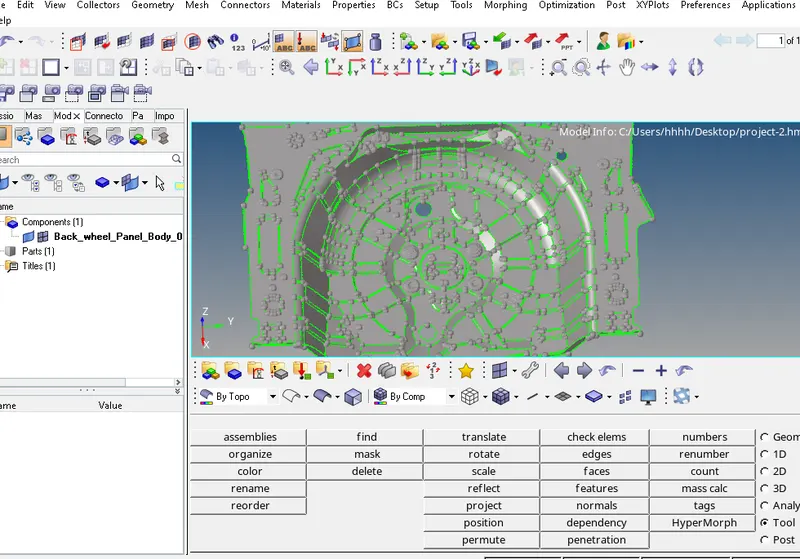

1. Import the geometry and geometry clean-up.

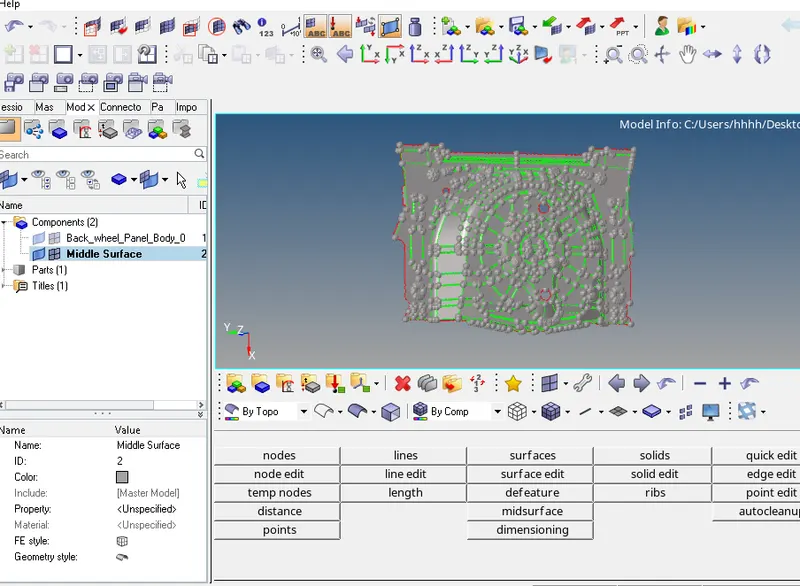

2. Create mid surface and geometry clean-up.

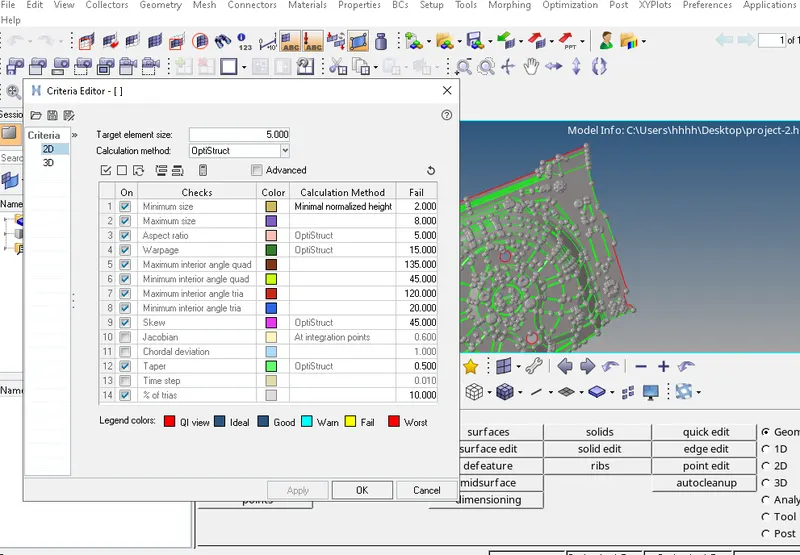

3. Set the quality parameter.

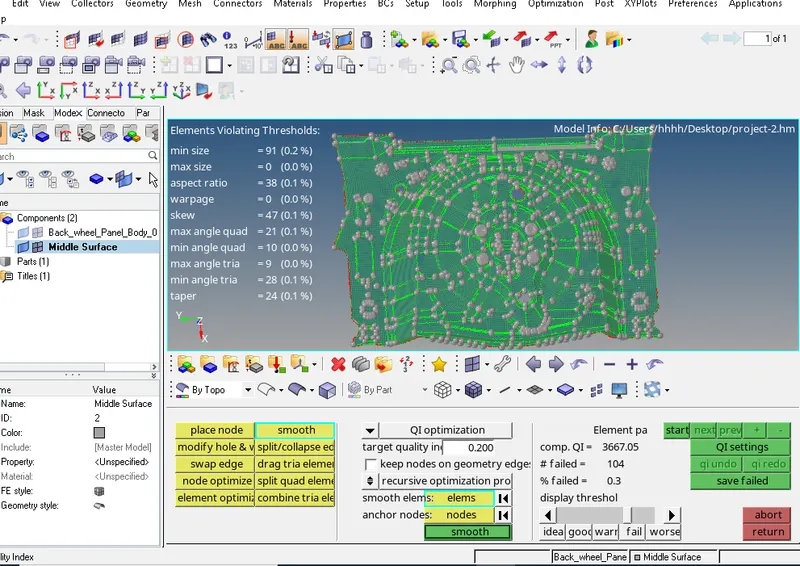

3.1. Mesh the component and remove the quality failure.

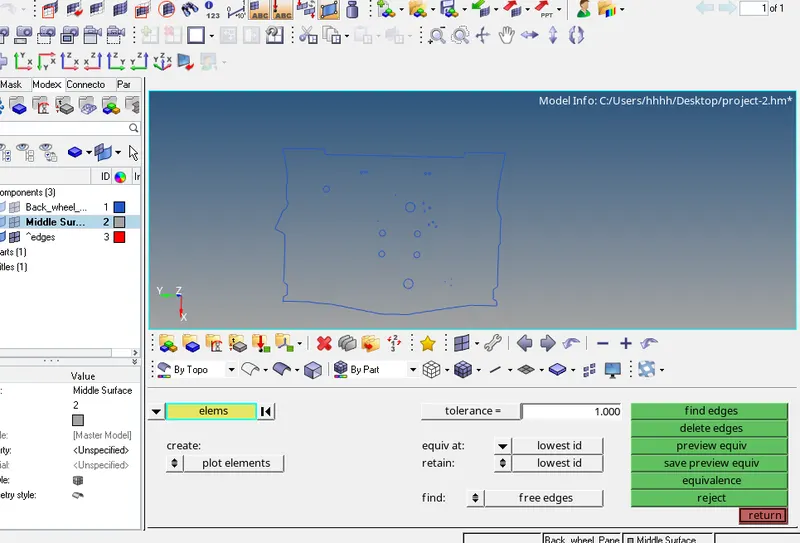

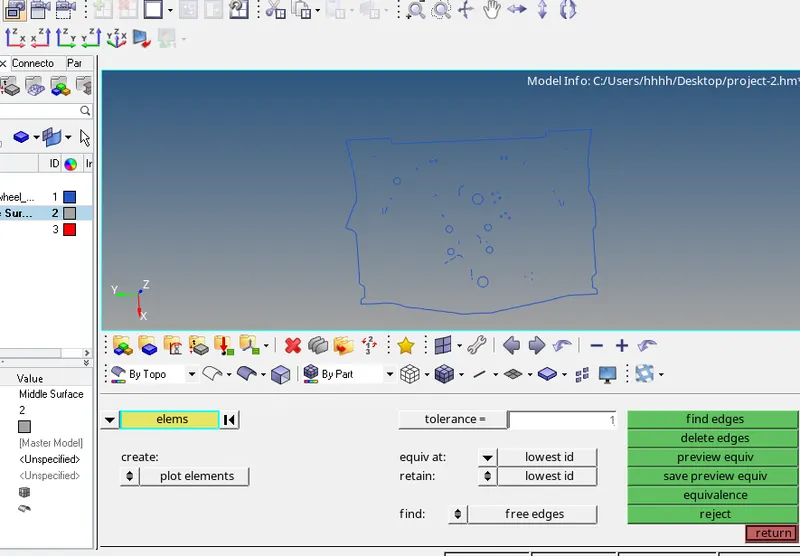

4-5. Check the free edges after meshing (tool -edge- free edge). Then remove the free edges.

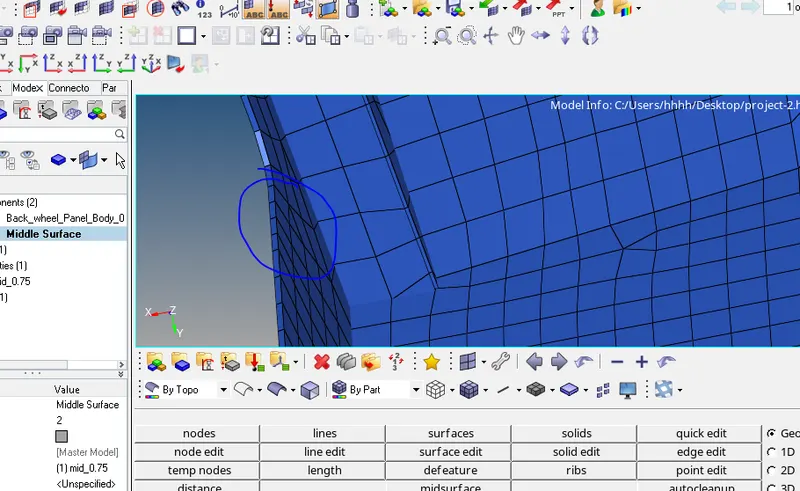

6. Assign the thickness to the component.

Learning outcomes-

1. Learn to create the mid surface and mesh the complex geometry
2. Check and remove the quality failure
3. Check and remove the free edge
4. Assign the thickness.
