Week 12:Project-1-Meshing of Door Inner Panel Challenge
AIM
------------------------------------------------------------------------------------------------------------------------------------------
Mesh the component and assign the thickness.
OBJECTIVE
------------------------------------------------------------------------------------------------------------------------------------------
- Generate the middle surface
- Mesh the model according the quality criteria
- Assign the thickness

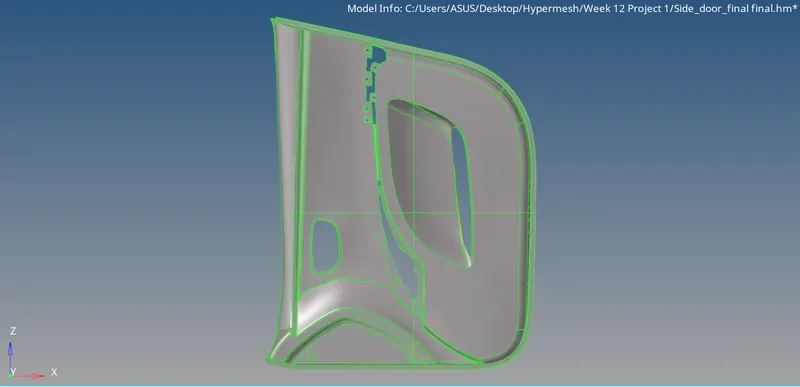

MID SURFACE
------------------------------------------------------------------------------------------------------------------------------------------

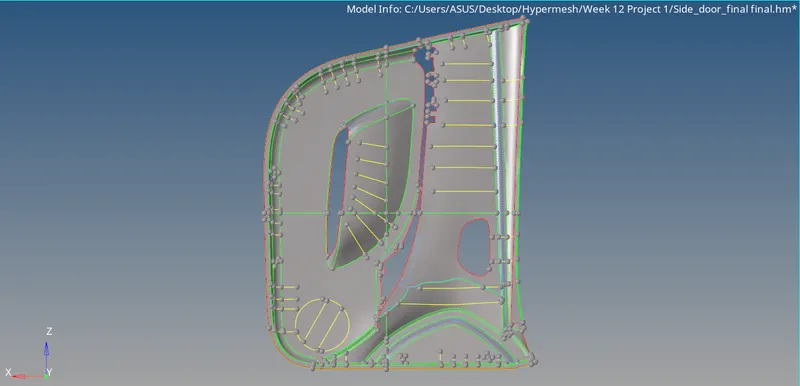

Since the model has variable thickness, hence the model is being approached by dividing into 4 pics.
And then the mid suurface is generaated separetely by offset method.

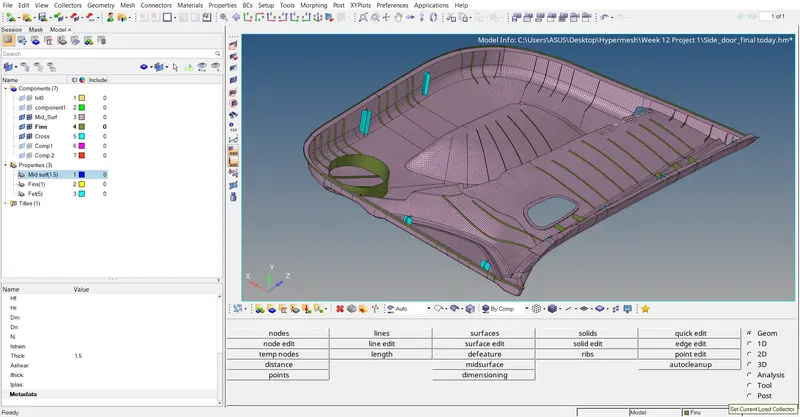

ASSIGN THICKNESS
------------------------------------------------------------------------------------------------------------------------------------------
Thickness is assigned by defining the property and then linked for the component.

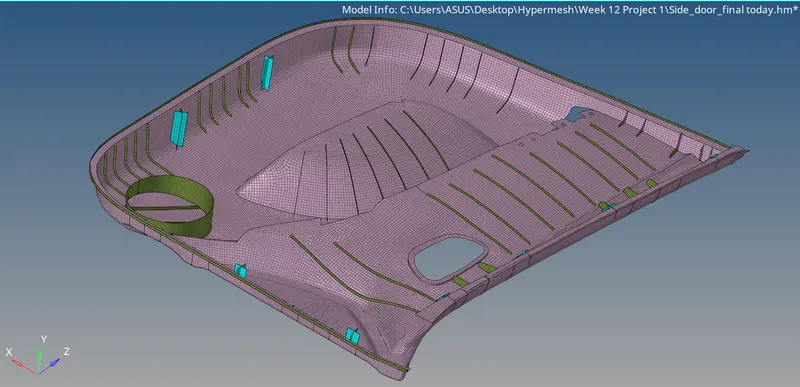

MESH
------------------------------------------------------------------------------------------------------------------------------------------

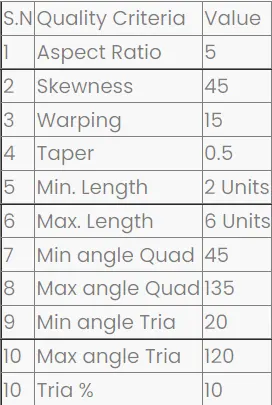

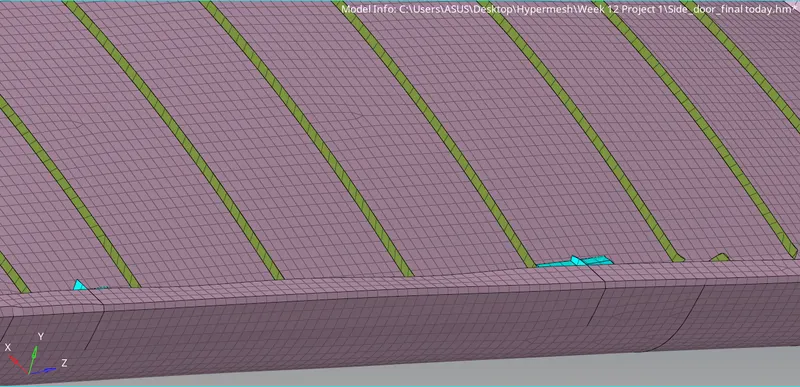

The model is being meshed according to the quality criteria with target element of 4mm.
CONCLUSION
------------------------------------------------------------------------------------------------------------------------------------------
Hence the mesh is done and thickness is assigned.
