Week 12:Project-1-Meshing of Door Inner Panel Challenge

Aim :

The aim is to extract the midsurface and generate the mesh for the given model.

Objective:

Target Element Length = 4 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	6 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

Procedure:

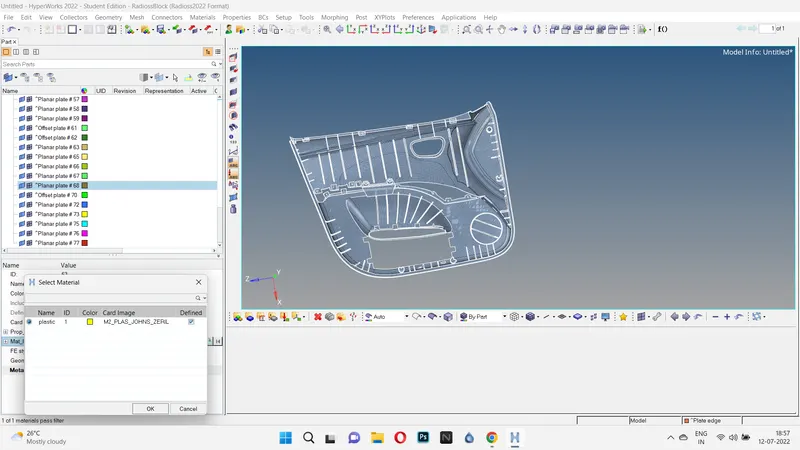

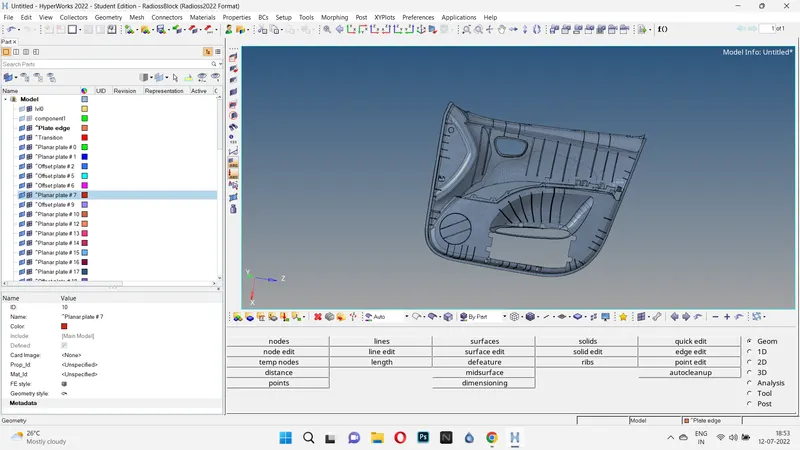

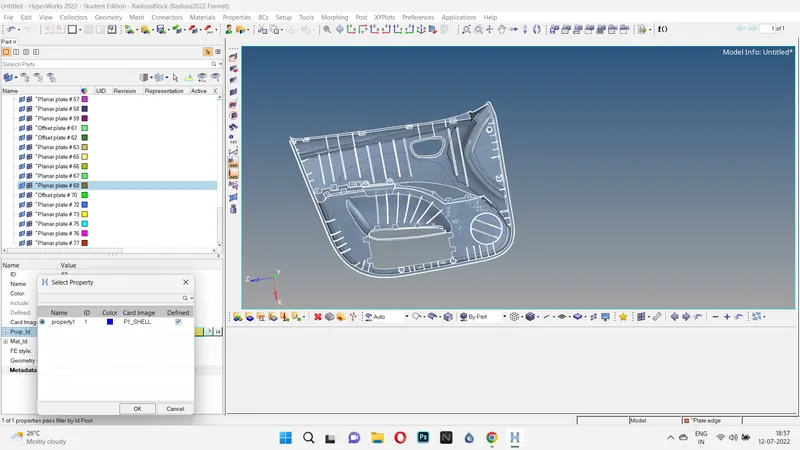

Initially import the model in the hypermesh radioss,

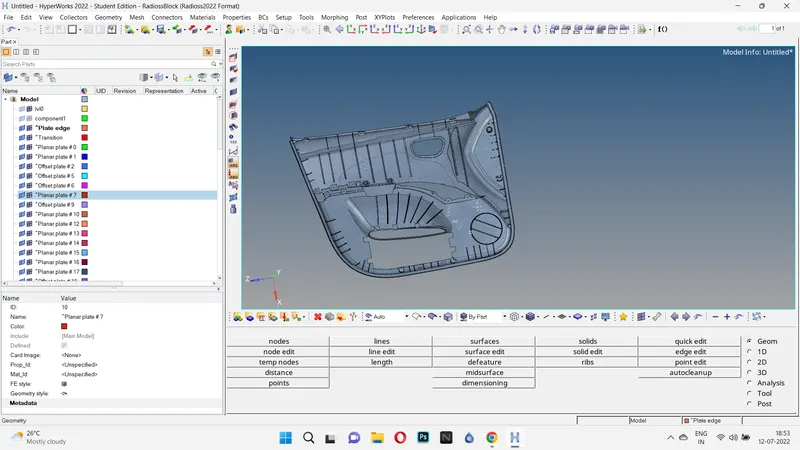

then check the model and do a autocleanup,

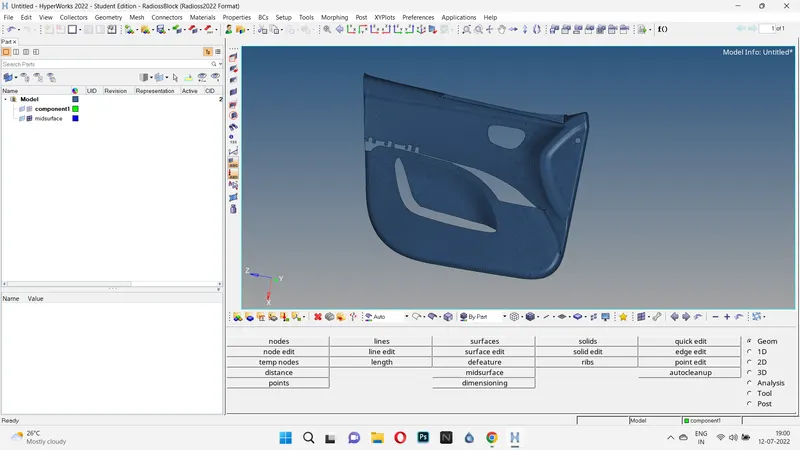

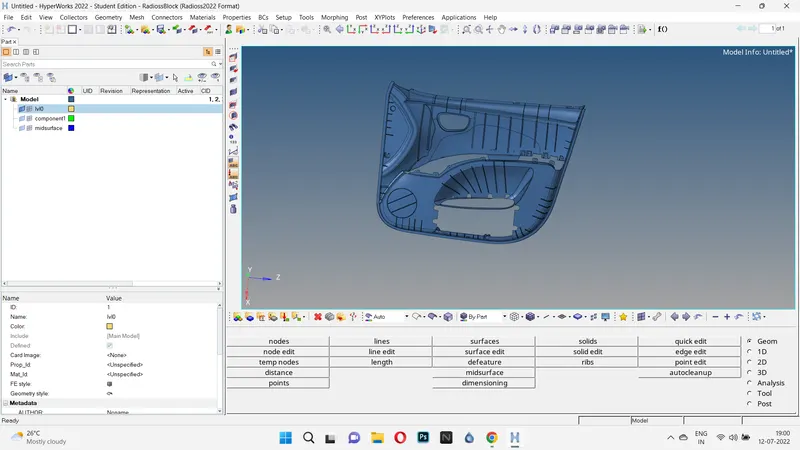

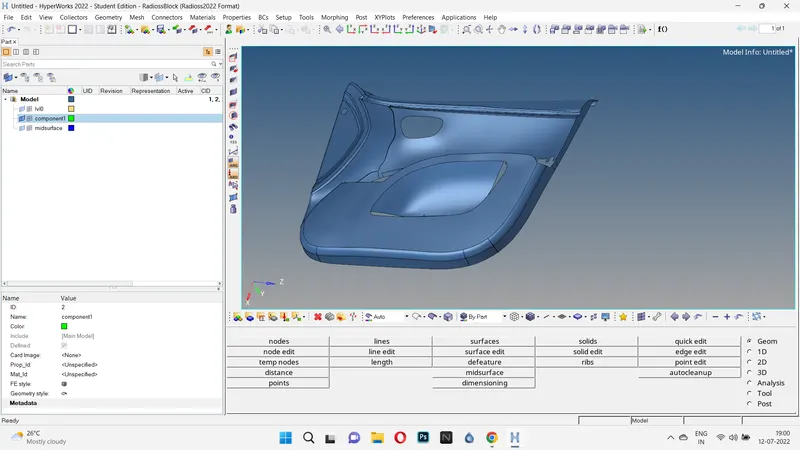

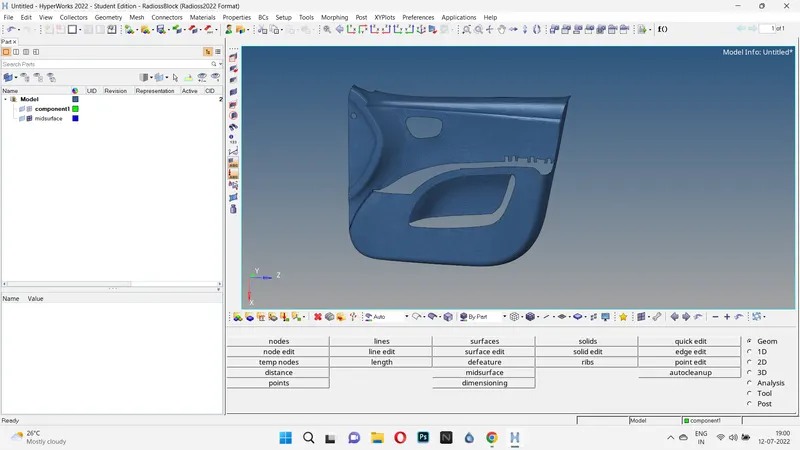

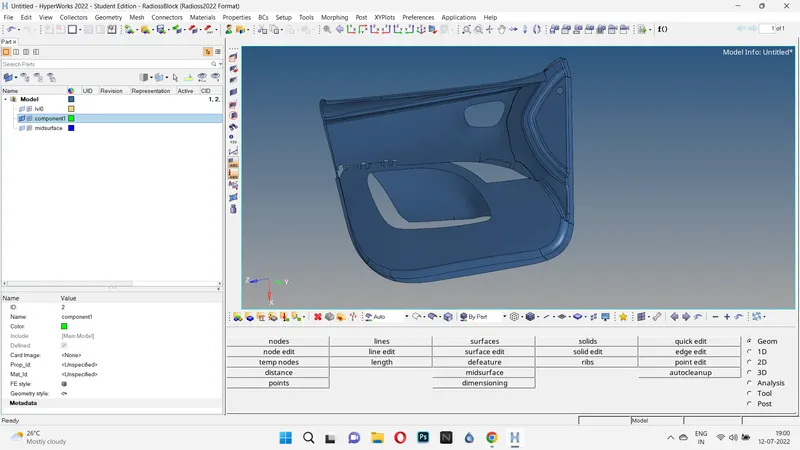

then take the midsurface manually by extrating the offset,

now go to the quick edit and do the toogle and required washer split,

And go to 2d mesh and now do the mesh

Now check for the quality criteria nd save the model.

Result:

Therefore the given model has been meshed and the midsurface hasbeen extracted, the model has been attached to the asset.
