Flex Bodies

AIM :- Determine the Maximum & Minimum Stress & Strain Values in the Flexible Lower Control Arm.

Study-1 output :-

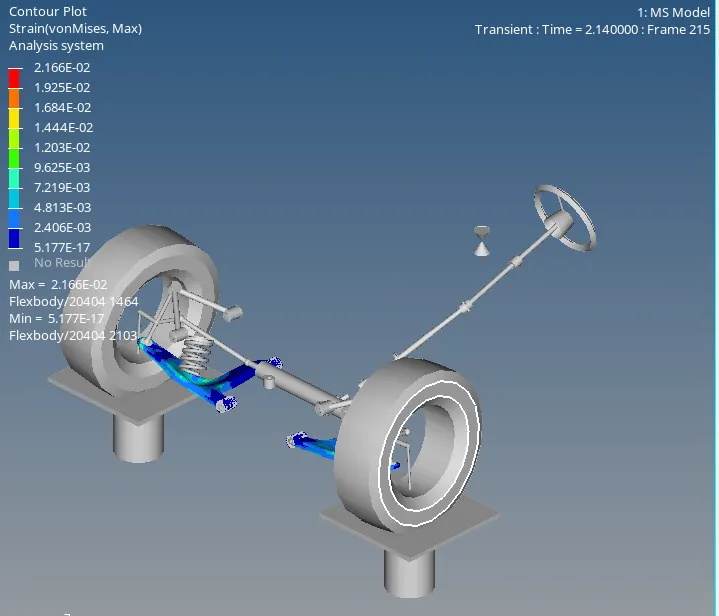

Strain Contours :-

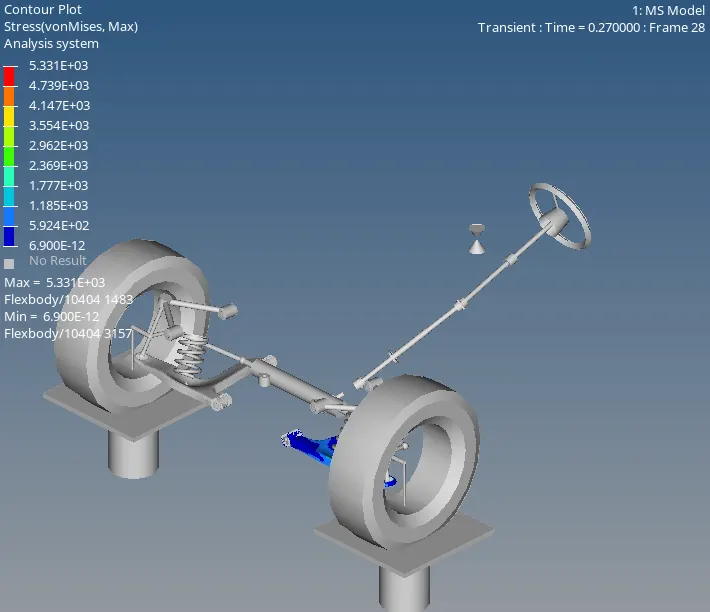

Stress Contours :-

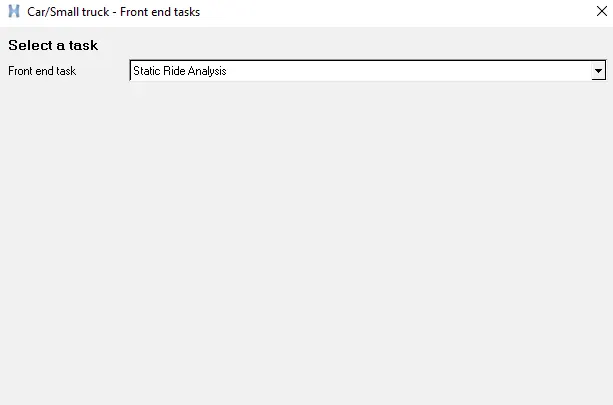

Run a Static Ride Analysis. Run a sensitivity study on the following parameters and conclude which parameter/ combinations of the parameter have a maximum effect on the stress/strain of the lower control arm.

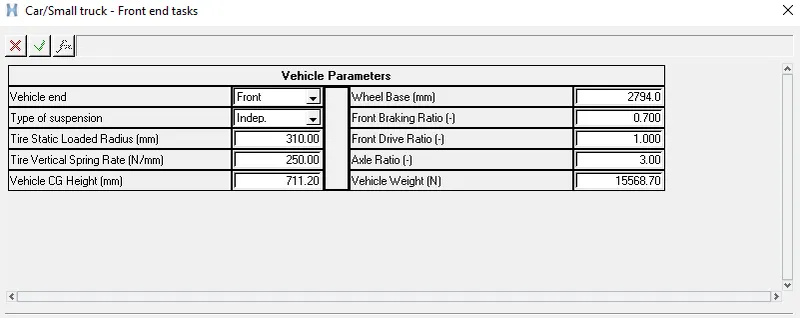

Parameters to be considered.

1.Vehicle CG,

2.Vehicle Weight

3. Front Braking Video

4.Wheel Base and

5.Axle Ratio

Study-2 output :-

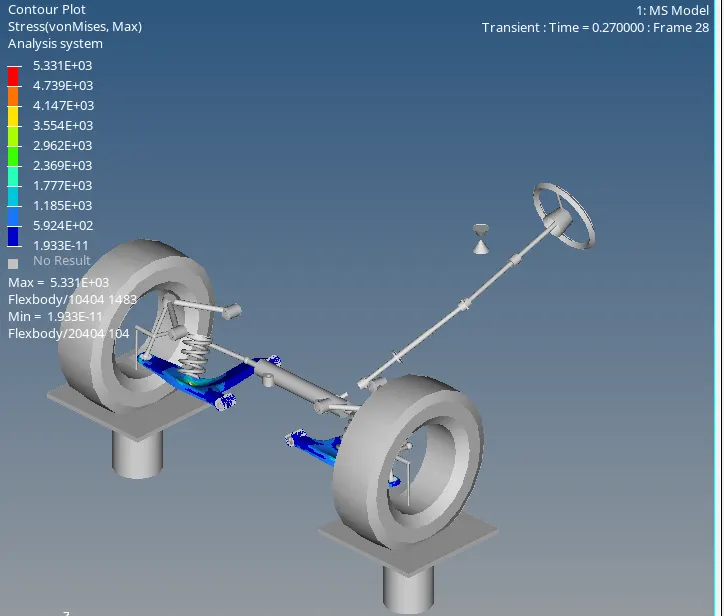

Stress Contour :-

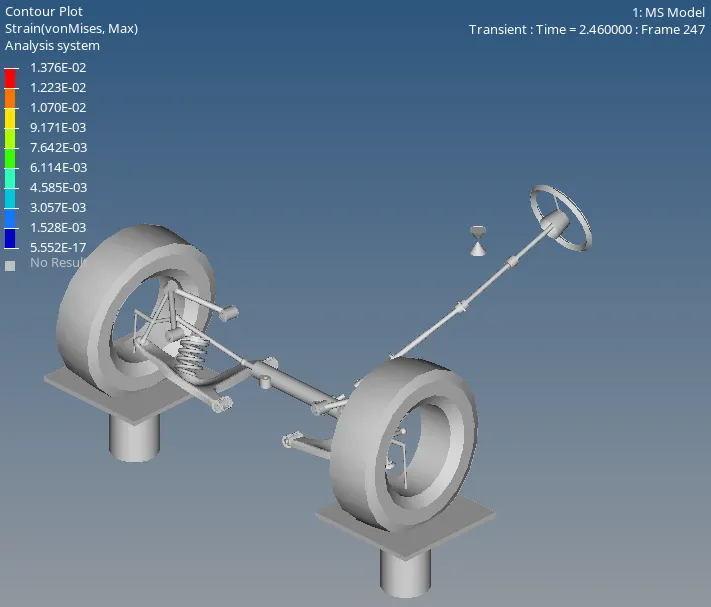

Strain Contour :-

Conclusion :-

1.Vehicle CG,

2.Vehicle Weight

3. Front Braking Video

4.Wheel Base and

5.Axle Ratio

By varying the above parameters there is no much change in the stress and strain values.
