Week 12- Final project
Aim:
To Creation of CAD model considering Class A surface, Nominal thickness and Attachment strategy.
Objective:
To Creation of CAD model considering Class A surface, Nominal thickness and Attachment strategy.
Create thickened part using master section for reference
Create the mounting features as per design guidelines in the industry and with master sections
Apply material details
Draft analysis & Tooling analysis
Goals
Creation of CAD model considering following inputs as like in OEM and tier1 companies
- Class A surface
- Nominal thickness : Refer master sections

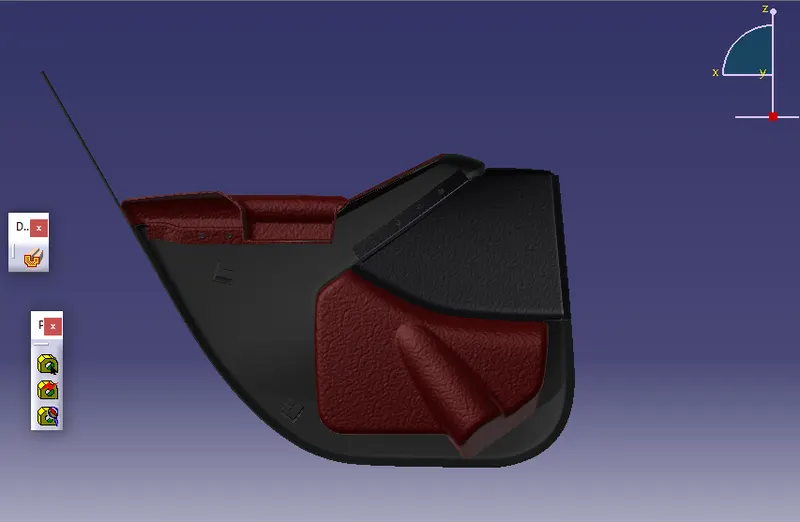

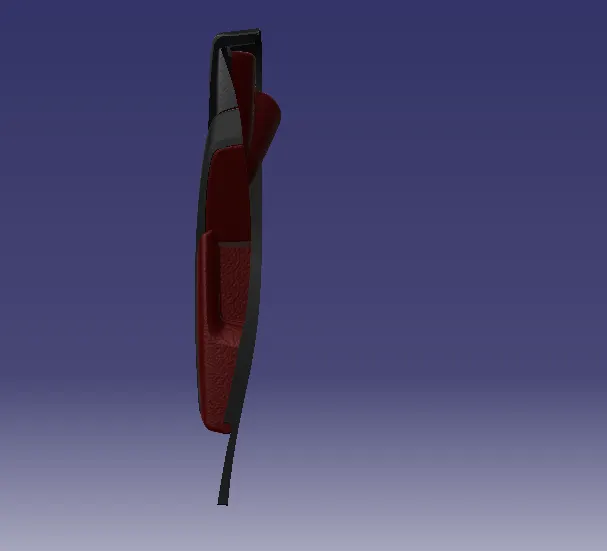

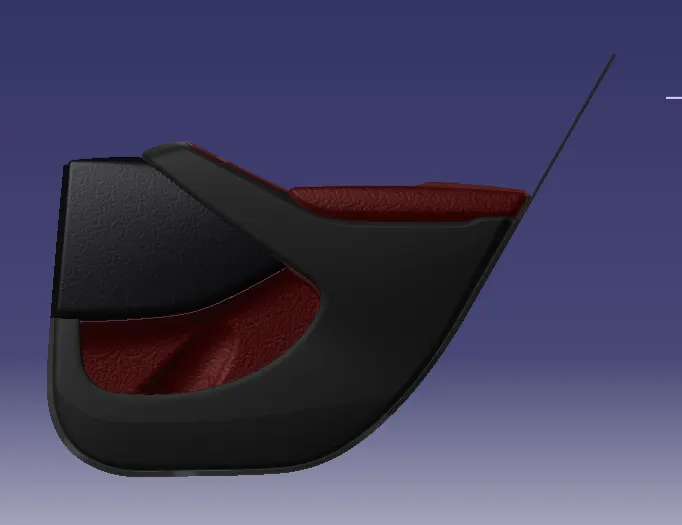

Door Panel

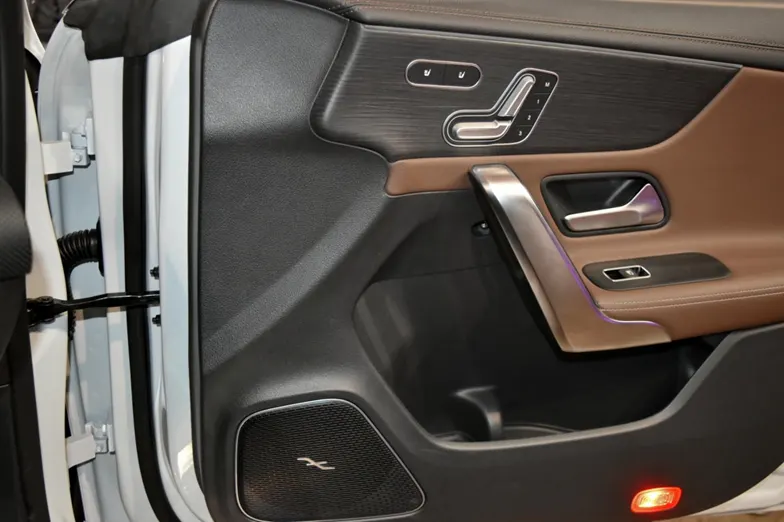

Door panels act as a barrier between the interior of the vehicle and the inner workings of the door, as well as between the vehicle occupants and the door. They must adhere to a number of design specifications in terms of safety,

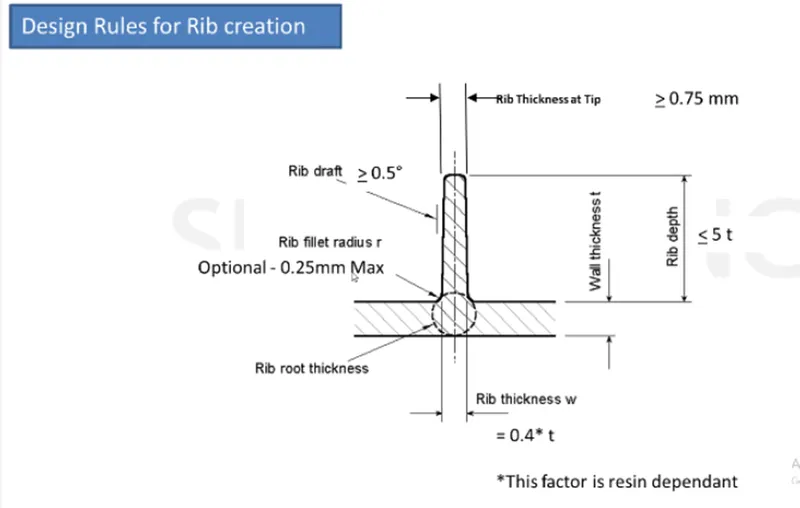

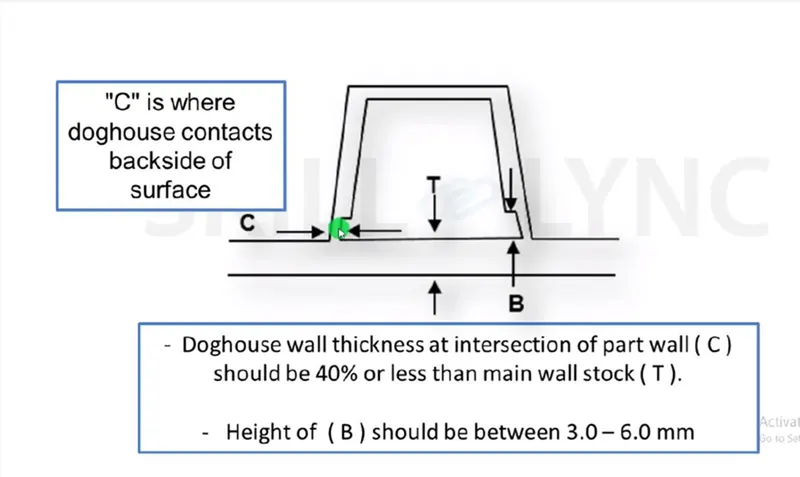

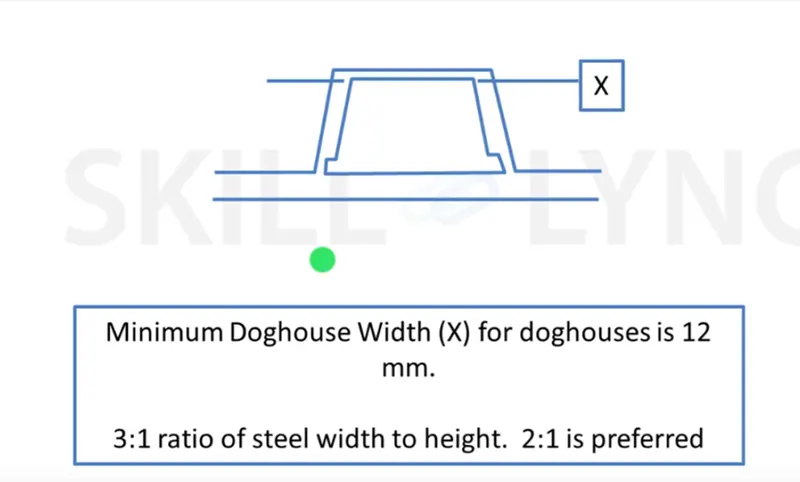

Design rules for Doghouse

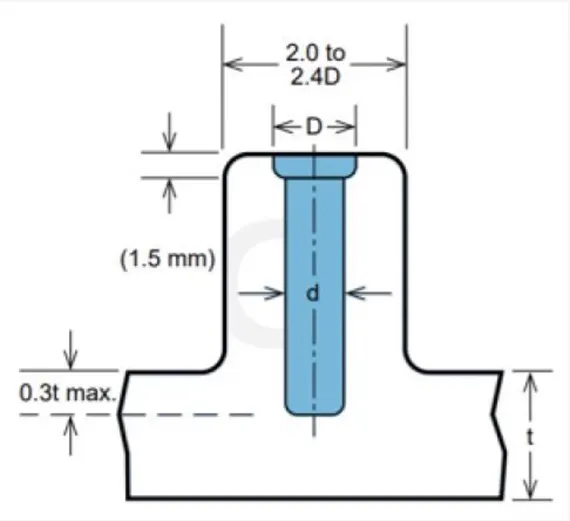

Design rules for Screw Boss
Draft Analysis
The Draft Analysis allows the user to easily analyze a part for proper draft angle. A Draft Angle describes the amount of taper for molded or cast parts perpendicular to the parting line. Find the Draft Analysis in Tools tab. Draft Analysis is applicable for 3D part models
COMPONENTS:

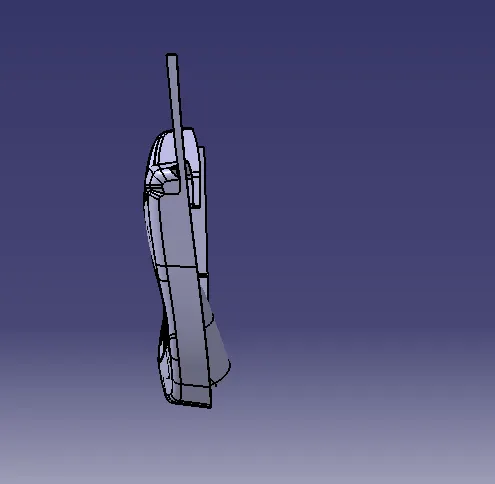

Map Pocket

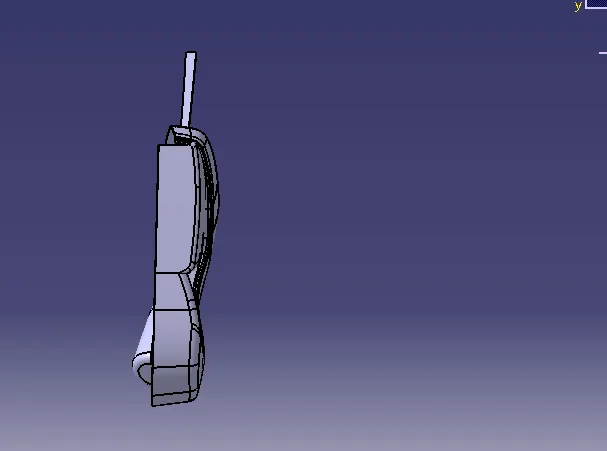

Arm Rest

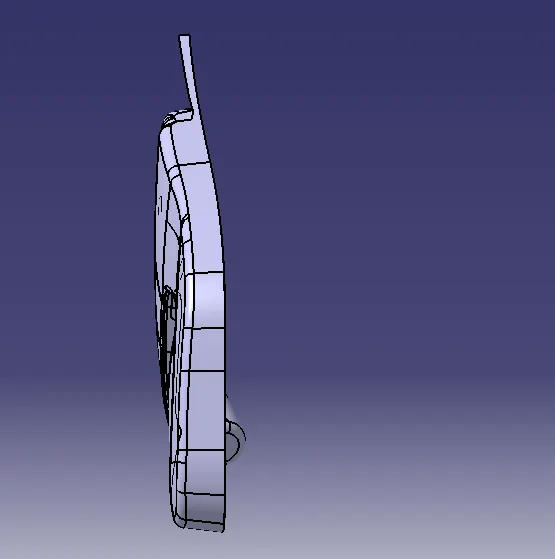

Lower Substrate

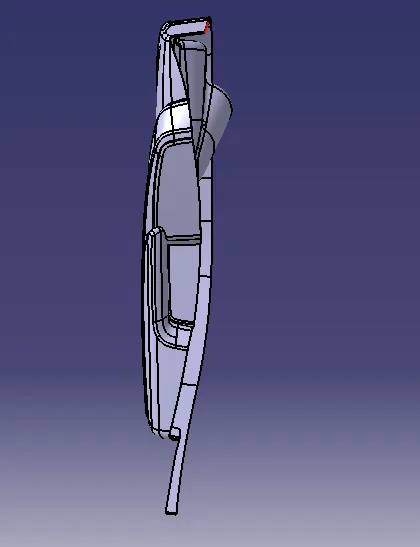

Map Pocket Lower

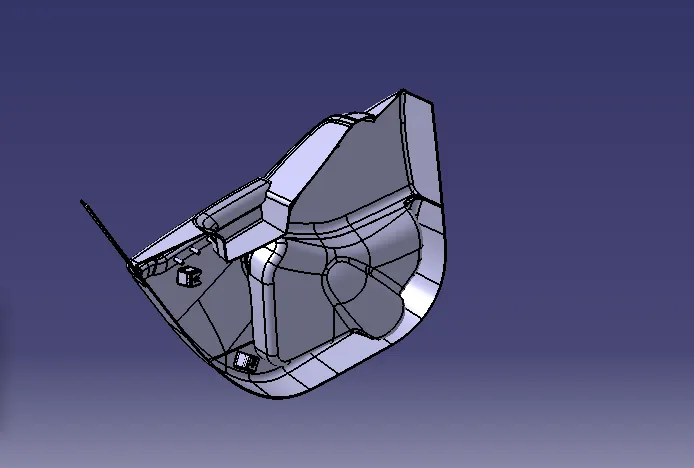

Map Pocket

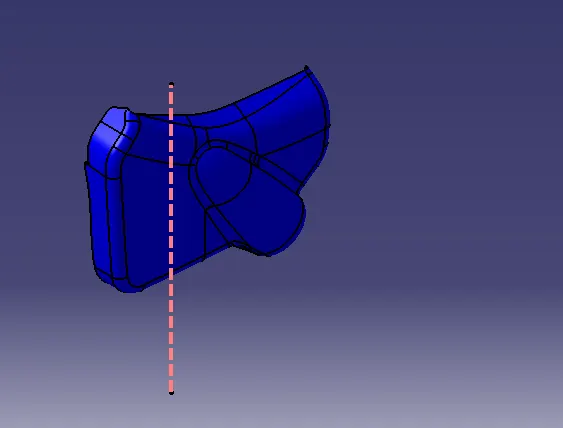

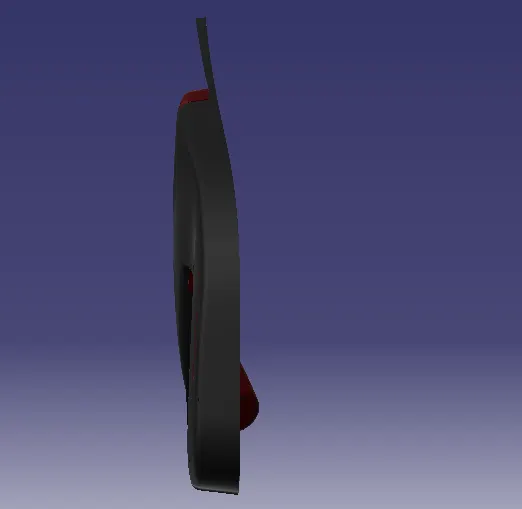

Surface mode

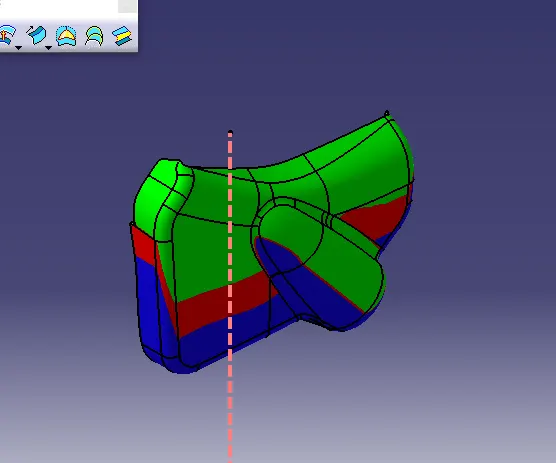

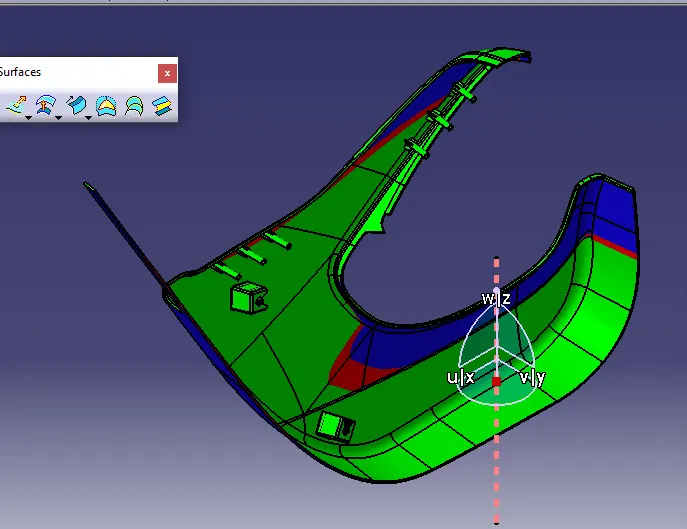

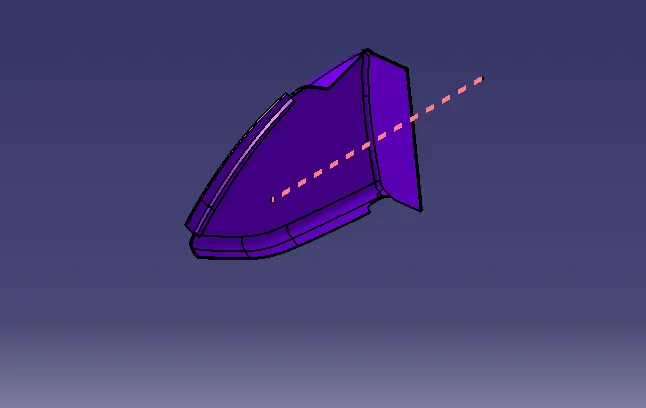

Draft Analysis

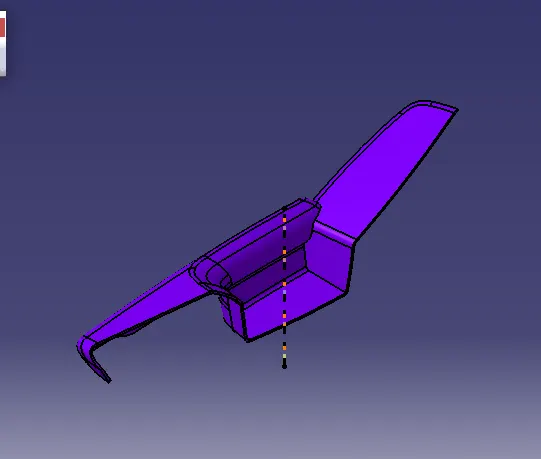

Arm Rest

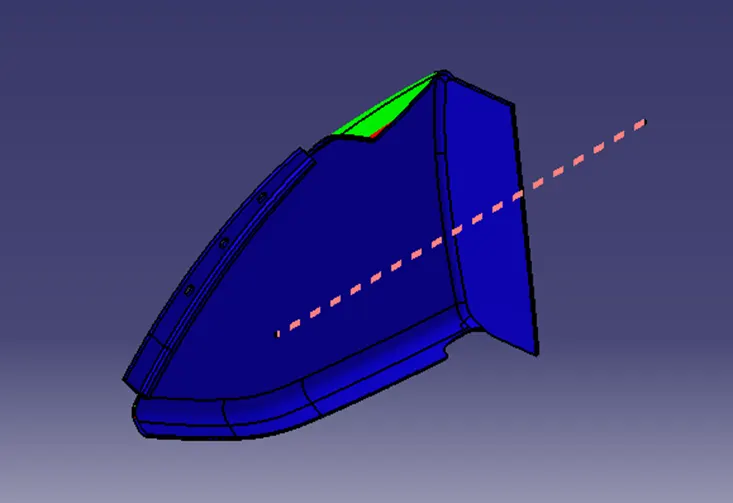

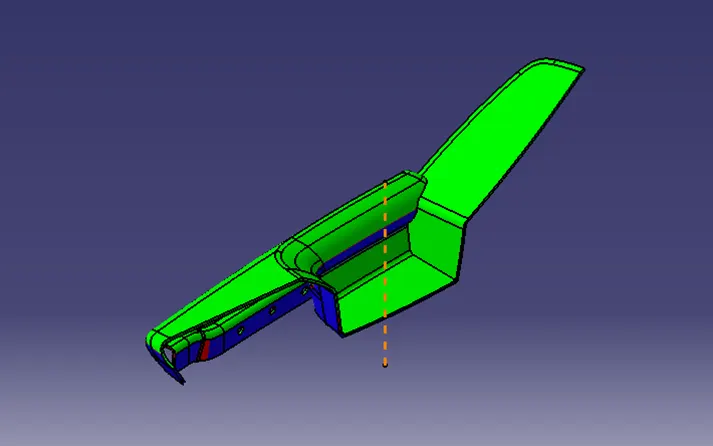

Draft Analysis

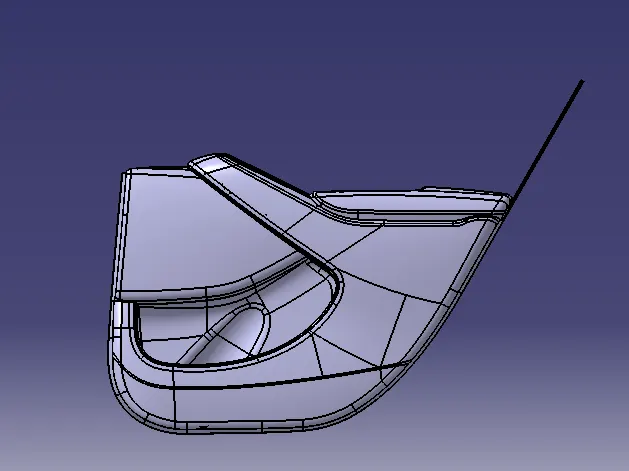

Surface mode
Lower Substrate
Draft Analysis:

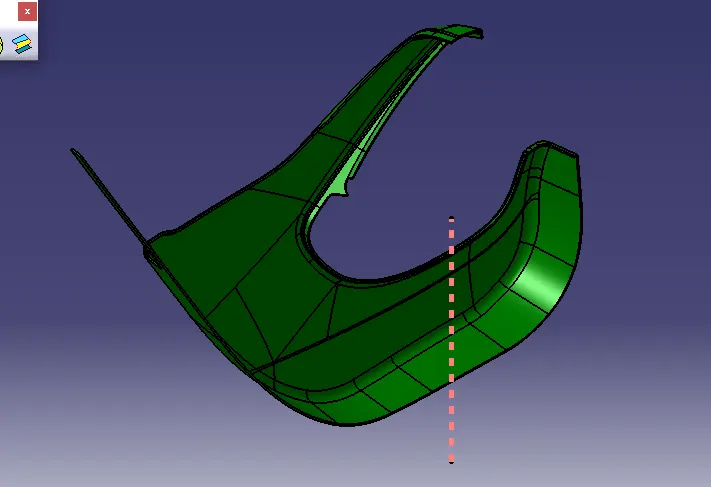

Surface mode
Map Pocket Lower

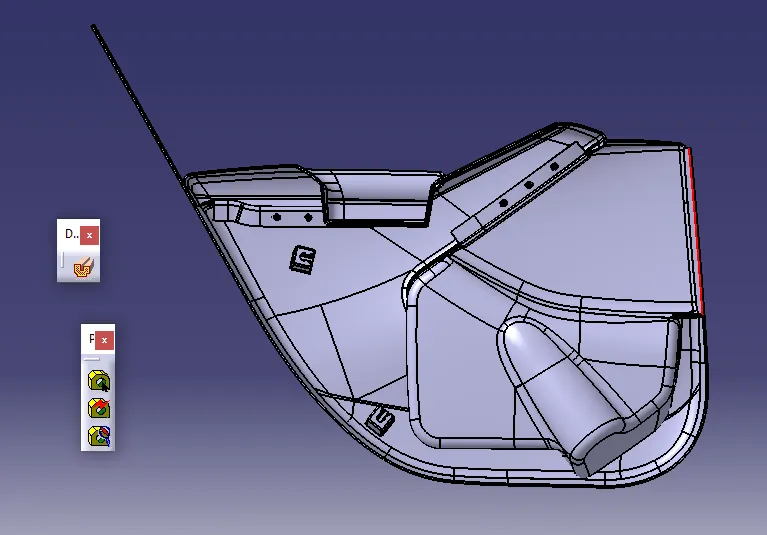

Draft Analysis
Surface mode
