Week 12- Final project
Aim
To create a Door final trim with all engineering features and the push clip.
DEVELOPING OF CLASS A
ARM REST

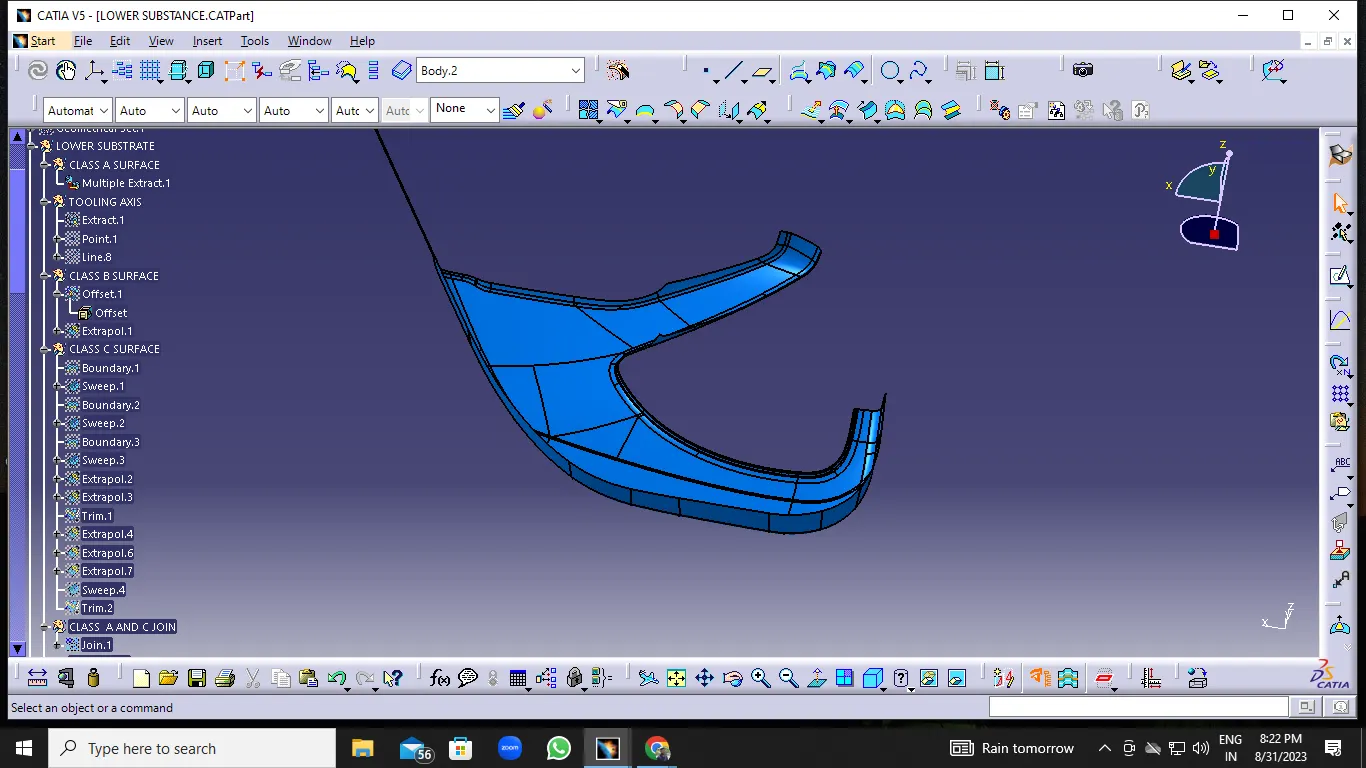

LOWER SUBSTRATE

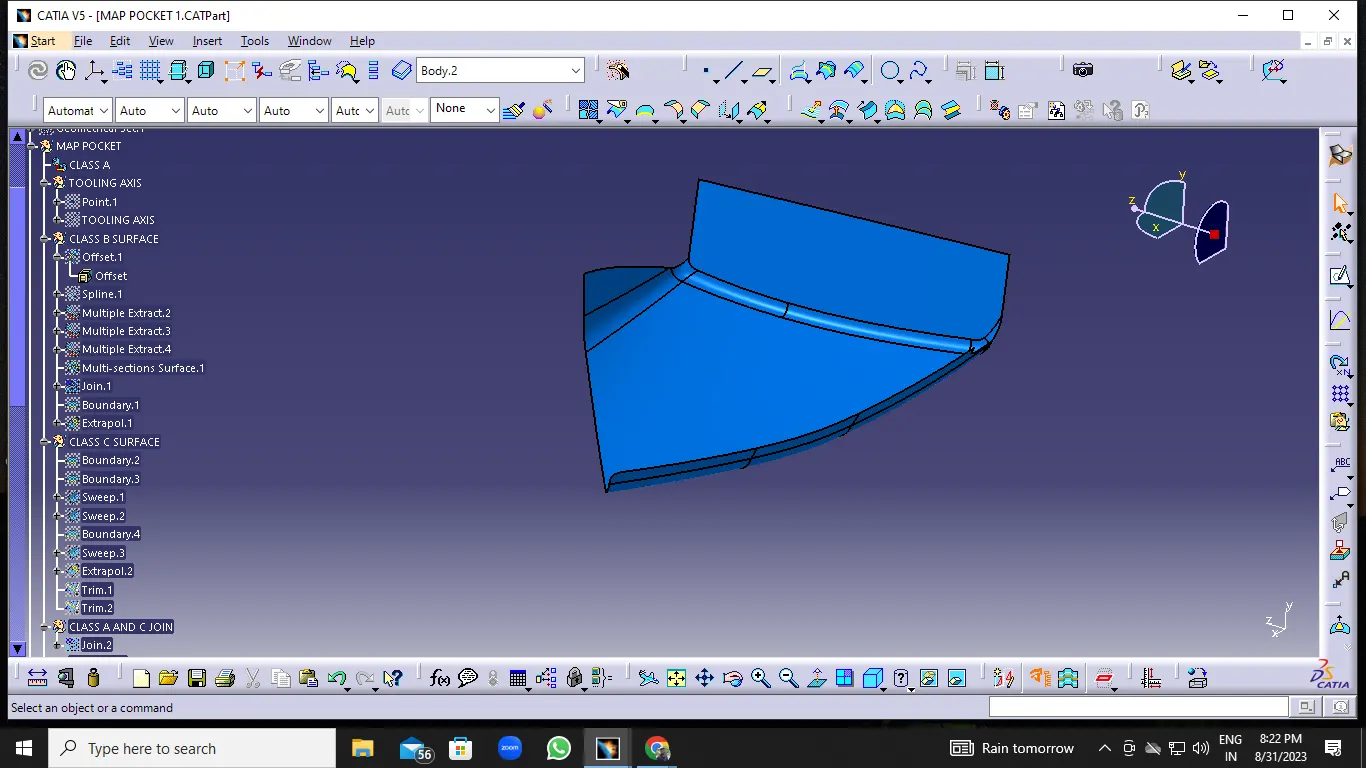

MAP POCKET

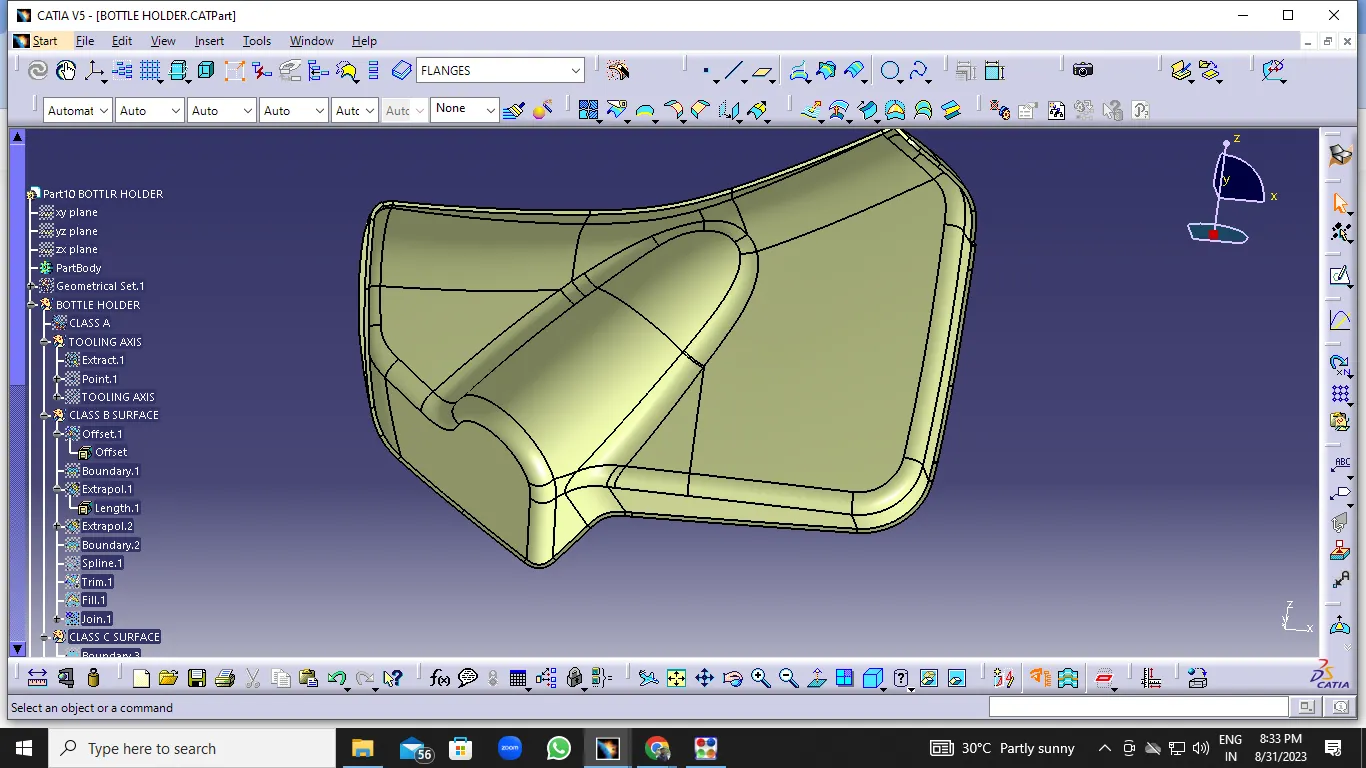

BOTTLE HOLDER
TOOLING AXIS CREATION
^ First ectract the surface which one want.
^ To create the point on surface.
^ Create a line using through a point.
FINAL TRIMS

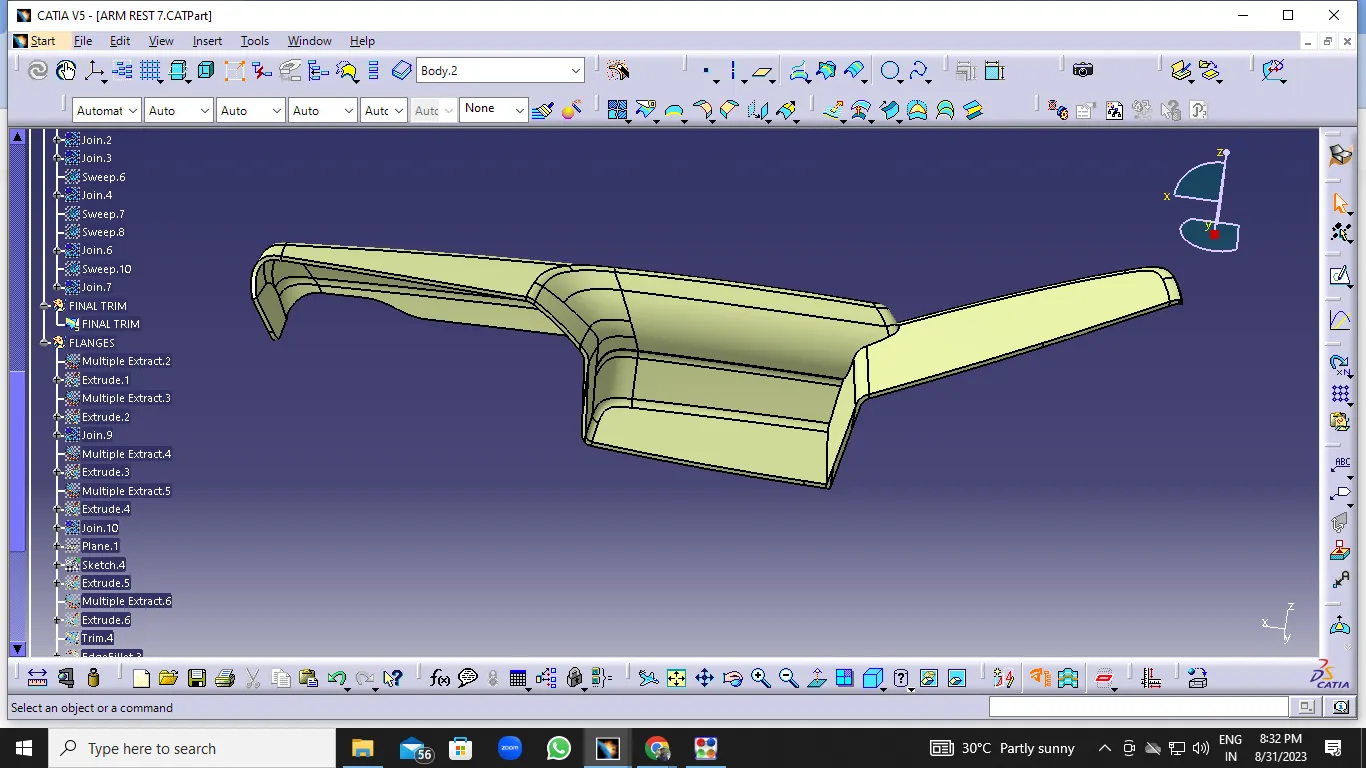

ARM REST

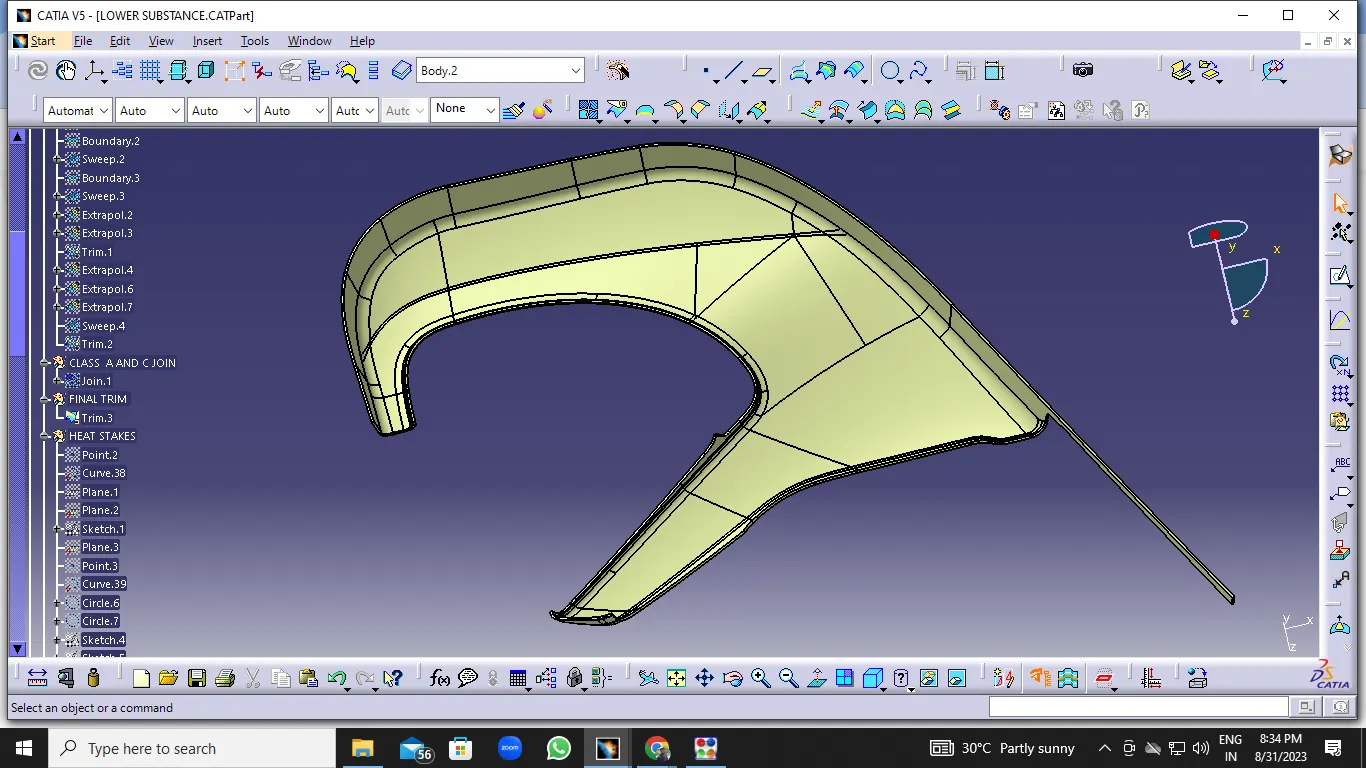

LOWER SUBSTRATE
MAP POCKET
BOTTLE HOLDER

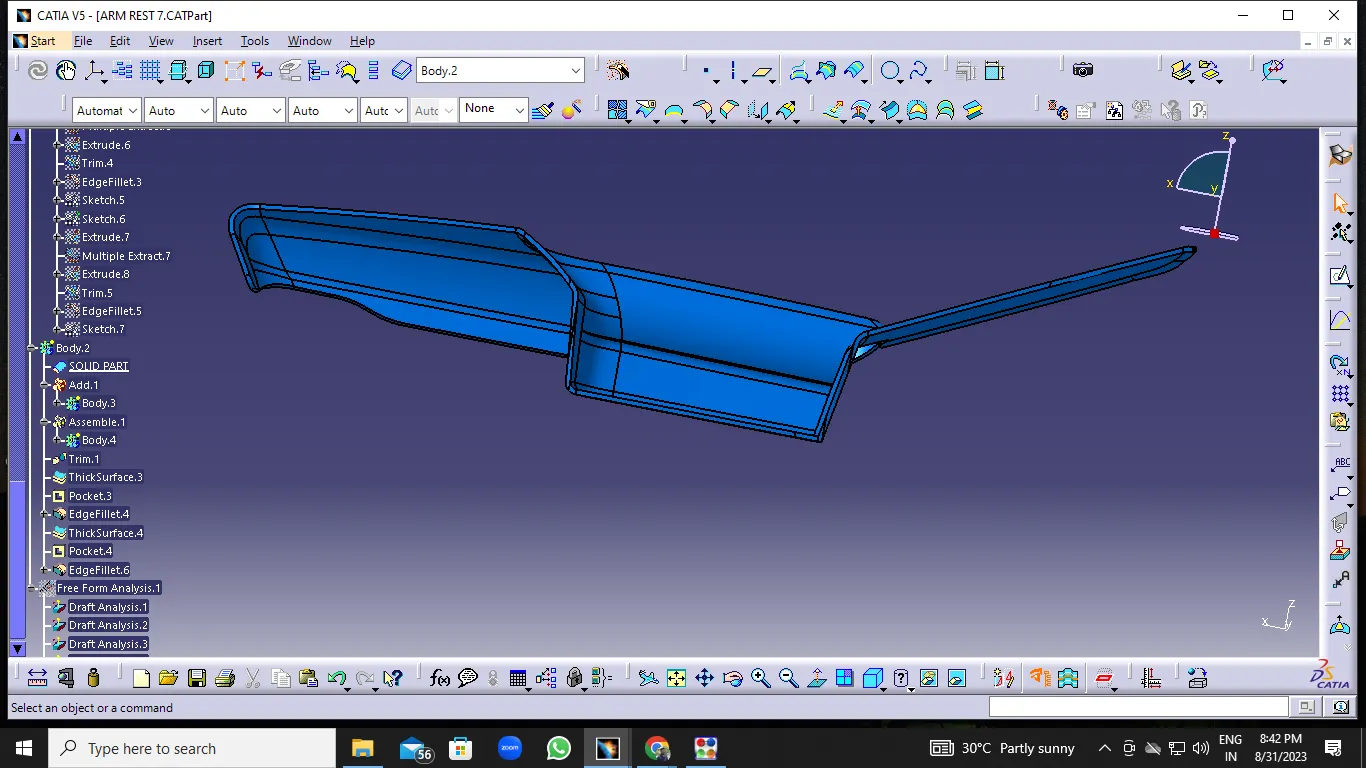

SOLID PARTS
ARM REST
LOWER SUBSTRATE
MAP POCKET

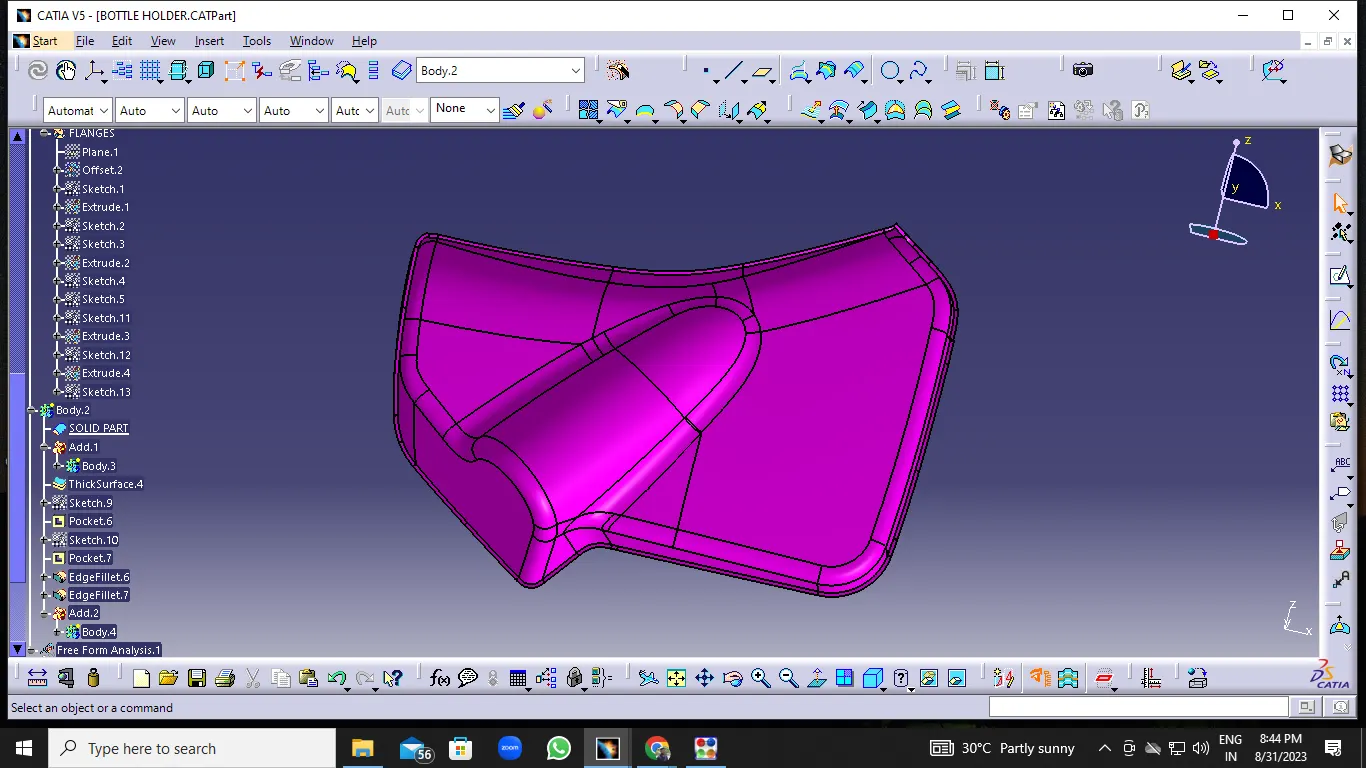

BOTTLE HOLDER
ENGINEERING FEATURES

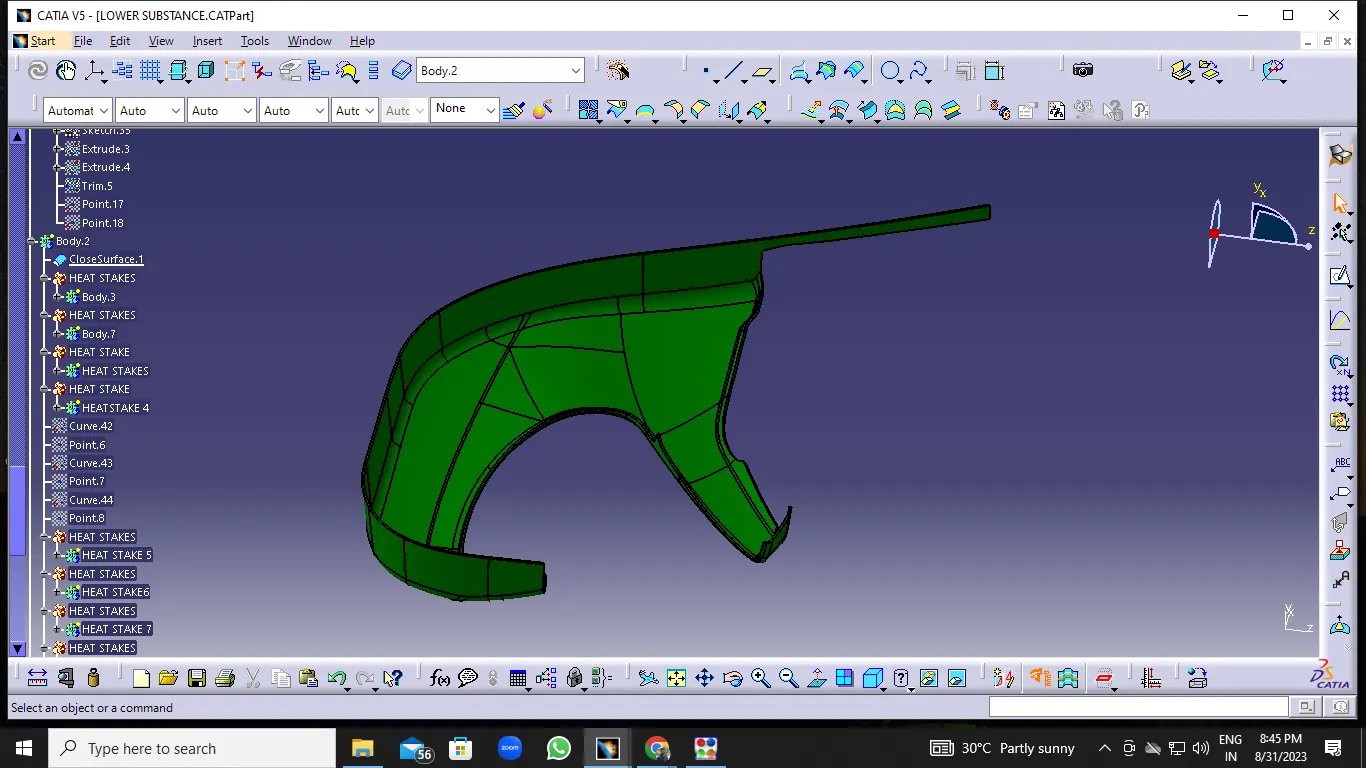

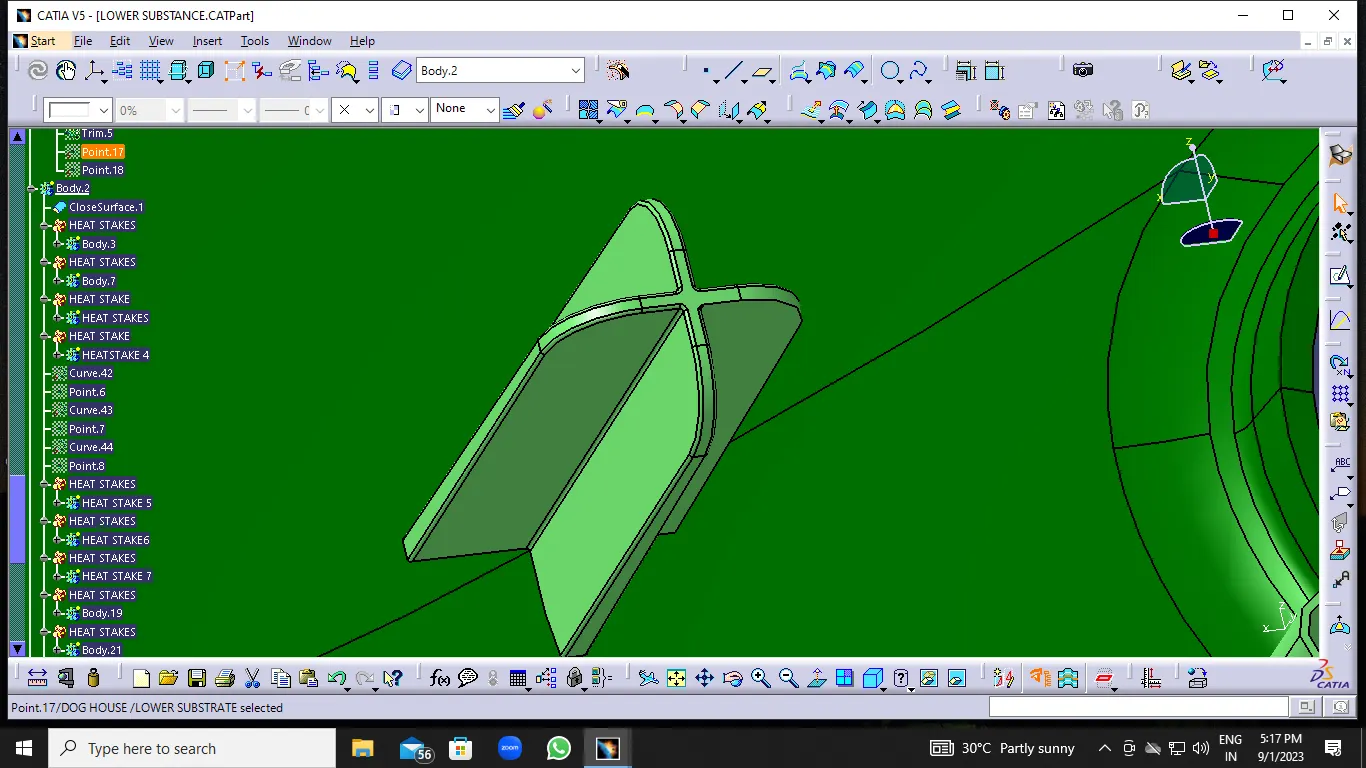

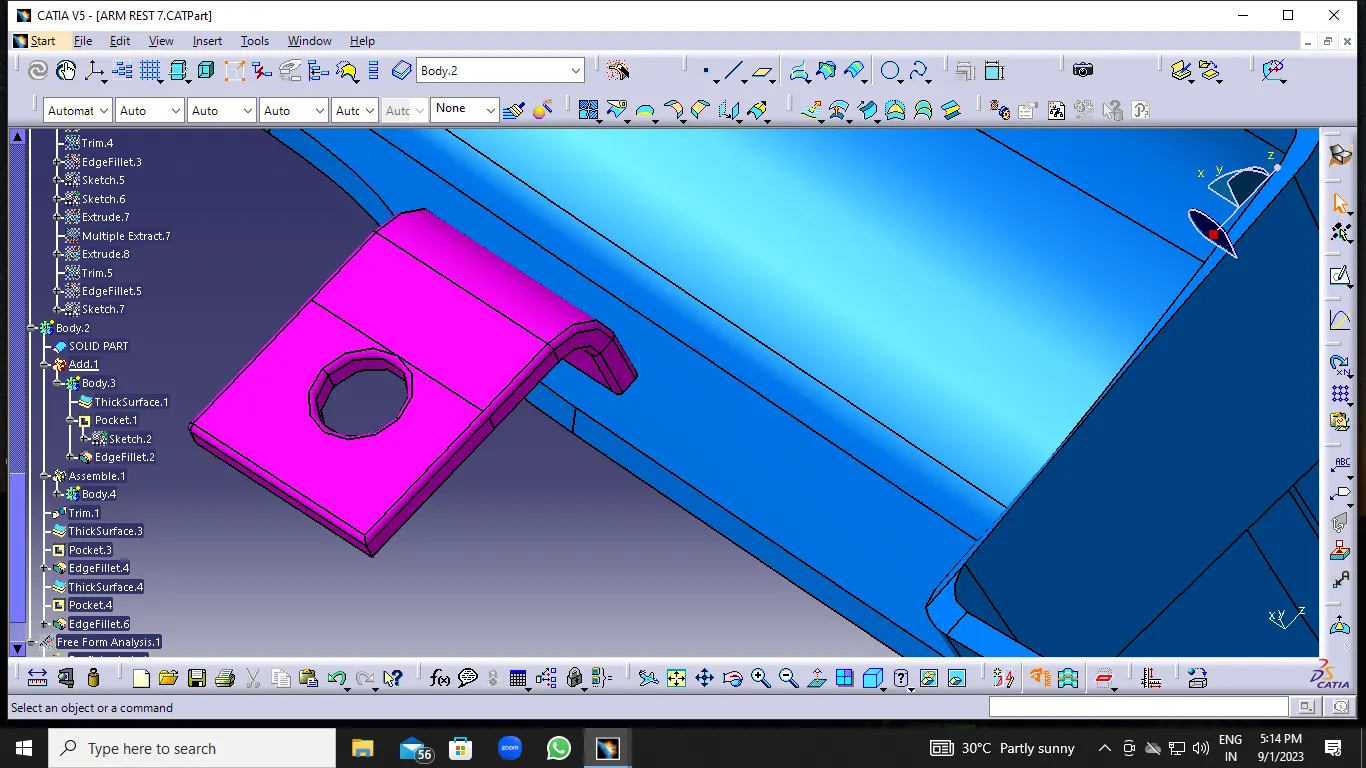

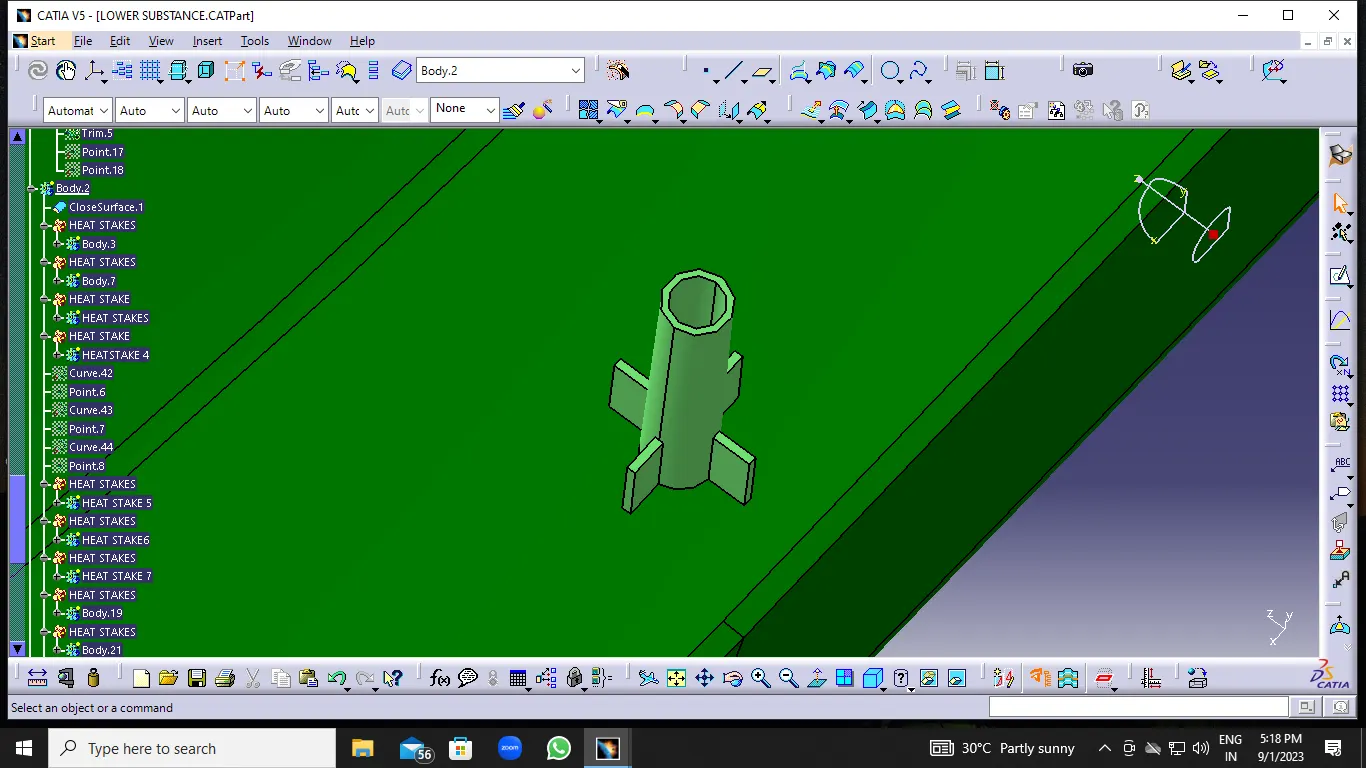

HEAT STAKES
^ Heat stake should used to attach a one component to another component.
^ The heat Stake are created with a separate height as required .
^ Heat stake are supported to the rib.
^ Heat stake is 0.5 degree drafted .
4 WAY LOCATOR
^ 4 Way locator should used in normal surface.
^ The locator should gived a required height.
^ Locater created with 0.5 degree and o.25 fillet all edges.

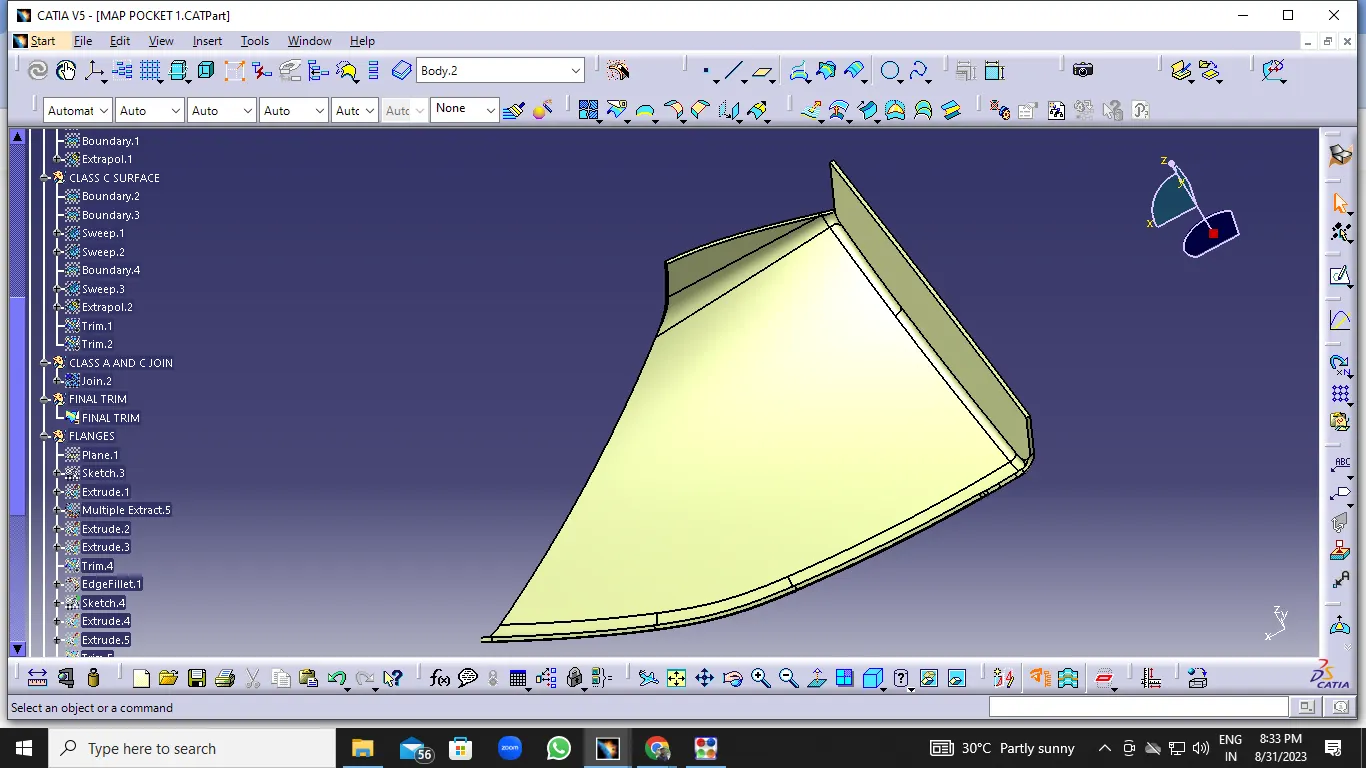

FLANGES
- Flanges are located in heat stakes.
- Flanges are created toassemble to heat stakes.
- the flages created 0.25 degree fillet in whole body.
- Flange corner is created with r3.

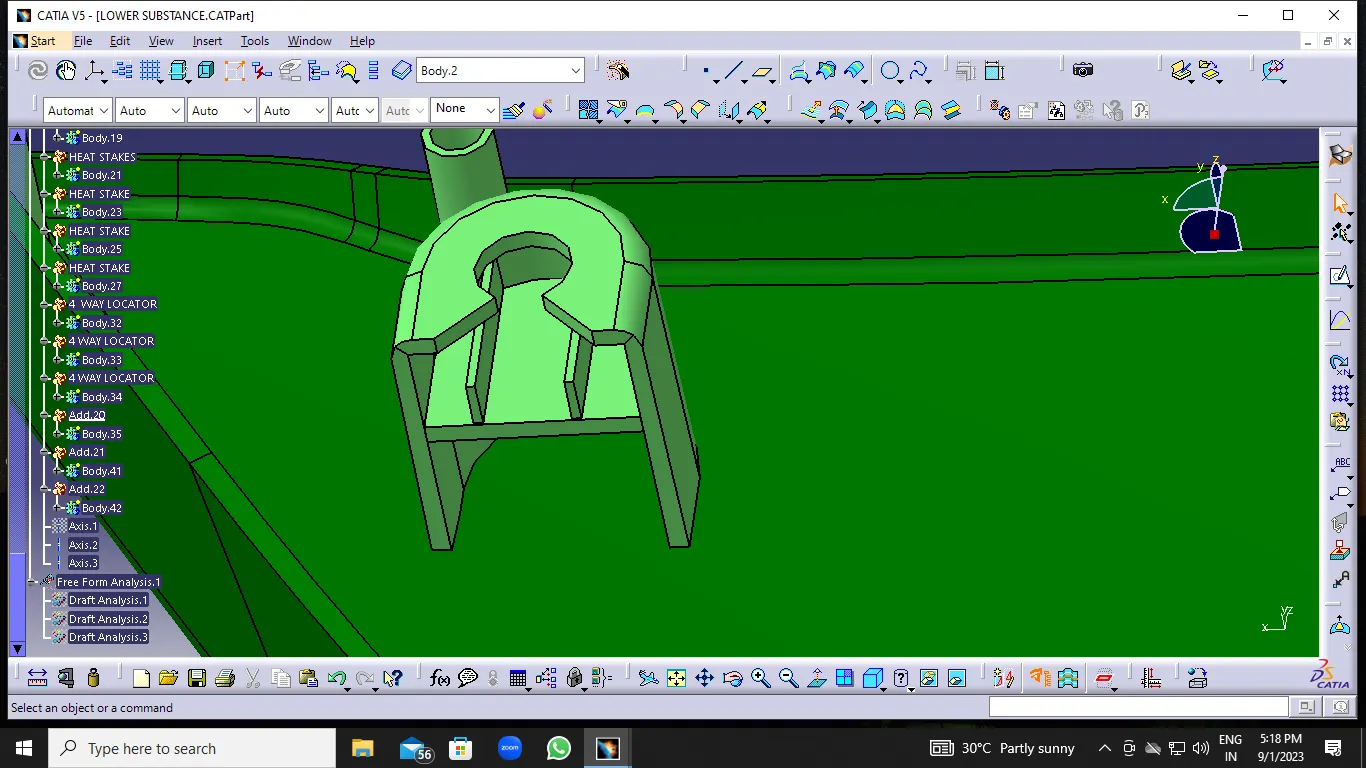

DOG HOUSE
- Dog house created with respective angle,degree and length.
- The dog house used to add push clip.
- Dog house is easiest way to attach a part.

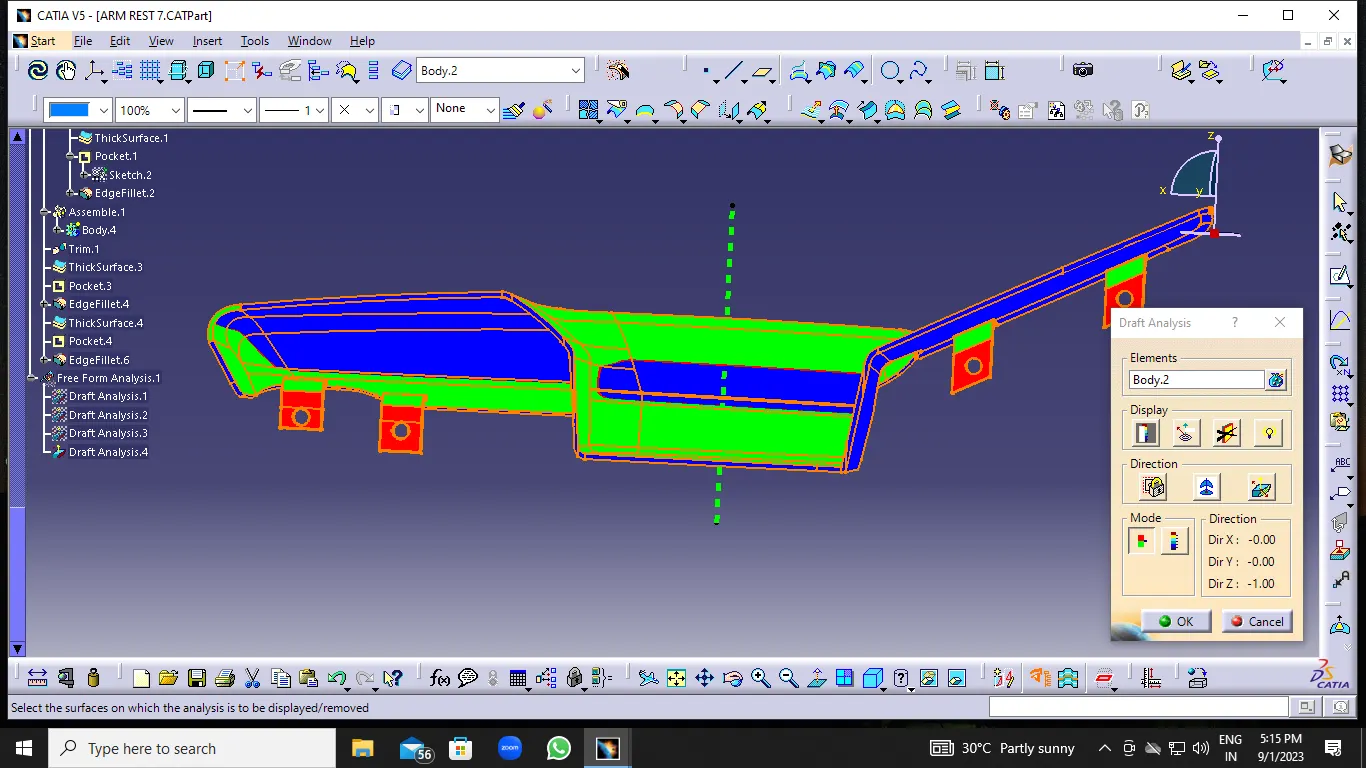

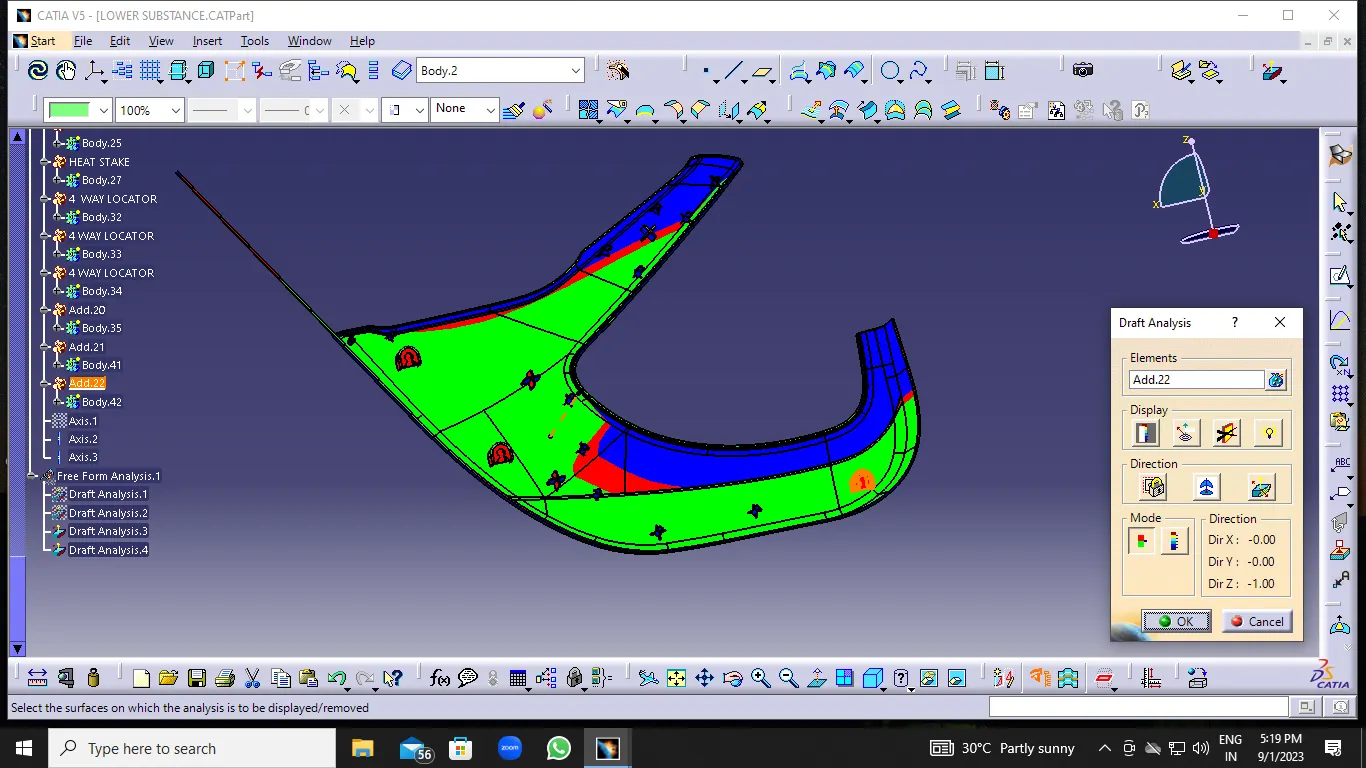

DRAFT ANALYSIS

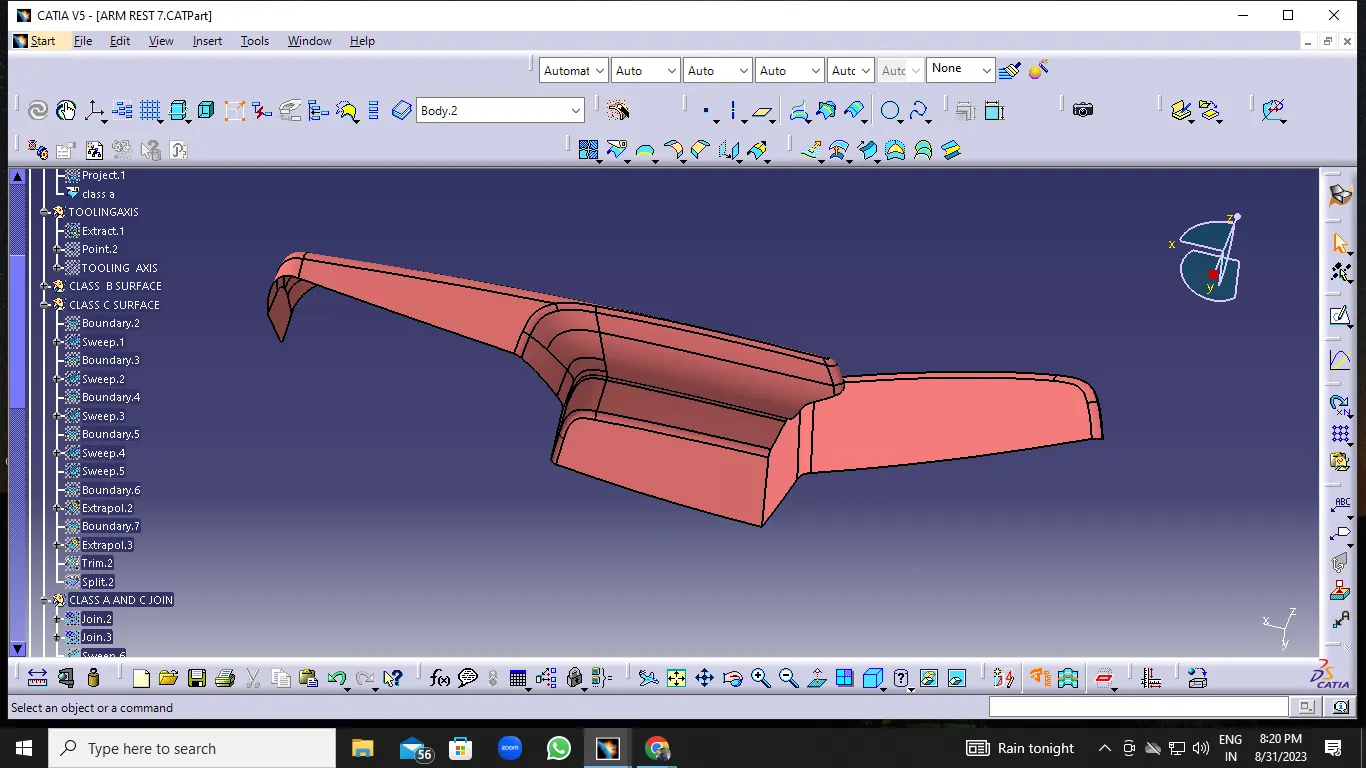

ARM REST
LOWER SUBSTRATE

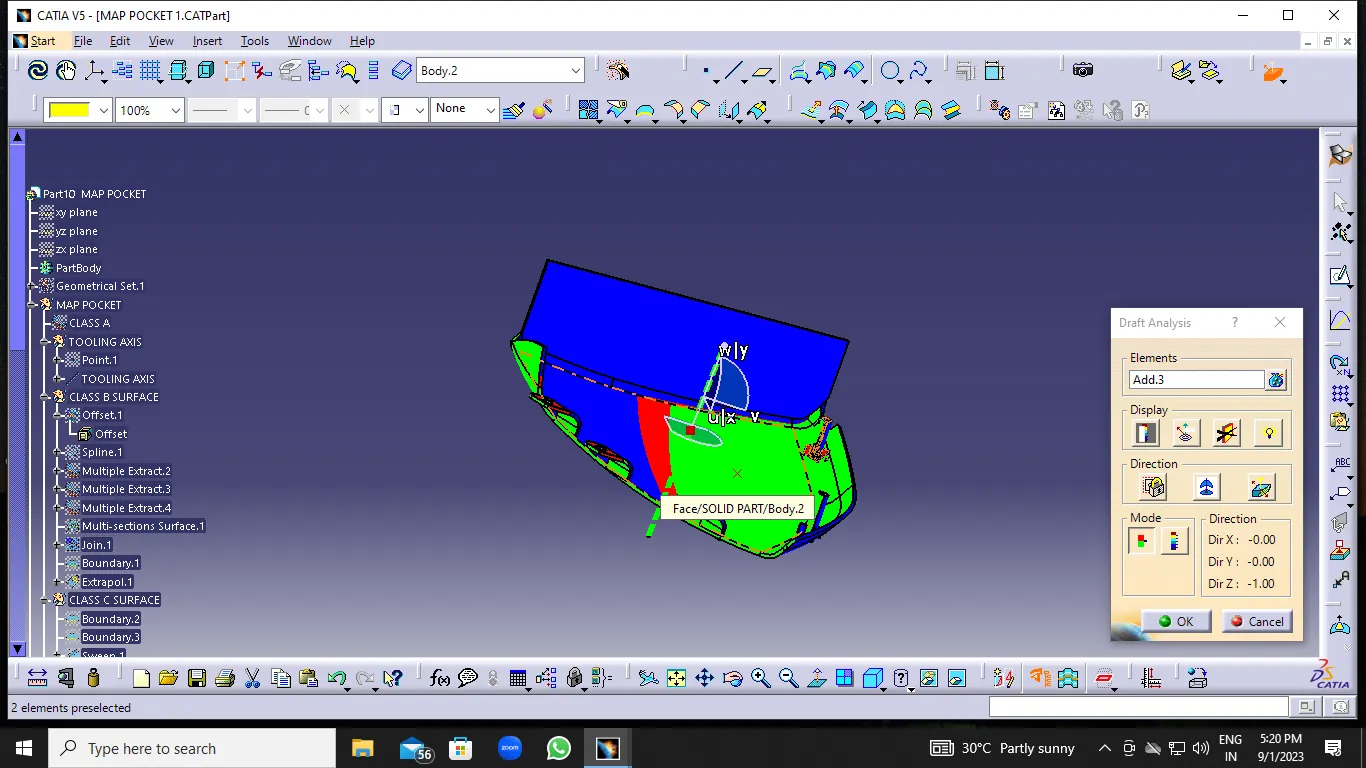

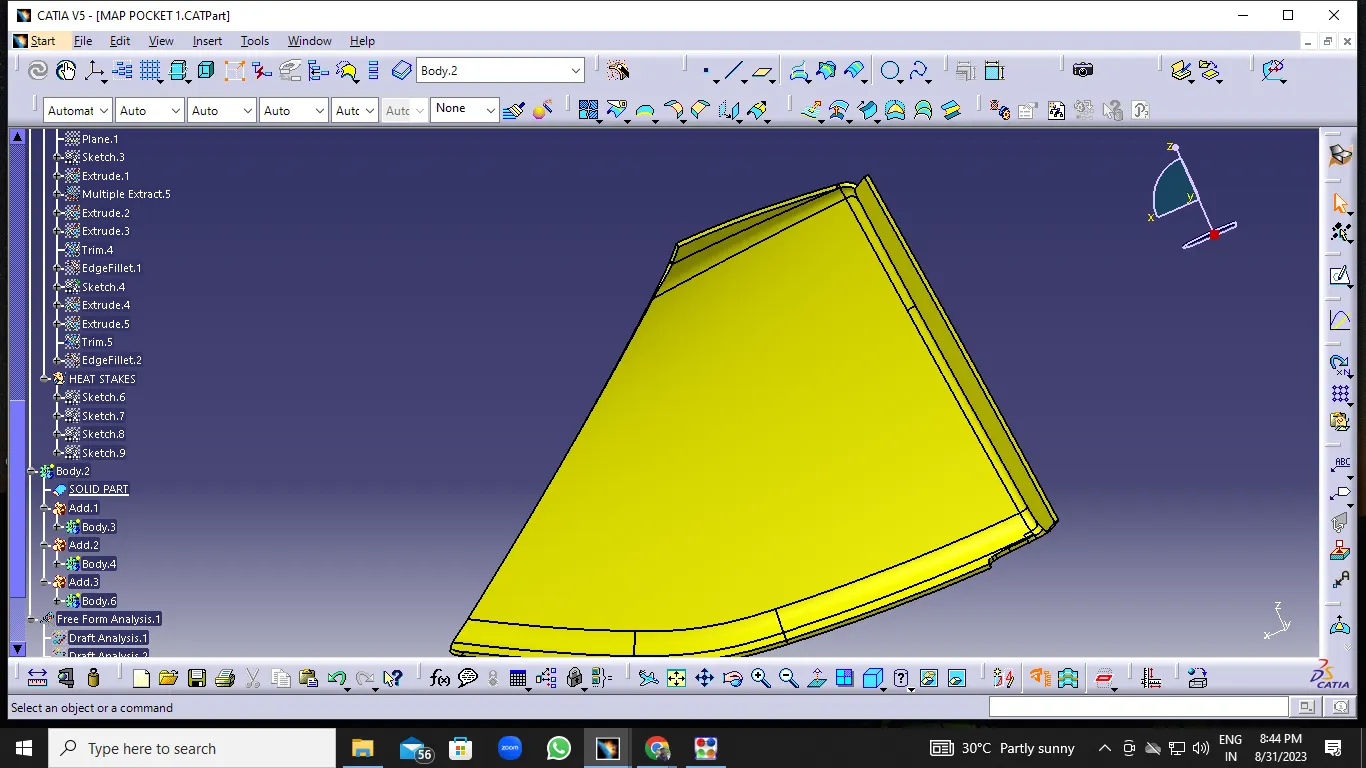

MAP POCKET

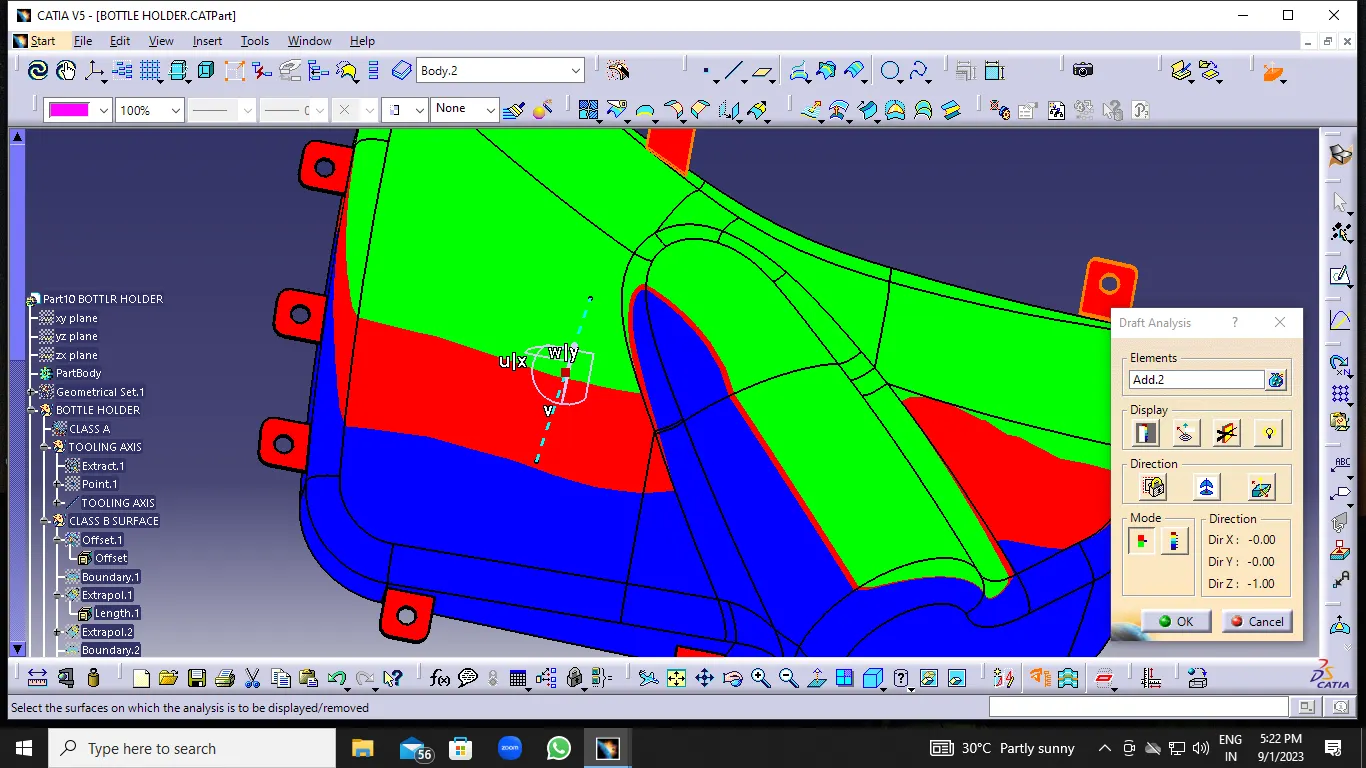

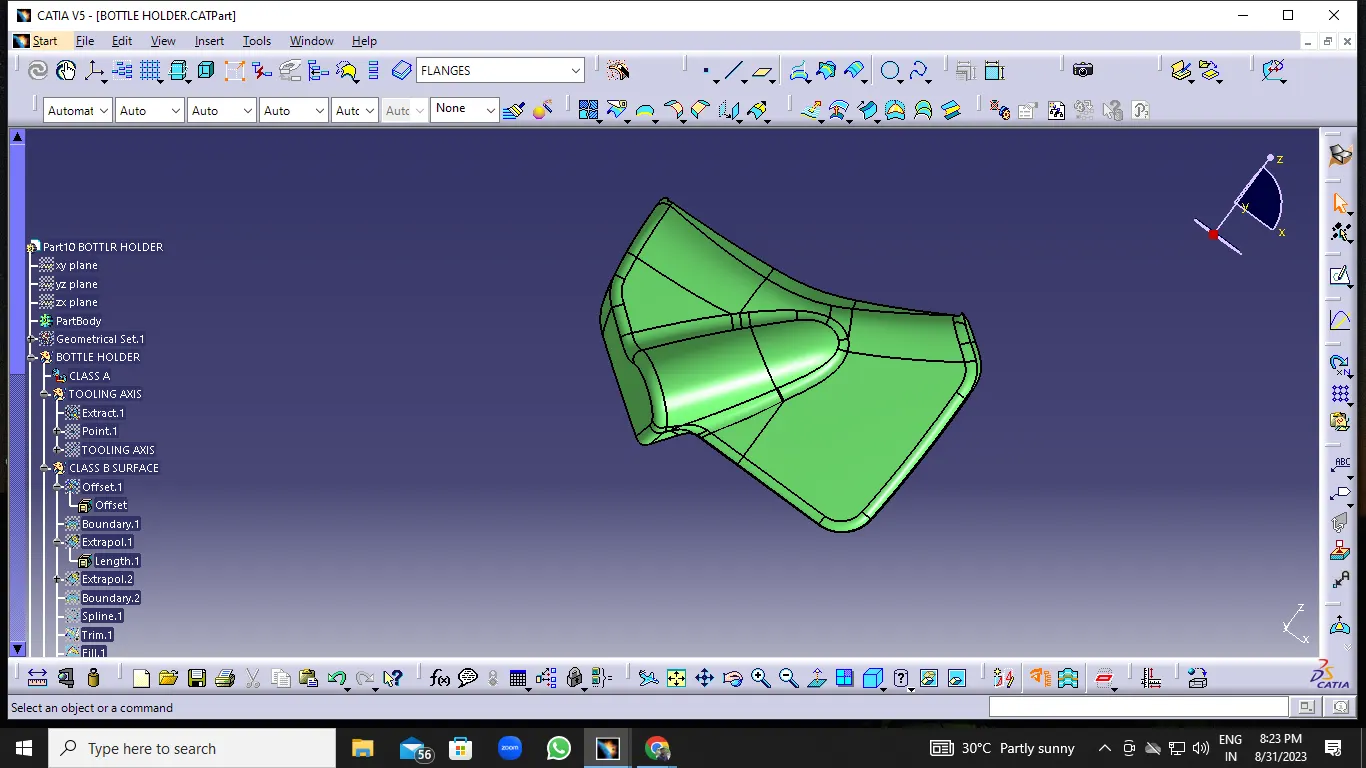

BOTTLE HOLDER

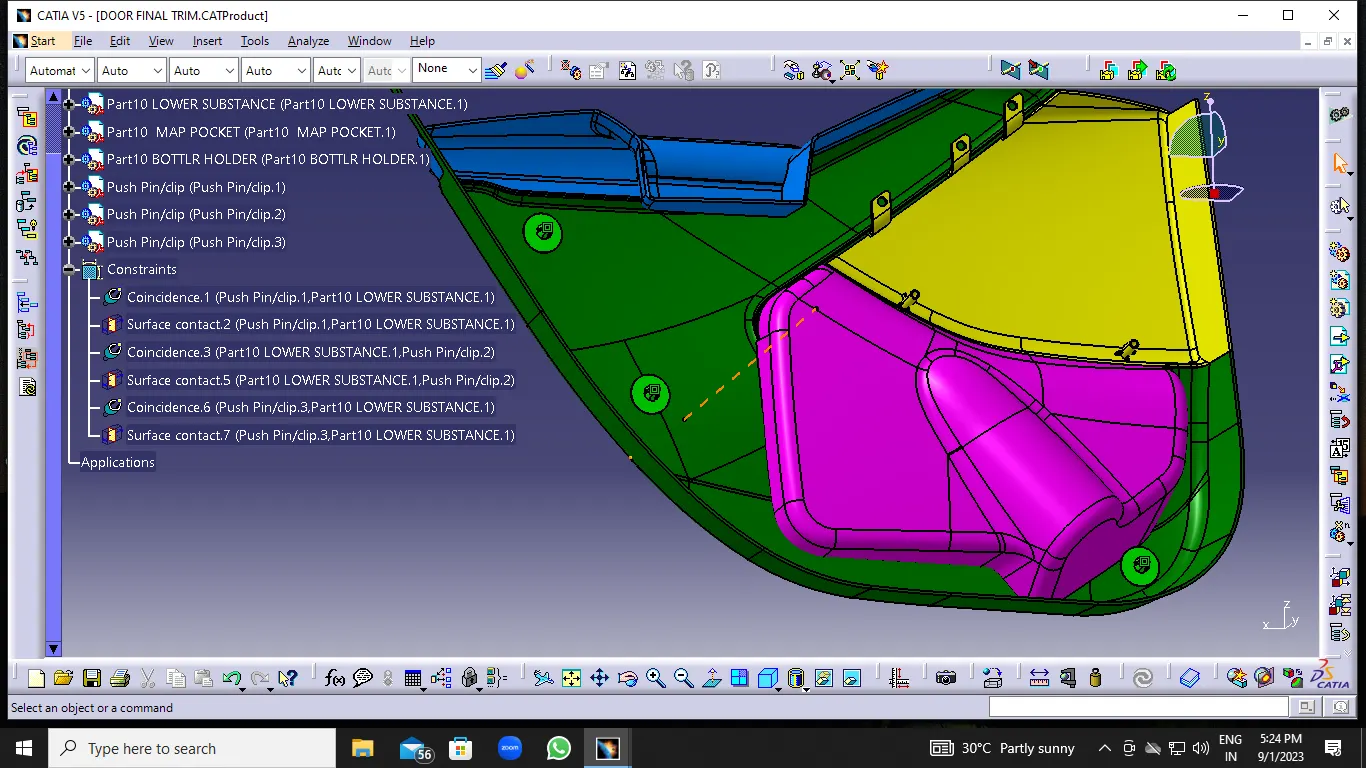

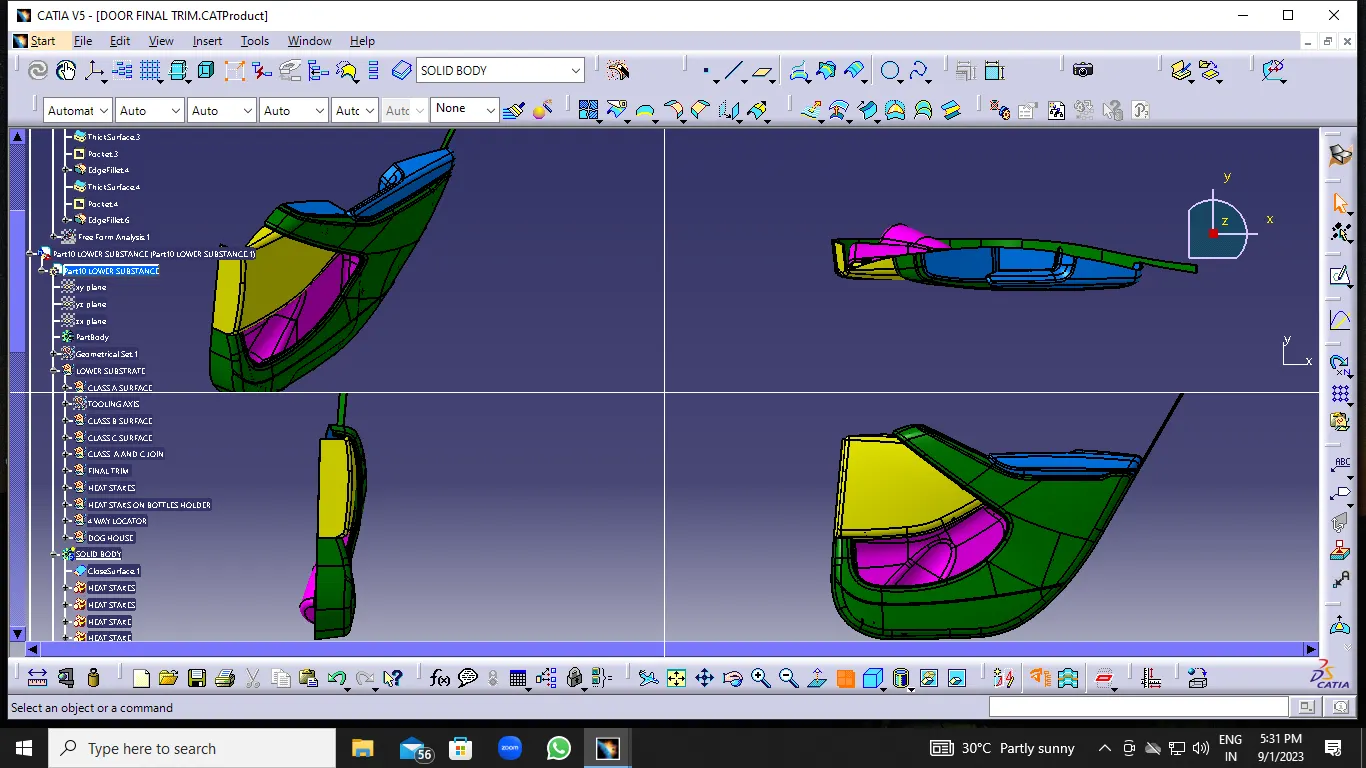

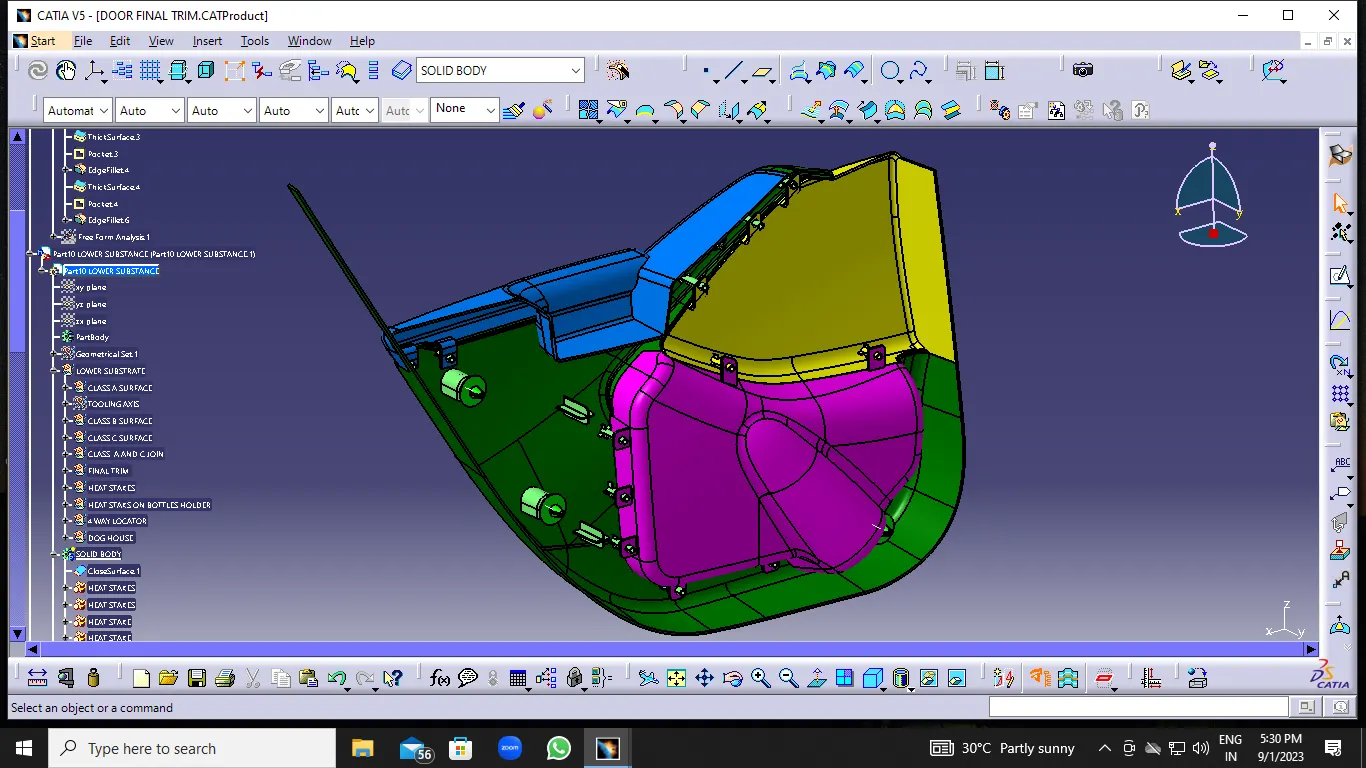

FINAL ASSEMBLY WITH PUSH CLIP
CONSTUCTIONS OF ASSEMBLY DESIGN
FINAL TRIM
VARIOUS IMAGES OF FINAL TRIM
