Week 12- Final project

CLASS A INPUT

ARMREST

CLASS A-ARM RSET ONE SURFACE PATCH WAS NOT GOOD TO WORK FIRST I WORKED ON THE CLASS A SURFACE. AND NAMED AS A CLASS A MODIFIED

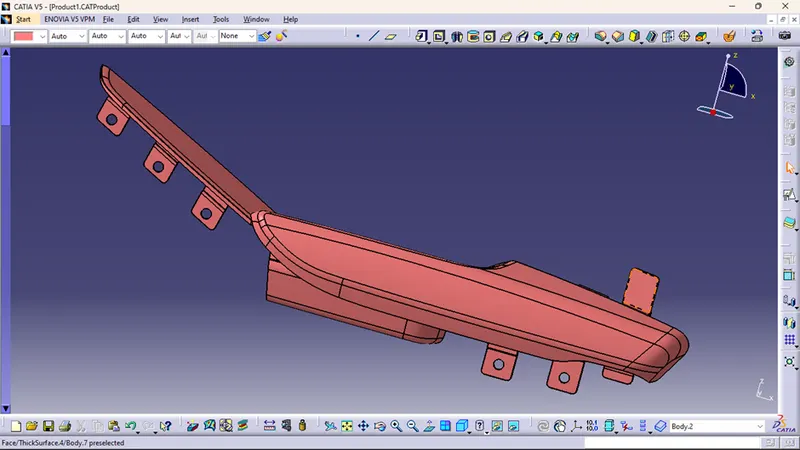

FORMATION OF CLASS B OF ARM REST

1. OFFSET CLASS A MODIFIED 2.5MM AND BROKE SOME PATCHES
2. WORKED ON SURFACE PATCHES.

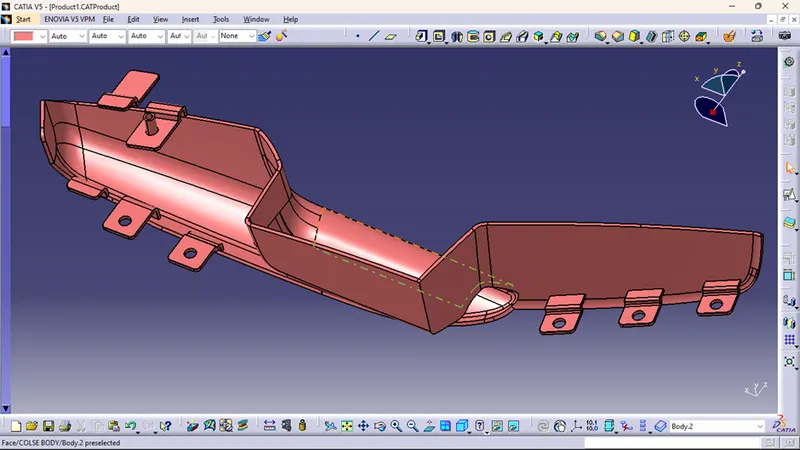

FORMATION OF CLASS C

1. TOOK A BOUNDARY OF CLASS A
2. IN SWEEP COMMAND WITH REFERENCE SURFACE AND ANGLE IS 3 DEG.
3. THEN I JOINED CLASS A AND SWEPT.
4. THEN TRIM CLASS B WITH SWEEP JOIN.
5. THEN USING A THIK SURFACE COMMAND MADE IT A SOLID BODY.

FORMATION OF HEAT STICK

1. FIRST TOOK A POINT USING A BETWEEN POIN COMMAND USING MASTER SECTION.
2. THEN ADD A PLANE OF ZX.
3. SKETCH A 2 CIRCLE OF R 3.5 AND R 2.5.
4. THEN PAD IT.
5. DRAFT THE PAD OF .5 MM
6. THEN TOOK A LINE USING A EXTRACT AND PLACE A POINT ON THE LINE
7. THEN TRANSLETE THE HEAT STIK USING A POINT-TO-POINT COMMAND.

FORMATION OF HEAT STICK ATTACHMENT

1. USING THE SAME ZX PLANE AND POINT.
2. SKETCH A LINE IN THE MIDDLE OF THE HEAT STICK
3. PAD IT WITH THIS OPTION.
4. DRAFT IT .5MM.
5. AND THEN REMOVE THE INNER PART OF THE CIRCLE USING THE REMOVE BOOLEAN COMMAND.

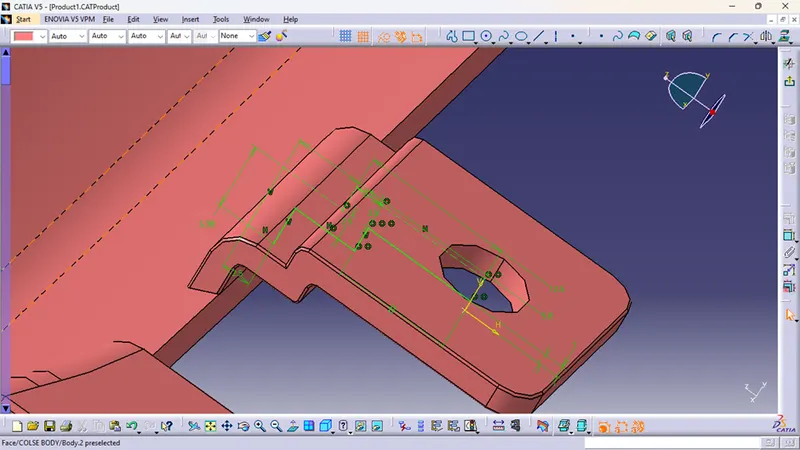

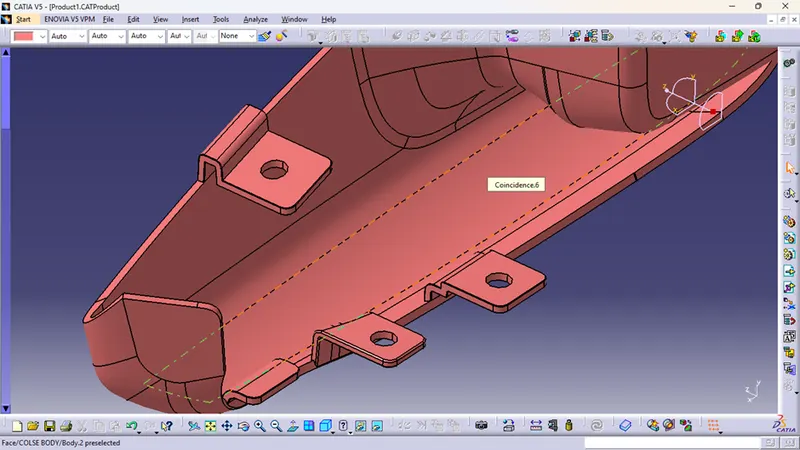

FORMATION OF FLANGE

1. TOOK A YZ PLANE AND POINT
2. USING A YZ PLANE AND POINT-POSITIONED SKETCH
3. EXTRACTED THE FLANGE LINE
4. THEN EXTRUDED
5. AND THEN TOOK ANOTHER LINE EXTRUDE FOR THE DESIRED WIDTH
6. THEN OFFSET THE EXTRUDED.
7. TRIM THE UNWANTED SURFACE
8. THEN USING A THICK SURFACE COMMAND MADE IT A SOLID SURFACE
9. THEN UNION TRIM WITH ARM REST SOLID BODY.

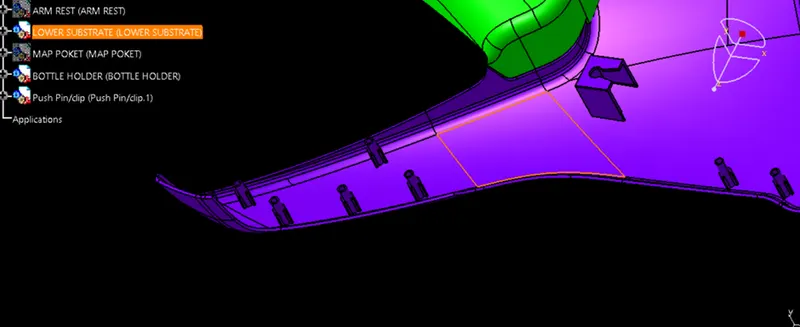

FORMATION OF LOWER SUBSTRATE

1. LOWER SUBSTRATE OF THE CLASS A SURFACE WAS GOOD NO NEED TO MODIFY.
2. TRIMED THE EXTRA SURFACE WHICH IS NOT NEEDED.
3. OFFSET IT 2.5MM.
4. TOOK A BOUNDARY ON CLASS A THEN SWEEP WITH THE REFERENCE SURFACE.
5. THEN JOIN CLASS A AND SWEEP.
6. THEN TRIMMED WITH CLASS B
7. THEN USING A THICK COMMAND MADE IT A COLSE BODY.

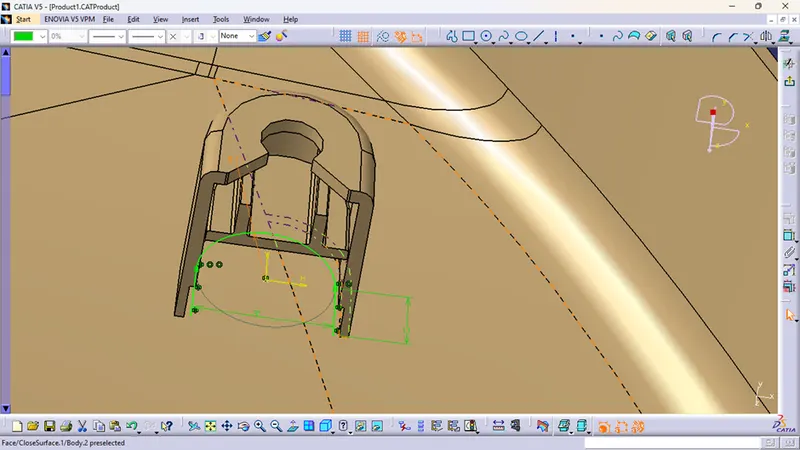

FORMATION OF DOG HOUSE

1. TOOK A POINT ON THE SURFACE, ISOLATE THE POINT THEN COORDINATE THE POINT
2. TOOK A PLANE ZX PLANE AND THE POSITIONED SKETCH.
3. DIMENSION OF THE HEAT STICK WIDTH IS 12MM AND THE HEIGHT IS TWICE OF THE WIDTH.

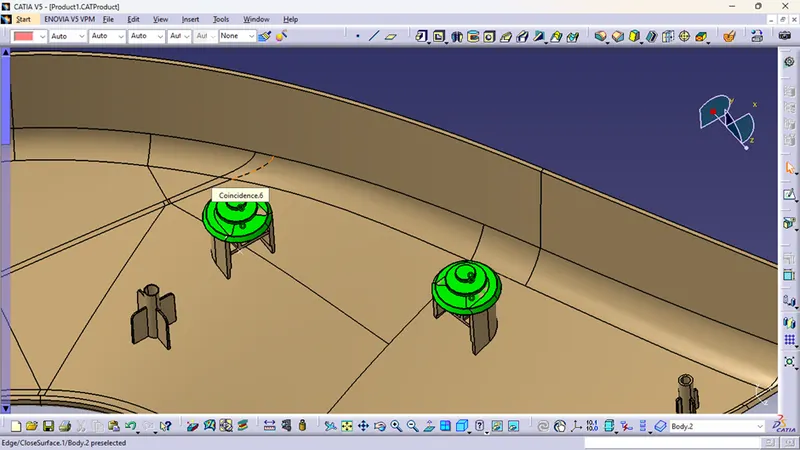

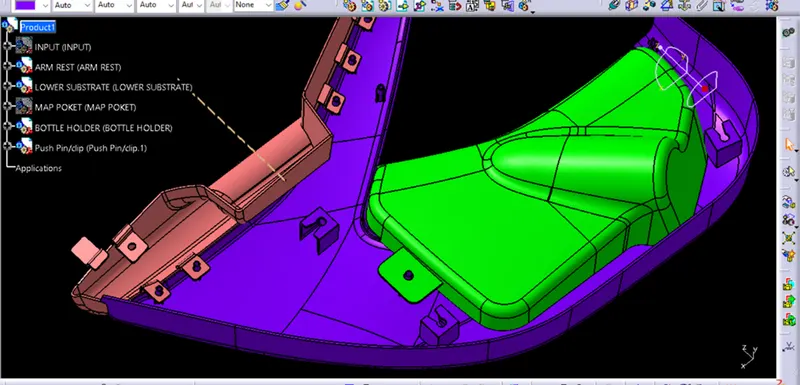

POSITION OF PUSH PIN

1. INSERT A PUSH PIN IN THE SAME PRODUCT.

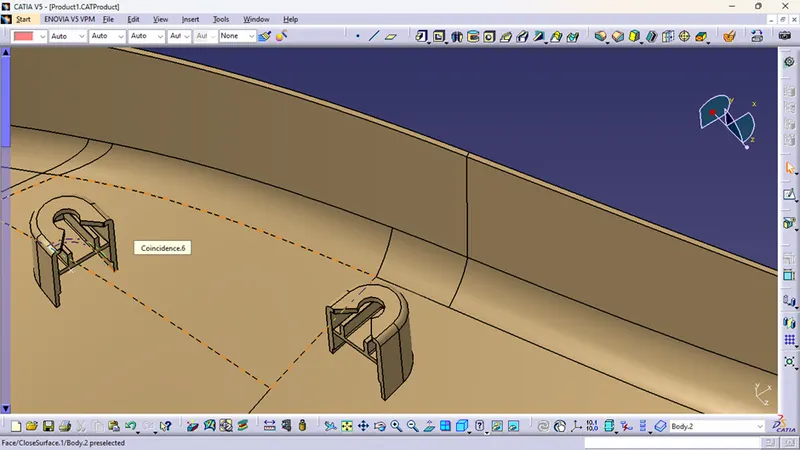

2. USING A COINCIDENCE CONSTRAINT PLACE THE PUSH PIN OVER THE DOG HOUSE.
