Fender Design - Wheel Arch Challenge

Aim: Calculate the Wheel Arch gap at the required points and check whether the car passes the European standard.

Fender Fender is the American English term for the part of an automobile, motorcycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road sprays from being thrown into the air by the rotating tire.

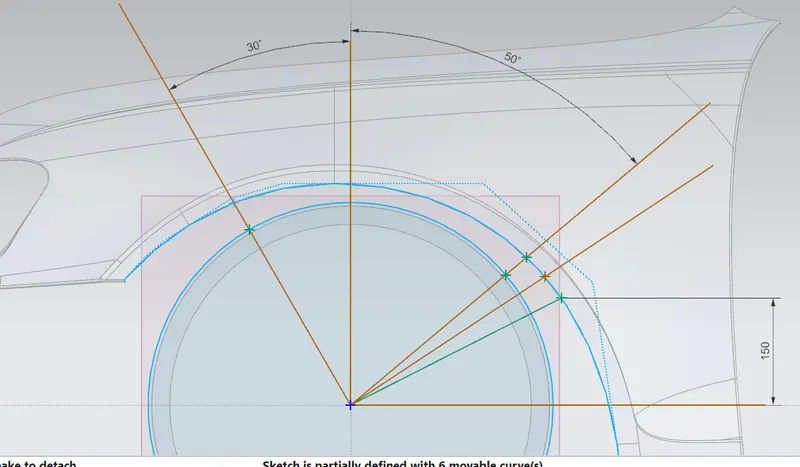

European Regulations for the wheel arch

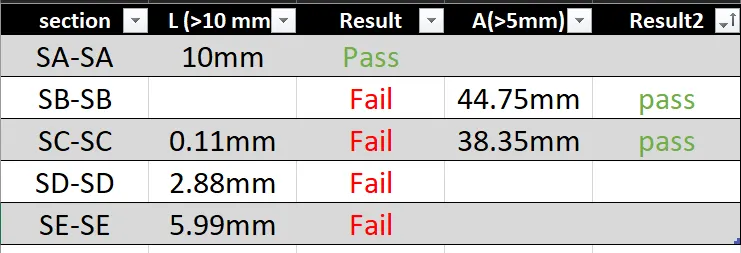

according to the European rules, I made a detailed report on the wheel arch

lets, check

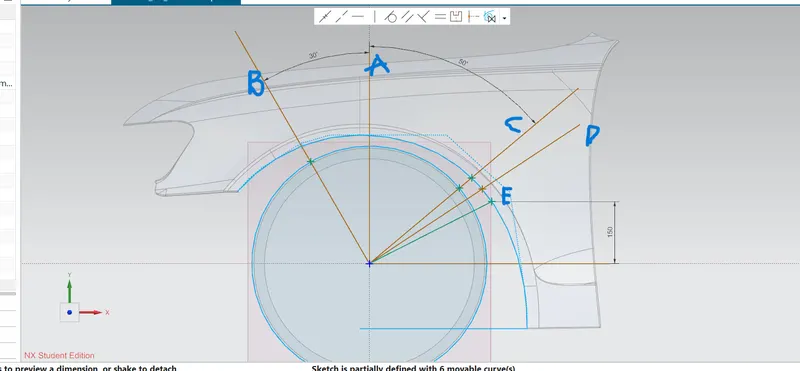

the full calculations

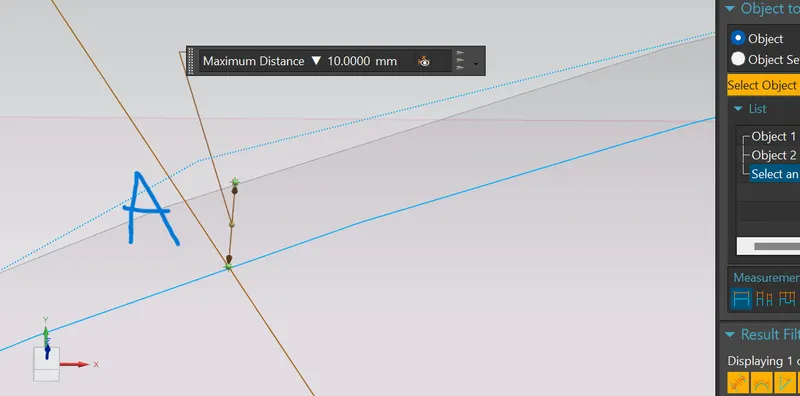

A

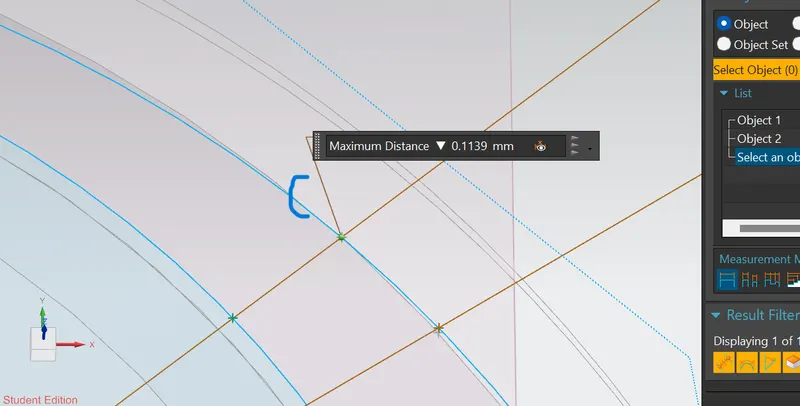

C

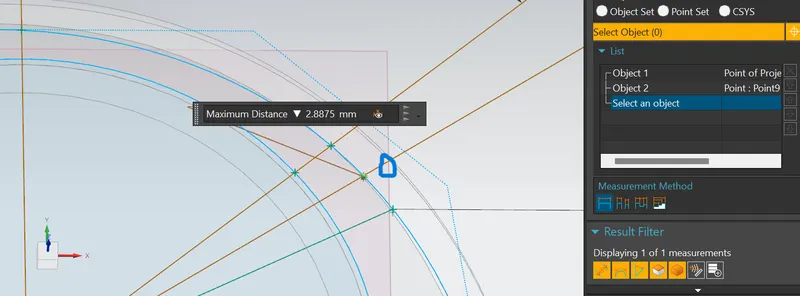

D

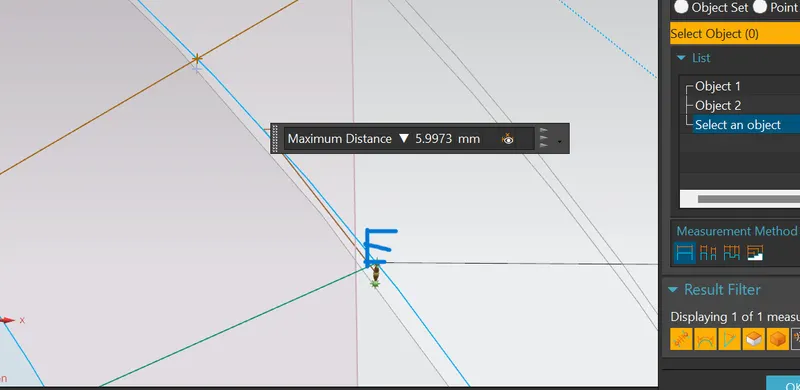

E

fender wheel arch

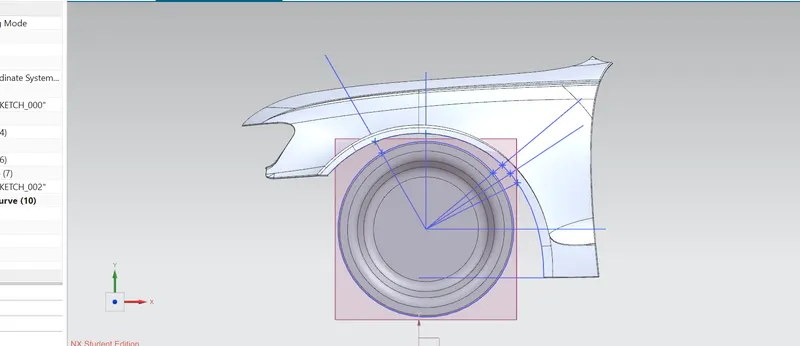

The wheel arch: it is designed considering all possible motions the tire undergoes while the vehicle is in motion. The wheel arch also ensures stopping any debris that could possibly fly outside the wheel well and hit pedestrians. HIGHLIGHTED PART IN THE IMAGE IS CALLED THE WHEEL ARCH.
